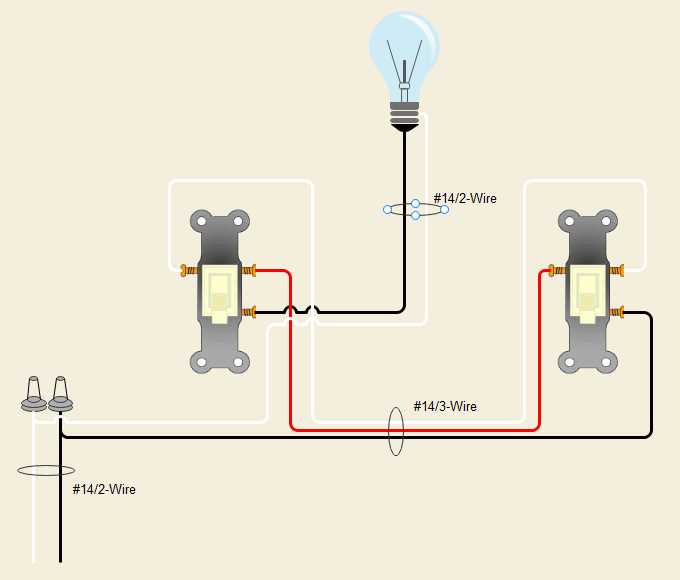

Step-by-Step Guide to Wiring a Three-Way Ceiling Light System
Begin by identifying the power source line–typically a black or red conductor carrying 120V AC. Attach this directly to the common terminal (marked COM or darker in color) on the first switch. Use a continuous 14 AWG copper wire with appropriate insulation; anything thinner risks overheating under standard 15A circuits. Label each conductor at both ends using colored tape to avoid confusion during installation.
Run three-wire cable (black, red, white plus ground) between the switches. Connect the black wire from the power source to the traveler terminal on the first switch, then link the corresponding traveler screws between switches–black to one, red to the other. The white neutral should bypass all switches entirely, connecting straight to the fixture’s junction box to complete the circuit. Ground wires must bond at every junction, terminating at the metal box or fixture frame with a green screw or grounding clip.
For fixtures requiring a neutral at the switch box (e.g., smart dimmers), pull a 14/3 cable from the power source to the first switch, then a 14/4 to the second switch–extra conductor carries the neutral forward. Verify all connections with a multimeter: test for 120V across the common and each traveler screw when toggling switches. Secure all wire nuts with electrical tape to prevent loosening under vibration.
Limit total load to 1440W (12A at 120V) across the circuit to comply with NEC 210.23. If exceeding, upgrade to 12 AWG wire or distribute loads across separate breakers. Toggle switches sequentially during testing to confirm proper toggling–each switch should independently control the fixture without flickering or partial illumination, indicating correct traveler pair alignment.
How to Install a Three-Switch Overhead Fixture Connection
Begin by identifying the power source wire–typically black or red–and the neutral conductor, usually white. Ensure the circuit breaker is off before handling any conductors. Use a voltage tester to confirm the absence of current in all wires connected to the junction box.
Connect the common terminal of the first switch to the power source. This terminal is often darker or marked differently than the traveler terminals. Attach the traveler wires (usually red and black) to the remaining terminals of the first switch, then run them to the corresponding terminals on the second switch. The neutral conductor should bypass both switches and connect directly to the fixture’s neutral input.
For installations involving multiple fixtures, maintain consistent color coding. The following table outlines standard wire assignments for a three-switch configuration:
| Wire Type | Color Code | Destination |
|---|---|---|
| Power Source | Black/Red | First Switch (Common Terminal) |
| Traveler | Red, Black | Between Switch Terminals |
| Neutral | White | Fixture (Direct) |
| Ground | Green/Bare | Switch/Fixture Ground Terminal |
Secure all connections with wire nuts, ensuring no exposed copper remains outside the nut. Wrap each connection with electrical tape for additional insulation. If the fixture has a metal housing, bond the ground wire to both the switches and the fixture’s grounding screw.
Test each switch position separately before finalizing the installation. Toggle the switches to confirm the fixture responds correctly to all combinations. If the fixture fails to illuminate, recheck the common terminal connections and traveler wire routing–these are the most frequent points of error.
For dimmable setups, replace standard switches with compatible dimmers. Verify the dimmer’s load rating matches the fixture’s wattage. Most LED-compatible dimmers require a minimum 10W load, so check manufacturer specifications before pairing components.
Label all cables within the junction box with masking tape to simplify future maintenance. Note the common terminal location on each switch for quick reference during troubleshooting. Store spare wire nuts and a flashlight nearby to assist with any unexpected adjustments.
Essential Equipment for Installing Multi-Switch Fixtures
Begin with a non-contact voltage detector–select a model with a sensitivity range below 90 volts for accurate live wire detection. Brands like Klein Tools NCVT-3 or Fluke VoltAlert offer reliability under $30. Avoid battery-dependent units without auto-shutdown; these drain quickly during prolonged use. Test the detector on a known live circuit before proceeding.
Core Installation Hardware
Secure 14-gauge NM-B copper cabling with THHN-rated insulation if routing through conduit–ROMEX simplifies retrofits but limits future modifications. Use weatherproof junction boxes (minimum 20 cubic inches) for exposed installations, ensuring UL listing for fire resistance. Three-terminal brass screws on switches prevent loosening under thermal stress; avoid back-wired push-in connections for currents exceeding 8 amps.
Wire strippers with calibrated notches for 14–12 AWG prevent conductor damage–Knipex or Greenlee models include crimping dies for grounding pigtails. For mounting, 1/4-inch toggle bolts anchor in hollow drywall (100 lb weight rating), while snap toggles suit plaster-lath substrates. Magnetic screwdrivers reduce dropped fasteners in tight spaces.
Precision Tools for Complex Configurations
Laser-guided tape measures (DeWalt DW03050) verify switch placement symmetry–align within 1/16 inch for aesthetic consistency. Multimeters with continuity testing (Fluke 117) isolate faulty switches by checking resistance across terminals. Insulated lineman’s pliers (Wiha 32399) grip 22–8 AWG conductors without stripping; compound-action handles reduce hand fatigue during prolonged terminations.
Fish tape (Vaughan BS24) simplifies pulling conductors through 1/2-inch EMT conduit–apply silica-based lubricants sparingly to avoid residue buildup. Heat-shrink tubing (3:1 ratio, polyolefin) insulates splices in damp locations; solder joints provide superior mechanical strength over twist connectors. For dimmable setups, ensure switch compatibility with LED drivers–maximum 60 watts per circuit avoids thermal overload.
Guided Installation for a Triple-Switch Overhead Fixture
Turn off power at the breaker panel before handling any conductors. Identify the feed line (black), neutral bundle (white), ground wires (bare/green), and both switch legs (typically red or marked). Strip 1/2 inch of insulation from each end using wire strippers. Connect the feed line to the common terminal on the primary switch–this is usually marked with a darker screw or labeled “COM.” Twist the neutral wires together with a twist-on connector, ensuring all strands are fully enclosed. Attach ground wires to the switch’s grounding screw, then join them with a pigtail leading to the fixture box’s ground bus if present.
Link the switch legs to the traveler screws–these are lighter-colored terminals on both switches. Insert the red or marked conductor into one traveler terminal on the first switch and the other end into the matching terminal on the second switch. For the overhead unit, connect its hot lead (often black) to the remaining traveler terminal on the secondary switch. Secure all connections with connectors, fold conductors neatly into the electrical box, and attach the device plates. Restore power and test toggle functionality–flipping either switch should alternate the fixture’s state.
Determining Conductors in a Multi-Location Switch Configuration
Start by locating the common terminal on both switches–it’s often marked with a darker screw or labeled “COM.” This conductor carries power from the source or directs it to the fixture, depending on the switch’s role. The other two terminals (typically brass or lighter-colored) are intercable links; these alternate roles between energized and return paths when toggling either switch.
Use a non-contact voltage tester to isolate the energized lead at the primary box. With the system live, one intercable link will register as hot; flip the distant switch, and the active signal shifts to the other intercable connector. The persistent live wire at the fixture box is typically neutral, paired with a colored conductor (commonly white).
At the terminal block where the fixture connects, separate the bundle: one insulated strand (usually copper or bare) grounds the chassis, while another (often white) must terminate at a neutral bus. Confirm by checking continuity with a multimeter between this white strand and the neutral bar in the main service panel–zero resistance verifies correct linking.
For precision, label each intercable strand with masking tape: mark the first switch’s output as “T1” and “T2,” then mirror these tags at the remote switch. This labeling prevents confusion if swapping components later. When verifying, ensure neither T1 nor T2 remains hot simultaneously; one should always revert to a dead state when toggling between modes.
If the setup includes more than two toggles, trace each intercable strand back to its origin. Modern installations often bundle them in a single cable sheath, simplifying identification. Older setups may run separate conduits–here, continuity testing across both ends confirms which wires bridge the switches.
In rare installations where switches share a combined upstream/downstream role, the common conductor at one switch may link directly to the fixture’s live lug. Test this scenario last: if flipping switches fails to alter the fixture’s state, the connection diagram likely differs from standard alternates, and further tracing is required.
Always recheck connections after any manipulation–miswiring risks damaging switches or creating hazardous open neutrals. Once verified, secure all terminals with wire nuts snugged to prevent loosening and wrap exposed conductors with electrical tape, insulating any splices or accidental strands.
