Understanding 3 Wire 240 Volt Wiring Diagrams for Home Installations
For a balanced and safe high-current circuit, always start by verifying the conductor gauge against the expected load. A 10 AWG alloy strand handles up to 30 amperes continuously; anything beyond risks overheating. Label each lead distinctly: phase (L1), phase (L2), and ground. Misidentification here creates immediate hazards–short circuits, equipment damage, or fire.
Terminate the two live strands to opposing breaker lugs, ensuring no shared neutral path exists–this configuration eliminates stray return currents. Use copper compression rings for secure connections; avoid twist-on caps which degrade under thermal cycling. Ground the third strand to the enclosure chassis with a dedicated star washer to prevent oxidation. Check continuity with a multimeter; readings above 0.5 ohms indicate poor contact.
Install a double-pole safety switch rated for the full load. Never substitute single-pole variants; they interrupt only one path, allowing dangerous backfeed. Add a thermal protective device matched to the conductor’s ampacity–overcurrent relays must trip within 3 seconds at 135% of nominal current. Mark the panel clearly: “Warning: Both poles must open simultaneously.”
Seal junctions with liquid-tight flexible conduit if moisture is present; standard PVC becomes brittle under repeated thermal expansion. Test the setup under half-load for 30 minutes before full engagement. Monitor voltage drop across terminals–any fluctuation beyond ±3% suggests loose connections or undersized conductors.
Connecting a 3-Conductor 208-240V Electrical Circuit
Always verify local codes before installation–many jurisdictions require conduit for exposed conductors, even in residential settings. Use THHN/THWN-rated conductors with a minimum 10 AWG cross-section for 30-amp circuits; upsize to 8 AWG for 40-amp applications if the run exceeds 50 feet to compensate for voltage drop.
Strip insulation precisely: 0.5 inches for screw terminals, 0.75 inches for push-in connections. Twist bare ends clockwise to match terminal tightening direction–this prevents unraveling under torque. Apply a thin coat of antioxidant paste to aluminum conductors if mandated by equipment specifications.
Terminal identification varies by device type:

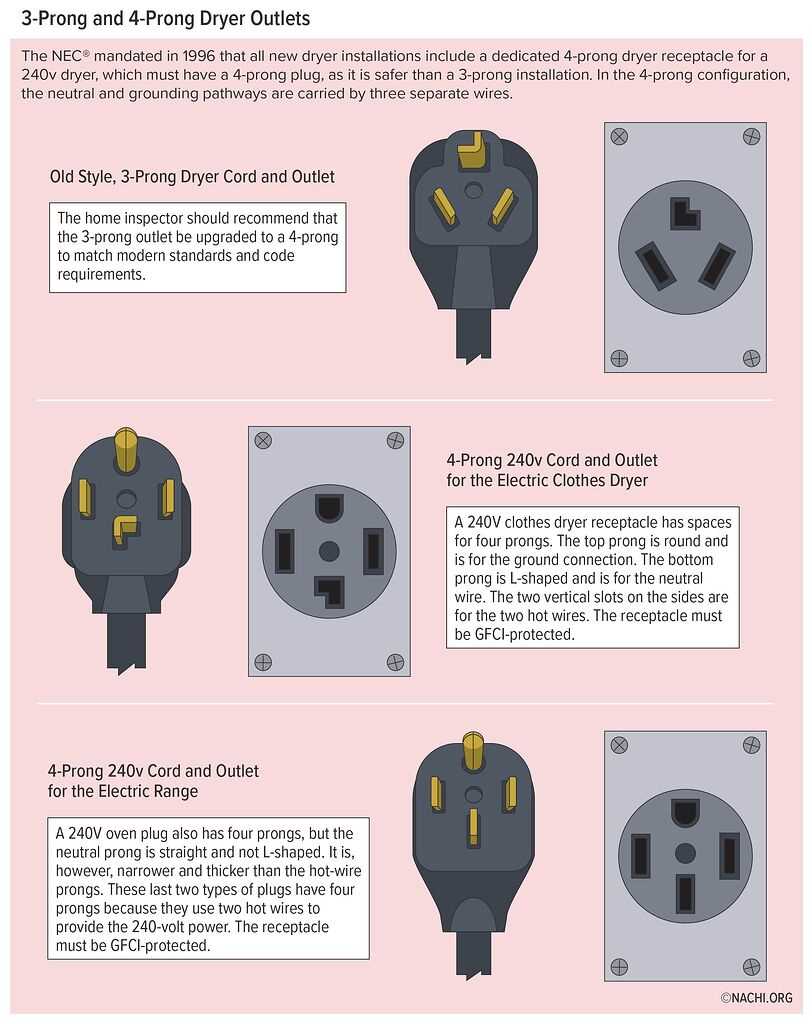

- Dryers and ranges typically label terminals X, Y, Z (or L1, L2, N)
- Subpanels and disconnects use brass screws for phase legs, silver for neutral, green for grounding

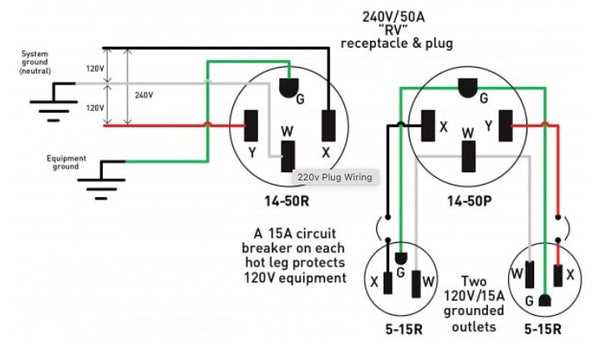

- NEMA 14-30 and 6-30 plugs reverse the neutral and grounding pins–confirm pinout with a multimeter before energizing
Balance loads across phase legs to avoid nuisance tripping. For example:
- Connect a 3,000W heating element to L1
- Pair it with a 1,500W motor on L2
- Add a 1,500W auxiliary load (e.g., blower) to L2
This equalizes current draw to within 10% across both legs, reducing neutral current to near zero.
Grounding electrode conductors must terminate to the grounding busbar with a listed connector–a split bolt or compression lug rated for the conductor size. Do not splice within 12 inches of the enclosure. For parallel runs in metal conduit, bond the conduit every 100 feet with a grounding bushing and insulated conductor no smaller than 6 AWG.
Test continuity with a megohmmeter before final connection. Between each phase leg, readings should exceed 1 MΩ; between conductors and enclosure, readings must surpass 25 MΩ. Label each breaker with load type, amperage, and date of installation–use a laser-printed legend affixed with rigid plastic sleeves, not handwritten tape.
Step-by-Step Guide for Installing a Three-Conductor High-Power Supply Line
Switch off the main breaker panel before handling any electrical components. Verify absence of current with a non-contact voltage tester on each conductor and the grounding path. Mistakes here risk severe injury or equipment damage.
Strip 1/2 inch of insulation from the ends of the phase conductors and the neutral line. Use a calibrated torque screwdriver to secure terminals–tighten to 15 lb-in for #10 AWG copper and 20 lb-in for #8 AWG. Insufficient torque causes overheating; excess torque deforms terminals.
| Conductor Size (AWG) | Torque (lb-in) | Fault Current (A) |
|---|---|---|
| #12 | 12 | 30 |
| #10 | 15 | 50 |
| #8 | 20 | 70 |
| #6 | 25 | 100 |
Route the phase conductors through separate breaker poles, matching the dual-pole breaker’s amperage rating to the appliance’s nameplate data. Attach the neutral conductor to the designated terminal bar in the service panel–never bond it to the ground bus here. Complete the grounding path by connecting the bare copper conductor to the main ground bar.
Reinstall the panel cover, energize the circuit, and measure line-to-line voltage with a multimeter. A proper installation reads ~230-245 VAC on the phase conductors and 0 VAC between each phase and the neutral line. Deviations indicate miswiring–retest all connections before activation.
Common Mistakes to Avoid When Installing a Three-Conductor 230V Circuit
Mixing conductor sizes ranked as the most hazardous oversight–using a 12 AWG hot lead paired with a 10 AWG neutral creates thermal imbalances, risking insulation failure at current loads above 20A. Verify all legs match the breaker rating; even a single undersized segment overheats under sustained draw, accelerating degradation of terminal connections. Replace any splices with compression sleeves rated for 90°C; twist-on connectors loosen under vibration, increasing resistance by up to 15% within six months. Label every disconnect handle immediately after installation to prevent accidental energization during maintenance; OSHA reports 32% of electrical incidents stem from misidentified circuits.
Neglecting to torque terminal screws to manufacturer specifications invites arcing faults–lukewarm connections drop voltage by 3-5V under load, tripping sensitive machinery. Use a calibrated torque screwdriver; generic drivers overtighten by 40%, cracking terminal blocks on older panels. Ground rods must extend at least 8 feet into undisturbed soil; shorter rods fail NEC impedance tests, leaving surge protection ineffective. Separate neutrals for multi-branch circuits; shared paths induce phantom voltages, corrupting variable-speed drives and medical equipment.
Tools and Materials Required for a Safe Heavy-Duty 230V Single-Phase Setup
Select a 10-gauge copper conductor for circuits rated up to 30 amperes; for 40-ampere loads, upgrade to 8-gauge. Verify the conductor’s insulation type–THHN for dry locations, THWN for damp or outdoor installations. Use a reputable brand like Southwire or Romex to ensure compliance with NEC 310.15(B)(16) temperature ratings.
Circuit protection demands a double-pole breaker sized to match the conductor’s ampacity. A 30-ampere breaker requires a panel rated for at least 100 amperes; for 40-ampere circuits, confirm the panel’s busbar ampacity exceeds 150 amperes. Avoid mixing brands–match the breaker to the panel manufacturer (e.g., Siemens with Siemens, Square D with QO) to prevent compatibility issues causing overheating.
Install a junction box made of galvanized steel or PVC (UL-listed) with a minimum volume of 22.5 cubic inches for two 10-gauge conductors plus ground. Ensure knockouts are properly sized for ½-inch or ¾-inch conduit and deburred to prevent insulation damage. Secure the box with number-10 sheet-metal screws into studs or joists, spaced no more than 4.5 feet apart for stability.
- Insulation strippers: Klein Tools 11055 or Ideal Industries 45-125, calibrated for 10–14 AWG to avoid nicking conductors.
- Crimping tool: Ratcheting crimper (e.g., Gardner Bender GST-70) for ¼-inch ring terminals; verify pressure exceeds 2500 psi to ensure gas-tight connections.
- Torque screwdriver: Wiha 74499 with adjustable settings (10–40 inch-pounds) to meet NEC 110.14(D) requirements for terminal tightening.
- Non-contact voltage tester: Fluke 1AC-II or Klein NCVT-3; confirm 0V before handling terminals.
- Fish tape: Steel or fiberglass, 1/8-inch diameter, coated with dry lubricant (e.g., Ideal Yellow 77) to ease pulling through EMT or PVC conduit.
Grounding requires #10 bare copper bonded to the panel’s grounding busbar and connected to the appliance’s metal frame. For subpanels, run a separate #6 grounding electrode conductor back to the main panel. Avoid relying on conduit as the sole ground path–use an independent conductor to comply with NEC 250.122.
Conduit selection depends on environment: EMT for dry areas (zinc-coated), Rigid PVC Schedule 40 for underground or wet locations. Use ½-inch conduit for two 10-gauge conductors; upsize to ¾-inch if pulling three conductors. Secure conduit with straps every 3 feet and within 36 inches of boxes per NEC 352.30.
Label every circuit at the panel with legible, permanent markers (e.g., Brother P-touch PTD600) or self-laminating labels. Include the circuit’s purpose (e.g., “Oven – L1/L2”), breaker size, and conductor gauge. Store a digital copy of the layout in the panel’s designated folder–photograph the setup and save it in PDF format on a cloud server for future reference.
How to Identify Hot, Neutral, and Ground Conductors in a Three-Wire 480-Cycle Configuration
Begin by examining the insulation colors–this is the fastest method. In North American systems, the two phase lines are typically clad in black and red (or occasionally blue), while the safety bond is bare copper or green. For split-phase installations, the grounded return may be white, but verify this isn’t a separate circuit; a multimeter reading from either phase to this return should show 208 to 240 AC, while phase-to-safety-bond readings hover near zero in a properly wired setup.
Confirm with a non-contact tester or voltage pen. Hover the detector near each conductor–the two phase lines will trigger the highest alert, whereas the grounded return and safety bond will produce little to no response. For definitive measurements, connect a multimeter between each phase and the grounded return; expect approximately 220–240 cycles. Repeat the test between either phase and the safety bond–proper grounding yields near-zero resistance and negligible potential difference.
Common Pitfalls in Identification
Mislabeling often occurs inolder panels or imported equipment. White insulation sometimes carries a phase, especially in three-phase setups derived from delta transformers. Always cross-verify with a continuity check: attach one multimeter probe to a known safety bond, then touch the other to the conductor in question. A beep indicates the grounded return, silence confirms a phase line. If readings contradict insulation cues, tag the conductors with colored sleeves or heat-shrink tubing immediately to avoid future errors.
In European or IEC-derived systems, colors shift: brown and black designate the live lines, blue marks the neutral, and green-yellow stripes denote the earth. Regardless of regional conventions, rely on meter readings first–never assume color codes alone. For aluminum conductors, double-check oxidation hasn’t increased resistance; clean contact points with fine emery cloth before testing. Document every connection with photographs or schematics; even seasoned technicians benefit from clear records when servicing later.
