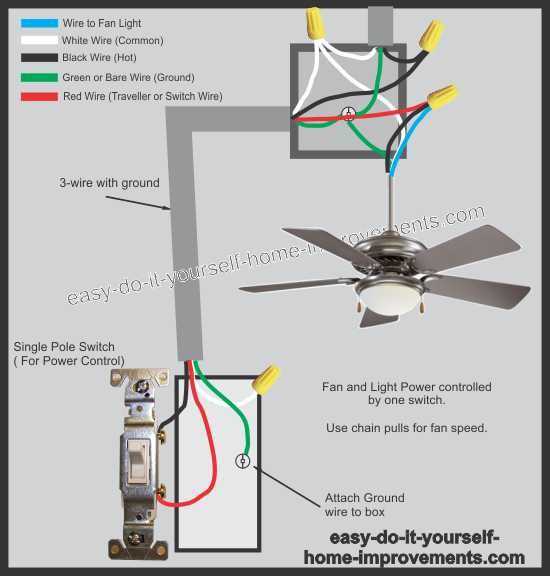

Step-by-Step 3 Wire Ceiling Fan Wiring Guide With Light Connection
Directly connect the supply phase (hot) conductor to both the rotary mechanism’s primary input terminal and the luminaire’s designated switch leg–this ensures concurrent operation without interference. Use 14-gauge solid copper for household circuits (15A) or 12-gauge for 20A configurations to prevent overheating under combined loads.
Route the return (neutral) path from the main electrical panel to the rotary unit’s white terminal and the luminaire’s common neutral terminal–this common neutral maintains balanced current flow, critical for stable performance. Confirm all neutral splices are secured with UL-listed twist-on connectors or push-in terminals rated for the gauge used.
For the control circuitry, attach a switched phase conductor (typically red) from the wall control to the rotary unit’s secondary terminal or dedicated dimmer input–verify compatibility with the unit’s motor type (AC induction or DC with inverter) to avoid humming or premature failure. If the luminaire requires independent control, branch an additional separate switch leg from the wall switch to the lamp’s input, ensuring it bypasses the rotary mechanism’s control module.
Ground the entire assembly via the bare or green-insulated conductor, linking it to the mounting box’s grounding screw and the rotary unit’s metal housing. In older constructions without a dedicated ground, retrofit a GFCI-protected circuit upstream–this is non-negotiable for safety in damp environments. Always verify continuity with a multimeter before powering the circuit to confirm no breaks exist in spliced connections.
Understanding Connections for a Three-Conductor Ventilator Installation Including Illumination
Begin by identifying the three conductors: the black (live), blue (auxiliary live), and white (neutral) terminals on both the motor assembly and the lighting kit. The black lead powers the rotor’s main speed, while the blue manages the attached bulb–ensure these align with the corresponding household circuit terminals to prevent phase mismatch.
For single-switch control, splice the black and blue conductors together before connecting to the incoming live terminal. This configuration forces both components to operate simultaneously when the wall switch activates. Verify tightness of all connections using a torque screwdriver set to 10-12 inch-pounds to avoid loose contacts causing intermittent operation.
When separating functions–rotor speed and bulb activation–route the incoming live through a dual-switch setup. Split the black and blue conductors, attaching each to its own switch terminal. The white neutral remains common: connect it directly to the power source’s neutral bar without splicing to preserve consistent current return.
Grounding remains non-negotiable. Attach the green or bare copper strap from the suspension bracket to the metal junction box’s grounding terminal using a 10-gauge solid jumper. Failure to ground leaves the entire assembly susceptible to shock hazards during insulation breakdown, even in low-voltage circuits.
Test polarity before finalizing mountings. A non-contact voltage detector should confirm zero current on neutral and ground terminals while the switches remain off. Rotate rotor blades manually to check for binding–any drag suggests misaligned cones during suspension, requiring recalibration before live current application.
Troubleshooting Common Misfires
If the rotor hums but fails to spin, suspect a reversed black and blue inversion. Swap their positions at the junction box–modern electronically commutated motors tolerate no polarity flips, unlike older capacitor-start units. Should the illumination flicker, inspect the blue terminal for series resistance over 0.5 ohms; replace the connection crimp or use terminal lugs rated for 15A continuous draw.
Always terminate unused conductors with UL-listed twist-on connectors regardless of circuit status. Cap the blue terminal if removing the illumination kit later to prevent accidental dead shorts against grounded suspension rods. Keep a 6-foot clearance from insulation during permanent fixing–thermal buildup in confined spaces risks tripping overload protection despite proper ampacity ratings.
Recognizing Conductors in Your Fixture and Junction Housing
Start by examining the three primary leads in the overhead appliance: the live (typically black or red), neutral (white), and ground (bare copper or green). The junction housing will mirror these–inspect for matching colors before proceeding. If mismatches exist (e.g., blue instead of black), use a non-contact voltage detector to confirm the hot lead. Mark ambiguous conductors with electrical tape immediately to prevent errors.
Verifying Matching Terminations
| Fixture Lead | Junction Housing Lead | Function |
|---|---|---|
| Black/Red | Black/Red | Current-carrying (energized) |
| White | White | Return path (non-energized) |
| Bare/Green | Bare/Green | Safety discharge |
Double-check polarity with a multimeter: set to AC voltage (200V range), probe the hot and neutral slots–an outlet should read ~120V. Repeat for the appliance’s leads if the circuit is live. For older installations, expect a bare white lead acting as the hot; label it black with tape to align with modern standards.
Step-by-Step Connection Guide for Black, White, and Red Conductors
Shut off power at the circuit breaker before handling any leads. Verify the circuit is dead using a non-contact voltage tester–hold the probe near each conductor for 3 seconds to ensure no current remains. If the tester beeps or lights up, recheck the breaker or consult an electrician before proceeding.
Match the neutral (white) lead first. Connect it to the corresponding white supply line in the junction box using a twist-on connector rated for 14-12 AWG. Secure the connection with a clockwise twist until no bare metal is visible, then tug each strand firmly to confirm it won’t pull free. Wrap the joint with electrical tape if the connector feels loose.
Attach the black lead to the main power feed (typically marked “hot”). For standard installations, this enables full-speed operation when the wall switch is turned on. If your setup includes a secondary control (like a dimmer or speed adjustment), link the red conductor to the switched live terminal instead. Here’s how to identify the correct pairing:
- Single-switch systems: Combine black-to-black only.
- Dual-switch setups: Connect black to unswitched hot, red to the switched lead.
- Pull-chain models: Cap red with a wire nut if unused, or tie it to black if the device lacks separate controls.
After securing all connections, fold them neatly into the junction box, ensuring no strands touch the box’s metal edges. Reattach the mounting bracket, restore power, and test each function–primary power, secondary switch (if applicable), and illumination–before finalizing the cover plate.
How to Properly Ground the Installation for Electrical Safety
Begin by verifying the grounding conductor’s continuity at the junction box. Use a multimeter set to resistance mode–probe the bare or green conductor against the metal housing of the fixture. A reading below 1 ohm confirms a solid path; anything higher signals corrosion, loose connections, or a missing link. If the box itself isn’t grounded, retrofit a grounding pigtail by splicing it to the nearest grounded circuit conductor or installing a grounding screw into the box’s threaded hole.
Bond all conductive components without exception. Metal downrods, motor housings, and light kits must share a single grounding pathway. Crimp a ring terminal to the end of a 14 AWG copper grounding strand and secure it under a designated grounding screw on the motor’s base. For suspended models, run the strand alongside the power cables inside the downrod, ensuring it’s neither taut nor tangled. In older structures where the supply lacks a grounded conductor, drive an 8-foot copper-clad rod at least 8 inches from the foundation and connect it via a 6 AWG bare copper wire.
Testing After Grounding
After securing all connections, power the circuit and check for leakage currents. Set the multimeter to AC voltage–probe the fixture’s metal parts against a known ground. Readings above 3 volts demand immediate troubleshooting: inspect splices, tighten terminals, and replace damaged conductors. For added assurance, use a ground fault circuit interrupter (GFCI) receptacle upstream of the installation, especially in damp environments. Document resistances and voltages in a maintenance log to track long-term integrity.
Troubleshooting Common Issues After Installing a Three-Conductor Setup
If the motor hums but fails to rotate, verify the capacitor’s charge state. A faulty or improperly connected capacitor often disrupts phase shift, causing stalled operation. Disconnect power, then discharge the capacitor by shorting its terminals with an insulated screwdriver. Measure capacitance using a multimeter–values should match the manufacturer’s rating (±6%). Replace if readings fall below 80% of specified microfarads. Check for secure terminal connections; corrosion or loose screws can mimic capacitor failure. For intermittent rotation, inspect the pull-chain switch contacts with a continuity tester–oxidized internals may require cleaning with electrical contact cleaner or replacement.
- Dim illumination: Ensure the current limiter resistor hasn’t degraded (common in older units). Test resistance (typically 10–50 Ω) and replace if open.
- Single-speed operation: Confirm the run capacitor polarity is correct–reversed leads cause erratic behavior.
- Unresponsive controls: Examine the hub assembly for stripped gear teeth in speed selector mechanisms (especially in models with plastic gears).
- Excessive vibration: Balance blades with adhesive weights; static imbalance exceeding 0.3 oz-in triggers noticeable wobble.
- Tripping breaker: Rule out ground faults by measuring hot-to-chassis resistance (should exceed 1 MΩ). Leakage current above 0.5 mA indicates insulation breakdown.
- Remote failures: Check the RF receiver’s 3V power supply. Swollen or overheated voltage regulators often disrupt signal processing.
