How to Wire a 3 Wire Pressure Transducer Step by Step Guide

For reliable signal transmission, connect the excitation lead (typically red) to a stable 5V DC supply. The return path (black or ground) should terminate at the system’s reference point–ensure it shares the same ground as the measuring device to prevent offset errors. The output (often white or yellow) carries a 0.5–4.5V proportional signal; route it directly to a high-impedance input (10 kΩ minimum) to avoid loading effects.

Use twisted shielded cable for runs exceeding 3 meters–pair the output and ground conductors, then ground the shield at a single point (preferably the sensor side). Avoid daisy-chaining shields; this introduces ground loops. For noisy environments, add a 0.1 µF capacitor between the output and ground at the receiving end to suppress high-frequency interference.

Verify excitation voltage tolerance–some models handle 10–30V DC, but exceeding nominal levels risks permanent calibration drift. Test continuity with a multimeter before powering up: resistance between output and ground should read 3–4 kΩ in most cases. If readings fluctuate, check for poor solder joints or intermittent connector contact–these account for 80% of field failures.

Calibrate after installation by comparing the sensor’s signal against a known reference (e.g., a deadweight tester). Zero and span adjustments are typically performed via onboard potentiometers; consult the datasheet for exact procedure–the order of adjustments matters. For digital interfaces, confirm compatibility with 4–20 mA loops or voltage ranges before attempting integration.

Connecting a 3-Terminal Sensor: Step-by-Step Guide

Begin by identifying the power supply, ground, and signal outputs on the device’s datasheet. Most sensors require 5V DC, though some industrial models operate at 10–30V–verify the exact voltage to prevent damage. Connect the positive terminal to the power pin, ensuring stable voltage via a dedicated power source or regulated circuit. Avoid sharing power lines with high-current components, as fluctuations may corrupt readings.

The ground terminal must link directly to the system’s common reference point. Use a shielded conductor if the signal path exceeds 3 meters to minimize electromagnetic interference. For analog outputs, route the signal lead to an ADC input, configuring the sampling rate to match the sensor’s response time–typically 1–100 ms. Twist signal and ground pairs together if noise persists, reducing loop area susceptibility.

Troubleshooting Common Issues

If readings drift or fluctuate unpredictably, check for loose terminals or insufficient power. A multimeter in voltage mode should show steady DC at the power pin; deviations indicate wiring faults or inadequate current. For digital interfaces (e.g., 4–20mA), measure the loop current at the receiver–values below 4mA suggest an open circuit. Calibrate zero and span points using the manufacturer’s procedure, often involving applying known pressures and adjusting potentiometers.

When integrating with microcontrollers, use a pull-up resistor (4.7–10kΩ) for open-collector outputs to ensure clean transitions. For high-frequency applications, add a low-pass RC filter (10kΩ + 100nF) to attenuate ripple above 1kHz. Test signal integrity with an oscilloscope: square waves should remain sharp, and sine waves distortion-free. If accuracy drops above 70% of the scale, replace the unit–fatigue or overpressure may have compromised internal strain gauges.

Selecting the Right 3-Lead Sensor for Your Measurement Needs

Prioritize devices with a 0.1% full-scale accuracy or better for precision-critical setups. Industrial gauges from brands like Honeywell or Omega reach 0.05% FS, while budget models hover around 0.5%. Match the span to your working range–overshooting wastes resolution. For example, a 0–10 bar application should use a 0–12 bar model, not 0–100 bar.

• Output signal: 4–20 mA loops tolerate 500 m noise; 0–5 V variants need shielded runs under 3 m.
• Media compatibility: 17-4 PH stainless steel threads handle wet chlorine; hastelloy resists sulfuric acid.
• Compensation curves: look for temperature ratings beyond ±5 °C–some units correct drift up to 120 °C.
• Response time: sub-1 ms specs suit dynamic airflow; 10 ms suffices for tank-level monitoring.

Seal choices dictate longevity. Viton O-rings sustain -40 °C to +200 °C but swell in ketones; Buna-N resists oils yet fractures at 90 °C. Flush-diaphragm housings eliminate dead volume in viscous fluids, reducing clogging risks by ~40 % compared to recessed designs. Mounting torque matters–overtightening a G¼ port by 3 Nm cracks ceramic substrates; use 1.5 Nm ±0.2 on aluminum threads.

Identifying Power, Output, and Reference Leads in a Tri-Connector Sensor

Begin by locating the manufacturer’s datasheet–color codes typically follow ISO, ANSI, or proprietary norms. If documentation is unavailable, probe the connector with a multimeter set to DC voltage (24V or 12V excitation common for industrial units): the supply lead will register the excitation voltage relative to the reference, the output lead will show a millivolt or 4-20mA signal proportional to load, while the reference remains at zero potential. Avoid relying on color alone–red often denotes the power line but may represent the signal in automotive sensors; white or black frequently serve as ground/reference but vary by region and brand.

Typical Lead Assignments

Connector Hue	Expected Role (Industrial)	Expected Role (Automotive)	Multimeter Check
Red	Power input	Signal output	24V vs. reference
Black/Blue	Reference	Supply/ground	0V vs. chassis
White/Green/Yellow	Scaled output	Excitation input	Variable mV/4-20mA

For sensors lacking visible markings, cross-check continuity between each terminal and the shield braid: the reference terminal will consistently show the lowest impedance to the shield. If the sensor ships with a mating harness, trace pins back to the harness label–OEM labels often abbreviate: “PWR” for supply, “SIG” or “OUT” for the scaled value, “GND” for the return path.

Step-by-Step Guide to Integrating a 3-Lead Sensor with Automation Hardware

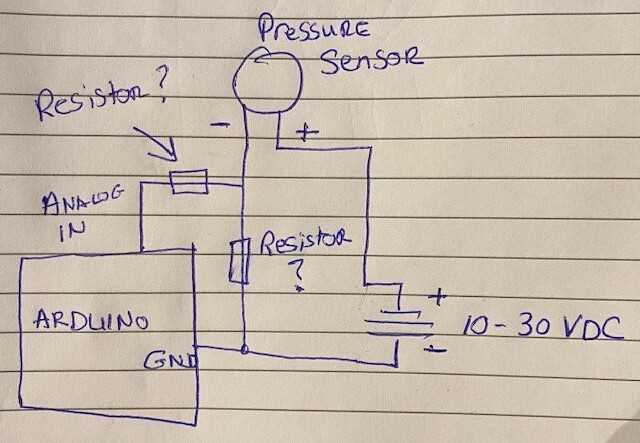

Verify sensor pinout labels before making connections–most units mark leads as +V (excitation), SIG (output), and GND (common return). Match these to the controller’s designated input terminals: connect +V to the power supply’s high side, SIG to the analog input channel, and GND to the controller’s reference point. For 4–20mA loops, ensure the SIG lead links directly to the current input without additional resistors. If the controller lacks dedicated current input, add a precision 250Ω resistor across SIG and GND to convert current to 1–5V. Use shielded cable (minimum 22 AWG) for runs exceeding 3 meters, grounding the shield only at the controller end to prevent noise coupling.

Configuration and Testing

Set the controller’s input range to match the sensor’s span–typically 0–5V or 4–20mA. Enable scaling within the PLC software, mapping 0% (e.g., 0V or 4mA) to the sensor’s lower limit and 100% (5V or 20mA) to the upper limit. Apply known reference values (e.g., atmospheric for gauge units or a deadweight tester for absolute) to verify accuracy. If readings drift, recheck lead continuity with a multimeter: excitation voltage should match the datasheet (±0.1V), and output should track applied load linearly. Isolate faults by swapping SIG and GND–if readings invert, the controller’s polarity settings require adjustment.

Common Mistakes When Connecting a 3-Lead Sensor and Preventing Them

Incorrect polarity reversal during hookup can permanently damage the sensing element. Verify pin assignments in the device datasheet–positive, negative, and signal outputs rarely match intuitive color coding like red-black-white. Most manufacturers label terminals directly on the connector housing; always cross-check with technical documents before applying power.

Overlooking excitation voltage compatibility leads to unreliable readings or component burnout. A 10 VDC supply might exceed specs for a sensor rated at 5 VDC, while too low voltage causes weak signal strength prone to interference. Use a regulated DC source matching the sensor’s nominal range within ±0.1 V tolerance.

Ignoring Ground Loop Interference

Connecting the ground lead to multiple reference points creates ground loops that skew sensor data. Dedicate a single, stable ground point–preferably the power supply’s negative terminal–avoiding chassis grounds unless specified. Twisted-pair cables reduce noise; shielded conductors further suppress EMI when routed near motors or high-current lines.

Skipping calibration after installation often causes drift in baseline readings. Measure zero and span outputs against known references like a manometer, adjusting scaling parameters in the controller accordingly. Ambient temperature shifts alter sensor performance–verify thermal stability per the manufacturer’s compensation curves.

Using Improper Cable Gauge or Length

Excessive cable length (over 50 meters) for low-level signals attenuates voltage and introduces capacitance. Choose 24 AWG or thicker conductors, keeping runs under 30 meters unless using signal conditioning amplifiers. Avoid bundle loops; sharp bends increase resistance and degrade integrity–maintain a minimum 10 cm radius for coiled sections.
