How to Wire a 30 Amp 4-Prong Twist-Lock Plug Step-by-Step Guide
Wire the L14-30 connector with these terminal assignments: X (neutral, white) connects to the silver-colored screw, Y (ground, green) to the green screw, and L1 (first live, black or red) and L2 (second live, red or black) to the brass-colored screws. Verify each connection with a multimeter–open-circuit readings above 0.5 ohms indicate loose contacts or broken strands.
Use stranded copper wire sized at 8 AWG minimum for a 30-current rating; solid wire risks fatiguing under constant twist cycles. Strip ¾ inch of insulation, twist strands tightly, and tin the ends with solder to prevent fraying. Tighten terminal screws to 15 in-lbs torque–over-torquing cracks the phenolic base, while under-torque causes overheating.
Route the cables through the strain-relief bushing at a 45° angle to shield the entry point from chafing. Secure the bushing with a hose clamp, compressed to ¼-inch gap to grip without pinching. After assembly, perform a 10-second pull test at 30 lbs force to confirm strain relief integrity.
Avoid aluminum wire–galvanic corrosion between aluminum strands and brass terminals raises resistance after 50–100 mating cycles. If aluminum is unavoidable, apply an antioxidant compound (zinc-based paste) and re-tighten screws after 24 hours of initial load.
Label both the plug and receptacle with heat-shrink sleeves indicating neutral, ground, and line for quick troubleshooting. Include date of installation and voltage rating (250/125 VAC) on the sleeve using permanent ink–UV-resistant sleeves last 5+ years under direct sunlight.
How to Wire a 30-Rated Industrial Connector Safely
Begin by identifying the terminal assignments on the heavy-duty locking connector: L1 (hot), L2 (hot), neutral, and ground. The standard color code for North American installations is black (L1), red (L2), white (neutral), and green (ground). Verify the manufacturer’s labeling, as some models may deviate–especially imported variants.
Strip 0.75 inches of insulation from each conductor using wire strippers calibrated for 10-gauge copper wire. Twist the exposed strands tightly to prevent fraying, then crimp a ring terminal onto each lead if the connector lacks direct screw terminals. Ensure the terminal size matches the wire gauge (typically #8-10 for 30-rated circuits).
Secure the wires in this order: ground first, then neutral, followed by L2, and finally L1. Tighten each screw with a torque screwdriver set to 12 inch-pounds–overtorquing risks thread damage, while undertorquing causes arcing. For connectors with push-in terminals, insert the wires fully until a click is felt, then tug gently to confirm engagement.
- Use only tinned copper wire for outdoor or high-moisture applications to prevent corrosion.
- Avoid aluminum wire–it’s incompatible with most industrial connectors without specialized terminations.
- Test continuity with a multimeter after wiring but before energizing the circuit.
After securing all connections, slide the connector housing back over the terminals and twist clockwise until fully locked. A final tug on the cable should not loosen the assembly. Energize the circuit only after confirming the mating receptacle or panel is deactivated to prevent short circuits.
For 240V equipment, connect both hot terminals (L1 and L2) without neutral; for 120/240V split-phase setups, neutral must be connected. Ground must always terminate directly to the chassis or dedicated ground bar–never splice or omit it, even in temporary installations.
Identifying the Correct Conductors for a 30-Amp 4-Terminal Locking Connector
Begin by verifying the conductor colors against the equipment’s specifications. The green or bare wire always serves as the grounding path–this is non-negotiable. Connect it to the U-shaped slot or corresponding terminal marked for ground. Failure to secure this link compromises safety and violates electrical codes.
Locate the white conductor, which must terminate at the neutral post. This terminal is typically L-shaped or identified with a silver screw. Confirm the connection by tugging the wire; a loose fit risks intermittent power loss or overheating. Neutral carries current back to the panel, balancing the circuit–never substitute it with another color.
Identify the remaining two hot leads: one black and one red (or occasionally blue). These attach to the brass screws or straight/vertical terminals. Misplacing them reverses polarity, damaging motors or sensitive electronics. Check voltage between each hot leg and neutral–expect 120V. Between the two hots, readings should show 240V for proper operation.
Inspect the cable jacket for embossed markings: “TYPE NM,” “SER,” or “SEU” indicate approved cable types. Avoid Romex (NM) for high-load applications unless local codes explicitly permit it. Use only stranded copper wire rated for 30A service; aluminum requires specialized connectors and anti-oxidant compound, increasing complexity unnecessarily.
Label each wire at both ends before disconnecting an existing setup. Use masking tape and fine-tip markers: “X,” “Y,” “N,” and “G” for clarity. Photograph the connections if reinstalling the same device later. Reversing black and red conductors won’t trip breakers but will invert motor rotation or fry dual-voltage appliances.
Test continuity between the ground prong and equipment chassis with a multimeter in resistance mode. Values should read near zero ohms; anything above 1Ω signals corrosion or loose crimps. Neutral and ground must remain isolated–measure between them to confirm infinite resistance. Shorts here create dangerous stray voltages on metal surfaces.
Secure all terminals with a torque screwdriver set to manufacturer specifications (usually 12–15 in-lbs). Over-tightening strips threads; under-tightening invites arcing. Apply dielectric grease to terminals if operating in damp environments. Recheck all connections after 24 hours of use–thermal cycling can loosen initially snug fits.
Step-by-Step Guide to Stripping and Preparing Conductors for Secure Termination
Select a precision wire stripper calibrated for the gauge of the cable–10 AWG for heavy-duty circuits requires at least a 0.25-inch (6.35 mm) strip length. Verify the tool’s cutting depth against the insulation thickness: blunt cuts crush copper strands, while deep incisions sever them. Position the conductor in the designated notch of the stripper, align the insulation edge with the marking, and apply steady pressure to avoid nicking. Rotate the tool 360 degrees if using spiral-cut strippers to prevent uneven separation. Remove the insulation in one swift motion; tugging risks fraying the copper bundle.
| Conductor Gauge | Strip Length (inches) | Recommended Tool | Strand Count |
|---|---|---|---|
| 10 AWG | 0.25–0.38 | Precision stripper (adjustable) | 105 |
| 8 AWG | 0.38–0.50 | Heavy-duty stripper or razor blade | 133 |
| 6 AWG | 0.50–0.63 | Rotary cutter | 189 |
Twist the exposed strands clockwise between thumb and forefinger to compact loose filaments–this prevents splaying during insertion into terminals. Trim any stray wires extending beyond the twist using flush-cut snips; even 1 mm of protrusion can cause arcing under load. For tinned copper, avoid excessive heat when soldering; 60/40 rosin-core solder at 600°F (315°C) melts tin coating without damaging insulation. No-twist connectors (e.g., compression terminals) require untwisted strands–fan them gently with needle-nose pliers to match the terminal’s entry width. Confirm all surfaces are free of oxidation; a single swipe with a fine-grit emery cloth (1200-grit) removes surface corrosion without removing copper.

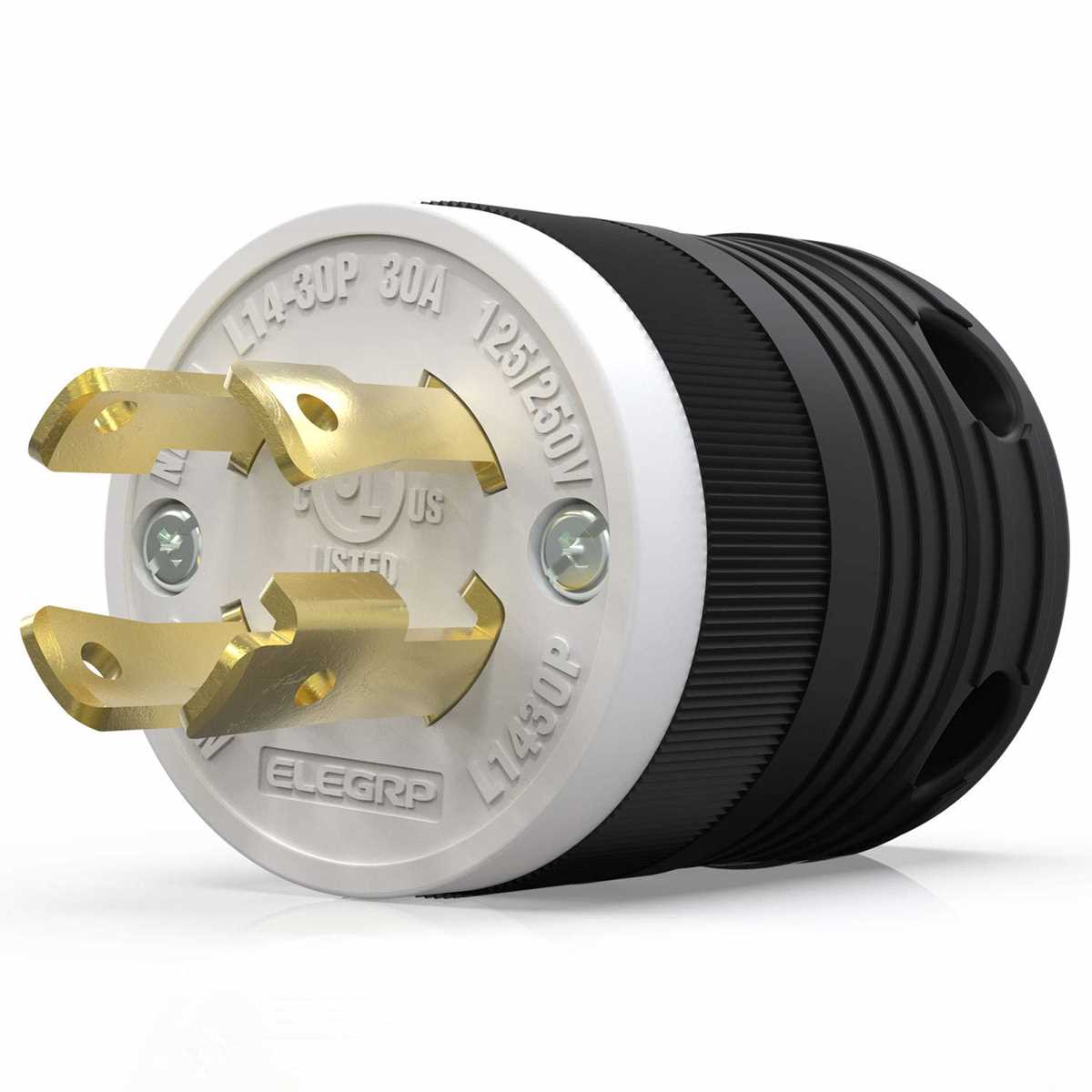

Matching Wire Colors to Terminals on a NEMA L14-30P Connector
Connect the green wire to the ground terminal–this is non-negotiable. Ground faults and electrical shocks are prevented only when this conductor is secured to the uppermost U-shaped post on the L14-30P. Verify the wire is stripped to ⅜ inch and clamped tightly with the terminal screw to eliminate resistance.
The black conductor carries the live (hot) phase and must terminate at the brass-colored screw marked “X” or “L1.” Tighten the screw until the wire cannot be pulled without twisting the connector housing, ensuring zero slack. A loose connection here generates heat, risking thermal damage to the insulation.
Attach the red wire to the remaining hot terminal, typically labeled “Y” or “T.” Though identical in function to the black lead, miswiring here introduces phase imbalance, potentially tripping breakers or damaging connected equipment. Confirm torque values against the manufacturer’s specs–usually 15 inch-pounds for this terminal size.
Route the white (neutral) wire to the silver-colored screw distinguished by “W” or “N.” Unlike the hots, neutral carries return current; improper attachment disrupts circuit balance, causing overcurrent on the grounded conductor. Strip this wire to identical ⅜-inch exposure and secure with identical clamping force as the hots.
- Double-check all conductor terminations with a multimeter before energizing: continuity between neutral and ground should read infinite resistance; between each hot and neutral, ≈120V; between hots, ≈240V.
- Inspect insulation integrity after tightening–pinched or frayed strands create latent short-circuit risks.
- Use heat-shrink tubing or liquid electrical tape on stripped ends post-installation to prevent accidental contact.
For cord sets rated above 10 AWG, verify strain relief compliance: the connector housing must grip the cable jacket within ¼ inch of the entry point to prevent conductor pull-out under load. Larger gauge wires require properly sized strain-relief clamps–consult UL standards for exact sizing tables.
Label each conductor at the termination point if the assembly includes a junction or transition splice. Color-coded sleeves or heat-printed identifiers eliminate diagnostic confusion during future maintenance or troubleshooting. Pre-cut sleeves to ½ inch lengths for secure retention.
Avoid reusing terminals exhibiting oxidation or deformation. Replace the entire L14-30P unit if screw threads show galling or if brass contacts display pitting deeper than 0.005 inches–these defects introduce resistance and compromise safety margins.
