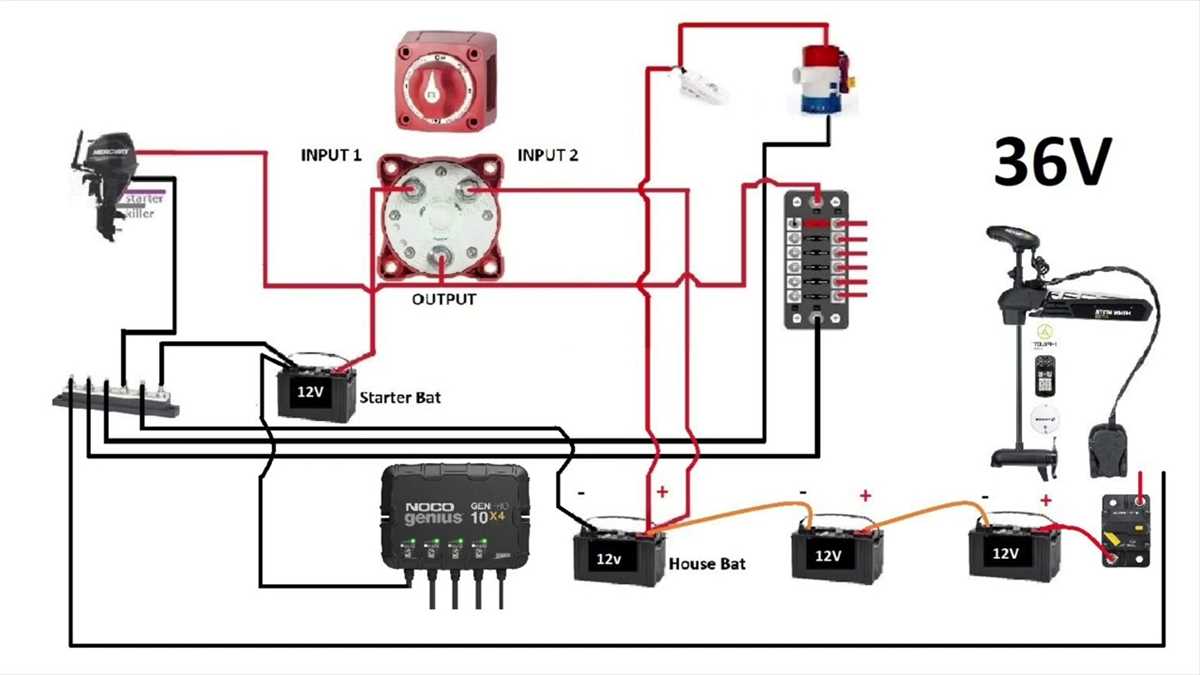

Complete Guide to Wiring a 36V Trolling Motor Step-by-Step Diagram

Connecting a high-thrust electric drive system requires precise adherence to a configuration that balances power delivery and safety. Start by grouping the power sources into three 12-cell segments, ensuring each segment maintains 48Ah or higher capacity to handle sustained loads without voltage sag. Use 4 AWG marine-grade copper cabling for primary connections between batteries and the motor controller to minimize resistance losses–longer runs may demand 2/0 AWG to prevent overheating.

Install a 150A circuit breaker within 7 inches of the first battery terminal to act as a primary disconnect. For systems drawing >60A continuous, replace standard fuses with ANL or MIDI fuses rated 20% above maximum current draw. Route positive cables through the breaker and connect them to the controller’s input terminals–verify polarity with a multimeter before final tightening, as reversed connections will trigger immediate failure modes in most controllers.

Grounding demands equal attention: attach a dedicated 4 AWG ground cable from the controller’s negative terminal to the vessel’s engine block or metal hull, avoiding shared returns with sensitive electronics. For aluminum hulls, use a tinned copper busbar mounted at least 12 inches above the waterline to prevent galvanic corrosion. Test voltage drop across each connection–readings >0.2V indicate loose terminals or undersized cabling requiring immediate correction.

For variable speed control, integrate a PWM controller with a 10k linear potentiometer. Ensure the controller supports 36-cell input ranges (40.5–44.4V operational window); most aftermarket units list compatible voltage bands in their specifications. If incorporating a battery management system (BMS), select one with balanced charging to prevent cell divergence over time–lithium setups benefit from active balancing at >1A per cell.

Final validation involves simulating full load: engage the drive at 75% throttle for 3 minutes while monitoring for excessive heat (>60°C at connections) or voltage fluctuations (>0.5V deviation). Record readings under load–consistent performance confirms proper assembly, while irregularities suggest wiring faults or battery mismatches requiring troubleshooting.

Connecting a 36-Cell Electric Propulsion Setup: Key Steps

Start by linking the battery bank’s positive terminal to the control unit’s main input using 4 AWG copper wire, ensuring a secure crimp connection with heat-shrink tubing. Measure voltage at the input posts–it should read 39.2V under load (3 batteries at 13.06V each) or 40.8V open-circuit (13.6V per cell). Any deviation suggests a weak link in the series chain or corroded terminals; clean connections with a wire brush and recheck.

Route the power leads from the control unit to the propulsion mechanism along the vessel’s starboard side, securing them with UV-resistant zip ties every 12 inches. Leave a 6-inch service loop at both ends to accommodate vibration. Use waterproof butt connectors for splices, applying dielectric grease to prevent moisture ingress. For systems with a foot pedal, run a separate 16 AWG twisted pair back to the helm, shielding it with split loom tubing to reduce EMI from the thrust unit.

Load Testing and Safety Measures

Before finalizing, conduct a static load test by setting the speed controller to 60% output and measuring amperage draw. A properly wired system will pull 32–38A at this setting; readings outside this range indicate potential short circuits or failing batteries. Install a 50A Class T fuse within 7 inches of the positive battery terminal–this is the only reliable way to prevent catastrophic failure during a dead short.

Label all cables with heat-shrink markers: “B+” (red), “B–” (black), “M+” (blue), and “Signal” (green) to simplify future troubleshooting. Ground the control unit’s metal housing directly to the battery negative terminal using 6 AWG wire, never relying on the vessel’s hull. For lithium setups, add a battery management system shunt between the final battery and the propulsion unit to monitor cell imbalance, with the shunt’s data output wired to a 5V isolator feeding the helm display.

Core Parts for Your Electric Propulsion System

Start with a marine-grade deep-cycle battery bank–three 12V units connected in series deliver the required thrust without voltage sag. Opt for AGM or lithium iron phosphate models rated for at least 100Ah each; flooded lead-acid types demand frequent maintenance and venting. Pair them with a heavy-duty circuit breaker (100A minimum) to protect the entire power path–mount it within 7 inches of the battery’s positive terminal. Use tinned copper cables (4 AWG minimum) to cut resistance; non-tinned variants corrode in 3–6 months. Secure connections with marine-grade heat-shrink terminals or crimp lugs soldered for maximum conductivity.

Component	Recommended Specs	Key Notes
Series Battery Bank	3×12V/100Ah+ AGM/LiFePO4	Avoid mixing chemistries or ages
Protector Switch	100A+ manual reset breaker	Water-resistant housing mandatory
Conductors	4 AWG tinned copper, marine-rated	Inspect for nicks every season
Termination Kit	Heat-shrink ring terminals, 3/8″ stud	Solder post-crimping adds longevity

Add a charging isolator (30A minimum) to prevent parasitic draw when the propulsion unit isn’t in use–connect it directly to the positive busbar. Install a 30A fuse holder near the controller’s input for secondary protection; this catches short circuits the main breaker can’t. For grounding, run a 6 AWG bare copper wire from the negative busbar straight to the hull’s metal structure, ensuring it’s free of paint or corrosion–saltwater setups need this path refreshed monthly.

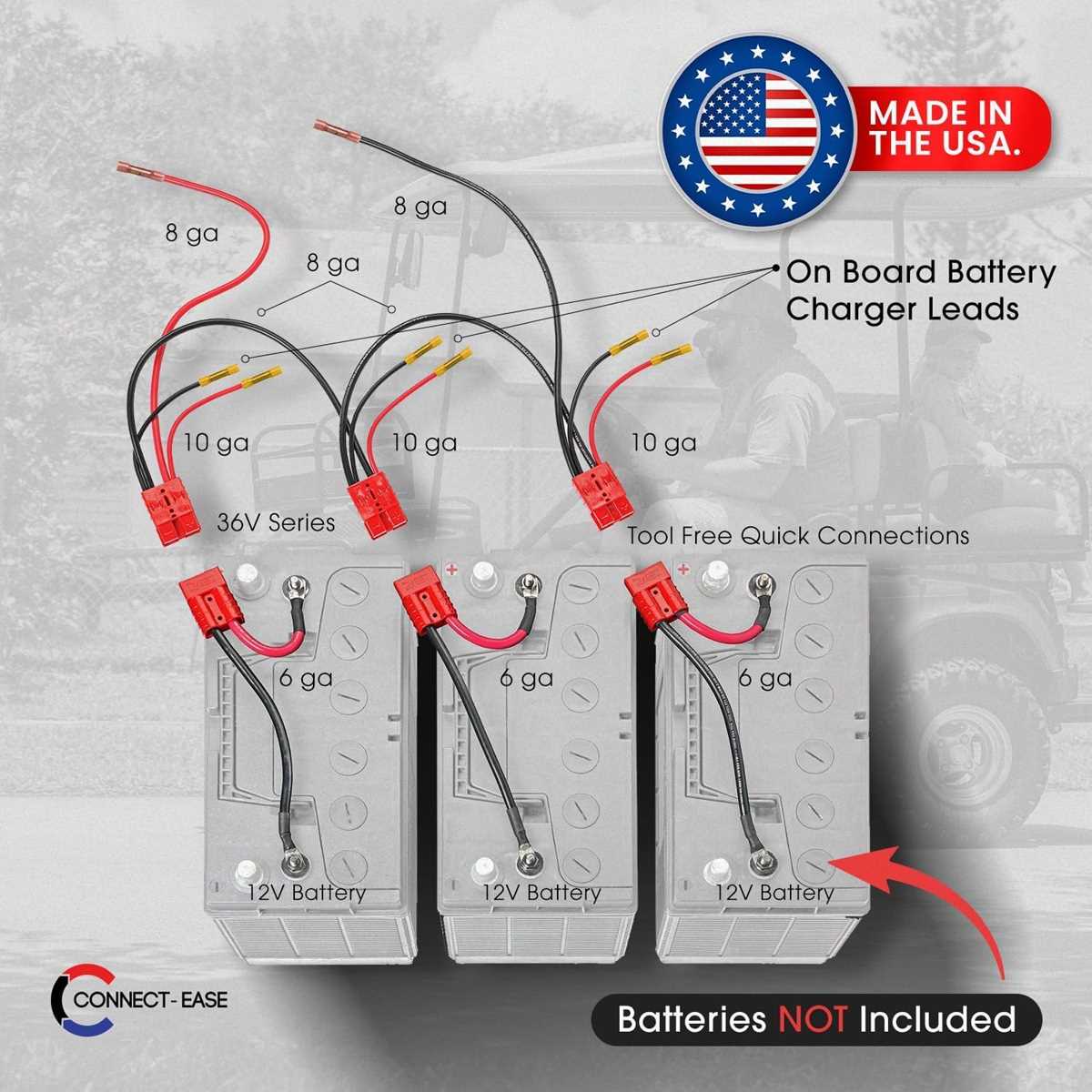

Step-by-Step Guide to Connecting Three 12-Energy-Cell Units in Sequence

Begin by placing your trio of 12-energy-cell units in a stable, dry location. Arrange them in a straight line or compact configuration, ensuring the positive (+) terminal of one aligns with the negative (-) terminal of the next. Use insulated connectors to prevent accidental contact–bare wires or improper tools risk a hazardous short circuit.

• Gather materials: heavy-duty cables (minimum 4 AWG for currents above 30 amperes), terminal clamps, a wrench, and heat-shrink tubing or electrical tape.
• Label each cell for clarity if reconfiguring later (e.g., “A,” “B,” “C”).
• Avoid mixing brands or ages–imbalances reduce lifespan and performance.

Attach the first connector from the negative (-) terminal of cell A to the positive (+) terminal of cell B. Secure the clamps tightly; a loose connection generates heat and voltage drop. Repeat the process between cell B’s negative (-) and cell C’s positive (+). Double-check polarities–reversing even one link neutralizes the entire setup.

For the final output, connect a cable from cell A’s positive (+) terminal to your load’s input. The other cable runs from cell C’s negative (-) to the load’s return point. Test the combined output with a multimeter–expect approximately 36 energy units. If readings fluctuate, inspect each link for corrosion, damage, or improper fastening.

Seal all connections with heat-shrink tubing or high-quality electrical tape to protect against moisture and vibration. Store unused cables coiled and away from sharp edges. Regularly inspect the system every 10-15 cycles; swollen casings or sulfation indicate degradation requiring replacement.

Connecting a 36-Energy Unit Powerplant to Storage Cells

Use 6-gauge marine-grade copper cables for all connections to minimize voltage drop–never exceed 10 feet per wire run without calculating resistance losses. Connect three deep-cycle lead-acid or lithium iron phosphate batteries in series: positive terminal of the first cell to the negative terminal of the second, then repeat for the third. The resulting output terminals deliver the required energy level to the propulsion system. Add a 150A fuse within 7 inches of the positive terminal on the first battery to prevent short-circuit damage. Verify polarity with a multimeter before final attachment–reverse connection will destroy the power source or drive unit.

Critical Connection Sequence

• Label each cable with heat-shrink tubing (red for positive, black for negative)
• Apply dielectric grease to terminals before tightening clamps to 10-12 Nm torque
• Install a 100A circuit breaker between the final positive terminal and the drive system input
• Ground the negative terminal of the last cell to the boat’s hull using a dedicated 4-gauge cable
• Avoid sharp bends in cables–radius must exceed 3 times cable diameter

Monitor initial charge levels after setup: lead-acid cells should equalize at 12.8-14.4 energy units each, while lithium types require 10.5-13.5 units. Replace all interconnecting hardware every 24 months or after submersion incidents.

Installing a Safety Cutoff in a 3-Accumulator Propulsion Setup

Select a cutoff rated for 50 amps or higher, designed for marine applications. Mount it within 18 inches of the battery pack’s positive terminal using stainless steel hardware to resist corrosion. Avoid locations exposed to direct water spray or engine vibrations, as loosened connections increase resistance and heat buildup.

Strip ½ inch of insulation from the red power cable leading from the energy cells to the control unit. Crimp a ring terminal onto the exposed wire and attach it to the cutoff’s input stud. Secure connections with lock washers and torque to 10-12 inch-pounds–over-tightening can warp the breaker’s contacts. Apply dielectric grease to terminals to prevent oxidation.

Run the output cable from the cutoff to the propulsion control, keeping it separate from signal wires to minimize interference. Use 6-gauge marine-grade cable for runs under 10 feet and 4-gauge for longer distances. Secure wiring every 12 inches with nylon clamps to prevent chafing against sharp edges or moving parts.

Test the installation by activating the system at half throttle–listen for abnormal humming and check for warmth at the cutoff. If the breaker trips immediately, inspect for shorted cables or reversed polarity at connectors. Reassemble the access panel only after confirming stable operation across all speed settings.
