How to Wire a 4 Pin Trailer Plug Step by Step Guide with Diagram

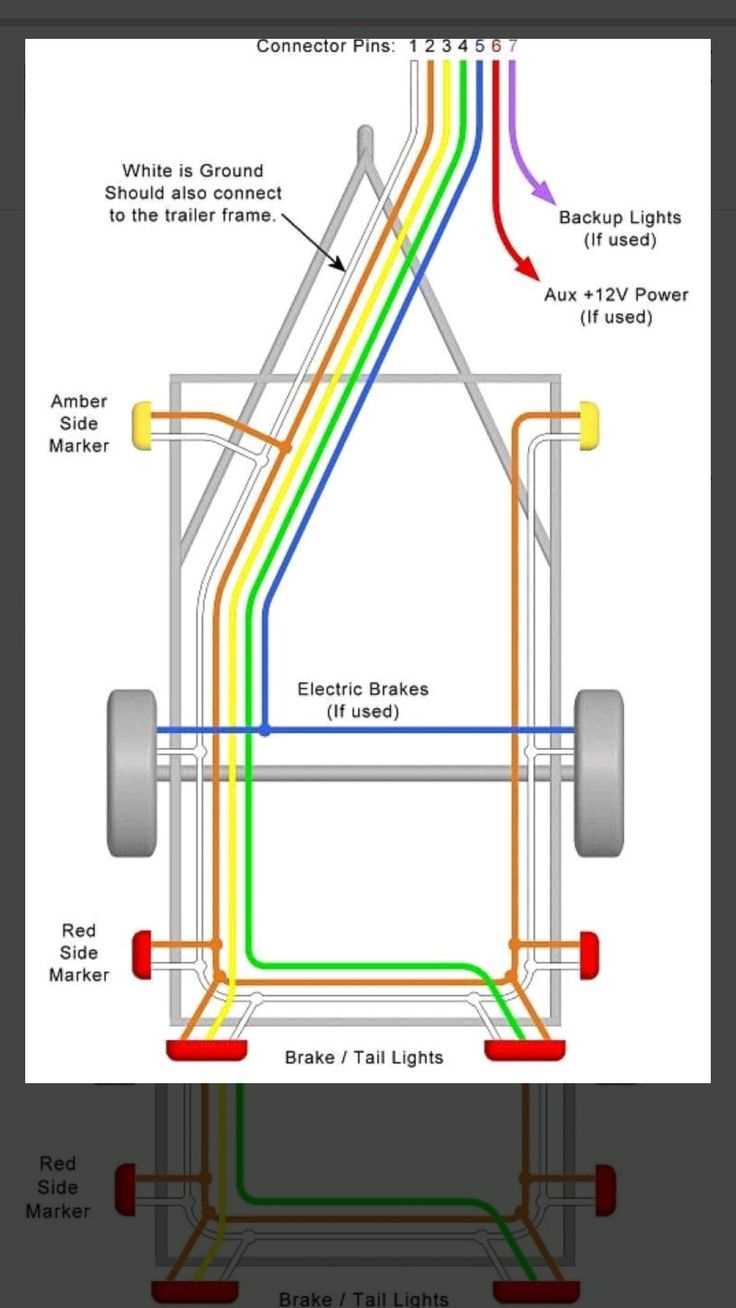

Begin by locating the vehicle-side harness–typically a flat, four-prong plug mounted near the rear bumper or tow hitch. Match each terminal to its function: ground (white), running lights (brown), left turn/brake (yellow), and right turn/brake (green). Use a multimeter to verify voltage: 12V DC should register on the brown and green/yellow wires when the corresponding lights are activated.

For splicing, strip 0.25 inches of insulation from each wire on the hauler’s harness and the vehicle’s connector. Crimp butt connectors or solder the joints, then seal with adhesive-lined heat shrink tubing to prevent corrosion. If the plug doesn’t align, check for reversed polarity on the brake/turn wires–swap yellow and green if signals exchange sides.

Test connections in sequence: engage running lights first, then blinkers, followed by brakes. If a signal fails, probe the circuit with a test light–flickering brightness indicates a poor ground (reattach the white wire directly to the hauler frame). For trailers over 12 feet, add a breakway switch wired in-line with the green/yellow brake circuits to comply with DOT regulations.

Mount the plug guard within 6 inches of the socket to shield against debris and moisture. Use dielectric grease on the contacts during reassembly to extend service life. Replace incandescent bulbs with LED equivalents only if the harness includes a load equalizer–flashing rates may double otherwise.

Connecting a Small Hauler’s Electrical System

Start by matching the vehicle’s outlet colors to the corresponding leads on the hauler’s plug: white for ground, brown for tail lamps, yellow for left turn/brake, and green for right turn/brake. Use a multimeter to verify continuity between the connector and the bulbs–readings should show near-zero resistance.

If corrosion is present on the contacts, apply dielectric grease after cleaning with 600-grit sandpaper. Avoid steel wool; particles can short circuits. For splices, crimp connectors rated for 16-gauge wire, then solder for added reliability–heat shrink tubing prevents moisture ingress.

• Ground must attach directly to the frame, not painted surfaces–bare metal ensures proper conductivity.
• Route wires away from sharp edges or moving parts; secure every 18 inches with adhesive-lined clips.
• Test the system before loading: activate brakes, hazards, and turn signals separately to confirm no cross-talk.

For older vehicles missing a connector, install a 4-way flat socket. Wire it per SAE J1939 standards–white remains ground, brown stays steady for running lights, while yellow and green switch polarity during braking or signaling.

Use a 12V test light to troubleshoot: probe the socket’s terminals while an assistant operates the controls. A dim or flickering light indicates a weak ground or poor connection; re-clean the surfaces with baking soda paste for stubborn corrosion.

Replace any damaged cables in full runs–splicing creates weak points. Strip 1/4 inch of insulation, twist strands tightly, and cover with liquid electrical tape for waterproofing. For heavy-duty use, upgrade to 14-gauge wire to handle 20A loads without overheating.

1. Label each wire at both ends before disconnecting anything.
2. Use a dedicated fuse (10A for lighting, 15A for brakes) between the tow vehicle’s battery and the socket.
3. Check local regulations–some regions require additional markers or reflective strips on haulers over 3,000 lbs.

For LED upgrades, add a load resistor (10Ω, 50W) to prevent hyper-flashing–incandescent bulbs draw more current, and modern vehicles’ computers misread the low draw from LEDs. Mount resistors on a heat sink if continuous operation is expected.

Matching Connector Hues to Their Exact Roles in a 4-Way Lighting Harness

Start by locating the white cable–this is the ground reference and must connect directly to the main chassis frame or a dedicated grounding point. Verify continuity with a multimeter; resistance above 0.5 ohms indicates corrosion or poor contact, which will cause intermittent lighting failures even under low-current conditions.

The brown conductor carries tail, license plate, and side marker illumination. Route it along the subframe avoiding sharp edges; abrasion compromises the thin insulation, leading to shorts under rainy conditions. Test voltage at the harness end: 12.0–12.4V confirms proper charging system output–anything below signals alternator or battery deterioration.

A yellow strand activates the left-hand turn and brake signal simultaneously; an amber hue distinguishes it from other circuits. Splice it 18–24 inches upstream of the fixture for modular replacements–factory splices often corrode inside conduit sleeves. If voltage drops below 11.8V during activation, inspect the flasher relay or bulb resistance; modern LEDs draw 0.2–0.4A versus 2.0–2.5A for incandescent bulbs.

Responsible for right-hand signals and braking, the green wire should terminate inside a waterproof butt connector within arm’s reach of the taillight housing. Measure pulse width if using aftermarket controllers: OEM units deliver 90–120 pulses per minute; aftermarket modules can exceed 150 pulses, risking hyper-flashing or thermal shutdown.

Field Diagnostics for Mismatched Colors

When encountering non-standard colors–black replacing white, red substituting brown–consult the under-hood label or vehicle repair manual for variant codes; Asian models frequently use light blue for tail lamps instead of brown. Probe the socket: a dim glow at 3–5V suggests partial grounding; loose mounting screws often misalign sockets, causing high-resistance paths.

Replace fusible links rated 15A–20A if routine checks reveal melted insulation adjacent to heat shields–common in stop/turn circuits where combined current surges exceed 8A. Use heat-shrink tubing over splices, not electrical tape; adhesive liners degrade after 18–24 months, exposing bare copper to road brine and exhaust particulates.

Step-by-Step Guide to Assembling a 4-Contact Towing Plug from Zero

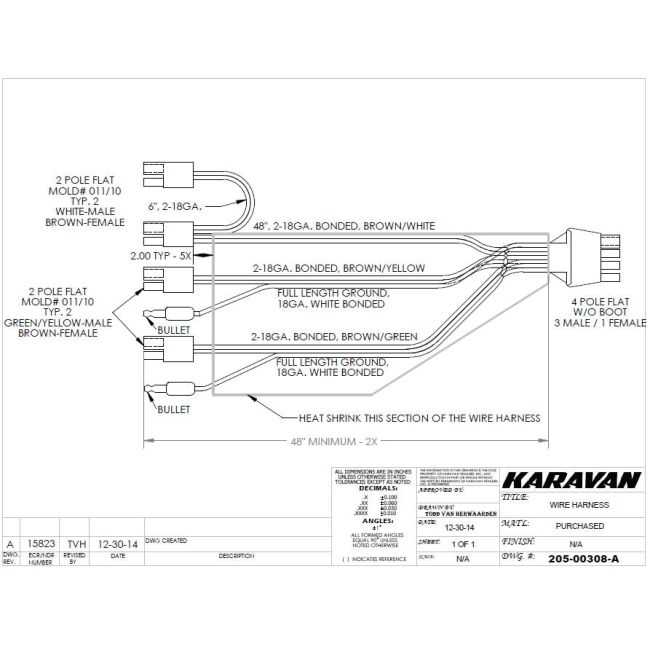

Gather a multimeter, wire strippers, crimping tool, heat-shrink tubing, and a matching 4-socket plug harness. Cut four 16-gauge cables to 6-foot lengths–one yellow, one green, one brown, and one white–ensuring each strand is free of nicks. Identify the connector’s contact assignments: yellow links to the left turn/brake circuit, green to the right, brown carries running lights, and white grounds the system. Verify the tow vehicle’s socket layout matches these colors before proceeding; most domestic trucks and SUVs follow this standard, but some imports may swap yellow and green.

Prepping and Securing the Connections

Strip ¼ inch of insulation from each cable end and slide a 2-inch heat-shrink sleeve onto every wire before twisting the strands clockwise. Tin the exposed copper with a small dab of solder for corrosion resistance, then crimp a corresponding spade terminal onto each prepared end. Slide the heat-shrink over the joint and apply heat evenly until a tight seal forms. Connect terminals to the plug housing in this order: brown to the center contact, yellow to the left prong, green to the right, and white to the base ground lug. Tug each connection firmly–resistance should exceed 10 pounds before proceeding.

Circuit	Color	Gauge	Voltage (Key On)	Function
Left turn/brake	Yellow	16 AWG	12.8–14.2 V	Activates amber bulb during turns or braking
Right turn/brake	Green	16 AWG	12.8–14.2 V	Mirror function of left circuit on opposite side
Running lights	Brown	16 AWG	12.0–13.5 V	Illuminates tail/license plate lamps continuously
Ground	White	14 AWG	0 V	Returns all circuit current to chassis

Insert the assembled housing into the mating socket and rotate the locking collar until it clicks. Test functionality by cycling each light switch on the tow vehicle while observing the corresponding lamps–no flicker should occur at speeds below 60 mph. If voltage drops below 12.0 V at the plug during full load, upgrade the ground lead to 12 AWG and verify chassis-to-frame conductivity with an ohmmeter, ensuring readings stay under 0.5 ohms.

Common Problems and How to Fix 4-Point Connector Issues

If taillights flicker intermittently, check for corrosion on the metal contacts inside the plug. Use a wire brush to clean oxidized surfaces, then apply dielectric grease to prevent future buildup. Loose connections often mimic faulty bulbs–ensure each terminal is clamped tightly. For persistent flickering, test the ground connection: scrape away paint or rust at the chassis attachment point before re-securing the cable.

Dim or inconsistent lighting usually stems from voltage drop. Measure the current at the vehicle socket and compare it to the reading at the rear lights–differences exceeding 0.5V indicate resistance in the circuit. Replace any thin or frayed wires, focusing on sections prone to chafing near suspension components. A 12-gauge stranded copper wire handles 20 amps continuously without significant loss, making it ideal for replacement runs.

Diagnosing Non-Functional Circuits

When a single function–such as brakes or turn signals–fails, probe the corresponding terminal with a multimeter while activating the switch. A dead circuit with battery voltage present suggests an open ground or blown fuse. Trace the harness along its path, flexing gently to reveal internal breaks. For dual-function bulbs (e.g., combined brake/turn), verify the flasher relay clicking–three 75-ohm bulbs typically trigger proper engagement.

Intermittent shorts often occur where the cable enters the frame. Wrap problem areas with heat-shrink tubing after stripping the damaged section, ensuring a seal against moisture. If the entire system cuts out during bumps, inspect the main connector housing for cracked insulation–replace it if internal wires show bare spots. Carry a spare 4-flat pigtail (part #118379) for quick swaps during roadside repairs.

Premature bulb failure indicates excessive current. Confirm the charging system voltage stays below 14.4V at highway speeds. For LED upgrades, bypass the factory flashers with a solid-state module rated for 3 amps or lower to prevent hyper-flashing. Always match bulb wattage to the original specification–halogen replacements draw up to 80% more power, risking harness overload.
