Complete Guide to 4 Wire Alternator Electrical Connections and Schematics

Verify the excitation circuit first. The voltage-sensing line (often marked “S”) must link to the battery’s positive post via an ignition-switched relay or fuse rated at 10 A. Without this, the regulator receives no reference, leading to erratic output or no charging at all. Confirm the relay contact closes only after the key turns to “run”–early activation drains the battery.

Route the charging lead (“B+”) directly to the starter solenoid or battery terminal, using 8 AWG cable minimum for 60 A systems or 6 AWG for 90 A units. Secure connections with tin-plated copper ring terminals crimped and soldered; oxidation causes 0.3 V drops, cutting efficiency by 12 %. Avoid jumper connections–they overheat at continuous load.

Ground the housing lug through the shortest path to the engine block, not the chassis. Paint or rust creates resistance; scrape clean and apply dielectric grease. A separate 6 AWG strap improves stability under load–vehicle electronics flicker if the ground path resistance exceeds 0.1 Ω.

Retain the ignition input (“IG”) even if the factory schematic omits it. A 1N4007 diode inline prevents backfeed into the dashboard, risking instrument cluster burnout. Test with a multimeter: voltage at “IG” should mirror the ignition switch position within 0.2 V tolerance.

Color-coding varies–GM uses orange for “S” and red for “B+,” Ford swaps red and yellow. Trace each line with a continuity tester before energizing the system. A misplaced 12 V on the excitation circuit destroys the regulator instantly.

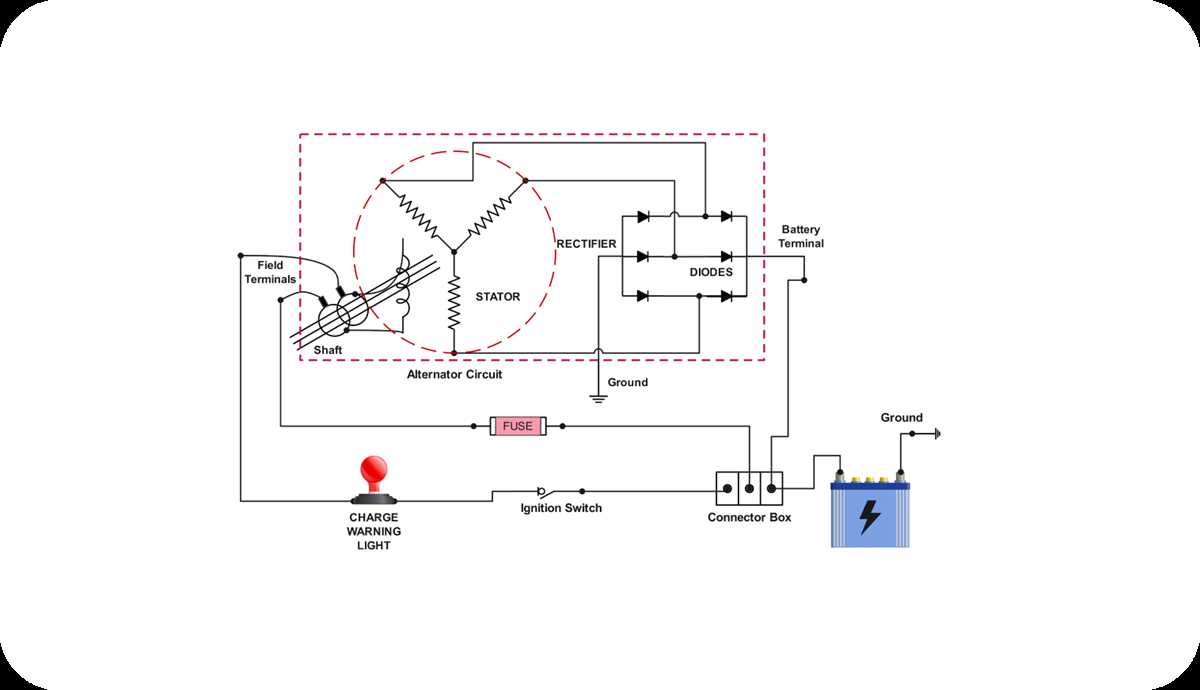

Connecting a 4-Pin Generator: Key Circuit Layouts

To ensure reliable power delivery from a 4-terminal regulator, identify each pin’s role before installation. The main output terminal (typically marked B+ or 30) connects directly to the battery’s positive post via a 6–10 AWG cable with a 60A–100A fuse placed within 7 inches of the battery. The excitation pin (D+, F, or 1) requires a 14–16 AWG link to the ignition switch or charge indicator lamp, with a 10A fuse inline. Ground attachment (if not internally handled) uses the E or 31 terminal, bolted to the engine block or chassis with a minimum 8 AWG conductor for low-resistance return. For voltage sensing, route the S or 61 terminal to the battery side of the main fuse using 16–18 AWG–never connect it downstream of loads to avoid false readings.

Terminal	Function	Cable Gauge	Fuse Rating	Connection Point
B+ / 30	Power output	6–10 AWG	60A–100A	Battery positive post
D+ / F / 1	Excitation trigger	14–16 AWG	10A	Ignition switch or charge lamp
E / 31	Ground return	8 AWG or larger	None	Engine block or chassis
S / 61	Voltage reference	16–18 AWG	None	Battery side of main fuse

After assembly, verify system integrity with a multimeter: measure battery voltage at rest (~12.6V) and under load (~13.8–14.4V at 2000 RPM). If readings deviate, check for loose connections, corroded terminals, or incorrect excitation routing. For units lacking internal regulation, add an external regulator and match its voltage settings to the generator’s specs–most automotive systems require 14.2V ±0.2V. Always disconnect the battery before servicing to prevent short circuits.

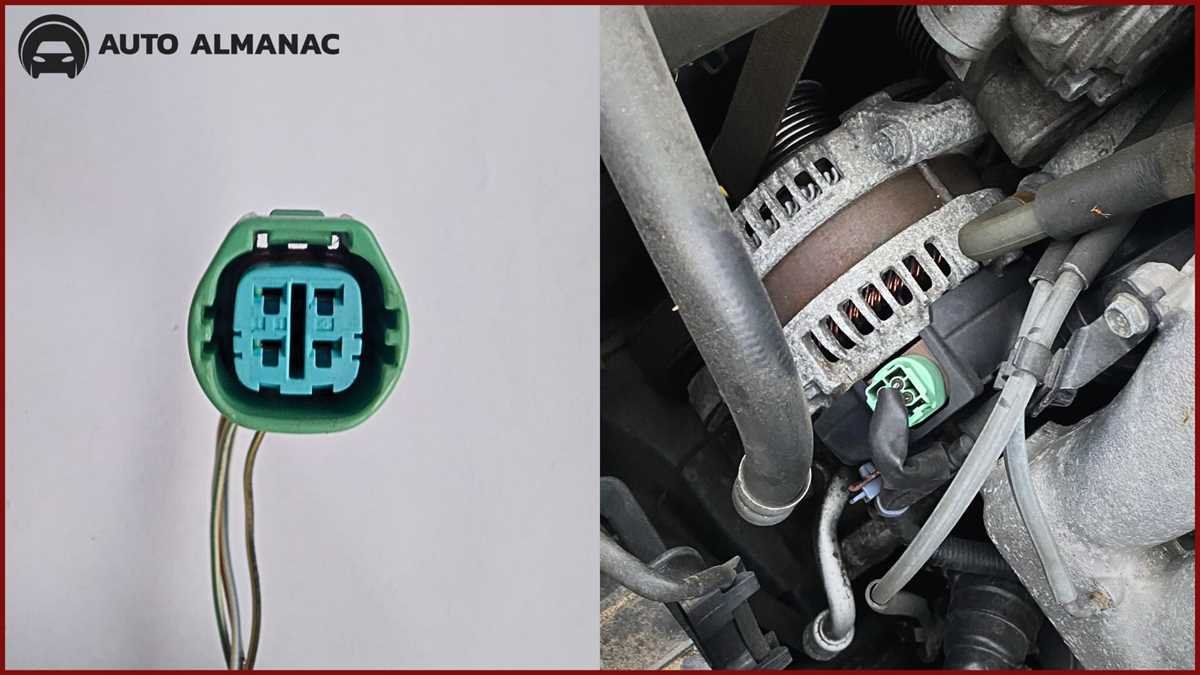

Identifying Terminals on a Four-Pin Generator

Start by locating the B+ (battery positive) post–it’s always the largest stud on the unit, often marked with a “+” symbol or red insulation. This output connects directly to the battery’s positive terminal via a heavy-gauge lead, typically 4-6 AWG. Confirm its function by tracing it to the charging circuit; no other pin carries full output current.

The S (sense) terminal is a smaller spade or blade connector, sometimes labeled “S” or “2.” It relays battery voltage back to the regulator to adjust field excitation. Test continuity between this pin and the battery positive with a multimeter; readings should match actual battery voltage within 0.2V when the system is active.

Look for the F (field) or “1” terminal–usually a male spade connector. This feeds the rotor coil, creating the magnetic field. Disconnect it and measure resistance between this and the ground case; values should range 2.5-5 ohms. If reading exceeds 20 ohms, the coil may be faulty.

The ground (case) connection relies on the unit’s metal housing contacting the engine block. Verify tight mounting bolts and scrape away paint or corrosion at contact points. Use a multimeter to check for less than 0.5 ohms between the housing and battery negative in all operational states.

Avoid mistaking the IG (ignition) or R (relay) pins for primary terminals–these only trigger excitation or activate warning lamps. The IG pin sources 12V from the ignition switch, while R connects to the charge indicator. Probe these with the key in “ON” position; IG should show battery voltage, R should drop below 0.5V under load.

Label each connector immediately after testing–use heat-shrink sleeves marked with “B+,” “S,” “F,” and “GND.” Store component documentation (e.g., Bosch 0120469015) for reference; pinch diameters and terminal shapes vary by model year, even within the same manufacturer’s line.

Step-by-Step Installation for a 4-Terminal Charging System

Disconnect the vehicle’s battery negative terminal before handling any electrical connections to prevent shorts or accidental activation. Identify the four terminals on the generator: battery positive (B+), ignition/excitation (I), sensing (S), and ground (G). The B+ terminal connects directly to the battery’s positive post via a heavy-duty cable–minimum 8 AWG for most setups–to handle current load without voltage drop. Use a fusible link or 100A fuse within 7 inches of the battery to protect the circuit from overloads. The excitation terminal (I) typically links to the ignition switch or a dedicated 12V source to initiate charging when the engine runs.

• For the sensing terminal (S), attach a separate lead (16–18 AWG) to the battery’s positive post or a fused distribution block. This line provides voltage feedback to regulate output–ensure no more than 0.5V drop over the entire run.
• Ground the G terminal to the engine block or chassis using a braided strap or 6 AWG cable. Avoid relying on painted or coated surfaces; clean the contact point with a wire brush and apply dielectric grease to prevent corrosion.
• Test the setup with a multimeter: ignition off (0V at B+), ignition on (12.6–13.2V at B+, 12V at I), engine running (13.8–14.4V at B+). If readings exceed 14.8V, check the regulator or replace the unit.

Route all leads away from moving parts, exhaust manifolds, and sharp edges. Secure them with adhesive-lined clamps every 12 inches to prevent chafing. Use heat-shrink tubing or liquid electrical tape at splice points. Reconnect the battery last, starting with the positive terminal. Idle the engine for 5 minutes, then verify no whining noises, dim lights, or erratic gauge behavior–signs of poor grounding or incorrect excitation. For diesel applications, add a 10Ω resistor in series with the I terminal to limit initial current surge.

Common Mistakes When Setting Up a Four-Terminal Charging System

Mixing up the excitation terminal with the output lead causes immediate failure. The smaller ignition-controlled post (often labeled “IG” or “L”) must connect to the battery-side switch–never directly to power. Mistaking this for the main positive post leads to overheating, fused contacts, or blown fuses. Always verify terminal markings before securing connections.

Overlooking the ground path creates phantom voltage drops. A corroded chassis point or loose mounting strap forces current through weaker paths, reducing charging efficiency by 20-30%. Ensure the system’s casing bonds tightly to the engine block or frame with a dedicated negative cable, not just through bolt threads.

A common error involves tapping the warning light circuit from the wrong feed. Pulling power from an accessory fuse rather than the ignition-switched side keeps the dash indicator illuminated constantly or dims it randomly. Trace the original harness to locate the switched 12V source before splicing.

Ignoring voltage regulator compatibility introduces wild voltage swings. Aftermarket units rated for 14.2V will overcharge a system designed for 13.8V, boiling electrolyte in flooded batteries within hours. Check manufacturer specs against the replacement regulator’s output curve–adjustments may require resistor modifications.

Cramming oversized conductors into undersized terminals crushes strands, increasing resistance over time. A 10 AWG lead for a 40A system should terminate in a proper crimp lug or soldered joint, not jammed into a push-on spade connector meant for 16 AWG. Verify crimp dies match the gauge to prevent loose joints.

Forgetting to isolate the charge indicator circuit when paralleling batteries causes parasitic drain. A single diode or relay must block reverse current; otherwise, the secondary battery discharges overnight. Test for standby current below 50mA before finalizing connections.

Assuming all four-terminal setups share identical pinouts leads to miswiring. Some integrator designs route the ignition signal to the same post as the field coil, while others separate them. Consult the vehicle service manual for exact location codes–colors alone are unreliable.

Testing Voltage and Continuity in a 4-Terminal Charging System

Connect a multimeter set to 20V DC between the output terminal and ground with the engine off–the reading should match battery voltage (12.6V ±0.2V). Start the engine and rev to 2,000 RPM; voltage must rise to 13.8–14.5V. If readings drop below 13.2V under load, inspect excitation leads and stator windings. Check the field control path by probing its connection–expect 4–6V with ignition on. Absence of voltage indicates a faulty regulator or broken excitation loop.

For continuity checks:

• Disconnect battery negative cable.
• Set multimeter to continuity mode. Probe the stator coil’s ground terminal and engine block–audible tone confirms path integrity.
• Verify excitation path resistance: 30–80 ohms between its terminals. Values under 20 ohms suggest winding short; infinite resistance points to open circuit.
• Inspect voltage sensing line resistance–under 1 ohm to battery positive confirms intact link.
