Mitsubishi Alternator 4 Wire 4 Pin Connection Guide and Wiring Layout

Begin by identifying the two primary excitation terminals–typically marked IG and L–on the regulator housing. Connect the IG post to a fused ignition source rated at 10A to prevent voltage spikes during engine startup. The L terminal must interface with a 12V indicator lamp (3-5W) wired in series to ground; this confirms proper field activation before cranking. Failure to observe this sequence risks erratic charging cycles and premature brush wear.

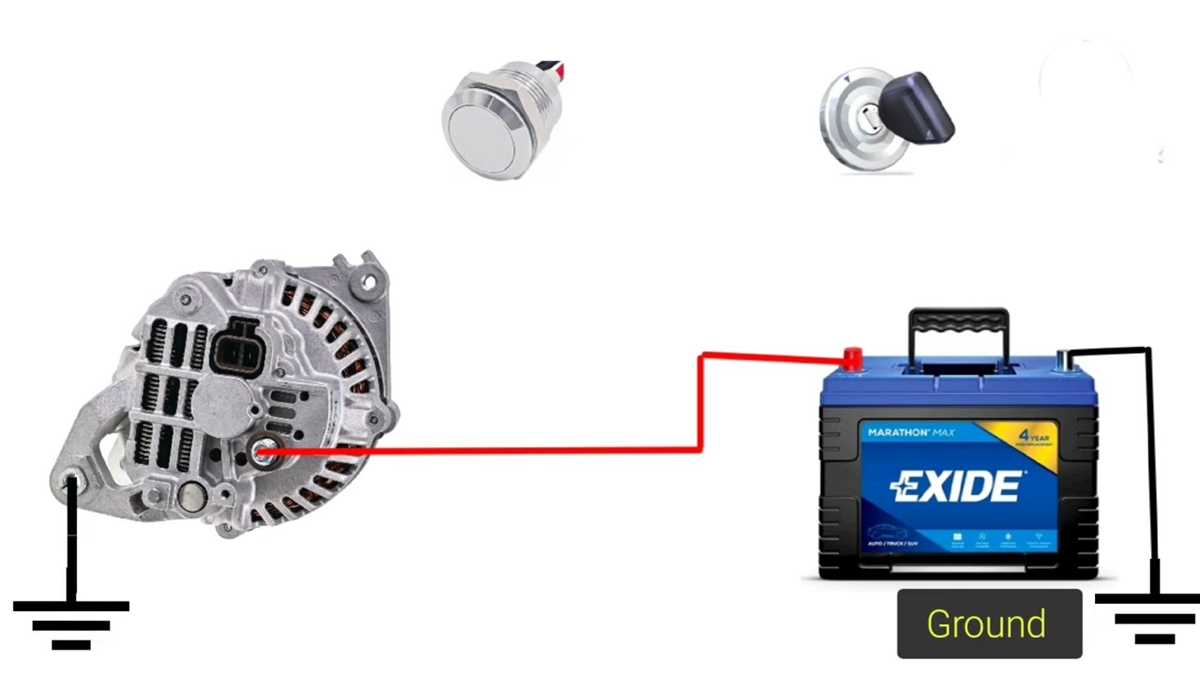

Locate the B terminal–this carries the main output current. Route this directly to the battery positive via a high-amperage cable (minimum 6 AWG for engines under 3.0L, 4 AWG for larger displacements). Include an in-line fuse (size = 125% of max generator output) within 18 inches of the battery post to mitigate short-circuit hazards. The remaining S terminal provides battery voltage sensing; link it to the battery positive via a dedicated 16-18 AWG conductor, bypassing the main power path to eliminate voltage drop errors.

Ground the frame of the unit to the engine block using a 10 AWG conductor, ensuring the contact surface is free of paint, corrosion, or insulating coatings. A poor ground connection introduces intermittent charging faults, often misdiagnosed as internal failure. Test continuity between the housing and negative battery post with a multimeter before finalizing connections–readings above 0.1Ω indicate insufficient grounding.

For systems equipped with tachometer output, the N post (if present) delivers an AC pulse proportional to rotor speed. Tap this signal using a shielded 18 AWG cable, grounding the shield at the instrument cluster end only. Avoid routing alongside high-current conductors to prevent EMI-induced RPM fluctuations. Calibrate tachometer response per manufacturer specifications–typically 1 pulse per cylinder firing for 4-cylinder engines.

Connecting a 4-Terminal Generator in Mitsubishi Systems

Begin by identifying the terminal labels on the rear of the charging unit: B, L, IG, and S. The B output (battery-positive) connects directly to the vehicle’s electrical storage via a 10-gauge conductor protected by a 60A fuse. The L terminal (lamp) links to the charge indicator on the dashboard–use a 0.5mm² lead to prevent voltage drop. The IG (ignition) terminal requires activation from the switch (12V on startup), typically routed through a relay if parasitic draws exceed 100mA. The S (sensing) terminal, often overlooked, must tap into the battery-positive side of the junction block–never post-fuse–to ensure accurate voltage regulation; failure here causes undersupply at 13.5V or overshoot above 14.8V.

Terminal Color Codes & Fault Diagnosis

Terminal	Standard Color	Voltage (Key On)	Troubleshooting Step
B	Red/Black trace	12.0-12.6V	Inspect fuse; test continuity to battery-positive with multimeter (Ω setting)
L	White/Red trace	12V (lamp OFF)	Check dash bulb; verify 5V at ECU feedback pin (C125, 17th connector)
IG	Black/Blue trace	12V	Confirm relay trigger; scan for DTC P0562 (low system voltage)
S	Green/Yellow trace	Same as B	Disconnect connector; jump S to B temporarily–if output stabilizes, replace regulator

For 2003–2008 models, add a 1N4007 diode in series with the IG link to block reverse current; post-2009 units integrate this internally. Always route conductors away from moving parts (minimum 25mm clearance) and secure with Adel clamps every 300mm to prevent chafing.

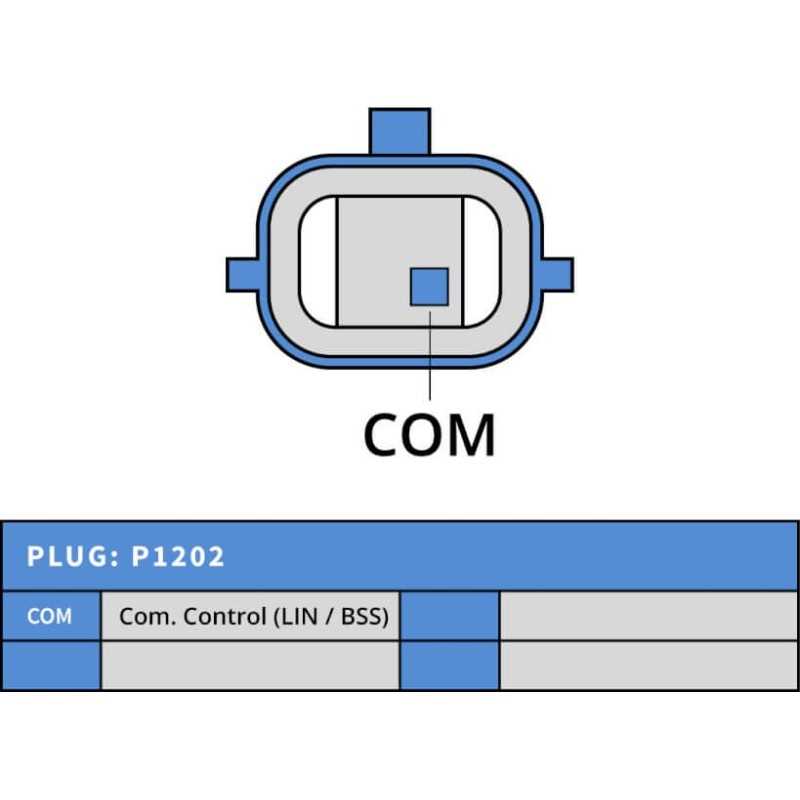

How to Identify the 4 Connector Leads on a Mitsubishi Charging System

Locate the voltage regulator connector on the back of the unit–it’s a small, rectangular plug with four distinct terminals. The first lead, usually denoted by a red or white stripe, carries the ignition signal (L terminal) and activates the voltage regulator when the key turns. Test it with a multimeter: expect 12V when the engine is off but the ignition is on. If absent, check the fuse or ignition switch.

Examine the remaining three terminals against factory documentation for your model year. The standard configuration includes:

• A brown or black lead (S terminal) supplying battery voltage for sensing–measure 12-14V at rest.
• A green or blue conductor (IG terminal) linked to the charge indicator light; voltage should drop to near zero when the engine runs.
• A black or gray conductor (F terminal) delivering field current to the rotor–verify continuity to ground when energized.

Use a service manual’s wiring schematic if colors deviate–Mitsubishi’s 2000-2010 lineup often swaps green and blue, while pre-1998 models may use solid black for field current. Probe each terminal with the engine off: the sensing circuit reads full battery voltage, the indicator circuit reads battery voltage until cranked, and the field circuit shows zero until ignition energizes it.

Quick Verification Steps

1. Set multimeter to DC voltage, 20V range.
2. Attach black probe to chassis ground.
3. Touch red probe to each connector slot:
   • Slot 1 (L): 12V with key on, engine off.
   • Slot 2 (S): 12-14V constant.
   • Slot 3 (IG): 12V key on, 0V engine running.
   • Slot 4 (F): 0V key off, 5-7V key on, engine off.
4. If readings differ, inspect harness for corrosion, fraying, or incorrect terminal crimping.

Step-by-Step Guide to Connecting Your 4-Terminal Power Generator

Start by identifying the main output terminal–usually the largest stud–marked with a plus symbol. This connection carries the primary current flow to the battery bank and must use a high-gauge conductor, preferably 4 AWG or thicker, to handle the amperage without overheating. Secure the cable with a crimped ring terminal and apply dielectric grease to prevent corrosion on the contact surface.

Locate the excitation input–often labeled “IG,” “L,” or “R”–which energizes the internal regulator. This line typically requires a 14-16 AWG link from the ignition switch or a dedicated relay. Ensure the circuit includes a 10A fuse within 7 inches of the power source to protect against shorts. Skip this step and the unit will fail to charge under any load.

The sense line–distinguishable by a thinner gauge–monitors voltage directly at the battery. Connect it to the positive post using a 16-18 AWG strand, avoiding splices or intermediary connections that could introduce resistance. Polarity here is critical; reversing it will cause erratic voltage readings and premature regulator failure.

Ground the case directly to the engine block using a dedicated braided strap or at least 8 AWG solid copper. Paint must be scraped off the contact area to ensure a solid path; poor grounding is the leading cause of intermittent charging issues in these units. Torque the fastener to 12-15 ft-lbs to prevent loosening under vibration.

Attach the warning lamp output–typically a spade connector–to the dashboard indicator via a 18-22 AWG conductor. This circuit not only illuminates the charge light but also provides initial excitation at startup. If the lamp fails to light, the unit may not begin generating current; test with a multimeter set to 20V DC scale if troubleshooting is needed.

Before applying power, verify all connections with an ohmmeter: infinite resistance between any live terminal and ground indicates proper isolation. Apply 12V to the excitation input and confirm the rotor spins freely without grinding noises–a sign of worn bearings requiring immediate replacement.

Final Checks and Testing

Start the engine at idle and observe the voltage at the battery; a healthy system should register 13.8-14.5V within 30 seconds. If readings exceed 15V or fluctuate wildly, the internal regulator has failed and must be replaced. For diesel applications, ensure the “W” terminal–if present–is left disconnected unless interfacing with an tachometer, as it outputs raw AC pulses that can interfere with modern electronics.

Frequent Errors in Connecting a Four-Terminal Electrical Generator from Mitsubishi

Reversing the sense and excitation leads ranks as the most destructive blunder. Connecting the two thinner conductors backward–swapping the 1-amp ignition feed with the field regulator return–can trigger uncontrolled rotor saturation. Field current soars past 8 A instead of the safe 3–5 A window, burning the diode trio and causing bearing seizure within minutes under sustained load. Always verify the thinner red conductor carries switched 12 V, confirmed with a multimeter showing 0.5–1.0 Ω resistance to the case.

Neglecting the case ground strap invites phantom voltage drops. A missing or corroded strap between the rear housing and engine block forces the excitation loop to ride the battery negative, adding 0.2–0.4 V drop across engine mounts. Under load, the voltage regulator misreads system potential, dumping 15.8 V instead of the desired 14.2–14.5 V ceiling, overheating the battery and frying sensitive modules. Secure an 8-gauge braided strap, tin-plated both ends, no longer than 12 cm from housing to block.

Over-tightened mounting bolts distort the stator’s laminated core. Torquing beyond 25 Nm squeezes the iron plates, increasing eddy losses by 12 % and raising stator temps past 130 °C, which melts insulation in under 40 hours. Use a calibrated beam wrench and tighten only until the washer bottoms; re-snug after the first hot cycle to account for thermal settling.

Incorrect Routing Near Hot Components

Laying the charge lead within 3 cm of exhaust manifolds cooks the insulation. Polyimide jackets soften at 120 °C; sustained exposure cracks the polymer, exposing bare copper to vibration-induced shorts. Route all conductors through the inner fender rail, zip-tied every 15 cm, with a sacrificial ceramic loom sleeve over 15 cm spans adjacent to 300 °C+ surfaces.

Omitting a shunt diode on the ignition input lets back-EMF spikes exceed 80 V. The regulator’s MOSFET absorbs the transient, de-soldering its gate or blowing the ESD protection die. Fit a 50 V Schottky diode directly across the thinner red terminal and chassis, cathode to chassis; verify forward drop ≯ 0.6 V at 1 A.

Mixing connector genders jams the mating halves. Forcing the 4-contact plug into a same-gender socket damages the silver-plated blades, raising contact resistance ≮ 5 mΩ. Clean both faces with isopropyl-soaked foam swabs, then mate while observing slight snap-click feedback; never force.

Skipping the voltage-sensing link fools the regulator into overcharging. Without the dedicated sensing conductor tied to the battery’s positive post, the regulator assumes alternator output equals system voltage. Actual battery potential may sag 0.4 V, prompting the regulator to boost field current 18 % above nominal, cooking the battery’s electrolyte and buckling its plates. Tap the battery’s main stud directly, not through junction blocks or fuse taps, and confirm ≯ 0.1 V drop under 50 A load.
