Complete 4 Wire O2 Sensor Wiring Diagram for Nissan Vehicles

Start by verifying the connector color codes before attempting any modifications–Nissan’s upstream probe (pre-catalytic converter) consistently uses a standardized scheme: the white leads supply heater ground and power, while the black output delivers the signal to the ECU. The remaining grey conductor serves as the sensor’s ground reference. Mismatching these can trigger false lean/rich codes (P0130-P0135) or heater circuit faults (P0136-P0141).

Use a digital multimeter to confirm continuity: probe the heater circuit (white/white)–resistance should measure between 4-9 ohms at room temperature. If readings exceed 20 ohms, the element is degraded and requires replacement. For the signal circuit (black/grey), check for 0.1-0.9V fluctuation under normal operating conditions; steady 0.45V indicates a faulty device.

When splicing or adapting aftermarket units, maintain OEM pin orientation–crossing the signal and heater leads will destroy the probe. For Z32 300ZX or B13 Sentra variants, note the asymmetrical connector: the tab faces the exhaust manifold, preventing reversed installation. If integrating a wideband substitute, bypass the factory ECU’s narrowband calibration by intercepting the signal at the harness junction (pin 42 on VG30DE, pin 69 on SR20DE).

For permanent modifications, crimp joints with gold-plated terminals and seal with heat-shrink tubing containing adhesive lining–exposed connections corrode rapidly in exhaust-side environments (visible as white/green oxidation beneath insulation). Avoid solder-only repairs; vibrations fracture the bond over time.

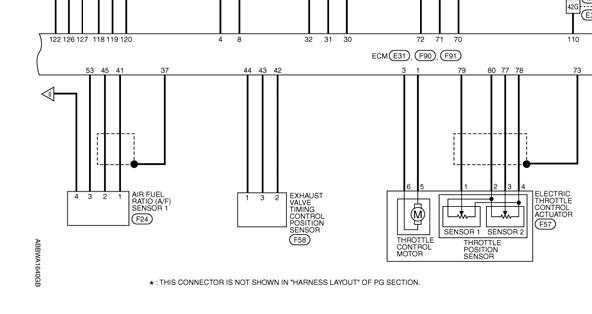

Refer to the factory service manual’s electrical diagrams for model-specific variations: KA24DE (Altima) incorporates a third white lead for dual-heater redundancy, while vintage L28ET (280ZX) uses a combined ground shared between heater and signal circuits. Ignoring these nuances leads to improper voltage readings, mimicking vacuum leaks or fuel delivery errors.

Oxygen Probe Connection Layout for Nissan Vehicles

Verify color coding before making any splices–Nissan’s upstream probe on VQ and SR engines typically follows this pattern: black (signal), gray (signal return), white (heater positive), and brown (heater negative). Misrouting these will trigger P0135/P0141 codes regardless of probe condition.

For downstream probes in Altima and Sentra models post-2005, expect a mirrored pinout: brown (heater negative), white (heater positive), black (signal), gray (signal return). Always cross-check with a multimeter–resistance between heater pins should read 2-14 ohms at ambient temperature. Anything above 20 ohms indicates internal corrosion.

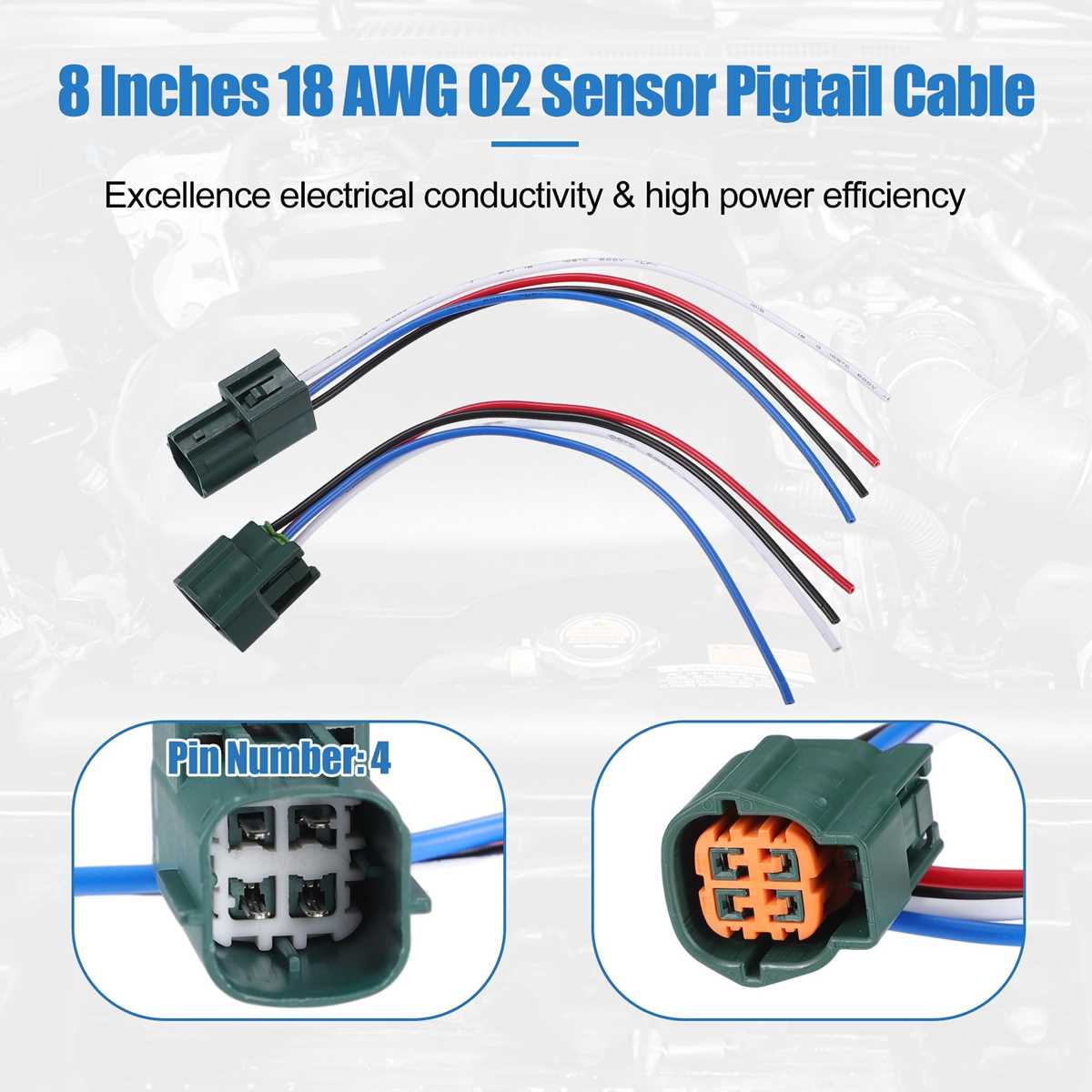

Use heat-resistant silicone sleeving on exposed leads near the exhaust manifold–standard PVC insulation melts at 175°C, while factory Nissan harnesses withstand 350°C. Replacement connectors from Denso or NTK include pre-crimped pigtails with correct gauge: 18AWG for heater circuits, 20AWG for signal paths.

Pinout Reference by Model Year

Model	Year	Connector Pin A	Connector Pin B	Connector Pin C	Connector Pin D
Maxima	2000-2003	Heater +	Heater –	Signal +	Ground
Frontier	1998-2004	Ground	Heater +	Signal +	Heater –
Pathfinder	2005-2010	Heater +	Signal +	Ground	Heater –

Splice leads using a ratcheting crimper–Nissan’s factory joints rely on double-crimp sleeves filled with dielectric grease to prevent moisture ingress. Aftermarket probes often omit this step; bypassing it shortens probe life by 60% in high-humidity environments.

When retrofitting a four-cable probe into a vehicle originally equipped with a single or dual-cable unit (common in 1995-1997 240SX), retain the original ECU calibration but add a relay to switch heater power through the ignition circuit–direct battery power will fry the probe’s internal resistor within 4,000 miles.

Probes in turbocharged models (e.g., 300ZX, Silvia) include an additional shield drain–connect this to chassis ground at the transmission mount bolt torqued to 20 Nm. Floating shield currents introduce 0.3-0.7V noise into the signal loop, causing false lean codes under boost.

Avoid universal oxygen probe connectors–they swap high-current heater terminals with low-level signal paths, resulting in immediate ECU desensitization. Nissan’s proprietary connector uses a polarizing key and gold-plated contacts rated for 20A continuous current.

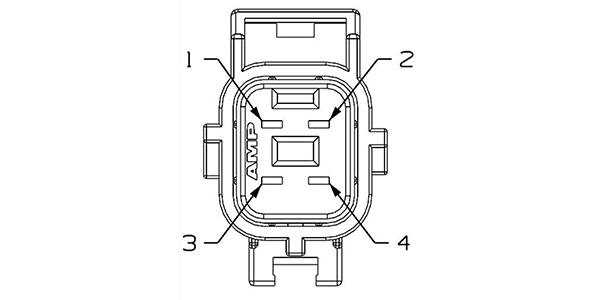

Decoding O2 Connector Pin Assignments in Nissan Models

Start by locating the upstream oxygen probe on the exhaust manifold–typically positioned before the catalytic converter. Nissan’s standard color-coding breaks down as follows: the heater supply lead (often black) carries 12V from the ignition relay, while the heater ground (white) connects to the ECU or chassis. The signal return line (usually gray) delivers voltage fluctuations between 0.1–0.9V to the powertrain controller, and the low-reference path (tan or brown) grounds to the engine block, completing the circuit.

Verify each conductor with a multimeter set to DC voltage. Probe the black segment: ignition-on should register battery voltage, dropping ≤0.2V when the engine runs. The gray segment must pulse between 0.2–0.8V at 2,000 RPM warm; flat readings indicate a faulty device or open loop. Tan leads read

Common variants exist across trim levels:

• Sentra 2.0L (QR25DE): heater positive–black, heater negative–white, signal–gray, ground–tan.
• Altima 3.5L (VQ35DE): heater positive–black, heater negative–white/blue stripe, signal–gray/red stripe, ground–tan.
• Frontier 2.5L (QR25DE): heater positive–black, heater negative–white, signal–gray/black stripe, ground–light brown.

Avoid assuming uniformity–always cross-check with the vehicle-specific service manual. Late-model Titans (VK56DE) replace gray with solid purple for signal return; earlier Pathfinders (VQ40DE) use gray/black stripe. In hybrid variants (e.g., Rogue hybrid), the signal leg may split into dual purple leads–one for lean/rich feedback, the other for catalyst monitoring.

Isolate the harness connector to prevent adjacent interference. Wrap exposed copper edges with Kapton tape before back-probing. When splicing, crimp heat-shrink terminals over 18-gauge tinned copper–they resist thermal cycling better than solder alone. Nissan ECUs tolerate ≤1.5 ohms resistance between the gray/purple lead and the controller pin; exceedances trigger P0130–P0133 codes.

During replacement, match thread pitch (M18x1.5) and sealing washer torque (40–50 Nm). Anti-seize paste on threads prevents galling but keep compound off ceramic tips–contaminants skew readings. Post-install, clear learned fuel trims via scan tool bidirectional tests; repeat monitor drive cycle until status switches to “complete.”

For downstream probes (post-cat), the scheme simplifies: heater positive remains black, heater ground white, signal typically solid blue, and low-reference tan/gray stripe. Blue leads must read

Document any atypical colors immediately. Some RHD exports (e.g., JDM Skyline) use Japanese-market wiring codes: heater positive–red, heater ground–white, signal–green/white, reference–blue/white. Always confirm with a wiring chart extracted from the Nissan Consult-III diagnostic software or official electronic service guides to prevent irreversible ECU conflicts.

Step-by-Step Connection Guide for Oxygen Signal Linkage in Nissan Models

Locate the vehicle’s ECU harness connector–typically a 60-pin or 80-pin plug–positioned beneath the dashboard near the firewall. Identify pinouts using the service manual for your specific trim (e.g., B13 Sentra, Z32 300ZX); mismatched terminals risk voltage drops or signal corruption.

Strip the insulation from the signal leads–Heater (+), Heater (−), Signal (+), and Signal (−)–to expose 3–5 mm of copper. Crimp on female spade connectors (0.64 mm gauge) for secure attachment; soldering ensures longevity but isn’t mandatory if crimping is done tightly.

Connect the Heater (+) terminal to a fused ignition-switched 12V source, such as the fuel pump relay output or terminal 15 on the main relay. Avoid direct battery links; unregulated voltage damages the internal ceramic element. Heater (−) routes to chassis ground–sand the mounting point to bare metal for corrosion-free contact.

Attach Signal (+) to ECU pin 46 (varies; consult trim-specific documentation) and Signal (−) to ECU pin 30 or a dedicated ground bus. Use twisted-pair cabling for the last 30 cm to minimize EMI from alternator whine or injector noise. Shielded cable isn’t necessary but improves signal fidelity in older models with poor grounding.

Verify continuity with a multimeter–set to 200 ohms–between the sensor’s signal leads and the ECU plug. Expected resistance: 2–15 ohms (heater), 10–40 ohms (signal at 20°C). Absence of continuity indicates a broken joint or incorrect terminal mapping.

Reassemble the harness protector and secure leads away from moving parts (e.g., steering column, pedal assembly). Route cables above the transmission tunnel to avoid heat soak from the exhaust manifold. Zip-tie every 10 cm to prevent vibration-induced fatigue.

Clear ECU fault codes post-installation using a scan tool (Consult-II or equivalent). Start the engine and monitor live data: voltage should swing between 0.1–0.9V at 2,000 rpm. If readings flatline, recheck ground integrity and ECU pin assignments–common errors include swapped terminals or corroded fusible links in the main harness.
