Complete Guide to 4 Wire Tachometer Wiring Connection and Schematics
Start by identifying the four leads on your speed sensor: power supply (+), ground (-), signal output, and sensor ground. The power supply terminal typically accepts 12V DC from the vehicle’s battery or a regulated circuit. Connect the ground terminal to a clean chassis point–avoid daisy-chaining it to other components to prevent interference.
The signal output must link directly to the gauge’s sensor input, often marked SIG or TACH. Use a shielded conductor if the run exceeds 30 cm to minimize electromagnetic noise. For magnetic inductive pickups, ensure the cable has a twisted pair configuration to cancel out stray voltages.
Attach the sensor ground to its designated pin on the gauge–never combine it with the main ground. Misalignment here distorts readings, especially at high RPM ranges (5000+). For digital meters, verify the pulse-per-revolution (PPR) ratio; most automotive systems default to 2 pulses per cycle, while marine or motorcycle applications may use 1 or 4 pulses.
Test connections with a multimeter: probe the signal terminal while cranking the engine. A functional setup should show short voltage spikes (0.5–5V) synchronous with rotation. If readings flatline, reverse the signal and sensor ground leads–polarity matters in 90% of Hall-effect sensors. For analog gauges, calibrate the scaling via the built-in trimpot; consult the manual for target resistance values (usually 120–240 Ω).
Connecting a 4-Pin RPM Indicator: Practical Steps
Start by identifying the four leads: power input, ground, signal source, and illumination. The power lead typically requires 12V DC, matching most automotive or marine electrical systems. Ensure the supply voltage matches the gauge’s specifications–deviations beyond ±0.5V may cause erratic readings or damage.
Attach the ground lead to the vehicle’s chassis or a dedicated ground bus. Poor grounding is the most common cause of signal noise or intermittent operation. Use a crimp connector and heat-shrink tubing to prevent corrosion, especially in humid or salt-exposed environments.
For the signal lead, connect it directly to the ignition coil’s negative terminal or the ECU’s RPM output pin. On vehicles with distributorless ignition, locate the correct ECM pin–consult the service manual for pin assignments. Avoid tapping into fuel injectors or alternator outputs, as these can introduce false pulses.
The illumination lead controls backlighting. Connect it to the vehicle’s dimmer circuit or an auxiliary lighting switch. Some aftermarket gauges have adjustable brightness; test the circuit before finalizing the connection to avoid glare during night operation.
Below is a reference for common connector types and their functions:
| Lead Color (Typical) | Function | Recommended Connection Point |
|---|---|---|
| Red | Power | Switched 12V (fuse-protected) |
| Black | Ground | Chassis or ground bus |
| White/Green | Signal input | Ignition coil (-) or ECU RPM pin |
| Blue/Yellow | Illumination | Dimmer circuit or lighting switch |
Use a multimeter to verify continuity and voltage before attaching any connector. Set the meter to DC voltage and probe the power lead while the ignition is on–readings should stabilize at 12-14V. For signal verification, switch to frequency mode; cranking the engine should produce a clear pulse train between 5-20 Hz per 1,000 RPM.
Secure all connections with solder or high-quality crimp terminals. Twist-and-tape methods degrade over time, leading to voltage drops or short circuits. Apply dielectric grease to terminals exposed to moisture, especially in marine or off-road applications.
After installation, calibrate the gauge if necessary. Most analog units require no adjustment, but digital variants may need a scaling factor entered via a push-button interface. Follow the manufacturer’s procedure–incorrect scaling results in readings that are off by multiples of ten.
Final testing involves running the engine at idle, mid-range, and high RPM. Monitor for stable readings; flickering or sudden jumps indicate signal interference. Add a 0.1µF capacitor across the signal and ground leads if noise persists–this filters high-frequency spikes without affecting accuracy.
Matching Cable Hues for Four-Lead Speed Sensor Hookups
Start with the ignition feed–typically a green, yellow, or striped conductor–attached to the coil’s negative contact or ECU-supplied pulse terminal. Verify the hue corresponds to the vehicle’s service manual; most Japanese models use green for signal input, while European brands often designate yellow or purple. If no documentation exists, probe with a multimeter: the correct lead will pulse 12V during cranking. Avoid assuming uniformity; a BMW E36, for instance, swaps the ignition feed to grey, whereas a Ford 302 V8 retains green.
- Signal return (ground): Black, brown, or occasionally bare. Confirm continuity to chassis; resistance should read <0.5 ohms.
- Power supply: Red or red/white, delivering 12-14V directly from the battery or fuse panel. Check voltage drop under load–any deviation signals corroded connectors.
- Lighting (if equipped): White, orange, or purple, often tied to dimmer circuits. Test with headlights on; brightness should vary smoothly without flicker.
Cross-reference with OEM diagrams before finalizing connections–aftermarket units may invert polarization, requiring a swap of input/output conductors.
Step-by-Step Guide to Integrating a Rev Counter with Engine Timing Circuits

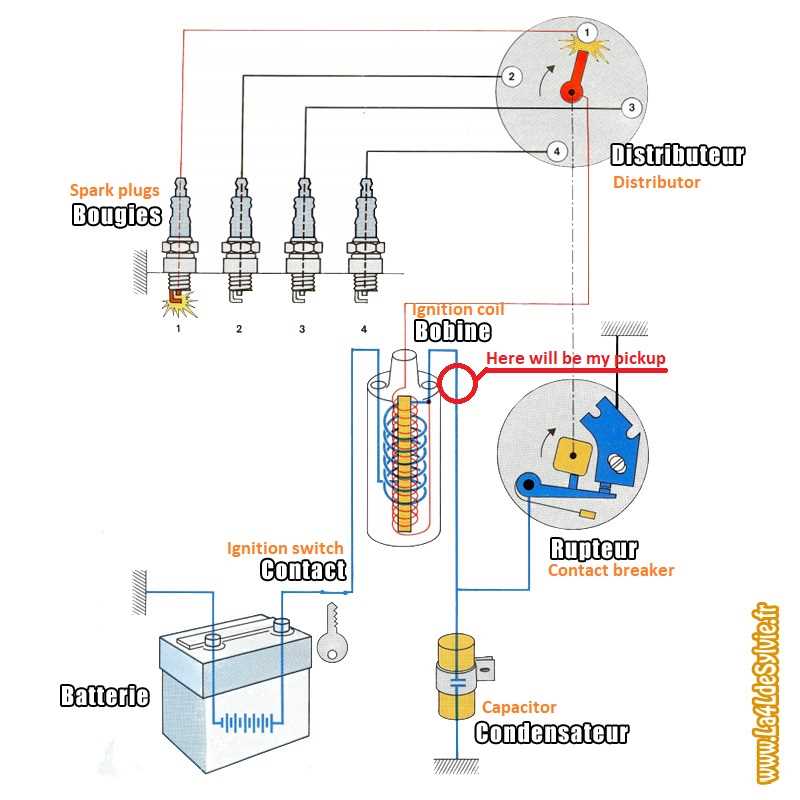

Locate the trigger source on the ignition coil. For most electronic spark timing systems, the pulse signal originates at the negative terminal of the coil pack. Use a multimeter set to AC voltage to confirm a fluctuating reading between 0.5V and 10V depending on RPM–this verifies the correct pick-up point. If working with a distributor-based system, tap into the primary side of the coil where the breaker points connect, ensuring no interference with existing timing adjustments.
Match the instrument’s input impedance to the source. Rev counters typically require a specific resistance load, often between 10kΩ and 100kΩ, to accurately interpret engine pulses. Check the device’s manual for exact specifications and install a suitable resistor in series if the coil’s output impedance exceeds recommended thresholds. This prevents signal distortion and premature gauge failure. For aftermarket units, some models include an inline resistor–verify its presence before proceeding.
Establish a solid ground reference for the instrument panel. Route a dedicated conductive path from the gauge housing to a clean chassis ground, avoiding shared points with high-current components like starter motors or alternators. Poor grounding introduces electrical noise, causing erratic readings or damage to the display’s internal circuitry. Use a 14-gauge or thicker conductor for reliability, and test continuity with a meter before securing connections with crimp connectors or solder.
Calibrate the display if the engine’s cylinder count differs from the gauge’s default setting. Most rev indicators are factory-set for 4-cylinder applications. For 6- or 8-cylinder configurations, access the internal programming mode (often via a hidden button or combination of inputs) or adjust dip switches according to the manual. Validate accuracy by comparing readings to a known reference, such as a diagnostic scanner, ensuring the displayed RPM aligns within ±50 RPM of the true engine speed at idle and under load.
Troubleshooting Common Issues in 4-Lead Indicator Setups
Check for reversed polarity on the signal leads first–swap the ignition and ground connections if the needle swings backward or fails to register. A 12V test lamp between the ignition input and chassis ground should illuminate steadily; flickering indicates a faulty ignition feed or loose terminal. For intermittent readings, verify the gauge’s reference terminal connects directly to the coil’s negative post–any intermediary relay or resistor can distort pulses. If the display pegs at maximum RPM, measure resistance across the sender circuit; values below 10 ohms suggest a short, while open circuits (infinite resistance) cause erratic behavior or no movement.
Contaminated contacts degrade signal integrity–clean both gauge and sender terminals with electrical contact cleaner, not sandpaper, to avoid damaging plated surfaces. For persistent bounce or needle flutter, add a 0.1μF capacitor between the signal input and ground to smooth voltage spikes. If the unit still misreads, disconnect the sender and manually pulse the ignition input with a 5V square wave from a function generator; consistent readings confirm a faulty sensor, while erratic response points to internal gauge damage. Replace the sending unit if resistance measurements drift unpredictably across its range under steady conditions.
How to Test Rotation Sensor Signals Using a Multimeter
Set your multimeter to AC voltage mode (usually marked as “V~” or “ACV”) with a range of 200V or higher. Connect the probes to the signal leads–typically the outer pair on a four-conductor setup–while the system is running. A healthy output should register between 5V and 12V AC, fluctuating with RPM. If readings are static or below 1V, suspect a faulty sender or broken circuit path. Avoid DC mode; it won’t capture the pulsed output.
For frequency-based sensors, switch to Hz (hertz) mode on the multimeter. Probe the same signal pair while the engine idles. Expect 10-50Hz at idle, scaling with speed. If the display reads 0Hz or erratic jumps, the pulse generator may be compromised. Cross-check with a known-good component if possible–bench testing isn’t reliable here, as load conditions affect signals.
Verify ground integrity by measuring resistance between the sensor’s ground terminal and battery negative. A reading exceeding 0.5 ohms indicates corrosion or loose connections. For inductive sensors, connect one probe to the signal terminal and the other to ground; a reading near infinite ohms confirms isolation. Shorts to ground (below 100 ohms) point to internal failure or damaged insulation.
When signals appear weak, probe both the sender and gauge cluster separately. Disconnect the connector at the gauge and measure output directly from the sender leads–a missing signal here isolates the issue upstream. For smart clusters with onboard processing, consult specs; some require 5V reference from the ECU, which can be tested in DC voltage mode at the appropriate pin. Always compare readings to service manual values; generic ranges rarely account for exact system tolerances.
