Practical Circuit Designs with IC 4017 and 555 Timer Schematics

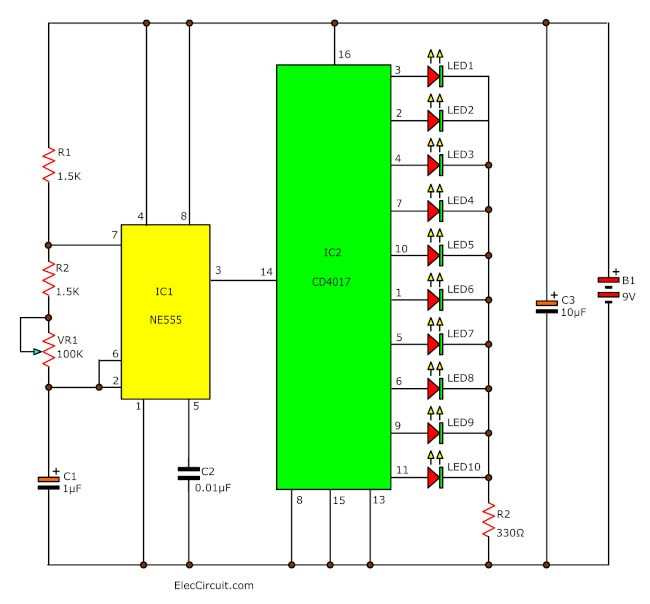

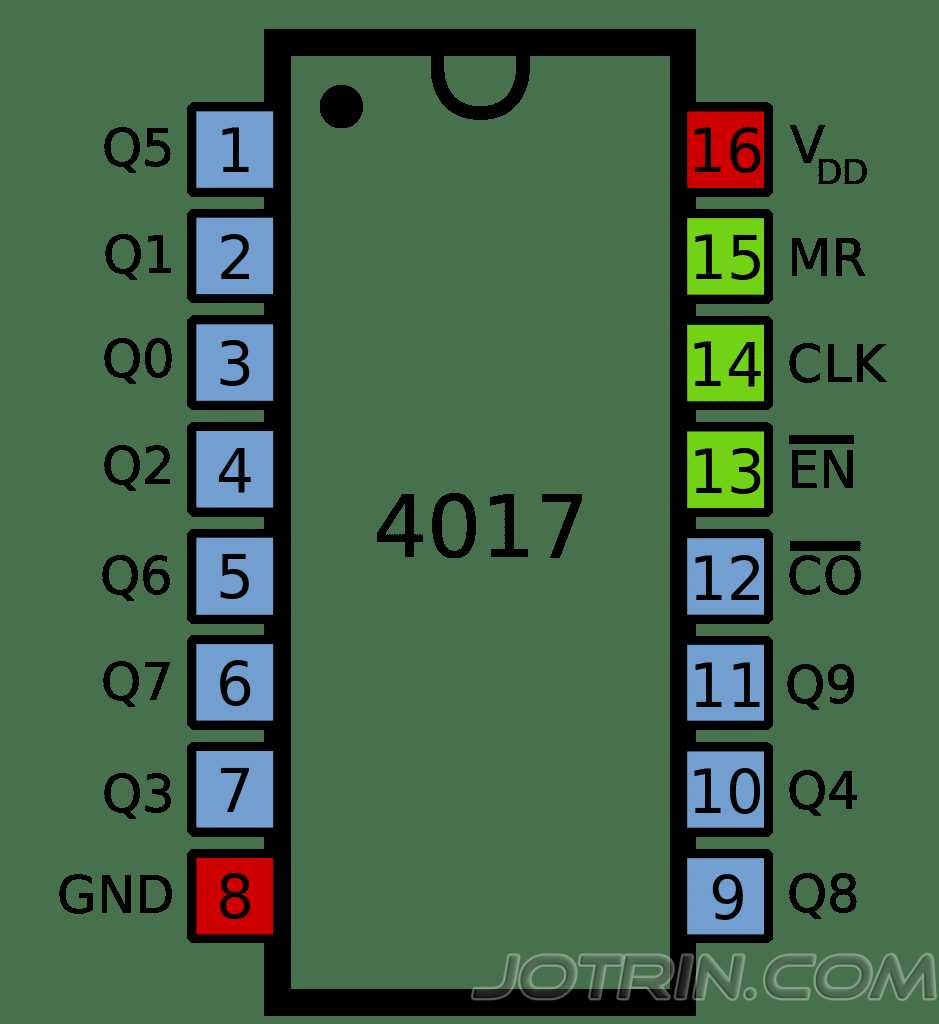

Build a sequential LED flasher with the CMOS decade IC and a monostable/astable multivibrator chip using these exact wiring steps. Connect pin 16 of the 4-stage Johnson counter to VCC (4.5–15V) and ground pin 8 to the negative rail. Link the output pins (Q0–Q9) to individual LEDs through 470Ω current-limiting resistors. For the NE555 timer, wire pin 4 (reset) and pin 8 (VCC) to the positive supply, while pin 1 (ground) connects to the negative terminal. Use a 10kΩ resistor between pins 7 (discharge) and 8, and a 1μF capacitor from pin 2 (trigger) to ground to establish a 1Hz clock pulse rate–critical for synchronizing the counter’s progression.

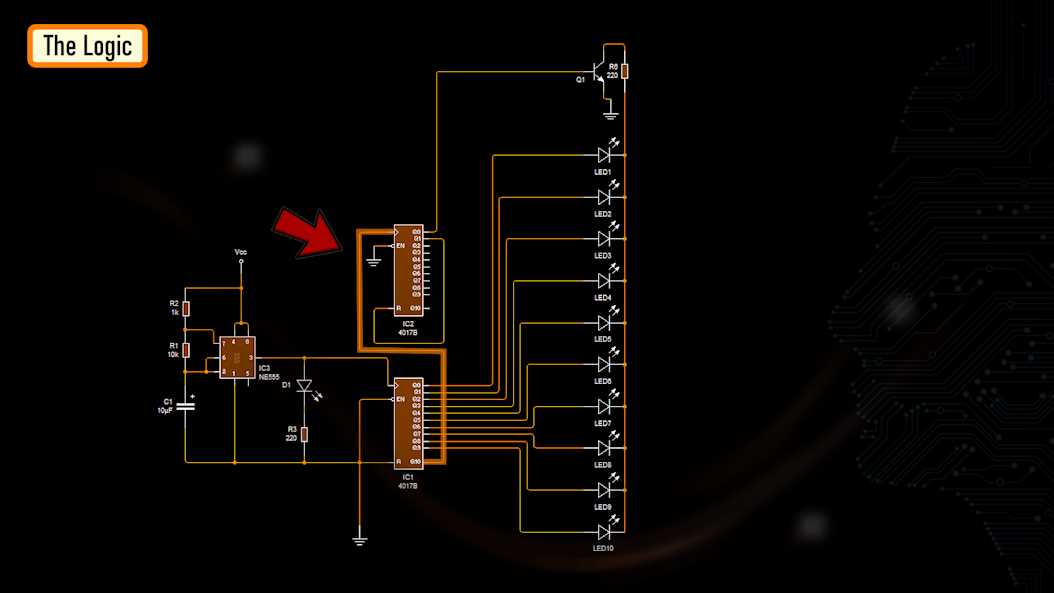

Feed the timer’s output (pin 3) into the clock input (CP0, pin 14) of the decade IC to drive the sequence. If cascading multiple counters, connect the carry-out (pin 12) of the first to the CP1 (pin 15) of the next, ensuring proper logic levels with a pull-up resistor (10kΩ) or direct 5V tie for TTL compatibility. For adjustable timing, replace the fixed resistor-capacitor pair with a 100kΩ potentiometer and 47μF capacitor–this tweaks the pulse width from 0.1s to 10s without recalibration. Avoid exceeding 15V on the CMOS chip or 18V on the NE555 to prevent latch-up or thermal failure.
Test the layout on a breadboard before soldering: verify the counter’s reset (pin 15) is tied high for normal operation, and pulse the clock input manually with a pushbutton to confirm LED sequencing. For noise immunity in industrial environments, add a 0.1μF decoupling capacitor across each IC’s power pins, placed within 2cm of the package. If oscillations occur, check for floating inputs–tie unused clock inhibit (pin 13) to ground and leave Q5–Q9 outputs unconnected if unused. Customize the sequence by tapping Q outputs into logic gates (e.g., OR for combined states) or relays for higher-current loads.
Practical Uses of Decade Counter and Timer IC Integration
For sequential LED displays requiring precise timing, pair the CD4017 counter IC with a NE555 timer set to astable mode. Configure the timing components–10kΩ resistor (R1), 100kΩ potentiometer (R2), and 10µF capacitor (C1)–to achieve a 1Hz clock signal. Connect the NE555’s output to the CD4017’s clock input (pin 14) while grounding the reset (pin 15) and enable (pin 13) pins. Power both ICs with 5V to ensure stable operation; bypass capacitors (0.1µF) near VCC pins reduce noise. This setup suits 10-step light chasers without additional logic gates, simplifying PCB layout.
Motor Control with Position Encoding
Use the counter IC’s decade outputs alongside the timer’s monostable configuration to drive stepper motors with positional feedback. Trigger the NE555’s monostable mode via an external switch or sensor, generating a single pulse of fixed duration (adjust via R=1MΩ, C=1µF for 1-second pulses). Route each of the CD4017’s outputs through ULN2003 Darlington arrays to handle motor current (up to 500mA per channel). Reset the counter (pin 15) after the 10th output to cycle continuously, enabling 36-degree step resolution for a 5-phase motor. Avoid exceeding the CD4017’s 20mA output current–buffer with transistors if driving heavier loads.
Frequency division for signal synthesis exploits the counter’s sequential nature. Feed a high-frequency input (e.g., 1kHz from the NE555 astable) into the CD4017’s clock input. Each output pin divides the frequency by its positional value–output 1 (Q0) passes the original frequency, output 2 (Q1) halves it, etc. Use this to generate musical notes (16.35Hz to 7.9kHz) for a simple synthesizer; scale potentiometers (100kΩ) on each output adjust amplitude. For stable tuning, regulate VCC to 4.5V and add 1% tolerance resistors in timing circuits.
Stepped Voltage Generation for Calibration
Convert counter outputs into linear voltage steps using weighted resistors (e.g., 1kΩ, 2kΩ, 4kΩ, etc.) tied to a summing amplifier (LM358). Connect each CD4017 output to its resistor, then to the op-amp’s inverting input; the non-inverting input references 2.5V via a voltage divider. Adjust resistor values to produce 0.25V increments across outputs, yielding a 0–2.5V staircase waveform. Synchronize the NE555’s clock to 10Hz for a 1-second cycle, ideal for ADC reference signals or dimmer controls. Stability improves with tantalum capacitors (10µF) across the IC power pins.
Pulse-width modulation (PWM) expanders leverage the counter’s discrete outputs. Allocate specific outputs to enable/disable a MOSFET (IRF540N) feeding a high-current load (e.g., 12V LED strips). Program duty cycles by connecting outputs 1–5 to the MOSFET gate via diodes (1N4148), while outputs 6–10 reset the counter. Set the NE555 to 100Hz (R1=1kΩ, R2=10kΩ, C=1µF) for smooth dimming effects. Ensure inductive loads (e.g., motors) have flyback diodes (1N4007) across terminals to suppress voltage spikes.
Configuring the NE555 in Astable Configuration to Activate a CD4017 Sequencer
Connect the timer chip’s output (pin 3) directly to the clock input of the decade sequence generator to ensure clean signal transfer without additional components. Use a 10 kΩ pull-down resistor on the clock line if noise susceptibility is observed, particularly in environments with electrical interference. Skipping this step may result in erratic counting or missed pulses.
Select timing capacitors based on required frequency range: a 10 µF electrolytic for sub-hertz rates or a 0.1 µF ceramic for kilohertz operation. For intermediate speeds, pair a 1 µF film capacitor with precision resistors (1% tolerance) to maintain stability across temperature variations. Avoid electrolytics for high-speed sequences, as their leakage current distorts timing intervals.
Wire the timer’s threshold (pin 6) and discharge (pin 7) terminals together through a shared resistor ladder to ground to establish the timing network. Use a 10 kΩ resistor between pins 6/7 and Vcc, and a second resistor (typically 1 kΩ–100 kΩ) between pins 6/7 and the timing capacitor. This arrangement dictates the charge-discharge cycle ratio, directly influencing the sequence generator’s update rate.
Ensure the timer’s control voltage pin (pin 5) is tied to ground via a 0.1 µF bypass capacitor to suppress supply noise. Omitting this capacitor risks jitter in the clock pulses, causing the decade counter to miscount or reset unpredictably. For adjustable frequency control, substitute the capacitor with a variable resistor or potentiometer network connected to Vcc.
Power the timer and sequencer from a regulated 5–15 VDC source, matching the voltage to the CD4017’s specifications. Observe polarity strictly: reverse bias damages both integrated circuits permanently. For portable setups, a 9 V battery suffices, but verify the timer’s output current capability (max 200 mA) against the sequencer’s load requirements to prevent voltage sag.
Test the clock waveform at pin 3 using an oscilloscope before connecting the decade device. A clean square pulse with minimal overshoot confirms proper operation; distorted signals indicate incorrect resistor values or capacitor leakage. For troubleshooting, temporarily replace the timing capacitor with a low-leakage polyester type to rule out dielectric absorption effects.
Limit output loading on the timer to avoid frequency drift. If the sequencer’s input current exceeds 10 mA, insert a buffer transistor (e.g., 2N3904) or logic gate (74HC14) between the timer’s output and the sequencer’s clock input. This preserves signal integrity while allowing heavier loads, such as LED matrices or relays, to function without altering the base frequency.
For synchronized operation with other modules, derive all timing from a single master clock by routing pin 3 to multiple sequencers with matched trace lengths. Use series resistors (220 Ω) on clock lines to prevent reflections in high-speed applications. If phase alignment is critical, employ edge-triggered flip-flops (74LS74) between the timer and sequencer to eliminate skew.
Step-by-Step Guide to Constructing a Decade Counter LED Animator with Timer Chip
Select a reliable decade counter chip rated for 12V operation to handle ten sequential outputs without signal degradation. Pair it with a stable timer chip configured in astable mode, ensuring a frequency range between 1Hz and 10Hz for visible LED transitions. Calculate the timing components–10kΩ resistor and 10µF capacitor–for a 1Hz clock pulse to maintain smooth cycling.
Arrange the LEDs in a linear or circular pattern, matching each to an output pin on the counter via current-limiting resistors (330Ω to 1kΩ). Test each LED individually before wiring to confirm polarity–cathode to ground, anode to the resistor. Group common cathodes if using a single ground rail to simplify soldering.
Critical Component Connections
- Clock Input: Connect the timer’s output pin to the counter’s clock pin (CP0). A 0.1µF decoupling capacitor between the timer’s power and ground stabilizes voltage spikes.
- Reset Pin: Wire the counter’s reset pin (MR) to ground via a 10kΩ pull-down resistor to prevent false resets. Activate reset manually with a push-button for test cycles.
- Carry Out: Attach the carry-out (CO) pin to the next counter’s clock input for cascading sequences beyond ten LEDs. Omit this for standalone setups.
Power the setup with a 9V DC supply, verifying current draw remains below 200mA per LED string. For battery longevity, use a 7805 regulator to drop voltage to 5V if LEDs are low-power variants. Avoid exceeding the timer’s maximum supply voltage (16V), as this risks thermal runaway.
Fine-tune timing by swapping the astable resistor with a 100kΩ potentiometer. Adjust while monitoring LED transition speed–slower pulses (below 2Hz) suit decorative displays; faster rates (above 5Hz) work for indicators. Add a 1N4148 diode across the timer’s threshold and discharge pins to protect against reverse voltage.
Troubleshooting Checklist
- No LED activity? Confirm the timer chip’s output toggles (logic probe or multimeter). Replace if stuck high/low.
- LEDs skip or flicker? Check solder joints for cold connections; reheat suspect joints with flux.
- Sequence halts prematurely? Inspect the reset pin–floating inputs trigger unintended resets.
- Uneven brightness? Verify resistor values; mismatched currents cause dim LEDs.
- Timer overheats? Add a small heatsink or reduce supply voltage if above 12V.
Expand functionality by integrating a transistor array (ULN2003) between counter outputs and high-power LEDs (1W+). Calculate base resistors to ensure saturation–1kΩ for 2N2222 transistors driving 20mA LEDs. For bi-directional chasing, invert half the outputs using NOT gates (74HC04) before the LEDs.
