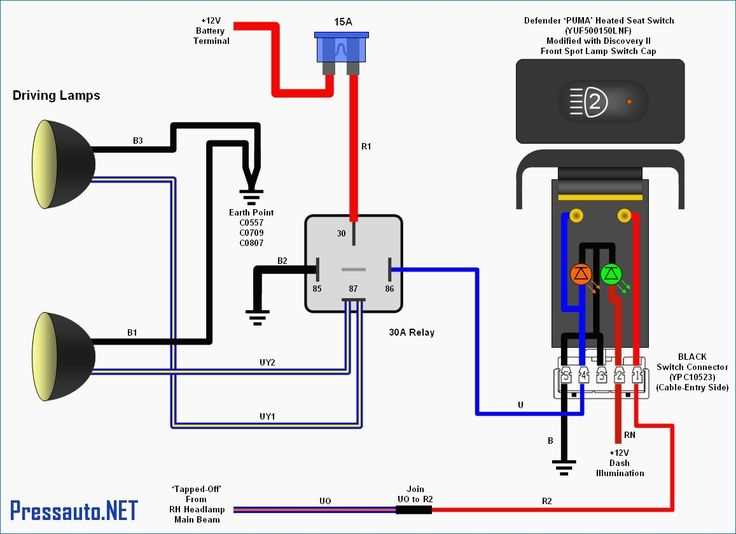

Complete 5 Pin Bosch Relay Wiring Guide with Connection Diagram
For standard 12V automotive applications, connect terminal 30 directly to the positive battery source with a minimum 10A fuse within 30cm of the battery terminal–this prevents short-circuit damage. Terminal 87 carries the switched output; route this to your load via 1.5mm² cross-section wire if current draw exceeds 10A. Terminal 85 must go to the switching control signal, typically a 5V logic line from an ECU or a ground-switched trigger, but never exceed 150mA through this path to avoid relay coil overheating.
Ground terminal 86 using a dedicated chassis point–avoid shared grounds with high-current devices such as starter motors or cooling fans. For inductive loads like motors or solenoids, add a flyback diode (1N4007) across terminals 85 and 86, cathode to the positive side. Terminal 87a, present only in changeover configurations, provides a normally-closed path; verify this unused terminal is insulated with heat-shrink tubing if not required, as accidental grounding can damage the control circuit.
Before energizing, use a multimeter in continuity mode to confirm no cross-connection between 30 and 87–a common failure point in aftermarket installations. If the switch cycles frequently (more than 30 operations per minute), upgrade to a heavier-duty model rated for 30A continuous duty, or add a suppression capacitor (0.1µF, 50V) across 85 and 86 to reduce contact arcing. For installations in high-vibration environments, secure all connections with crimp terminals and nylon wire ties to prevent intermittent failures.
Connecting a 5-Terminal Automotive Switch: Precise Installation Instructions
Identify terminal 85 as the control input linked to the triggering circuit–ground this connection if using a basic on/off activation. Terminal 86 attaches to the power source, typically a 12V battery or fused ignition line, ensuring a direct route for current flow. Load output (terminal 87) connects to the accessory being powered, such as headlights or a fuel pump, while terminal 87a remains inactive unless the switch is configured for dual-output applications. Verify all connections with a multimeter: voltage should appear at 86 when active and disappear at 87 when de-energized.
Critical Safety Checks Before Energizing
Insulate all exposed contacts with heat-shrink tubing or electrical tape to prevent short circuits–exposed copper risks component failure or fire. Confirm the triggering circuit’s amperage does not exceed the switch’s 30A rating; higher loads require a heavier-duty solenoid. Test the setup with a temporary 10A fuse to isolate faults without damaging the system. For intermittent operation, integrate a diode (1N4007) across 85 and 86 to suppress voltage spikes that degrade microcontrollers in adjacent electronics.
Decoding the Contact Arrangement of a Standard 5-Contact Automotive Switch
Begin by identifying the two distinct zones on the component’s base: the coil contacts (typically marked 85 and 86) occupy one side, while the load contacts (usually numbered 30, 87, and 87a) are grouped on the opposite edge. Verify these positions by checking the molded numerals–modern variants often omit printed labels, but the layout remains consistent across manufacturers.
Connect power to terminal 30 for permanent live feed–this entry point bypasses the switching mechanism entirely. For switched outputs, observe the dual positions of contact 87: in resting state, 87a bridges to 30, while energized operation shifts the connection to 87. Use this behavior to design fail-safe circuits or split power paths without additional components.
Key Functional Groupings
- Coil circuit: Terminals 85 (negative) and 86 (positive) demand 12VDC to actuate–current exceeding 180mA risks overheating the winding. Always pair with a protection diode when driving from sensitive ECUs.
- Load circuit: Terminal 30 handles continuous current (typically 30-40A), while 87 and 87a split brief surges (up to 70A for 100ms). Exceeding these limits accelerates contact erosion.
- NC/NO distinction: Normal-closed (87a) allows default power paths, critical for safety interlocks like fuel pumps or warning lights. Normal-open (87) handles high-draw devices that require explicit control.
Map the internal mechanical action before integration: when the electromagnetic coil pulls the armature, contact pressure transfers from 87a to 87 with approximately 70g of force. This snap-action ensures minimal arcing during transition–account for a 2-5ms delay when timing critical systems like ignition cutoffs. Test continuity with a multimeter in both states to confirm predictable behavior before final assembly.
Isolate noise-sensitive circuits by connecting terminal 86 to a grounded switching source (e.g., ECU output) rather than directly to battery positive. This reduces transient spikes that may corrupt CAN bus signals or interfere with nearby sensors. For heavy loads, position the component within 30cm of the battery and use 4AWG cable to minimize voltage drop–critical for solenoids or high-wattage lights operating at the component’s upper limits.
Proper Power and Ground Connections for Automotive Switching Modules
Identify the control unit’s terminal marked with the battery symbol or labeled “30” – this is the input for direct current supply. Use at least 14-gauge copper wire for currents up to 30A, or 12-gauge for loads above that threshold, ensuring minimal voltage drop. Secure the connection with crimped ring terminals and heat-shrink tubing to prevent corrosion; soldering is optional but not required for mechanical stability. Route the cable away from moving parts, exhaust manifolds, and sharp edges to avoid chafing, and always connect this terminal first before any others to prevent accidental short circuits during installation.
The earth return should terminate at terminal “85” or its equivalent, but verify the manufacturer’s notation–some variants label it “86” for ground. Attach this lead to a clean, unpainted metal surface on the chassis or engine block using a dedicated bolt no further than 30 cm from the module to reduce resistance. Sand the contact area to bare metal, apply dielectric grease, and tighten the bolt to 12 Nm torque to ensure consistent conductivity. Avoid daisy-chaining ground wires to other accessories, as shared paths can introduce interference or voltage fluctuations under load.
For high-current applications, consider running a separate dedicated ground cable directly from the load device back to the battery’s negative terminal, paralleling the control module’s ground. This bypasses potential voltage drop across chassis connections and maintains stable switching performance. Test continuity with a multimeter before energizing the circuit–resistance should not exceed 0.1 ohms between the module’s ground terminal and battery negative. If using a fused power distribution block, connect the module’s power input upstream of any fuses to isolate faults effectively.
Connecting Control Signals for Stable Trigger Operation
Route the actuator terminal directly to the power source via a momentary pushbutton or toggle interface, ensuring the circuit closes only during intentional activation. Use a dedicated 16–18 AWG conductor for the feed line to handle transient inrush currents without voltage drop–thinner gauges may cause erratic triggering under load. Include a flyback dioderated for at least 1 A across switch contacts if the control signal shares ground with inductive loads; reverse polarity protection prevents damage from back EMF spikes during release cycles.
| Component | Specification | Purpose |
|---|---|---|
| Pushbutton contact rating | Min 5 A @ 12–24 VDC | Prevents contact welding under load |
| Control conductor | 16–18 AWG stranded copper | Maintains signal integrity over distance |
| Flyback diode | 1N4007 or equivalent | Clamps inductive transients |
Isolate the switch circuit from battery positive using a fuse no larger than 10 A–this interrupts fault current before conductors overheat. Place the fuseholder within 15 cm of the power tap to minimize unprotected length. Avoid looping excess conductor near high-field zones like alternators or electric motors; induced noise can create false activations. For latching applications, wire a second momentary switch in parallel, grounded to the first, to serve as a manual reset without requiring continuous power.
Test activation under full system voltage by toggling the switch repeatedly while monitoring coil current with a multimeter. Stable readings between 120–180 mA at 12 V indicate correct triggering; lower values suggest loose connections or corroded terminals, while spikes above 200 mA often precede coil failure. Replace any components showing intermittent contact resistance above 0.5 Ω–oxidized connectors introduce latency prone to vibration-induced failures in mobile setups.
Load Connection: Safely Attaching High-Current Devices
Ensure cables rated for at least 125% of the expected current draw–10 AWG for 30A loads, 8 AWG for 40A–terminated with crimped lugs heat-shrunk to seal against moisture ingress. Secure connections under torque-specified terminal screws: 3.5 Nm for M6, 6 Nm for M8, preventing loosening from thermal cycling that risks arcing failures. Verify load compatibility by checking inrush current spikes–compressors and motors often exceed steady-state ratings by 5–10×; select switching components with sufficient transient handling to avoid premature contact erosion.
Route power feeds away from signal lines to minimize electromagnetic interference; maintain a 20 mm minimum separation or use twisted pairs shielded with braided copper grounded at a single point. Install a 20A slow-blow fuse within 150 mm of the battery positive terminal, sized for the thinnest conductor in the circuit. For inductive loads like solenoids, add a flyback diode rated 1A/1000V in reverse polarity across the coil to clamp voltage transients that can damage contacts.
