Complete Guide to 5 Pin Trailer Wiring Harness Connection Steps
If your vehicle uses a five-pin connector for towing accessories, begin by identifying pin functions before making any modifications. The standard setup typically assigns: pin 1 for left turn/brake lights, pin 2 for ground, pin 3 for right turn/brake lights, pin 4 for tail and marker lights, and pin 5 for electric brakes or auxiliary power. Verify these assignments with a multimeter–voltage should read 12V when activating corresponding vehicle signals.
For installations requiring electric brake controllers, pin 5 must handle up to 30 amps continuously. Use 12-gauge wire minimum, with 10-gauge preferred for longer cable runs exceeding 10 feet. Crimp connectors using heat-shrink terminals to prevent corrosion; solder joints alone are insufficient for high-vibration environments. Always route power cables separately from signal wires to avoid electromagnetic interference–keep at least 6 inches of separation.
Avoid common pitfalls like reversing left/right signal circuits or neglecting proper grounding. A failed ground (pin 2) can cause intermittent signal loss or backfeed through lighting circuits, potentially damaging LED assemblies. Test continuity between ground and vehicle chassis–resistance should measure under 0.5 ohms. If converting older four-pin systems to five-pin layouts, ensure the existing harness has compatible connector housing; adapters often introduce connection failures.
For vehicles with integrated brake controllers, confirm the controller’s output voltage matches pin 5 requirements–some systems deliver pulsed voltage for proportional braking, not constant 12V. Adjust sensitivity settings if brake engagement feels abrupt or delayed. When connecting multiple accessories to auxiliary circuits, fuse each branch according to wire gauge: 20 amps for 12-gauge, 30 amps for 10-gauge, and 40 amps for 8-gauge.
5-Pin Connector Guide for Towing Systems

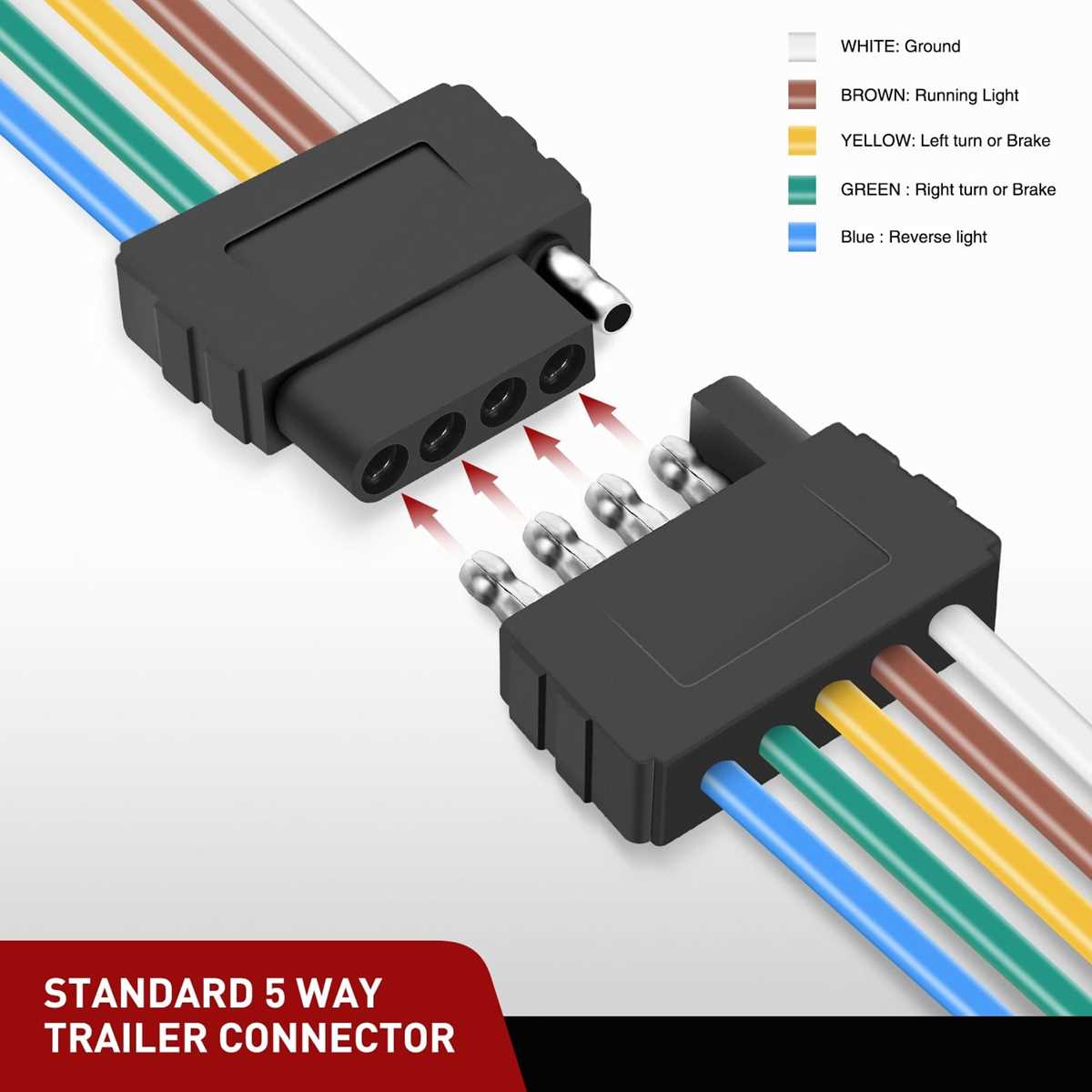

Match the vehicle-side harness with the plug layout before making any connections. Pin 1 (usually white) supplies ground, Pin 2 (brown) handles running lights, Pin 3 (yellow) controls left-turn and brake signals, Pin 4 (green) manages right-turn and brake functions, and Pin 5 (blue) powers reverse lights or auxiliary circuits. Double-check these assignments against both the tow vehicle manual and the towed unit’s specifications–reversing them risks fuse blowouts or permanent light damage.
Strip each wire back no more than 5 mm and twist strands tightly before soldering; crimping alone often loosens under vibration. Apply heat-shrink tubing over the joint, ensuring it fully covers the bare copper–standard electrical tape degrades within months. Use a multimeter to confirm continuity on every circuit before securing the connector housing; a loose pin can arc and melt plastic, requiring costly replacements.
Route cables away from moving parts, sharp edges, and heat sources such as exhaust pipes or brake lines. Secure with zip ties every 20 cm, but avoid overtightening–compression can damage insulation over time. Use a wire loom splitter near the rear axle to separate brake signals from lighting circuits, preventing electrical interference that can trigger false brake indications.
Avoid daisy-chaining ground wires to a single point; instead, run a dedicated 12-gauge lead from the primary ground terminal directly to the vehicle’s chassis. Test ground integrity by probing between the negative battery terminal and each pin’s ground wire–readings above 0.5 ohms indicate corrosion or loose connections that need cleaning with a wire brush.
Adapter compatibility varies by region: North American 5-pin setups differ from European designs where pins 1 (ground) and 5 (auxiliary) often swap positions. Verify the adapter’s pinout diagram against both the towing vehicle and the load being pulled–crossing brake light signals with reverse circuits can trigger unexpected braking while reversing.
Inspect the assembly every 3 000 km for moisture ingress, particularly near the housing seams. Apply dielectric grease sparingly on each pin before reassembly; overapplying pushes grease into the sockets, inhibiting contact. Replace the entire harness if corrosion appears on any connector–partial repairs typically fail within 500 km.
Matching the Right Leads in a 5-Pin Towing Plug
Use a multimeter to test each terminal before connecting anything. Set it to DC voltage (20V range) and probe each pin while the vehicle’s lights are active. Ground the black lead to the chassis, then touch the red lead to each contact–functioning circuits will show battery voltage (12V or close to it). Mark the pins immediately with colored tape as you go: white for ground, brown for tail/running lights, yellow for left turn/brake, green for right turn/brake, and blue for electric brakes or auxiliary.
White remains constant as the earth line in every standardized 5-pin layout. If voltage appears on this terminal, the plug has been miswired–halt work and inspect the vehicle-side harness first. Earth should measure zero volts; anything above 0.2V indicates corrosion or a loose chassis connection that needs cleaning or tightening.
- Brown (tail/running): found at the center or bottom center; powers rear lamps.
- Yellow/green: side terminals; blinking signals combine with brake lights.
- Blue: typically upper or upper-left; absent in most basic setups, reserved for braking systems.
If colors don’t align, cross-reference the owner’s manual or factory repair guide. Some European imports swap yellow and green positions; japanese models often use green for left instead of yellow. Disconnect the battery during rework to prevent accidental shorts.
Label every wire before cutting or splicing. Use a crimp connector rated for 20A or solder joints sealed with shrink tubing–never twist-and-tape. Verify final connections by cycling each light function separately while watching the caravan indicator panel for flickers or dimming.
Spotting Physical Damage Early
Check insulation for cracks or exposed strands. Wiggle the connector lightly while testing–intermittent readings reveal fractured strands inside the sheath. Replace the entire cable if more than 20% of any strand is broken.
Clean socket inserts and pins with contact cleaner, then apply dialectric grease before reassembly. Store unused adapters in sealed bags with silica gel packs to prevent oxidation between trips.
Step-by-Step Guide to Connecting a 5-Pin Connector
Start by stripping 5 mm of insulation from each cable end, exposing copper strands for secure attachment. Use a multimeter to test the plug’s pins–set it to continuity mode and probe each terminal against the corresponding wire to confirm no shorts exist before proceeding.
Matching Wire Colors to Terminals
Assign wires as follows: yellow to the left turn/brake circuit, green to the right turn/brake, white to ground, brown to running lights, and blue to auxiliary functions like reverse signals or electric brakes. Cross-reference with your tow vehicle’s manual if colors differ–some manufacturers use orange for brake circuits instead of blue.
Secure each connection with solder and heat-shrink tubing for corrosion resistance. Crimp connectors may work for temporary setups, but solder prevents vibration-induced failures over time. Ensure no exposed strands touch adjacent terminals–even minor contact can fry the vehicle’s fuse box.
Testing and Troubleshooting
Reconnect the tow vehicle’s battery and activate each function individually: brake lights, turn signals, and driving lamps. If a circuit fails, recheck solder joints and verify the ground (white wire) is bolted directly to the chassis, not painted metal. For persistent issues, bypass the connector and test wires at the tow unit’s socket with a 12V test light.
Weatherproof the plug with dielectric grease before final assembly. Wrap exposed connections in electrical tape, securing it tightly to prevent moisture ingress. Labels aren’t necessary, but marking each wire inside the plug housing with a permanent marker speeds future repairs.
Common Errors in Hooking Up 5-Way Vehicle Signal Connections
Connect the ground wire first–skip this step, and intermittent failures will plague every test. Use a multimeter to confirm zero resistance between the ground terminal and the towing vehicle’s chassis. A weak ground leads to dim lights, flickering, or complete signal dropout, especially under load.
Mismatching pin assignments between the plug and socket guarantees reverse polarity or short circuits. Verify each function against the standard layout: white (ground), brown (running lights), yellow (left brake/turn), green (right brake/turn), and blue (auxiliary/electric brakes). Swap any two wires, and brake lights may activate instead of turn signals.
Avoid twisting bare wires together without soldering or crimping heat-shrink connectors. Bare copper oxidizes quickly, increasing resistance and causing voltage drops. For outdoor durability, apply dielectric grease to each connection after securing it with a proper crimp or solder joint.
Faulty Wire Gauge Selection
Undersized cables overheat and melt insulation. The table below lists minimum wire sizes per circuit length:
| Circuit Type | <10 ft (3 m) | 10–25 ft (3–7.5 m) | >25 ft (7.5 m) |
|---|---|---|---|
| Running lights | 18 AWG | 16 AWG | 14 AWG |
| Turn/brake lights | 16 AWG | 14 AWG | 12 AWG |
| Electric brakes or auxiliary | 14 AWG | 12 AWG | 10 AWG |
Tape-wrapped junctions fail within months; replace them with sealed butt connectors rated for automotive use. Exposed splices attract moisture, accelerating corrosion.
Neglecting to fuse each circuit invites fire risk. Install a 7.5 A fuse for running lights, 15 A for turn/brake circuits, and 20–30 A for electric brakes or auxiliary power. Route fuses within 7 inches (18 cm) of the power source to protect the entire cable run.
Ignoring Voltage Drop During Testing
Test under load–lights appear bright on the bench but dim to 9 V or lower at the lamp when the system draws full current. A fully charged 12 V battery delivers 14.4 V; measure voltage drop across each wire while activating both turn signals simultaneously. Acceptable drop should not exceed 0.5 V per 10 feet (3 m) of cable.
Securing cables loosely allows vibration to chafe insulation against sharp edges. Use nylon clamps or spiral wrap every 18 inches (45 cm) along the frame. Leave a 1-inch (2.5 cm) slack loop at each connection point to prevent stress fractures when the drawbar flexes.
Overlooking a weak battery or faulty alternator masks wiring issues. Before troubleshooting, verify the towing vehicle’s charging system supplies a minimum 13.5 V at all RPMs. A marginal alternator drops voltage under load, mimicking wiring problems. Replace corroded battery terminals; clean them with a wire brush and apply anti-corrosion spray.
