Emerson 5-Wire Thermostat Wiring Guide with Color Codes and Setup

Start with the red conductor–this is your primary power source, typically linking to the R terminal on the control unit. Ensure it’s secured tightly to avoid intermittent failures that can disrupt heating or cooling cycles. Verify voltage (usually 24V AC) with a multimeter before proceeding; incorrect readings indicate a transformer issue or faulty connection upstream.

The white lead handles heating signals–attach it to the W terminal. If your system includes a heat pump, pair it with the orange conductor (O/B terminal) for reversing valve operation. Double-check polarity: miswiring here can force the unit into cooling mode during heat calls, wasting energy and causing uneven temperatures.

Green jumper (G terminal) activates the fan independently. Confirm it’s isolated from other circuits if using single-speed blower control. For variable-speed models, consult the equipment manual–some require additional low-voltage relays or PWM signals, not just a simple on/off toggle.

The common (C) terminal completes the 24V circuit. Without this connection, smart features (like remote access or adaptive scheduling) may fail. Use 18-gauge copper for all links, and avoid aluminum splices–corrosion at junctions is a leading cause of voltage drops and erratic behavior. Label each lead immediately after stripping insulation to prevent cross-connection errors.

Test sequences:

1. Power on–verify display illuminates and fan responds;
2. Initiate a heating cycle–listen for gas valve clicks or electric heater relay engagement;
3. Switch to cooling–ensure compressor starts without humming or short-cycling;
4. Check thermistor readings–discrepancies over 2°F indicate sensor drift or loose terminals.

Document each step; reference colors and terminal IDs in case of troubleshooting later.

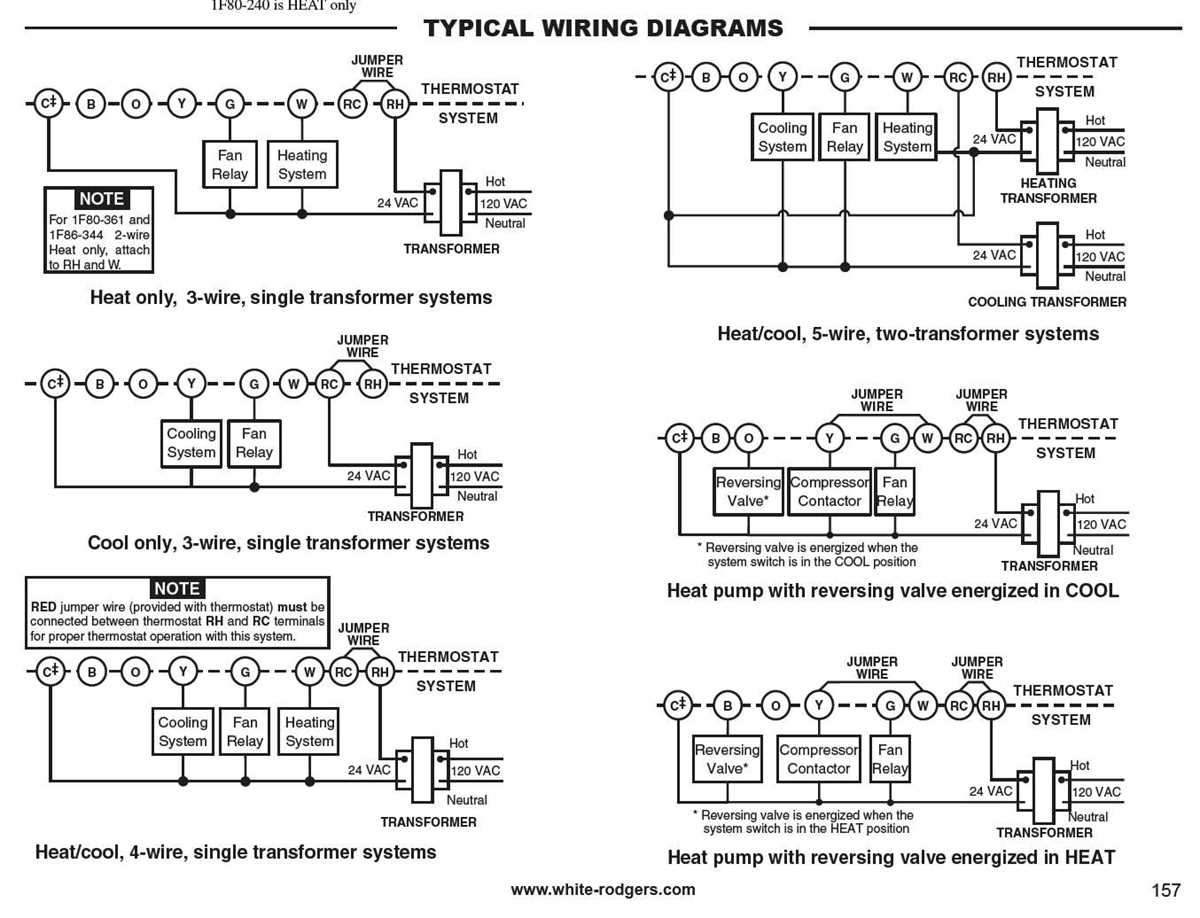

Connecting a 5-Contact Climate Control Device: Key Steps

Begin by identifying the color-coded leads in your HVAC system. Standard configurations typically use red for power, white for heating, green for fan operation, yellow for cooling, and blue or black for common return. Verify these assignments against your unit’s manufacturer label–some brands invert blue and black or use alternative colors like brown.

Disconnect power at the circuit breaker before handling any connections. Failure to do so risks short circuits or damage to sensitive components. Use a multimeter set to voltage mode to confirm no current remains in the leads after shutting off the system.

Label each contact before removing old control settings. Take a photo of the existing arrangement or sketch a quick reference to avoid confusion during reinstallation. Misaligned connections can cause malfunctioning stages or, in rare cases, compressor burnout due to incorrect cycling.

Attach the leads to the interface base following the documented sequence. Insert red into the R slot, white into W, green into G, yellow into Y, and blue/black into C. Secure each terminal screw firmly–a loose connection may cause intermittent operation or overheating. Avoid stripping excess insulation; 0.5 inches of exposed conductor is optimal.

After securing all contacts, restore power and test each function individually. Activate heating mode–listen for the furnace igniter and confirm the white lead triggers ignition within 30 seconds. Switch to cooling and check for compressor engagement via the yellow lead; normal delay should not exceed 5 minutes. Finally, toggle the fan to verify green lead responsiveness.

If the system fails to respond, recheck all connections for proper insertion. Measure voltage between R and C–expect 24V AC; lower readings indicate a faulty transformer or loose power lead. For persistent issues, consult the HVAC schematic to rule out internal wiring faults, such as corroded contacts or failed relays.

Consider adding a surge protector designed for climate systems, especially in regions with unstable power grids. A dedicated protector prevents voltage spikes from damaging sensitive solid-state components. After successful testing, mount the interface and program settings–time delays and stage sequencing can be adjusted for efficiency without altering the base wiring.

Locating the Power, Heat, Cool, Fan, and Common Conductors on Your Climate Control Unit

Start by examining the bundle exiting the wall behind the device. Strip 1/4 inch of insulation from each strand if colors aren’t immediately visible. The standard color assignments often follow this pattern, though exceptions occur with older or custom installations:

Color	Circuit Function	Key Characteristics
Red	Primary voltage source (24V)	Always live; verify with multimeter before handling. Typically connects to transformer output.
White	Heating call signal	Sends activation command to furnace or boiler. May stay energized during cycles in some setups.
Yellow	Cooling activation	Triggers compressor relay. If absent, system may lack air conditioning capability.
Green	Fan operation	Runs blower independently. Some systems combine this with heating/cooling circuits.
Blue/Brown/Black	Common return path	Completes circuit for all low-voltage components. Often shares terminal with transformer ground.

Use a non-contact voltage detector to confirm which strands carry current. The red conductor usually registers first–mark it with masking tape once verified. If multiple reds exist, identify the one feeding power to other terminals during active calls. The white strand should show voltage only when calling for heat; if it remains live constantly, inspect furnace control board for faults.

For systems with heat pumps, the yellow conductor may alternate between cooling and auxiliary heat functions. Check if both yellow and white strands become active during defrost cycles–a confirmation of dual-purpose operation. The green strand should activate alone if selecting “fan only” mode on the interface, making it easy to isolate during testing.

When the blue/brown/black strand appears, it’s likely the common leg. Connect this to the C-terminal only after verifying it shows zero voltage during active calls. Reverse-engineer its purpose by observing which terminals lose function when disconnected–this strand will disable multiple circuits simultaneously. Some installations use separate commons for heating and cooling; trace each back to its originating transformer winding in such cases.

Label every strand at both ends before disconnecting anything. Photograph the original configuration if removing the entire bundle. Misidentified connectors risk damaging control boards, relays, or compressors–particularly if the red power lead contacts the common terminal. For multi-stage equipment, additional conductors may appear (orange, light blue, pink); refer to equipment manuals for exact sequences and jumper requirements.

If confident in the assignments, energize the system one function at a time. Listen for relays clicking and watch for corresponding LED activity on the interface. No-voltage conditions indicate loose connections, broken strands, or transformer failure–check breaker panel and equipment fuse blocks next. Keep a spare 24V transformer on hand for rapid substitution testing in troubleshooting scenarios.

Step-by-Step Guide to Safely Installing a 5-Conductor Climate Control Unit

Shut off power at the breaker panel to prevent electrical hazards before handling any conductors. Label each lead with masking tape based on its origin–furnace, air handler, or outdoor unit–to avoid confusion during reconnection.

Expose 1/4 inch of copper on each strand using strippers, ensuring no frayed strands or nicks remain. Twist each set lightly for better terminal contact. Verify compatibility with the control’s voltage rating (24V AC is standard) using a multimeter.

Identifying and Matching Terminal Functions

• R (Red): Power from the transformer–connect first to establish circuit flow.
• W (White): Heating call–links to the furnace’s heat relay.
• Y (Yellow): Cooling activation–goes to the compressor contactor.
• G (Green): Fan relay–activates blower independently.
• C (Blue/Black): Common return–completes the 24V circuit.

Insert each conductor into its designated slot on the backplate, securing with a flathead screwdriver. Ensure no bare strands extend beyond the terminal. For smart controls, confirm compatibility with the C lead–some older systems lack a neutral return.

Restart power and test sequences: set to heat, cool, and fan-only modes. Check for proper equipment response–blower engagement, inducer motor startup, and compressor activation. If cycles fail, recheck connections against the system’s schematic printout.

Resolving a Silent Control Unit with Five Connections

Check the power source first by verifying the voltage across the red and common terminals using a multimeter–expect 24V AC for low-voltage systems. If absent, inspect the breaker panel for tripped circuits or blown fuses supplying the HVAC unit. Replace damaged fuses with identically rated versions; bypassing ratings risks transformer overload.

Remove the faceplate and examine the internal connectors for corrosion, loose strands, or oxidation buildup. Clean contacts with isopropyl alcohol and a lint-free cloth, ensuring no residue remains. Reattach conductors firmly, matching labels to terminal screws. Misalignment here disrupts signal flow to heating or cooling components.

Testing Individual Circuits

Activate heating mode and measure voltage between the heating terminal (typically labeled W or W1) and the red conductor. A proper reading confirms relay activation; zero volts suggests a faulty relay, damaged auxiliary switch, or severed connection in the furnace’s control board. Repeat for cooling mode (Y or Y1 terminal) after setting the device to maximum cooling.

If voltage registers but the system remains inactive, disconnect all conductors temporarily and jumper the red line directly to each functional terminal (one at a time). An operational HVAC component should engage immediately. Failure indicates an issue downstream–potentially in the blower motor or compressor–requiring separate diagnostics.

Swap the control unit with a confirmed functional model to isolate hardware failures. If the replacement operates normally, the original device likely contains a defective logic board or failing thermistor. Factory resets rarely resolve these issues; replacement is usually necessary. Ensure compatibility with the HVAC model number listed on the existing unit’s baseplate.

Inspect the wall mounting plate for secure anchoring, as vibration-induced misalignment can sever connections. Verify environmental conditions: extreme temperatures or humidity degrade internal components over time. If troubleshooting fails, consult technical bulletins for your specific model–some hidden fuses or reset buttons require proprietary reset sequences.
