5-Wire Mass Air Flow Sensor Wiring Guide and Schematic Breakdown
Begin by identifying the power supply pin–typically linked to the ignition-controlled 12V source. Use a multimeter to verify voltage between this pin and ground while the engine is cranking. If readings drop below 11.7V, inspect the fuse box and relay outputs before proceeding.
Next, locate the ground reference. Most designs use two pins: one for signal return and another for chassis grounding. Cross-check continuity between both with the ignition off–resistance should not exceed 0.5 ohms. High impedance here introduces signal noise and false lean codes.
Signal output requires precise calibration. Connect an oscilloscope to the output pin; expect a 0.5V–4.5V range at idle for linear analog variants or a 1 ms–5 ms frequency response for digital types. Deviations outside these parameters indicate contamination or voltage regulator failures within the module.
Test the intake air temperature circuit independently. Probe the IAT input with a scan tool; values should mirror ambient readings within ±2°C at startup. Heated variants include a dedicated supply–measure current draw (typically 0.3A–0.8A) to confirm heating element operation.
Finally, trace the redundant signal path if present. Dual-range units split output across two pins–validate both channels simultaneously during acceleration tests. Mismatched readings between channels trigger limp mode; inspect connector terminals for oxidation if discrepancies persist.

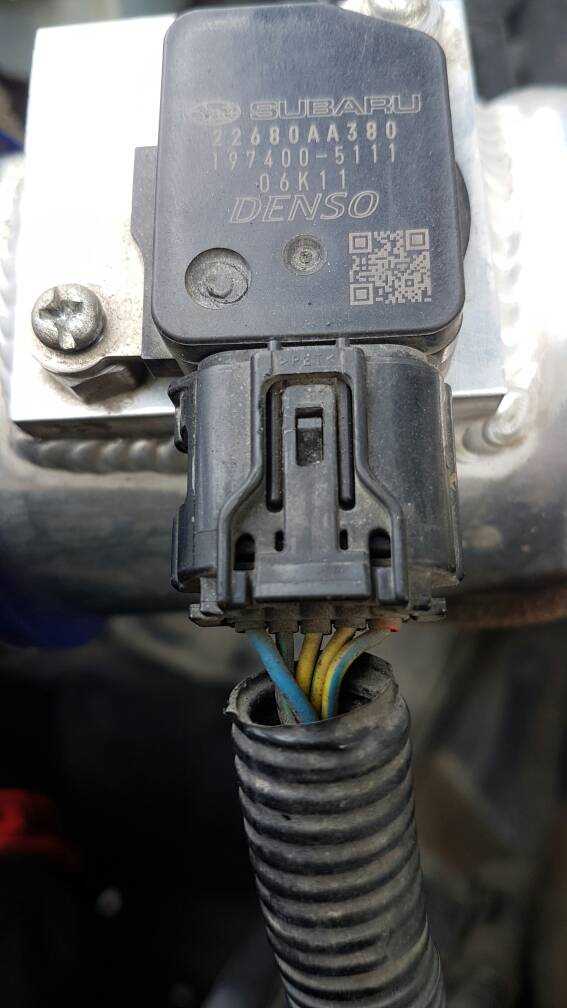

Understanding the 5-Pin MAF Connector Layout
For accurate signal interpretation, pin 1 (typically red) carries the 12V power supply from the vehicle’s fuse box–verify with a multimeter before connecting. Pins 2 (black) and 3 (green) serve as ground and signal return, respectively; swapping these leads to inconsistent readings. Confirm continuity between pin 2 and the engine block to rule out corrosion.
Pin 4 (white) delivers the analog voltage output proportional to intake volume, ranging from 0.5V at idle to 4.5V under heavy load–log these values during a test drive to map expected behavior. Pin 5 (yellow) transmits frequency data in some models; a scope will reveal a 50-150Hz square wave at sea level, varying with barometric pressure.
Use heat-shrink tubing on all splices, especially near the intake tract where vibration accelerates fatigue. Shielded cable is mandatory for pins 4 and 5 to prevent ignition noise; ground the shield at a single point near the control module. Replace crimped connectors with soldered joints if resistance exceeds 0.2 ohms on any circuit.
Aftermarket tuning boxes often intercept pin 4; bypass these by connecting directly to the ECU harness. Check service manuals for OEM-specific resistor values–some sensors include a 1kΩ pull-up on pin 5 to stabilize readings during cold starts. If voltage spikes occur, add a 10nF ceramic capacitor between pin 4 and ground at the connector.
For diesel applications, pin assignments may invert ground and signal return–cross-reference with the VIN decoder. Measure intake temperature at pin 3 on some units; a sudden drop below -10°C indicates a failing thermistor. Always disable the fuel pump relay before probing to avoid hydrolock.
Label each lead with its function before disconnecting; a misrouted ground can trigger false misfire codes. After installation, clear all faults with an OBD scanner and perform a 10-minute warm-up cycle to ensure the ECU relearns fuel trim adaptations.

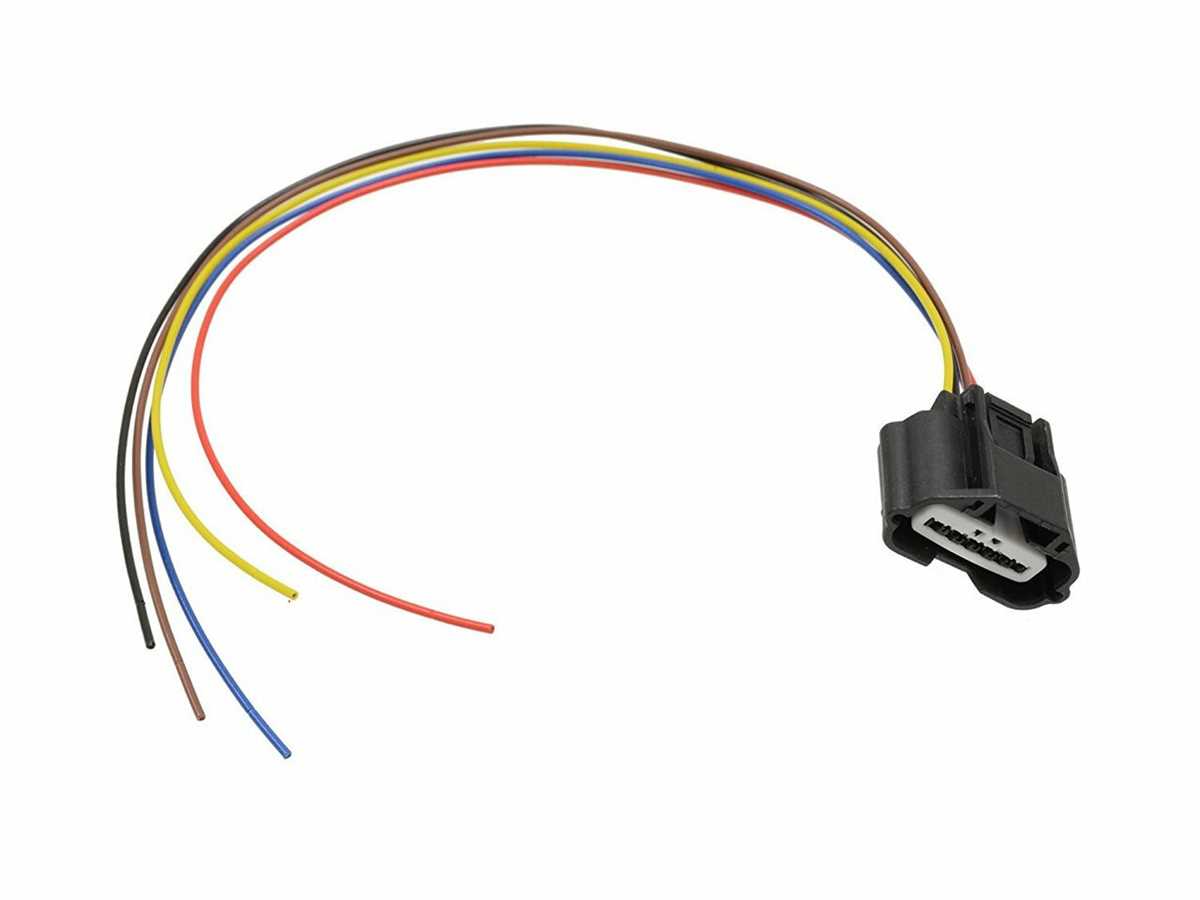

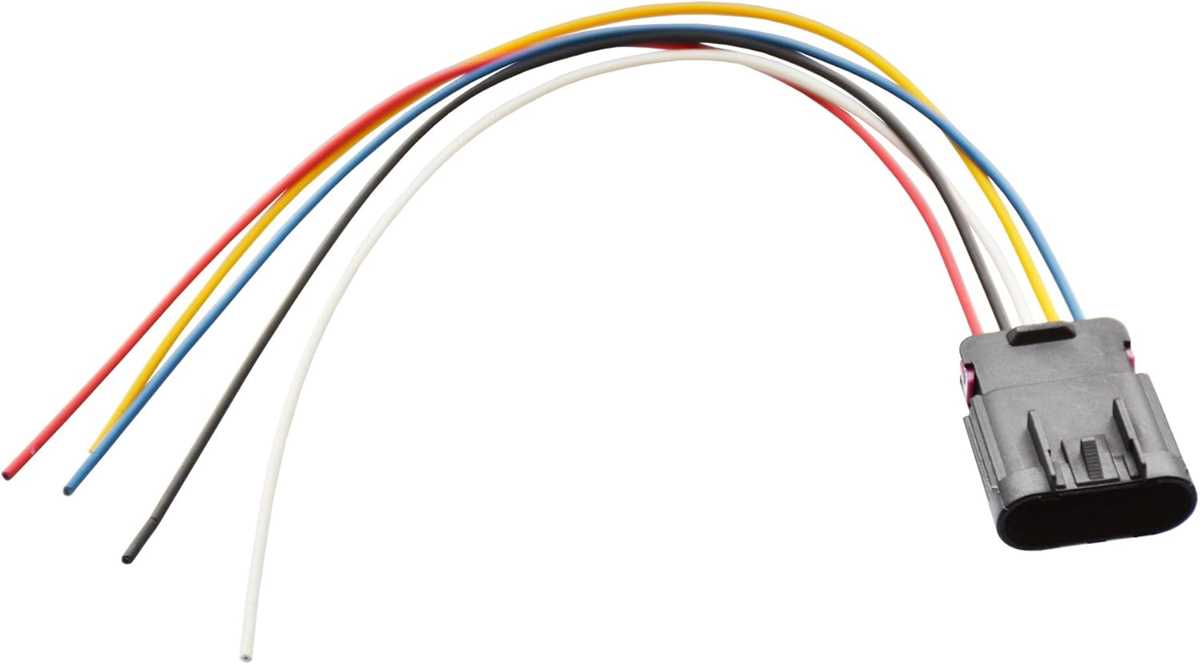

Pinpointing the Right Conductors on a 5-Pin MAF Harness
Locate the power supply line first–it typically delivers 12 volts and connects to the vehicle’s ignition circuit. Probe the harness with a multimeter set to DC voltage while the ignition is on; the reading should match the battery’s charge level. If two pins show identical voltage, prioritize the thicker gauge strand, as it’s designed to handle higher current for the sensing element’s heater.
Ground leads often cluster near the device’s case or terminate at the engine block. Identify the thickest ground strand–it’s usually paired with the power feed to complete the heating circuit. Verify by checking continuity to a known chassis ground; resistance should read near zero. Avoid mistaking signal returns for grounds–these carry minute voltage fluctuations and require delicate handling.
The signal output conductor transmits fluctuating voltage proportional to intake density. On most setups, this medium-thickness line sits between the power and ground pins. During engine idle, expect readings around 1.0–1.5 volts scaling upward with RPM. Cross-reference with a scan tool displaying live MAF data to confirm the correct pin–mismatches cause erratic fuel trims.
Heated element circuits use dedicated conductors distinguishable by diameter and sometimes color coding. Trace the two remaining strands–one supplies low-voltage current for the hot-film/wire while the other regulates heating via a feedback loop. Probe at startup; the control strand temporarily spikes to 2–5 volts as the system calibrates temperature. Swapping these disrupts pre-heated sensor accuracy, leading to cold-start hesitation.
Variations exist across manufacturers–Bosch modules often arrange pins sequentially (power, ground, signal, heater+, heater-), while Delphi reverses heater placement. Consult service manual schematics or OEM part-specific documentation before splicing. For aftermarket units, label each strand immediately upon disconnecting to prevent misalignment during reinstallation.
Reverse-engineer uncertain setups by back-probing connectors while monitoring scan tool PID values. Alter throttle position and watch for corresponding voltage swings–stable readings at incorrect pins indicate misidentified lines. Document findings for future reference, noting any atypical color schemes or swapped pinouts that could recur during diagnostics.
Step-by-Step Guide to Connecting a 5-Pin Metering Device
Verify the component’s pinout against your vehicle’s service manual before proceeding. Most 5-pin units follow this configuration:
| Pin Number | Function | Typical Voltage (Key ON) |
|---|---|---|
| 1 | Ground | 0 V |
| 2 | Battery feed (+12 V) | 12-14 V |
| 3 | Signal output (analog) | 0.5-1.5 V |
| 4 | Intake temperature input | Varies by model |
| 5 | Reference voltage (5 V) | 4.8-5.2 V |
Locate the engine control module (ECM) connector and identify the matching pins using a multimeter in continuity mode. Disconnect the battery negative terminal first to prevent short circuits. Insert a T-pin through the harness insulation at each ECM contact point to establish a temporary test connection without damaging the wires.
Use heat-shrink tubing or solder splices for permanent repairs–crimp connectors introduce resistance and should only serve as temporary fixes. Apply dielectric grease to all finished joints to prevent corrosion. Reconnect the battery and monitor live data using an OBD-II scanner to confirm proper signal transmission before starting the engine.
If the voltage readings deviate from expected values, check for damaged insulation, loose connections, or incorrect pin alignment. Replace the entire harness if any signs of melting or oxidation are present–partial repairs frequently lead to intermittent faults. Clean the sensing element with CRC MAF cleaner if contamination is suspected, but never touch the hot-film grid with tools or fingers.
Calibrate the component by idling the engine for 2-3 minutes, then gradually increasing RPMs to 2,500. Observe the scanner’s grams-per-second readings–values should rise smoothly without sudden spikes. Persistent drivability issues usually indicate an ECM recalibration is required via a professional-grade scan tool.
For aftermarket installations, secure the harness using zip ties every 15 cm to prevent vibration damage. Route all leads away from exhaust manifolds and moving components, maintaining a minimum 5 cm clearance. Label each connection with a permanent marker for future reference.
Test drive the vehicle under various load conditions–acceleration, cruising, and deceleration–to verify consistent performance. Log the data and compare it against manufacturer specifications. Replace the unit if output remains erratic after all troubleshooting steps.
Common Issues and Quick Fixes
False lean codes often stem from a cracked intake hose or improperly seated clamp. Check the entire intake tract first before assuming sensor failure. Voltage drop tests should always be performed with the ignition on and the engine off to isolate ECM-side faults.
Common Connection Errors and Prevention Techniques
Reverse polarity at the connector is among the most frequent missteps. The 5-pin harness typically assigns pin 1 to power (12V), pin 2 to signal ground, pin 3 to analog output, pin 4 to intake temperature return, and pin 5 to shield ground. Swapping any pair–for example, connecting the signal line to the reference ground–disables data transmission entirely. Use a multimeter in continuity mode to verify each terminal against the manufacturer’s pinout before making final attachments. Labels on the harness itself often wear off; marking each lead with heat-shrink tubing prevents misalignment during reassembly.
Short circuits between adjacent leads create parasitic voltage drops that distort readings. The narrow spacing inside automotive harness plugs–often less than 3 mm–invites accidental bridges when stripping insulation too aggressively or allowing stray strands to touch. Trim excess copper to exactly 2 mm beyond the insulation, then twist tightly and cover with solder before inserting into the terminal. A 20X magnifier helps catch tiny whiskers before they cause errors. Applying dielectric grease to the connector after assembly repels moisture and reduces oxidation that can mimic short conditions.
Improper Signal Line Routing
- Keep the output lead at least 15 cm away from high-current ignition cables; induced noise spikes can exceed the 0–5V range by 30 %.
- Avoid tying it to any shared ground bus–dedicate a separate return path directly to the ECU sensor ground pin.
- Never splice the signal line; resistance changes as small as 0.5 Ω skew readings by ±7 %.
- Use shielded twisted pair for runs over 1 m; terminate the shield at chassis ground at one end only to prevent ground loops.
Incomplete crimping of terminals introduces intermittent faults that vanish during bench testing. Ratchet crimpers with die sets calibrated to AWG 22–24 must be used; pliers crush the barrel unevenly, leaving air gaps that corrode over time. Check crimps with a calibrated pull tester exerting 35 N for 1 minute–any movement means scrap and redo. Transparent heat-shrink tubing over the joint lets you inspect the crimp while providing strain relief. Replace any connector showing discoloration on the pins; tin migration starts at 85 °C and escalates after 200 thermal cycles.
