How to Wire a 50 Amp 220V Welder Plug Step-by-Step Guide
Use a NEMA 6-50 receptacle for equipment drawing up to fifty units of peak demand at dual-phase alternating current. Standard 6 AWG copper conductors with 90°C insulation rating are required; verify compatibility with local codes for conductor ampacity derating if routing through conduit or bundled installations.
Connect the hot terminals–positioned at two and five o’clock when viewing the receptacle face–to the supply lines via screw-type compression lugs torqued to 25 lb·ft. The neutral slot remains unused; equipment ground attaches to the U-shaped terminal using the same conductor gauge. Ensure the breaker panel allocates a double-pole disconnect matched to the outlet’s voltage rating.
Avoid aluminum conductors unless using dual-rated lugs and antioxidant compounds; copper-to-copper contact eliminates oxidation risks under sustained load. Test continuity between the receptacle ground and supply ground bus before energizing–discrepancies indicate miswiring or loose connections. For mobile setups, use twist-lock variants with splash-resistant housings near work zones.
Label the circuit at both breaker and outlet ends with “High-Demand Device – 50 Peak” to prevent accidental overload from lower-rated tools. Store spare connectors indoors to prevent water ingress, which degrades conductivity over time.
Connecting a Heavy-Duty 50-Amp Electrical Connector for Industrial Tools
For proper installation of a 50-unit, 240-volt receptacle, match the conductor colors to the terminal screws in this exact sequence: green or bare copper to the grounding terminal, black to the brass (hot) terminal, and red to the opposite brass (hot) terminal. If the circuit includes a neutral wire, attach white to the silver terminal–though most high-power equipment operates without one. Verify torque specifications (typically 25–30 in-lbs) using a calibrated screwdriver to prevent loose connections, which can cause overheating or arcing. Always disable the breaker and confirm voltage absence with a multimeter before touching any components.
Testing and Safety Protocols
After assembly, perform a continuity check with the multimeter in resistance mode (200 ohms range) between the hot terminals and ground–readings should exceed 10 MΩ if insulation is intact. Test the live circuit by measuring 240V (±5%) across the hot terminals and 0V between each hot terminal and ground. Label the breaker panel clearly with the tool’s wattage rating (e.g., 12,000W max) and install a Class RK5 fuse (or equivalent breaker) for overload protection. Store spare NEMA 10-50 or 6-50 connectors (depending on neutral requirement) in a sealed container to prevent dust contamination, which degrades contact surfaces over time.
Identifying the Correct Outlet Type for Your High-Current Equipment
Begin by verifying the manufacturer’s specifications for the device’s power requirements. Most heavy-duty tools in this category demand a 4-prong NEMA 14-50 receptacle, designed for 50 load units at single-phase 240-volt service. This configuration includes two hot wires (L1, L2), one neutral, and a dedicated ground, ensuring stable operation and safety. Check the device’s data plate or manual for exact figures–some variants may need a NEMA 6-50, which omits the neutral but maintains the same current rating.
Measure the existing receptacle’s voltage and pin configuration before proceeding. Use a multimeter to confirm the voltage between the hot terminals (should read ~240V) and between each hot terminal and neutral (~120V if neutral is present). If the receptacle matches NEMA 14-50 but the voltage is incorrect, the circuit may be miswired or undersized. For NEMA 6-50 outlets, the neutral slot will be absent, and voltage readings should only register between the two hot terminals.
Compare the outlet’s physical design to standard NEMA diagrams. The NEMA 14-50 has a horizontal neutral slot above two vertical hot slots, with a U-shaped ground below. The NEMA 6-50 lacks the neutral slot but retains the same ground and hot slots. Misidentification risks damaging the tool–older installations might use non-standard or obsolete connectors like the NEMA 10-50, which lacks a ground and should be replaced for safety.
Assess the circuit breaker’s compatibility. A 50-unit tool requires a double-pole breaker rated for at least 50 units (e.g., 60-unit breaker for margin). If the breaker is smaller (e.g., 40 units), it will trip under load. Ensure the breaker matches the wire gauge–6 AWG copper wire is typical for 50-unit circuits, but longer runs may need thicker wire (4 AWG) to prevent voltage drop.
- NEMA 14-50: Suitable for tools needing both 240V and 120V (neutral required).
- NEMA 6-50: For tools using only 240V (no neutral).
- NEMA 10-50: Obsolete; upgrade to 14-50 or 6-50.
- Industrial twist-lock: Used in commercial setups (e.g., NEMA L14-50).
Examine the outlet’s condition. Corrosion, burn marks, or loose connections indicate potential hazards. If the terminal screws are discolored or the housing is cracked, replace the outlet–faulty connections can cause arcing or overheating. For outdoor or high-moisture environments, use weather-resistant covers and GFCI protection if required by local codes.
Consult local electrical codes before modifying existing installations. Some jurisdictions mandate dedicated circuits for high-draw equipment, while others permit shared circuits if the total load stays within 80% of the breaker’s capacity. For example, a 50-unit breaker should not exceed 40 units continuous load. If adding a new circuit, follow the National Electrical Code (NEC) guidelines for conduit type, wire insulation (e.g., THHN), and grounding methods.
Test the installation under load. After wiring, use the tool at full capacity for 10–15 minutes while monitoring for excessive heat at the outlet, breaker, or wire terminals. If the tool trips the breaker or exhibits inconsistent performance, recheck the circuit’s voltage, connections, and wire gauge. Persistent issues may require an electrician to inspect the panel’s capacity or identify hidden faults.
Step-by-Step Guide to Stripping and Preparing Wires
Use a calibrated wire stripper with marked notches for 6 AWG (13.3 mm²) to 8 AWG (8.37 mm²) conductors–most industrial power connections fall within this range. Set the strip length to 12–15 mm: too short risks strand damage under terminal torque, too long leaves exposed conductor vulnerable to short circuits. For stranded copper, twist strands clockwise before inserting into lugs to prevent fraying; solid aluminum conductors require no twisting but need a thin layer of antioxidant compound.
| Conductor Gauge | Strip Length (mm) | Terminal Torque (Nm) |
|---|---|---|
| 6 AWG | 15 | 14–16 |
| 8 AWG | 12 | 8–10 |
Inspect stripped ends under bright light: discard any conductor with nicks, burned spots, or uneven strands–these reduce current capacity by up to 18%. For crimp connections, use ratcheting crimpers with color-coded dies: red for 6–8 AWG, blue for 10–12 AWG. Verify crimp quality by pulling with 9 kg force for 3 seconds–no movement indicates a proper crimp. Tinned copper lugs outperform bare copper in humid or corrosive environments by preventing oxidation for up to 12 months longer.

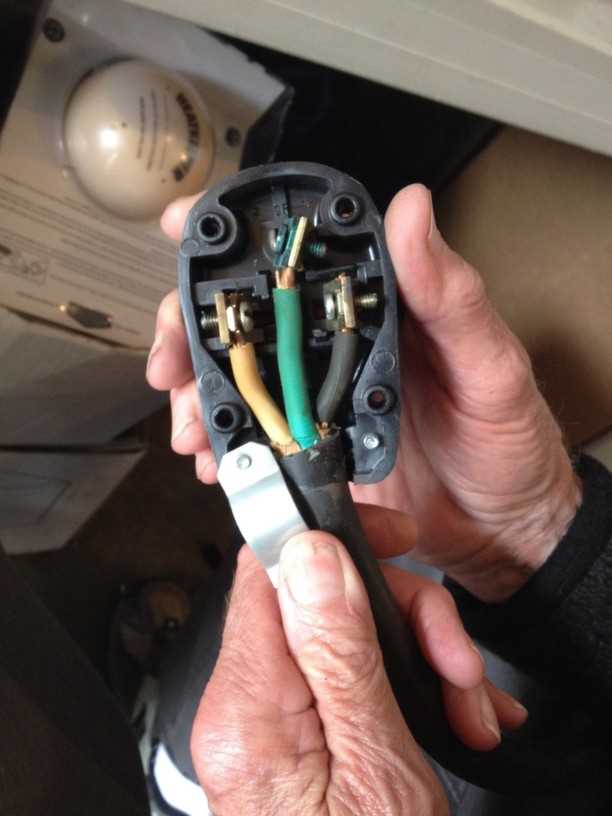

Connecting the Hot, Neutral, and Ground Wires Properly
Link the first hot conductor (typically black or red) to the brass terminal screw, ensuring full insertion and secure tightening with a torque wrench set to 20 lb-in (2.3 Nm) to prevent loosening under load. The second hot wire (often red, blue, or another color) connects to the adjacent brass terminal with the same torque specification–verify polarity matches the equipment’s rating label to avoid reversed phases, which can damage internal components. Neutral (white or gray) attaches to the silver terminal, but only if the circuit requires it; appliances like heaters or transformers may omit neutral entirely, so confirm the schematic for your specific device first.
Ground (green or bare copper) must terminate on the green screw or dedicated grounding busbar–never skip this step, as improper grounding creates shock hazards under fault conditions. Use a wire gauge no smaller than 8 AWG for 50-unit circuits, and avoid splicing ground wires; instead, run a continuous conductor back to the service panel. After wiring, perform a resistance test with a multimeter: probe the hot terminal and ground–readings above 1 ohm indicate poor connections, requiring rework before energizing.
Testing Continuity and Voltage Before Finalizing Connections
Use a multimeter set to the lowest ohms range to verify continuity between the neutral terminal and the ground conductor. A reading near zero confirms a proper bond; deviations above 0.5 ohms indicate corrosion, loose crimps, or damaged wire strands–replace components immediately.
Check phase conductors against ground with the meter in resistance mode–any value below infinite suggests insulation failure. Probe both hot leads together; infinite resistance between them is mandatory, ensuring no shorts exist before energizing.
After securing all terminals, power down the supply breaker and perform a voltage check across each conductor pair. Hot-to-neutral should show full system potential (208-240VAC), while neutral-to-ground must read under 3V; anything higher signals a faulty neutral-ground bond, risking overload.
Inspect the cable sheathing for cuts or heat damage under a 100W flashlight–even minor abrasions can compromise safety. Flex the cord at the strain relief while monitoring continuity; intermittent drops mean internal conductor fatigue, requiring full cable replacement.
Test the strain relief grip by pulling the cord outward with 40 lbs of force–no movement should occur. If the clamp shifts or the wire extends, tighten using a torque wrench (12 in-lbs) or switch to a higher-grade clamp with serrated jaws.
Energize the circuit briefly and measure current draw with a clamp meter–expect steady readings matching equipment specs. Flickering values or spikes above 5% of rated load indicate poor connections, voltage sag, or undersized wire–re-examine all joints.
Cap off unused conductors with heat-shrink tubing (minimum 4:1 shrink ratio) and apply dielectric grease to terminals exposed to moisture. Re-test continuity after sealing–any change in resistance mandates rework before final closure.
Validate polarity by touching each hot terminal to a grounded metal frame–observe for sparks. A single controlled arc confirms correct phase alignment; uncontrolled arcing means reversed lines, requiring swap of the two hot conductors.
