Simple 5V USB Charger Circuit Design and Wiring Guide
Start with a linear regulator like the LM7805 for stable output. Input voltage must exceed 7V (e.g., 9V or 12V) to ensure proper regulation–lower values risk dropout. Place a 1000µF electrolytic capacitor at the input to absorb voltage spikes and a 0.1µF ceramic capacitor at the output to filter high-frequency noise. Avoid cheap capacitors; poor ESR ratings degrade performance under load.
For switch-mode efficiency, consider the MP1584EN buck converter. Set the feedback resistors (e.g., 10kΩ and 1.5kΩ) to achieve 5V output. Use a low-ESR inductor (22µH–47µH) and fast-recovery Schottky diode (e.g., 1N5819) to minimize losses. Thermal dissipation matters: a heatsink may be needed for currents above 1A.
Test waveforms with an oscilloscope–ripple should stay below 50mV. If noise exceeds limits, add a ferrite bead or pi-filter (LC network). USB-powered devices require short-circuit protection: fuse or PTC resistor (e.g., Polyfuse 1.1A) prevents damage during faults.
For battery inputs, include reverse-polarity protection via a P-channel MOSFET or series diode (e.g., 1N4007). PCB traces should handle current–use 2oz copper for paths carrying over 2A. Ground loops cause interference; keep high-current paths separate from signal lines.
Building a Reliable 5V Power Supply: Step-by-Step Assembly
Start with a linear regulator like the LM7805 for simplicity and stability. Choose an input voltage between 7V and 12V DC–any higher risks overheating, while lower values may drop below the required 2V headroom for proper regulation. A 9V wall adapter works well as a starting point.
Place a 0.33µF ceramic capacitor at the regulator’s input and a 0.1µF cap at the output to suppress noise. For bulk storage, add a 100µF electrolytic capacitor across the output. Polarity matters–match the marked side to ground.
- LM7805: 3-pin TO-220 package
- Input cap: 0.33µF (X7R dielectric)
- Output caps: 0.1µF (ceramic) + 100µF (electrolytic)
- Heatsink: TO-220 clip-on type (optional for currents > 500mA)
Solder the components directly or use a prototyping board. Keep traces short to minimize voltage drops. Test output with a multimeter–5V ±0.2V is acceptable for most USB-powered devices.

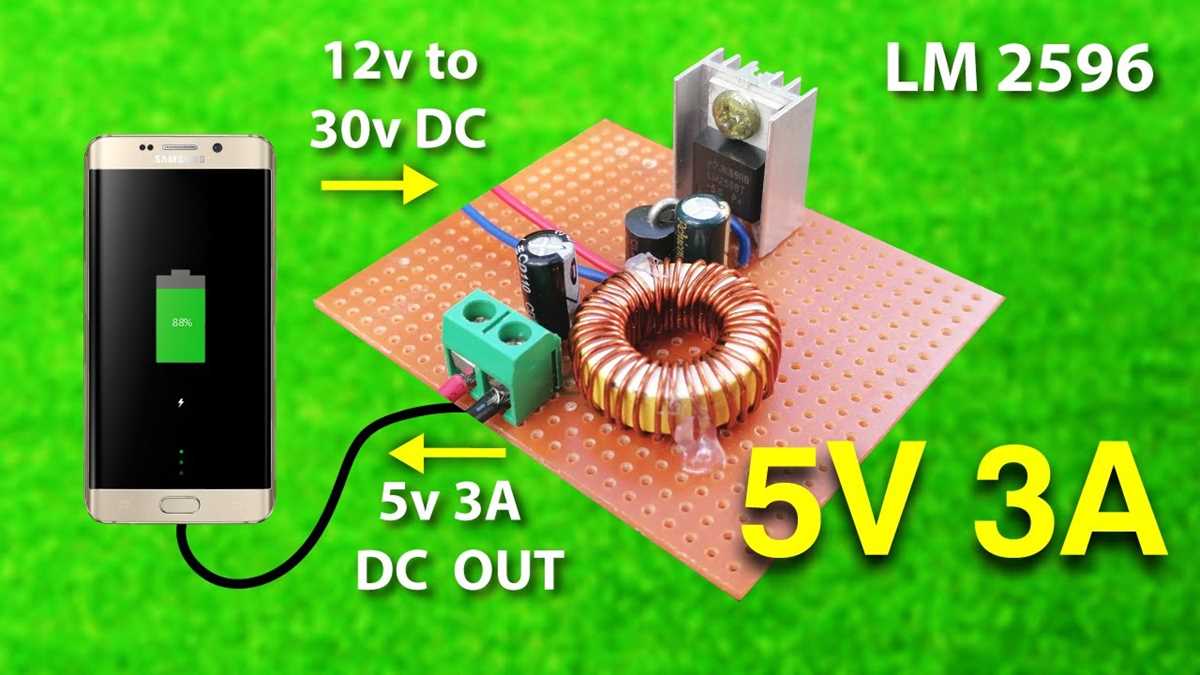

For higher efficiency, replace the linear regulator with a buck converter module (e.g., MP1584). Adjust the potentiometer to 5V before connecting the load. These modules handle up to 3A with 90% efficiency but require precise voltage tuning.
Add a PTC fuse (1A–2A) on the input side to protect against shorts. For USB compatibility, include a pair of 22Ω resistors on the data lines to signal 500mA current capability–critical for fast-charging smartphones.
- Trim excess leads after soldering to prevent shorts
- Insulate exposed metal with heat-shrink tubing
- Apply thermal paste if using a heatsink
- Encase the assembly in a plastic box (drill ventilation holes)
Verify performance with a dummy load (e.g., 10Ω resistor at 0.5W). Measure ripple with an oscilloscope–should not exceed 50mV peak-to-peak at full load. If noise persists, increase the output capacitance or add a ferrite bead in series with the power line.
Key Parts for Building a Simple 5V Power Supply
Begin with a 7805 voltage regulator–it ensures stable output regardless of input fluctuations between 7V and 25V. Choose the TO-220 package for better heat dissipation in compact designs. Verify the pinout: input (left), ground (center), output (right) when viewed from the front.
- Input capacitor (10–100μF): Place a polarized electrolytic cap near the regulator’s input to smooth DC spikes. Opt for 25V or higher rating to handle surges.
- Output capacitor (1–10μF): A ceramic or low-ESR electrolytic cap stabilizes the 5V line. Ceramic (e.g., X7R) avoids leakage currents found in electrolytics.
Use 1N4007 diodes in a bridge configuration if rectifying AC; they handle 1A continuously and 30A peaks. For lower dropout, consider Schottky diodes (e.g., 1N5822) with 0.3V forward voltage, increasing efficiency by ~2%.
Select a transformer with 6–9V AC output to balance regulator heat and headroom. Core size depends on current: 1VA for
Add a 470Ω–1kΩ resistor in series with an LED to indicate power. The resistor value adjusts brightness; lower values increase current (e.g., 220Ω yields ~15mA at 5V). Include a 10kΩ–100kΩ pull-down resistor on the output to prevent floating voltage when disconnected.
- For short-circuit protection, fuse the input at 500mA–1A (fast-acting).
- Heatsink the 7805 for currents >300mA; TO-220 thermal resistance is ~5°C/W without a sink.
- Test with a dummy load (e.g., 5Ω/5W resistor) to verify 5V ±5% under load.
Step-by-Step Wiring of a USB 5V Power Supply
Select a 7805 linear regulator for stable 5V output–its thermal stability handles currents up to 1A without derating. Verify input voltage compatibility: 7–35V DC suffices, but 9–12V minimizes heat dissipation. Pre-regulate with a 470μF electrolytic capacitor on the input side to suppress noise from unregulated sources like wall adapters.
Wire the 7805’s input pin to the positive terminal of your DC source, ensuring polarity alignment. Ground the regulator’s middle pin directly to the negative rail. For output, connect a 100μF electrolytic capacitor between the 5V pin and ground to filter voltage ripple–critical for USB-powered devices like microcontrollers.
Add a 1N4007 diode across the input and ground (cathode to positive) to protect against reverse polarity. If the supply exceeds 15V, mount the 7805 on a heatsink rated for at least 10°C/W thermal resistance. Skip this for 9V inputs unless ambient temperatures exceed 50°C.
For USB connectivity, solder a type-A female connector’s +5V (pin 1) and GND (pin 4) directly to the regulator’s output. Use 22AWG wire for currents above 500mA to prevent voltage drop. Verify connections with a multimeter: 4.8–5.2V between USB pins confirms regulation.
| Component | Specification | Purpose |
|---|---|---|
| 7805 Regulator | TO-220 package, 1A max | Voltage stabilization |
| Input Capacitor | 470μF, 25V electrolytic | Noise filtering |
| Output Capacitor | 100μF, 16V electrolytic | Ripple suppression |
| Diode | 1N4007, 1A | Reverse polarity protection |

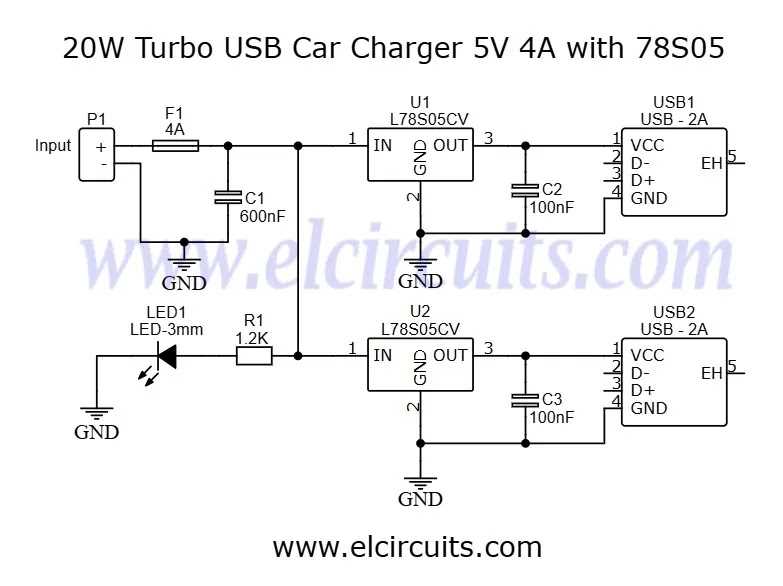

Test load tolerance by connecting a 10Ω resistor across the USB output–current should remain stable at ~500mA without regulator heating beyond 60°C. For higher currents, parallel two 7805s with matched outputs, each bypassed with a 0.1μF ceramic capacitor for transient response.
Enclose the assembly in a non-conductive case, isolating the 7805 from metal surfaces to prevent short circuits. Label the USB port’s voltage output clearly–mistakes here damage devices expecting 5V, not 9V or 12V inputs.
Troubleshooting
If output drops below 4.7V, check input voltage–regulators need at least 2V headroom. Replace capacitors if ESR exceeds 0.1Ω. For intermittent shutdowns, add a 0.5W resistor (1kΩ) between the regulator’s output and adjust pin to improve stability during no-load conditions.
How to Choose the Right Transformer for 5V Output
Select a transformer with a secondary voltage rating between 6V and 12V AC for 5V DC conversion. A 9V AC transformer is optimal, yielding roughly 12V DC post-rectification and smoothing, which allows a linear regulator like the 7805 to drop voltage efficiently without excessive heat dissipation. Verify the transformer’s current rating matches the load–minimum 500mA for basic USB-powered devices, 1A or higher for fast-charging applications. Core size matters: EE16 cores handle up to 2W, EE25 up to 10W.
Check insulation and safety certifications: UL, CE, or RoHS markings ensure compliance with thermal and electrical safety standards. Toroidal transformers reduce electromagnetic interference (EMI) but cost more; EI cores are cheaper but noisier. Measure winding resistance–lower values (
Testing Voltage and Current in Your 5V Power Adapter Build
Use a multimeter with a precision of at least 0.1V for accurate voltage readings. Set it to DC voltage mode and probe the output terminals before connecting any load. A stable 5.0V ±0.1V confirms proper regulation–any deviation beyond ±0.2V suggests component miscalibration or faulty feedback.
Measure current under load by connecting a 1Ω resistor (minimum 2W rating) between the output and ground. Probe the resistor’s terminals with the multimeter in DC current mode. For a typical 1A output, expect 1V across the resistor; higher values indicate excessive draw, risking thermal throttling or component failure.
Load Testing Parameters
Verify performance at 10%, 50%, and 100% of the rated capacity. A 5V/2A adapter should deliver 0.2A, 1A, and 2A respectively without voltage sag below 4.8V. Record ripple voltage at full load using an oscilloscope with a 20MHz bandwidth–peaks exceeding 50mV suggest poor filtering or inadequate decoupling capacitors.
Thermal stress testing requires monitoring component temperatures after 30 minutes of operation. Use a thermal imager or K-type thermocouple to check the switching IC, inductor, and diodes. Temperatures above 80°C for the IC or 60°C for capacitors may indicate insufficient cooling or suboptimal layout.
Short-circuit protection can be validated by momentarily bridging the output terminals. The adapter should either limit current to ≤3A or shut down completely within 100ms. Failure to do so risks permanent damage to traces or components.
Safety and Compliance Checks
Insulation resistance should exceed 10MΩ between input and output terminals when tested with a 500V megohmmeter. Lower values indicate compromised isolation, posing shock hazards. Additionally, check for leakage current using a leakage current tester–values above 0.25mA fail most safety standards.
Efficiency calculations require measuring input power with a wattmeter while the adapter drives a resistive load. Divide output power by input power, then multiply by 100. A well-designed 5V adapter achieves 85-90% efficiency at full load; values below 75% suggest excessive losses in magnetics or switching elements.
Final validation involves repeating tests after environmental stress (e.g., 40°C for 24 hours). Post-stress performance should match pre-stress results within 5%. Deviations point to latent defects in solder joints, capacitors, or semiconductor dies.
