Step-by-Step 7-Way Trailer Plug Wiring Guide with Color Codes

Start by verifying wire color codes against your specific setup. Most heavy-duty configurations follow the SAE J560 standard, where brown carries running lights, yellow handles left turn and brake signals, and green manages the right side. White remains the ground for all circuits–ensure it’s securely fastened to bare metal to prevent intermittent failures. Blue typically handles electric brakes or auxiliary power, while red supplies 12V constant voltage for accessories. Black often serves as the reverse light conductor. Double-check each pin assignment with a multimeter before finalizing connections.

Use heat-shrink tubing instead of electrical tape for long-term durability. Exposed connections corrode under road spray and temperature cycles, leading to voltage drops. Match wire gauge to expected load–12 AWG suffices for standard lighting, but 10 AWG is required for high-draw components like winches or hydraulic pumps. Solder joints create the most reliable bonds, but crimp connectors with a proper tool work if soldering isn’t feasible. Avoid twist-and-tape methods–they degrade quickly under vibration.

Never assume the auxiliary pin configuration. Some vehicles repurpose the blue wire for hydraulic dump valves rather than brakes; others use it for constant power. Confirm intended function by testing each circuit independently with a 12V test light or multimeter. Reversing brake and power lines can damage the controller or cause unintended trailer movement. If the system includes a breakaway switch, route the dedicated wire directly to the battery through a fuse–this ensures emergency braking even if the main harness fails.

Ground placement impacts performance more than any other factor. A single shared ground for all circuits invites interference and dimming lights under load. Instead, run individual grounds from each light assembly back to a central point near the vehicle frame, then connect to the main ground wire. For aluminum trailers, use self-tapping screws with star washers to create a solid contact surface–aluminum oxide disrupts conductivity. If flickering persists, add a secondary ground strap from the tow vehicle’s negative terminal to the coupling point.

Understanding the 7-Pin Vehicle Connector Layout

Begin by verifying ground integrity–the white wire in position 3 (center pin) must maintain zero ohms to the chassis to prevent voltage drops that mimic intermittent failures. Use a multimeter set to continuity mode after disconnecting the plug; corrosion under the insulation often goes unnoticed until towing loads reveal erratic signal behavior.

For the brown wire (terminal 1), route it directly to running lights without splicing into other circuits–daisy-chaining reduces voltage by 0.3V per join, dimming lamps below DOT visibility standards at night. Check bulb resistance: LED clusters should read 3–6 ohms, while incandescent filaments hover around 1–2 ohms on a cold bulb.

The yellow wire (terminal 2) and green (terminal 5) handle left/right stop-turn signals–test with a 6–12V test lamp rather than relying on dashboard indicators; modern pulse-width modulators can blink dash lights while failing to energize external bulbs. Measure pulse duty cycle: a healthy turn signal ranges 50–70%, while below 30% often indicates a weak flasher module.

Blue auxiliary circuits (terminal 4) suffer most from moisture ingress; apply dielectric grease liberally during reassembly and seal cable entries with heat-shrink tubing containing adhesive liner. On trailers exceeding 22 feet, double-check wire gauge: #14 stranded copper handles 15A continuous, while #12 is mandatory for circuits above 10A to prevent overheating splice joints.

Always terminate unused pins (terminal 6) with a 470-ohm resistor to ground–modern ECUs treat open circuits as faults, triggering false diagnostic trouble codes that deactivate anti-lock braking or stability control features until cleared with a scan tool.

Standard Wire Color Codes for 7-Way Vehicle Connectors

Use these color assignments when installing or repairing a 7-way connector to ensure consistency with industry norms. White cables always serve as ground (negative), connecting directly to the frame or chassis for proper circuit completion. Verify this first–incorrect grounding causes intermittent failures or non-functioning lights.

Green wires supply right turn and brake signals, while yellow carries left turn and brake circuits. These must never be swapped; reversing them misdirects drivers behind you, creating hazardous situations. Brown handles tail, side marker, and license plate illumination–typically low-current but critical for visibility. Test these functions independently before night driving.

Blue is reserved for electric brake control–apply dielectric grease at the connection to prevent corrosion in wet conditions. Black wires (often 12V auxiliary) power winches, interior campers, or other accessories; fuse this line separately with a 30-40 amp breaker to avoid fire risks. Check voltage drop under load if accessories behave erratically.

Orange frequently designates reverse lights on European models, though North American setups may omit it. If present, connect it solely to backup lamps and confirm no interference with other circuits. Always label wires during disassembly–ambiguity leads to errors that void warranties or damage modules.

Troubleshooting Color Conflicts

Some manufacturers deviate–Ford’s green may carry tail lights instead of right signals. Compare against a factory manual or use a multimeter: probe each pin while activating switches one by one. Record findings; mismatched colors often correlate with wiring harness incompatibilities rather than component failure.

Corrosion-resistant connectors like WeatherPack or silicone-sealed variants outlast standard terminals in marine or off-road conditions. Replace entire pigtail assemblies if colors fade beyond recognition–patchwork repairs fail under strain. Keep spare fuses, wire ties, and heat-shrink tubing in your toolkit; preventive maintenance saves diagnostic hours.

Step-by-Step Guide to Connecting a 7-Pin Vehicle Plug

Begin by gathering the necessary tools: a multimeter, wire strippers, crimping tool, heat shrink tubing or electrical tape, and a 7-pin socket compatible with your towing setup. Verify the voltage specifications for each circuit–typically 12V for automotive systems–but confirm with the manufacturer’s manual to avoid mismatches.

Locate the vehicle’s harness output. Most modern setups have a dedicated port near the rear bumper or integrated into the bumper itself. If absent, scout for pre-existing wires labeled for towing purposes, often bundled with taillight or reverse signal cables. Trace these wires to their origin if splicing is required.

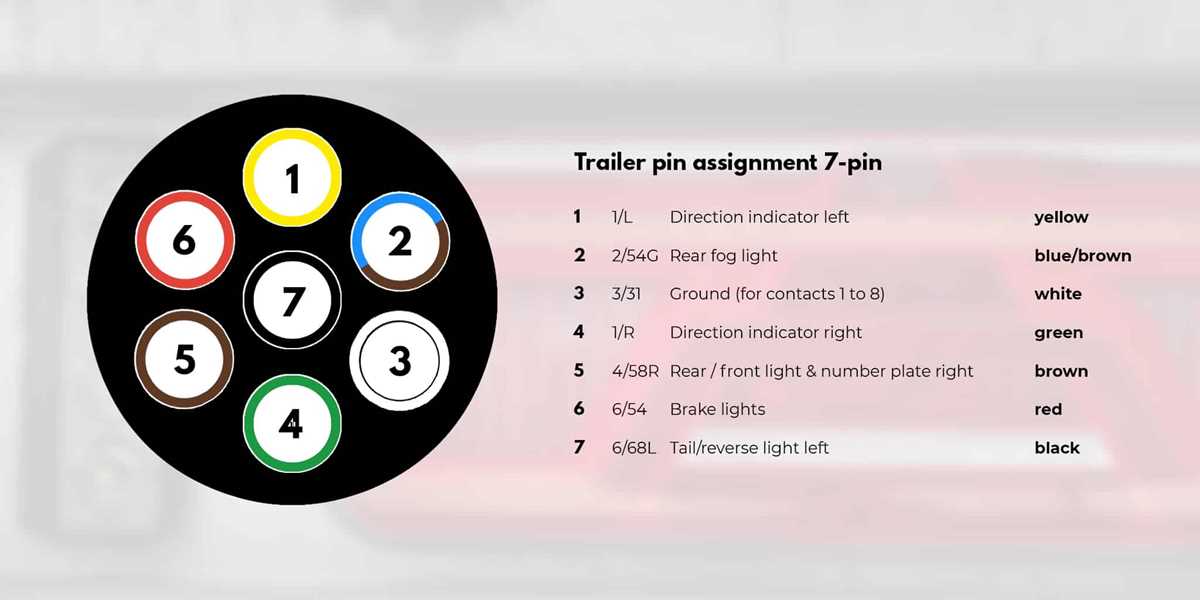

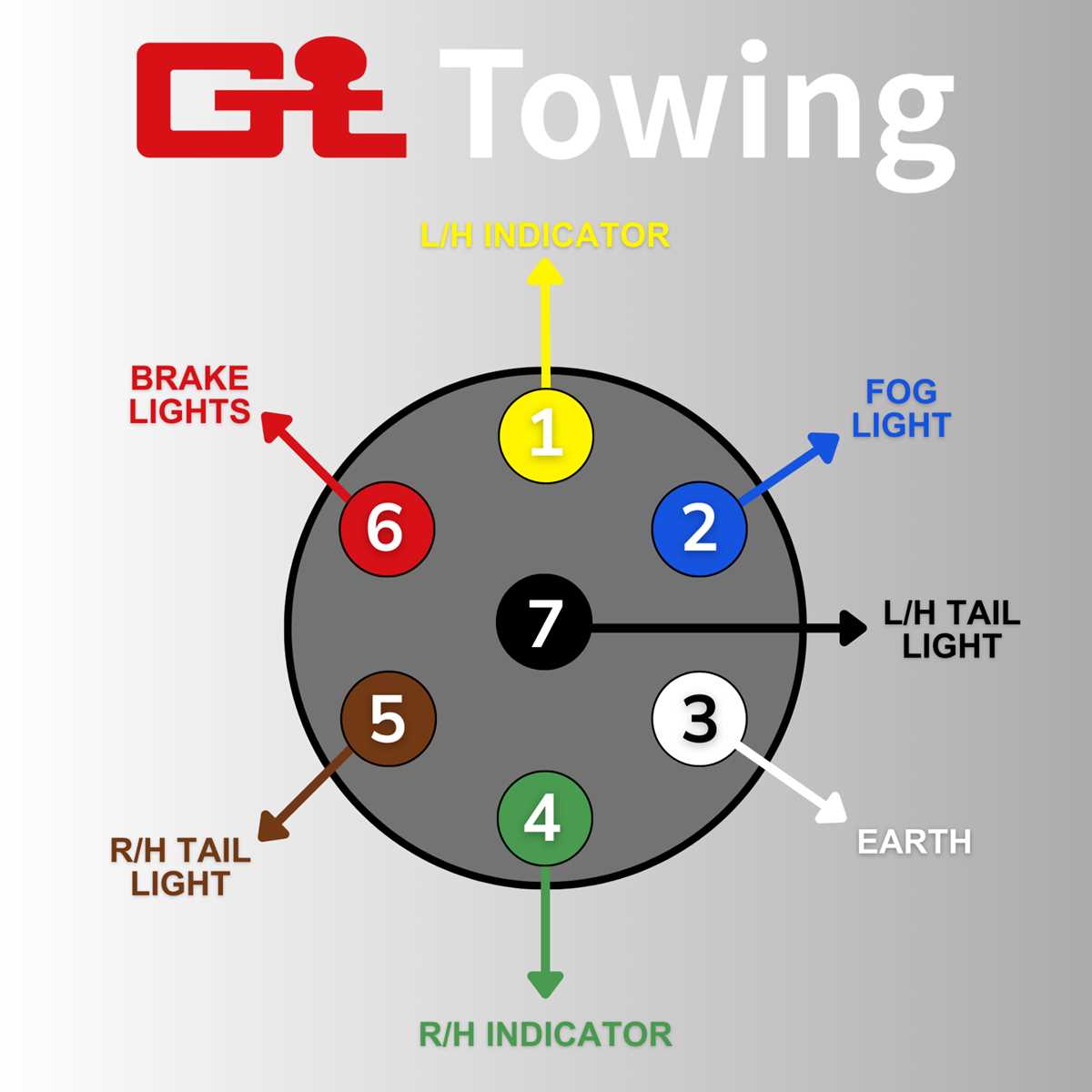

Identify the pin assignments for standard 7-pin configurations. Use this reference:

• Pin 1 (Yellow): Left turn signal and brake lights
• Pin 2 (Green): Right turn signal and brake lights
• Pin 3 (Brown): Running/tail lights
• Pin 4 (White): Ground (connect to chassis or dedicated ground wire)
• Pin 5 (Blue): Electric brakes or auxiliary power (requires brake controller)
• Pin 6 (Red): Backup lights (reverse signal)
• Pin 7 (Black): Battery charge line (12V hot lead, fused for safety)

Strip the ends of both the vehicle’s harness wires and the plug’s leads to expose 6-8mm of copper. Match each color-coded wire to its corresponding pin, using the multimeter to test continuity if labels are unclear. Twist the bare ends tightly together, then secure with crimp connectors or solder for durability. Cover each joint with heat shrink tubing or wrap tightly with electrical tape to prevent corrosion.

Testing and Troubleshooting

Reconnect the vehicle’s battery and activate each function individually–turn signals, brakes, reverse lights, and tail lights–while observing the attached load (e.g., light bar or test bulbs). If a circuit fails:

1. Check ground connections first; poor grounding is the most common issue.
2. Verify fuse integrity for the brake and battery charge circuits.
3. Inspect for short circuits using the multimeter’s continuity setting.
4. Ensure the brake controller (if installed) is calibrated and powered.

Secure the plug housing by fastening screws or clips, then tuck excess cable into a protective conduit or loom. Avoid routing wires near sharp edges or moving parts. Test again under load (e.g., towing a camper or utility bed) to confirm stability under real-world conditions.

For auxiliary circuits (e.g., electric brakes), install an inline fuse–typically 20-30 amps for the battery charge line–and a relay if powering high-draw devices. Document your wiring layout with photos or a simple sketch for future reference or repairs.

Solving Connection Problems in Heavy-Duty Electrical Hookups

Check for corrosion on terminal contacts first–even minor oxidation creates resistance. Use a wire brush or emery cloth to clean copper surfaces until they shine. Apply dielectric grease after reassembly to prevent future buildup. Corrosion is the leading cause of intermittent failures in 7-way systems.

Test voltage at each pin with a multimeter while activating corresponding vehicle functions. A properly functioning circuit should read 12V±0.5V during operation. If readings fluctuate wildly or remain at 0V, inspect the fuse panel immediately. The ground pin (center) should register near 0Ω when tested against the frame.

Identifying Cable Damage

• Inspect the entire cable run for cuts, fraying, or melted insulation.
• Look for discoloration–darkened or brittle sections indicate overheating.
• Flex the cable at likely stress points (near connectors, over suspension components) to reveal hidden breaks.
• Use a tone generator to trace broken conductors through bundles.

Replace damaged cables rather than splicing–temporary fixes compromise signal integrity.

Verify proper pin configuration matches both tow vehicle and attachment plug diagrams. Pins are often miswired during install, swapping brake and turn signals. Consult manufacturer documentation–common standards include SAE J560 and ISO 1185 but variations exist. Use a dedicated breakout box for accurate testing before full assembly.

Diagnosing Signal Interference

1. Disconnect all loads and measure background voltage at each contact. Parasitic draws above 0.1A indicate short circuits.
2. Check for shared ground paths causing “ghost” activations–separate dedicated grounds prevent cross-talk.
3. Inspect relay boards for solder cracks or burnt spots in circuit protection modules.

Residual current >0.3A suggests water ingress compromising dielectric properties–replace components entirely.

When function-specific issues persist despite correct voltage, examine module calibration. Modern controllers require configuration via OBD-II scanners for proper load sensing. Factory defaults may not match accessory power requirements–a manual reset procedure often resolves unexplained faults. For persistent issues, capture signal waveforms with an oscilloscope to detect voltage spikes or PWM irregularities in LED-compatible systems.
