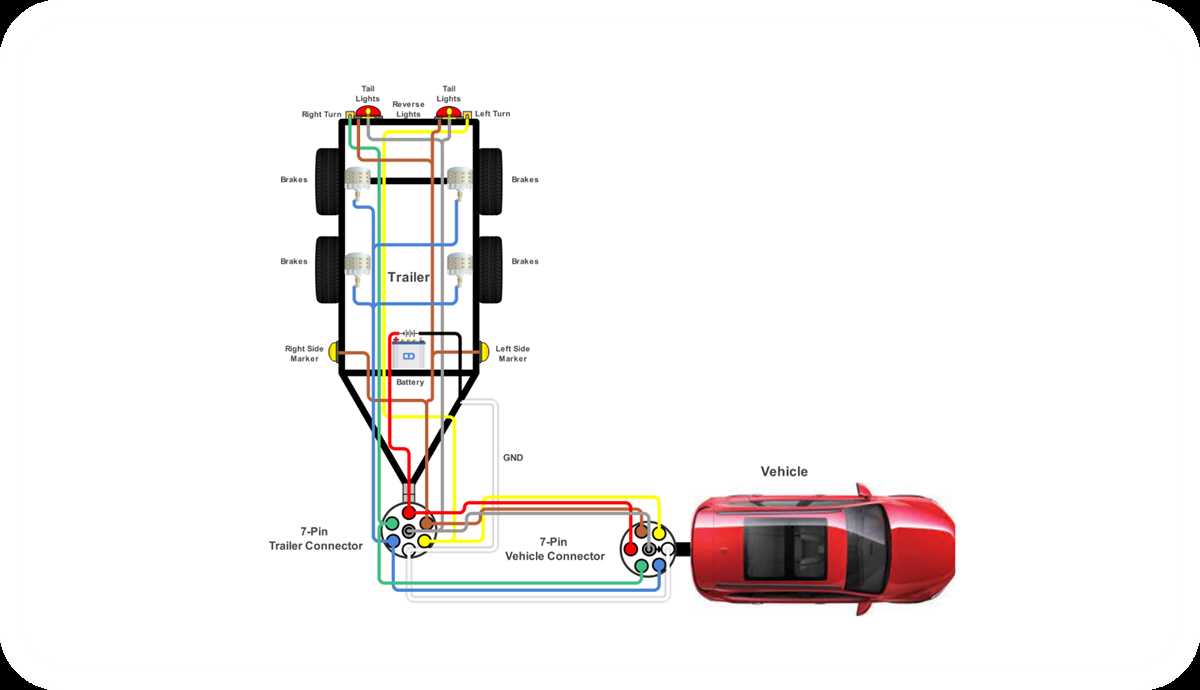

Complete 7-Pin Trailer Wiring Diagram with Brake Circuit Guide
Use a color-coded setup for pin assignments to prevent miswiring: white for ground, green for right turn/brake, yellow for left turn/brake, brown for tail lights, blue for electric braking output, red for auxiliary power, and black for battery charge line. Verify each circuit with a multimeter before finalizing connections–open circuits or incorrect polarity will damage controllers or fail under load. Ensure the ground wire is secured to unpainted metal on the tow vehicle’s frame to avoid corrosion-related voltage drops.
For electric braking circuits (typically 12V signal output), match the controller’s gain settings to the loaded weight of the hauled equipment. A 2,000-pound load may require a gain of 4-6, while a 10,000-pound unit often needs 8-10. Test brake response on a flat, dry surface at 20 mph before highway use–adjust gain until the hauled load slows evenly without trailer push or wheel lockup. Install a brake-away system with a dedicated battery and switch to comply with DOT regulations in most states.
Route cables away from heat sources, moving parts, and sharp edges. Use dielectric grease on all connectors to block moisture infiltration, which causes intermittent failures. Secure wires with loom tubing or spiral wrap every 12-18 inches to prevent vibration-induced chafing. If integrating a secondary power line (auxiliary), fuse it within 7 inches of the battery to prevent fire risk. After installation, cycle each function–turn signals, braking, lighting–and confirm LED or incandescent brightness matches the original setup.
Replace worn connectors showing green oxidation or melted housing–standard blade contacts degrade at 25-30 amps continuous load. For heavy or off-road use, upgrade to a sealed design rated for 50 amps per pin. If ABS wiring is present, isolate it with a relay to avoid interference with braking controllers. Document every connection in a schematic for troubleshooting–maintain the same wire gauge (minimum 14AWG for lighting, 10AWG for braking) throughout to prevent overheating.
Standard Plug Configuration for Heavy-Duty Towing Systems
Ensure the auxiliary power pin (typically 12V) delivers a consistent 10-12 amps to the coupling’s breakaway battery; deviations beyond ±0.5V indicate corroded pins or chafed cables requiring immediate replacement with 14-gauge tinned copper wire. The left and right turn/stop circuits must maintain ≤3 ohms resistance–test with a multimeter after every 5,000 miles to prevent signal degradation. Ground (white wire) should be bonded directly to the frame using a star washer and M8 stainless bolt, avoiding painted or coated surfaces to ensure a clean path below 0.2 ohms.
Brake controller output (blue wire) must be set to 12V pulse width modulation (PWM) at 12Hz for optimal actuator response; factory defaults often misalign with surge-type systems, causing premature wear. Verify pinout alignment using a dedicated tester before connecting: pin 1 (yellow) = left turn/stops, pin 4 (green) = right turn/stops, pin 6 (brown) = running lights, pin 7 (white) = ground. For ABS-compatible setups, run a dedicated 12-gauge orange wire from the tow vehicle’s ABS module to pin 5 to enable trailer stability control.
Route all wires through loom tubing rated for at least 80°C and secure with Adel clamps every 18″ to prevent vibration-induced fatigue. For electric-over-hydraulic actuators, match the controller’s gain setting to the coupling’s gross weight: 30% gain for loads under 3,500 lbs, 60% for 3,500–7,000 lbs, and 90% for above 7,000 lbs. Replace any connector showing heat discoloration or pitting immediately–these failure points typically occur within 1,200 miles of high-current operation.
Mastering Pin Layouts for Heavy-Duty Vehicle Plugs
Start by verifying the ground pin (typically labeled “G” or “31”)–it must carry a direct, uninterrupted path to the chassis. Corrosion here compromises all other functions; use a dedicated wire gauge of at least 10 AWG, not thinner strands bundled from smaller wires. Avoid relying on the tow hitch or ball mount as a ground conductor; attach the cable directly to bare metal with a serrated washer to prevent loosening under vibration.
The auxiliary power pin (often numbered “X” or “7”) delivers 12V DC to charge onboard batteries or power accessories. Route this line through a 20-amp fuse within 7 inches of the battery terminal to meet SAE J2863 safety standards. If the supply exceeds 30 watts continuously, install a relay; direct connection risks overheating connectors rated only for 5-amp transient loads. Check voltage drop under load–if it exceeds 0.5V across the connection, upgrade to 12 AWG wire with tinned copper core to reduce resistance.
Reverse light signaling uses the “R” pin, which must activate only when the vehicle’s backup lights are engaged. Wire this through a dedicated circuit from the transmission range sensor, bypassing any trailer lighting modules unless they explicitly support polarity inversion. Test using a scan tool: if the pin remains energized in drive, the circuit is misconfigured and may drain the battery or trigger false brake engagement during reversing maneuvers.
Electric brake actuation relies on the “E” pin, controlled by a proportional signal from the tow vehicle’s brake controller. Calibrate the controller so the pin voltage rises linearly from 0V to 12V as pedal pressure increases, never exceeding 100 ms response time–delays cause uneven braking. Use a 14 AWG shielded twisted pair to reduce electromagnetic interference; route the cable away from spark plug wires and fuel injectors by at least 6 inches. Verify resistance: 3.5–5.0 ohms per brake magnet; values outside this range indicate corrosion or wire gauge mismatch.
- Service pin (“S”): Connects to the tow vehicle’s battery positive via a switch or smart controller. Only energize when the ignition is on–continuous power risks draining the battery. Use a 15-amp fuse within 18 inches of the pin.
- Left turn/brake pin (“L”): Must flash synchronously with the vehicle’s left signal, even under heavy current draw (up to 3 amps). If LED trailer lights are used, add a 600-Ω, 5-watt load resistor in parallel to prevent hyper-flashing caused by insufficient draw.
- Right turn/brake pin (“T”): Same specifications as “L,” but route the cable through a separate harness channel to avoid cross-talk. Use dielectric grease on the terminal to prevent ingress of road salt.
Install a blink code monitor between the turn signal pins and the ground. This device detects open circuits or short-to-ground conditions by pulsing the pin in a unique sequence (e.g., three flashes = left circuit fault). Hard-wire the monitor directly to the plug–don’t rely on trailer-side diagnostics, as loose connections can mask faults. For multi-axle setups, assign each axle to a distinct blink code to isolate faults quickly.
After assembly, perform a dynamic stress test: apply 13.5V, cycle all pins at 80% rated current, and monitor temperature rise with an infrared thermometer. Acceptable limits: 30°C above ambient for connectors, 20°C for wires. Replace any component exceeding these thresholds–failure under load risks melting insulation and creating a fire hazard. Document each pin’s wire color and gauge adjacent to the plug for future troubleshooting.
Step-by-Step Guide to Connecting Electrical Brake Systems for Tow Vehicles
Begin by stripping ¼ inch of insulation from the brake control circuit wire (typically blue) on the vehicle-side connector. Use a crimping tool to attach a quick-disconnect terminal, ensuring the metal tab faces outward for proper engagement. Test continuity with a multimeter before proceeding–resistance should read below 0.5 ohms.
Route the brake output wire from the controller to the matching pin on the rear receptacle. Avoid sharp edges or moving parts; secure the wire with plastic clips every 18 inches to prevent vibration chafe. For OEM connectors, identify pin location using the table below:
| Pin Color | Function | Voltage (Active) |
|---|---|---|
| Blue | Electric Brake Output | 12V pulsed |
| White | Ground | 0V |
| Red | Battery Charge | 12V constant |
| Black | Tail Lights | 12V |
Connect the ground (white) wire first–attach it directly to the vehicle’s frame or dedicated ground block. Verify grounding integrity by checking voltage drop under load; readings above 0.2V indicate a weak connection requiring cleaning or relocation. For aluminum frames, use a star washer to pierce oxide layers.
Mount the brake controller within 12 inches of the driver’s reach, angled no more than 30 degrees from horizontal to prevent false activation. For proportional controllers, calibrate sensitivity by towing the load at 20 mph and observing brake modulation–adjust the gain until wheels lock momentarily then release.
For hydraulic surge actuators, wire the brake output to the solenoid valve instead of electric drums. Use 14 AWG wire for runs under 15 feet; upgrade to 12 AWG for longer distances to minimize voltage drop. Heat-shrink all splices and apply dielectric grease to prevent corrosion.
Test the system by engaging the manual brake override. The controller should emit a smooth ramp-up tone; erratic buzzing suggests loose connections or faulty magnets. Inspect drum magnets for even wear–replace if gaps exceed 0.040 inches. For disc brakes, ensure the hydraulic line maintains 500-700 psi during actuation.
Secure the connector with a weatherproof cover, ensuring all pins snap into the correct sockets. For off-road use, apply dielectric silicone to the plug face to repel moisture. Label all wires at both ends with heat-shrink tubing for future troubleshooting.
Final verification requires a road test. Apply brakes at incremental speeds (30, 45, 60 mph) and confirm progressive stopping without wheel lockup. Adjust trailer brake bias if the vehicle pulls to one side–typically 60% trailer, 40% tow vehicle for balanced loads above 3,000 lbs.
