Simple 9V Power Supply Circuit Design and Wiring Guide

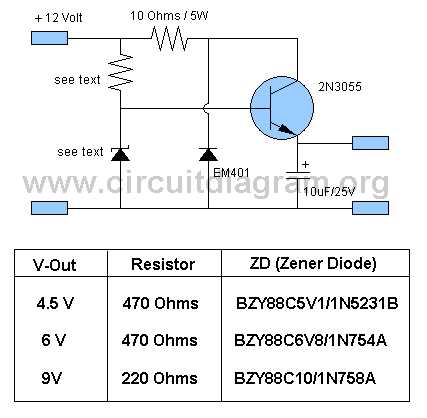

For a reliable low-current DC output, use a transformer-based linear regulator with a 7809 IC. Begin with a 12-0-12 center-tapped transformer (current rating: 500mA–1A). Rectify the AC using a full-wave bridge rectifier (four 1N4007 diodes) and smooth the output with a 1000µF electrolytic capacitor. The 7809 stabilizes the voltage at the target level while handling up to 1A if properly heat-sinked. Ensure input-output capacitors (0.1µF–0.33µF) are placed close to the IC to prevent oscillations.
If space or efficiency is critical, a switching buck converter like the LM2596 offers better performance. Configure it with an 33µH inductor, a Schottky diode (1N5822), and output capacitors (100µF + 0.1µF). This reduces heat loss compared to linear solutions, achieving ~80% efficiency. For adjustable precision, pair the LM2596 with a feedback divider (1.24kΩ + 4.7kΩ resistors) to fine-tune the output (±5% tolerance).
Grounding and trace width matter–keep high-current paths (1.5mm+ copper width) short to minimize voltage drops. For noise-sensitive loads (e.g., analog circuits), add a π-filter (10µF + 10Ω–100Ω resistor + 100µF) post-regulation. Test under load: a 100Ω/1W dummy resistor should not drop the output below 8.5 units. For battery backup, integrate a 9-unit NiMH or Li-ion pack with a reverse-blocking diode (1N4001).
Avoid cascading regulators unless overspecifying–each stage adds ripple and heat. For AC isolation, opt for a flyback converter (e.g., TNY268) with built-in feedback, requiring only an external transformer and snubber network. Verify thermal derating: the 7809’s safe operating area declines above 1A or 100°C ambient.

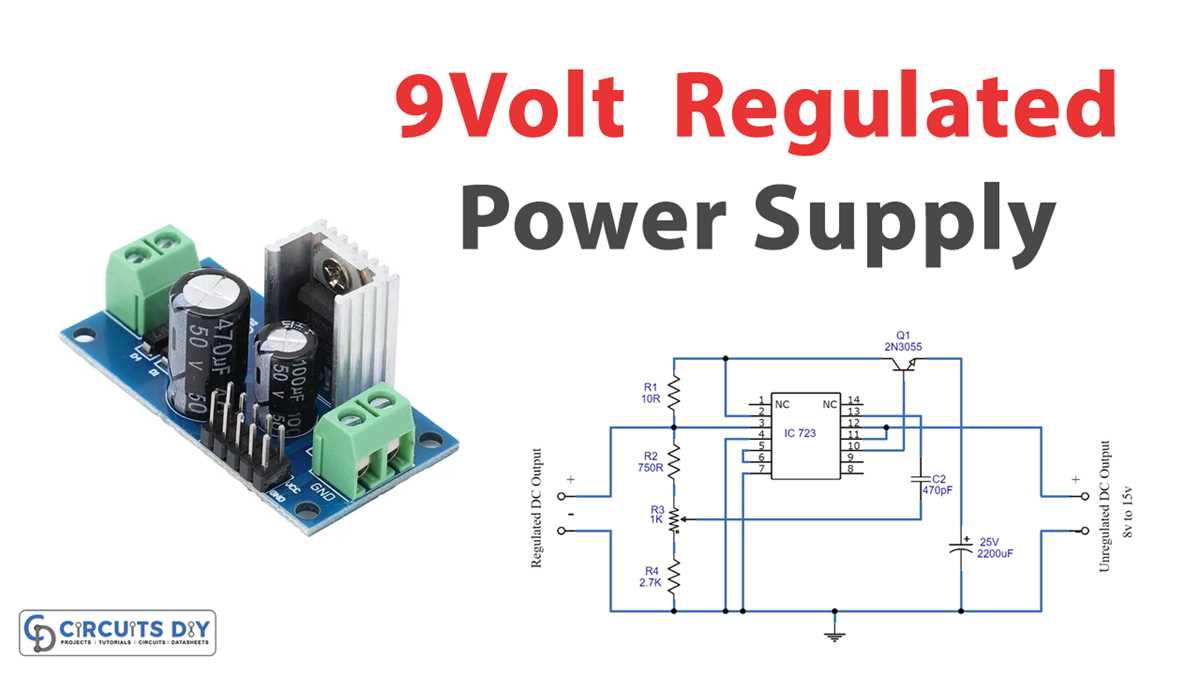

Building a 9V DC Source: Core Circuit Layout
For a stable low-current 9V DC output, use a standard LM7809 linear regulator in a TO-220 package, wired after a 12V AC-DC wall adapter or a 12-15V transformer and bridge rectifier. Connect a 1000μF electrolytic capacitor (25V rating) across the input pins to smooth rectified ripples, followed by a 0.1μF ceramic capacitor on the output side to suppress high-frequency noise. Ensure the ground pin is linked to a common return path, and add a 10μF tantalum capacitor at the output for transient response improvement. Keep trace lengths short to minimize EMF interference–ideal for audio preamps or sensor bias circuits.
If efficiency matters, replace the fixed 7809 with a buck converter module like the LM2596, paired with a 33μH inductor and a Schottky diode (1N5822). Adjust the feedback resistor network–10kΩ for R1 and 4.3kΩ for R2–to fine-tune the output to exactly 9V. For higher current loads (up to 3A), upgrade the input capacitor to 2200μF and add a heatsink to the IC. Verify regulation under load with a multimeter; expect ≤20mV ripple at 500mA.
Avoid cheap no-name wall adapters–they often deliver inconsistent secondary ratings. Test the transformer’s RMS output before assembly: a 12VAC nominal should yield ~16.8VDC post-rectification. If hum persists, introduce a pi-filter (two 470μF caps + 1Ω resistor) between the rectifier and regulator. For battery backup, wire a 9V battery clip in parallel with a blocking diode (1N4007) to prevent backfeed into the circuit.
Selecting Components for a 9V Linear Regulator Circuit
Use an LM7809 as the core linear regulator–its 1A output capacity suits most low-current applications like small amplifiers, sensors, or microcontroller-driven projects. Pair it with a 220µF input capacitor (minimum 16V rating) to stabilize the incoming DC and prevent voltage drops under load. The output capacitor should be 47µF (10V or higher) to ensure stability and reduce ripple to below 10mV RMS.
Avoid generic “wall wart” adapters rated below 12V–derating must account for dropout (typically 2V). For example, a 15V unregulated adapter with 10% tolerance ensures the regulator operates within safe margins even under load transients. Check the adapter’s current rating: overspec by 30% (e.g., a 1.3A adapter for a 1A circuit) to compensate for efficiency losses during peak draws.
Select a bridge rectifier like the KBU4J (4A, 600V) if the circuit includes AC conversion. For DC-only setups, a 1N4007 diode (1A) on the input protects against reverse polarity. Heatsinks are mandatory for linear regulators–use a TO-220 heatsink with ≤10°C/W thermal resistance for 1A loads. Without it, the LM7809 will throttle at ~60°C, reducing output current to ~500mA.
Key Component Specifications
| Component | Recommended Part | Critical Parameters |
|---|---|---|
| Linear Regulator | LM7809 (TO-220) | 1A output, 2V dropout, 85°C max junction |
| Input Capacitor | Nichicon UHE1V221MPD | 220µF, 25V, 105°C, low ESR |
| Output Capacitor | Panasonic EEE-FK1A470P | 47µF, 16V, 105°C, high ripple current |
| Reverse Polarity Protection | 1N4007 | 1A, 1000V, axial |
Bypass the LM7809’s input and output with 0.1µF ceramic capacitors (X7R dielectric) mounted within 2mm of the regulator pins. These suppress high-frequency noise and prevent oscillations, especially critical when driving mixed-signal loads (e.g., ADCs). For circuits with inductive loads (relays, motors), add a flyback diode (1N5822) across the load to clamp voltage spikes.
For ripple-sensitive applications (e.g., audio preamps), increase the output capacitor to 100µF and add a 10µF tantalum capacitor in parallel. Tantalum types (e.g., AVX TAJ series) offer lower ESR than electrolytics, reducing ripple by an additional 40%. Avoid using tantalum capacitors on the input side–they can fail catastrophically under voltage spikes.
Test the circuit with a variable dummy load (e.g., a 10Ω power resistor with a 10W rating) to verify performance at 10%, 50%, and 90% of the regulator’s rated current. Measure dropout voltage at each step–if it exceeds 1.8V at 900mA, upgrade the adapter or add a preregulator (e.g., LM317 set to 12V) to reduce thermal stress on the LM7809. Use a multimeter with true RMS capability to accurate gauge output noise.
Step-by-Step Assembly of a 9V Transformer-Based Circuit
Select a 220V to 12V AC step-down transformer with a current rating of at least 500mA–ensure the secondary winding matches your load requirements. Mount it on a perforated board or PCB, securing it with insulated standoffs to prevent shorts. Connect the primary wires to an IEC socket or direct mains input, adding a 1A fuse in series for protection. On the secondary side, attach a full-wave bridge rectifier (e.g., 1N4007 diodes) to convert AC to pulsating DC, followed by a 2200µF electrolytic capacitor (rated ≥25V) to smooth ripples. Verify the output before proceeding: probe the capacitor terminals with a multimeter–expect ~15V DC.
- Add a linear regulator (LM7809) to drop the voltage to 9V. Solder its input leg to the capacitor’s positive terminal, the ground leg to the negative rail, and connect the output leg to a 10µF decoupling capacitor for stability.
- Terminate the assembly with a 2-pin screw terminal or DC jack. Label the output polarity clearly–reverse bias risks damaging sensitive devices.
- Enclose the build in a ventilated plastic case, leaving space for a small heatsink on the regulator if continuous loads exceed 300mA. Test under load: aim for ≤100mV ripple at full draw.
Use a 10W resistor (e.g., 100Ω) as a dummy load during bench testing to confirm steady output without thermal runaway.
Troubleshooting Common Issues in 9V Circuit Designs
Begin by verifying the input source stability–fluctuations beyond ±10% of the nominal 9-unit rating often trigger overcurrent protection or underperformance in linear regulators. Check the AC ripple on the DC bus with an oscilloscope; peaks exceeding 50mVpp suggest inadequate filtering or a failed smoothing capacitor. Replace electrolytics showing ESR above 2Ω, as aged components degrade regulation accuracy. For switch-mode designs, inspect the inductor’s saturation current–exceeding its rated value causes audible noise and reduced efficiency.
Output Noise and Load Regulation
Attach a 10Ω resistive load and measure the output with a spectrum analyzer. Spikes at the switching frequency indicate insufficient snubbing–add a 1nF ceramic capacitor across the transistor’s collector-emitter junction. If noise persists, replace the feedback resistor values with precision 1% tolerance types; standard 5% resistors drift with thermal changes. For analog circuits, ensure the ground plane connects directly to the star point–floating grounds introduce hum at 50/60Hz and harmonics.
Thermal shutdown errors typically stem from undersized heatsinks. Confirm the regulator’s die temperature with an infrared thermometer–any reading above 100°C requires recalculating thermal resistance. Linear designs dissipate (Vin–Vout)×Iload as heat; a TO-220 package with a 5°C/W sink can handle 2.5W safely. For higher loads, switch to a buck converter module rated for >3A, ensuring the inductor’s core material matches the operating frequency (ferrite for 100kHz–1MHz).
Reverse polarity damage is preventable by placing a 1N4007 diode in series with the input–it clamps at 0.7V and survives 1A continuous current. If the circuit refuses to start, probe the enable pin with a logic analyzer; some regulators require a pull-up resistor (10kΩ) to Vin. For battery-powered systems, monitor quiescent current–values exceeding 5mA suggest leakage in the pass transistor or faulty input capacitors. Replace bootstrap components if the output drops under load despite adequate input; aged diodes or cracked SMD resistors often fail silently.
