Complete 9000 lb Badland Winch Electrical Connection Wiring Guide

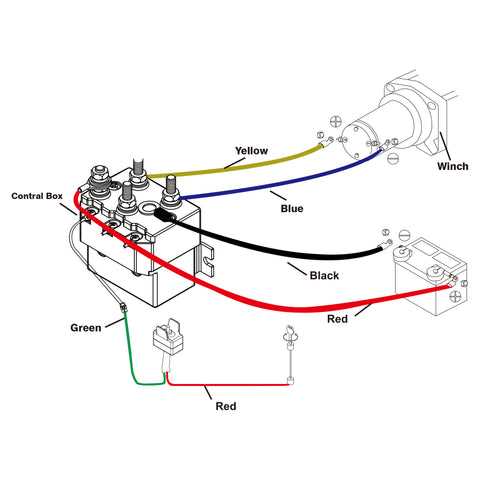

Begin by identifying the control box terminals: labeled B+, B- (ground), A, and C. Connect B+ directly to the vehicle’s battery positive terminal using 2-gauge wire, protected by a 150-amp fuse no farther than 7 inches from the battery. Route ground (B-) to a clean, unpainted metal surface on the chassis, ensuring a resistance below 0.5 ohms.
For remote operation, splice the rocker switch leads into A and C–solenoid activation requires 12V across these points. Use 14-gauge wire for the switch circuit, kept under 10 feet to prevent voltage drop. Verify polarity: reversing these connections triggers a bypass mode, disengaging the motor brake prematurely.
Isolate auxiliary circuits if integrating a wireless receiver. Power the receiver separately via a 5-amp inline fuse, tapping into the B+ line upstream of the main fuse. Connect the receiver’s relay output to A and C, not bypassing the existing switch wiring. Test continuity between the receiver ground and vehicle ground before energizing.
Avoid common pitfalls: corroded terminals, undersized wiring, or loose connections cause arcing under load. Measure voltage at the control box under load–expect 11.8V minimum. If readings drop below 11.5V, upgrade to 1-gauge wire for the main power circuit or relocate the battery closer to the rig’s mounting point.
Document the setup with labeled photographs before finalizing routing. Use adhesive-backed loom to secure wires away from moving parts, sharp edges, or heat sources like exhaust manifolds. Re-check all connections after 50 operational cycles; vibration loosens fasteners and crimps over time.
Electrical Hookup Guide for Heavy-Duty 4.1-Ton Pulling Mechanism
Install the solenoid pack adjacent to the motor housing, ensuring minimal lead length between components to reduce voltage drop. Use 2 AWG copper cables for primary power connections, secured with crimp lugs and heat-shrink tubing rated for 600V.
Route control leads through a grommeted firewall entry, bundling them in flexible convoluted tubing to prevent abrasion. The remote switch circuit requires a dedicated 12-gauge wire with a waterproof connector at the solenoid end–avoid splicing near moisture-prone areas like wheel wells or frame rails.
Critical Connections Breakdown
- Battery Positive: Terminate directly to the starter solenoid’s heavy-duty stud (minimum 500 amp rating) using a tinned copper lug, then branch to the winch motor’s upper terminal.
- Ground Return: Attach a braided copper strap (3/8″ width) from the motor casing to the vehicle’s chassis rail–sand paint to bare metal for optimal conductivity.
- Solenoid Actuation: Wire the trigger switch to the designated posts (typically labeled “A” and “F”), using a 10-amp fuse inline to protect the circuit from shorts during operation.
Test the system before first use by engaging the pull mechanism with no load attached. Listen for unusual resistance noises–grinding or slow engagement indicates misaligned contacts or insufficient power delivery, requiring immediate troubleshooting. Verify voltage at the motor terminals (should read 12.4V–13.2V during operation) and inspect all connections for heat buildup post-test.
Troubleshooting Common Electrical Issues
- Intermittent Operation:
- Check for loose crimp connections or oxidized terminals–clean with a wire brush and apply dielectric grease.
- Inspect the remote switch wiring for frayed insulation where it passes through door frames or over sharp edges.
- Motor Fails to Engage:
- Measure voltage across the solenoid’s coil terminals (should register 10.5V+ when remote switch is activated).
- Bypass the trigger switch temporarily by jumping the solenoid posts–if the motor activates, replace the switch or its wiring.
- Excessive Current Draw:
- Disconnect the pull mechanism and check for binding by manually rotating the drum–seized bearings require immediate lubrication or replacement.
- Ensure the vehicle’s charging system is outputting 13.8V–14.4V under load to prevent battery depletion.
For applications involving frequent submersion (e.g., mud or shallow water recoveries), add a moisture-resistant circuit breaker (150 amp) between the battery and solenoid. Install it vertically with the reset button accessible from the driver’s seat, and use marine-grade heat-shrink on all exposed terminals to prevent corrosion.
Selecting the Right Electrical Parts for a Heavy-Duty 4×4 Pulling System
Start by matching the solenoid to the motor’s current draw–most 4,082 kg-rated units require a relay capable of handling 400 A continuous and 600 A surge. Check the solenoid’s label for a “40/60” stamp; if absent, measure resistance across the coils–values below 0.3 Ω indicate insufficient capacity for repeated cycles. Pair with 6 AWG marine-grade copper cables (not tinned aluminum) to prevent voltage drop exceeding 3% under full load; verify using a multimeter at the battery terminals while engaging the drum under 3,629 kg tension.
Critical Components Checklist
| Component | Specification | Testing Method |
|---|---|---|
| Contractor | 12 V DC, 400 A min | Apply 12 V across terminals; click should be audible |
| Battery | AGM, 100 Ah, 1,000 CCA | Load test at 50% CCA for 15 s; voltage ≥ 9.6 V |
| Fuse | ANL, 300 A | Visual check for oxidation; replace if melted |
| Remote Switch | 5-pin, 18 AWG | Short pins 1-3; drum should rotate clockwise |
Route cables away from sharp edges using nylon clips or conduit–exposed strands invite leaks. Use a 250 A circuit breaker within 18 cm of the battery’s positive post; mount it vertically to allow heat dissipation. For installations with multiple batteries, connect grounds at a single chassis point to eliminate stray currents causing solenoid chatter. Verify torque on all terminal nuts (12 Nm) and apply dielectric grease to prevent corrosion; retighten after 10 duty cycles.
Step-by-Step Guide to Connecting the Pulling Unit Motor and Control Switchbox
Disconnect the vehicle’s battery ground terminal before starting any electrical work. Locate the traction device’s power leads–typically a thick red cable for positive and black or green for negative–on the rear side of the motor housing. Use a multimeter set to DC voltage to verify the cables are not live before proceeding.

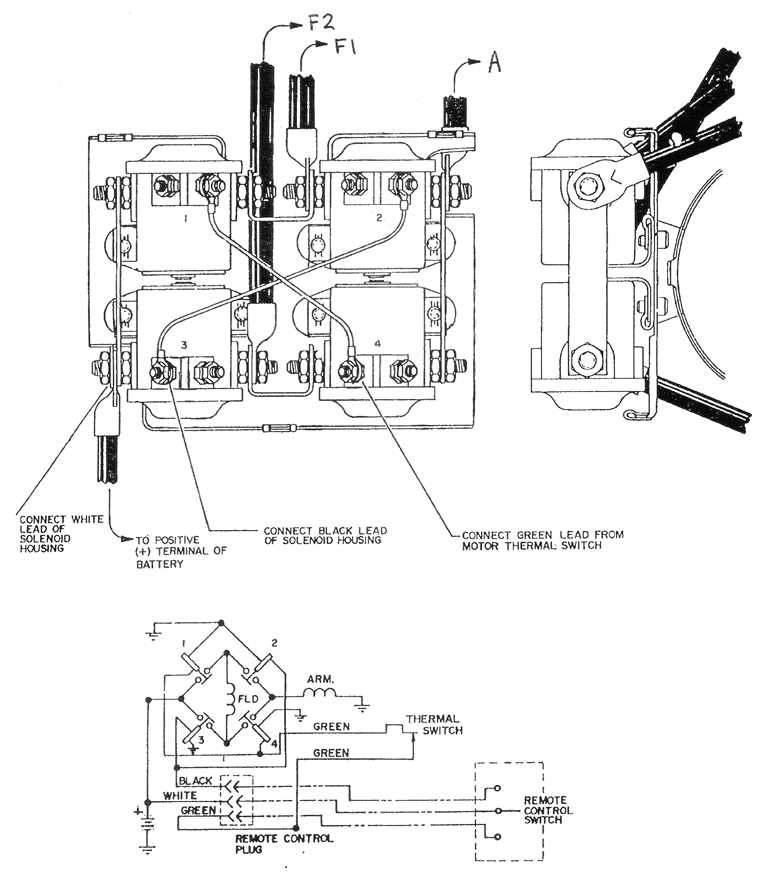

Identify the solenoid assembly, usually mounted near the motor or on a separate bracket. The switchbox has four terminals: two large (motor connections) and two small (control circuit). Label them A (battery positive), F1/F2 (field coils), S1/S2 (remote switch leads) for clarity. Confirm terminal positions with the manufacturer’s schematic if labels are unclear.
Attach the motor’s power leads to the solenoid’s large terminals. The positive cable connects to terminal A; the negative lead to the remaining large post. Secure connections with ring terminals crimped and soldered for durability. Torque bolts to 12-15 ft-lbs to prevent loosening under load.
Run 10-gauge (or thicker) primary wire from the vehicle’s battery positive terminal to solenoid terminal A. Include an inline 150-200A fuse within 7 inches of the battery post. Route cables away from sharp edges or moving parts, using split loom tubing for protection. Ground the solenoid’s negative terminal directly to the motor housing, ensuring a clean, paint-free contact surface.
Connect the remote switch leads to the solenoid’s small terminals (S1/S2). Use 16-gauge wire for the circuit, pairing it with the included rocker switch. Test continuity between the motor housing and solenoid ground terminal with an ohmmeter–readings should show near-zero resistance. If resistance exceeds 0.5 ohms, clean contact points with emery cloth and reconnect.
Reconnect the vehicle’s battery ground cable. Activate the remote switch momentarily to check motor rotation direction–cable should spool outward. If rotation is reversed, swap the two large solenoid terminals (A and the motor lead). Re-test before finalizing connections.
Enclose all exposed terminals in protective boots or dielectric grease to prevent corrosion. Secure loose wires with zip ties spaced every 12 inches, avoiding excessive tension. Recheck torque on all fasteners after 50 operational cycles to maintain reliability under load.
Solving Frequent Electrical Problems in Heavy-Duty Recovery Gear
Check the solenoid click sound first–if absent, test voltage at the coil terminals. A fully charged battery should deliver 12.5V; readings below 10V indicate insufficient power or corroded connections. Clean terminals with a wire brush and apply dielectric grease to prevent oxidization.
If the motor engages but stalls, inspect the power contacts inside the solenoid. Pitted or burned spots require sanding with 400-grit emery paper–ensure full surface contact before reassembly. Verify the remote control’s resistance; a 4-6 ohm range confirms proper function.
Fuses blowing repeatedly suggest a short in the cable harness. Trace each wire methodically, focusing on stress points near the drum and frame mounts. Replace damaged sections with 4 AWG marine-grade wire to handle current spikes during load cycles.
When the unit operates intermittently, test the ground path. Secure a dedicated grounding point directly to the vehicle chassis–avoid shared grounds with other accessories. Use a multimeter to confirm less than 0.2V drop between the negative terminal and the mounting surface.
Proper Installation of the Drag-Control Handset Connections
Locate the accessory solenoid pack near the power unit’s motor–most models mount it directly on the gear housing or within a 12-inch radius. Use 10-gauge stranded copper cable rated for 50 amps continuous current to link the handset’s two primary lines (typically blue for “in” and brown for “out”) to the corresponding terminals marked “UP” and “DOWN” on the solenoid block. Verify polarity with a multimeter before affixing crimp connectors; reverse hookup will engage the wrong direction without warning. Secure each connection with a nylon-insert locknut torqued to 8-10 ft-lbs to prevent vibration-induced loosening during load cycles exceeding 4,500 kg.
Route the control cord along the frame rail or recovery plate, avoiding sharp edges or moving parts; fasten it every 12 cm with UV-stabilized zip ties rated for -40°C to +85°C. Terminate the handset end with a weatherproof plug connector compatible with IP67 standards, ensuring mating surfaces are coated with dielectric grease to block moisture ingress. Test functionality by cycling the puller at half capacity in short bursts before committing to full-load retrieval–erratic operation usually signifies poor grounding at the battery’s negative post or corrosion at the starter relay junction.
