Understanding Dashed Lines in Pneumatic Schematic Diagrams Explained

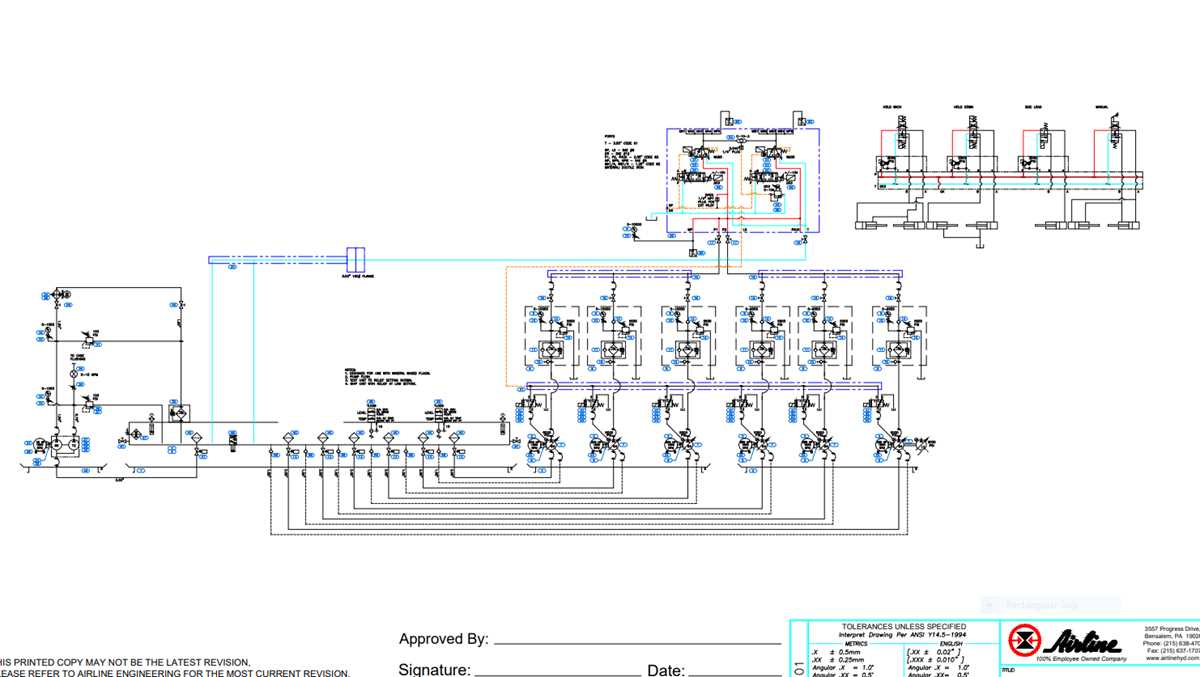

In air-operated circuit charts, a segmented or interrupted mark indicates a pilot signal path. These pathways carry control pressures that trigger valves, relays, or actuators without directly powering the main working components. Prioritize verifying pilot connections when diagnosing unexpected delays–faulty pilot transmission is a leading cause of erratic operation in multi-stage sequences.

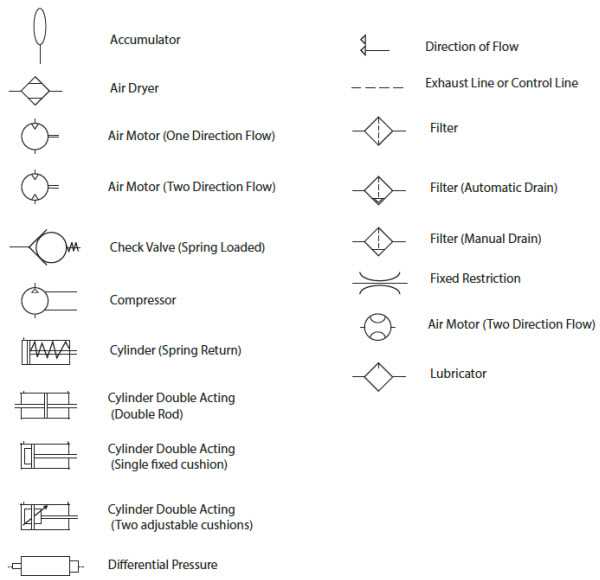

Standard ISO 1219-1 specifies the exact pattern: short dashes, evenly spaced, without dots. Any deviation suggests either an unconventional component (e.g., vacuum lines, electrical interfaces) or a drafting error. Cross-reference with manufacturer documentation to confirm intended function–misinterpreted pilot lines commonly lead to incorrect tubing installations.

Trace these paths upstream first. Pilot signals typically originate from a pressure regulator, directional control valve, or sequence valve. Look for pressure-reducing stations–these points often act as pilot signal sources. A missing or improperly adjusted station will prevent downstream activation completely, despite functional main lines.

Use color-coding according to ISO 11713: red for pilot feeds, black for working air. Physically highlight each segmented path with tape during installation to prevent accidental tube swaps. Even a single misrouted line can disable entire automated sequences, particularly in safety circuits with redundant interlocks.

For systems incorporating proportional valves, note that pilot intensities (depicted with varying dash lengths) correspond to control pressure thresholds. Calibrate sensors at ±2% tolerance–manufacturers often overlook this detail, resulting in inconsistent modulation despite correct physical connections.

Interpreting Broken Pathways in Air-Pressure Blueprint Charts

Broken pathways on air-pressure blueprint charts signal pilot controls or secondary pathways. These sequences often indicate auxiliary functions: safety releases, manual overrides, or low-priority feeds bypassed during normal operation. Verify these routes connect to components marked with dashed symbols–pressure regulators, relief valves, or isolation switches–since their role surfaces only under specific conditions. Omitting cross-checks risks overlooking silent failures in backup systems.

Critical Anomalies in Shorthand Notation

Sections depicted with intermittent gaps frequently hide intermittent faults. Focus on joints where segments align with solenoid-actuated valves or pressure sensors; these interfaces require soldering or threaded seals to prevent leaks. Factory defaults often treat these as non-critical, but rapid cycling under 8 bar pressure reveals stress fractures. Replace suspect connectors within two cycles to prevent cascading failures in multi-stage compressors.

Interpreting hidden segments demands cross-referencing with manufacturer specs. For instance, Festo’s ISO-standard pneumatic diagrams bury undervoltage paths in intermittent markings, while SMC’s proprietary notation encodes thermal bypass valves this way. Always map intermittent segments against operational flowcharts before assuming continuity; misreading them introduces phantom loads into system diagnostics.

Validation Protocols for Inferred Pathways

Trace each intermittent track back to its actuator using conductive ink or high-contrast tracing paper. Mark intersections where these paths converge with solid conductors–mistakes here corrupt feedback loops in proportional control valves. Use a multimeter in continuity mode to confirm electrical linkage; readings above 0.3 ohms signal corrosion or incomplete solder joints. Document findings in a versioned schematic to track drift over successive maintenance cycles.

Substitute copper braid for patch repairs on non-critical segments prone to flex fatigue. Maintain consistent diameters–transients arise when bypass paths introduce impedance spikes, especially under 120 psi loads. Prioritize segments intersecting with adjustable orifice valves; these configure fluidic multiplexing and directly impact operational stability in servo pneumatic actuators.

How to Decode Broken Pathways in Air-Powered Blueprints

Scan for intermittent strokes on air-driven flowcharts to spot control signals or pilot circuits–these paths trigger valves, actuators, or relays without carrying primary compressed air. Check valve symbols at each endpoint: a spring or solenoid icon confirms an indirect command route. Measure real-world pressures along these routes; expect values between 2–6 bar for pilot actuation, lower than main feed paths.

Key Patterns to Confirm Function

• Look for arrows or circles where the fragmented track meets a directional component–this marks an override or feedback loop.
• Trace broken strokes parallel to solid flow paths; these indicate redundant or fail-safe sequences.
• Identify dashed boundary boxes enclosing smaller symbols–these isolate subsystems like lubricators, dryers, or pressure regulators.

1. Verify each break point with a multimeter: pilot ports should show high resistance (>10kΩ) when inactive, dropping sharply on activation.
2. Cross-reference with ISO 1219-1 annexes; fragment variations often denote timed delays or pulse-width modulation.

How to Distinguish Control Signals from Power Flows Using Broken Symbols

Use short, evenly spaced dashes for command paths (typically 1–2 mm segments with 0.5–1 mm gaps) to separate low-pressure pilot valves from high-flow supply routes. Standard ISO 1219-2 mandates this pattern for pilot-stage regulators, solenoid inputs, or feedback loops operating below 1 bar, ensuring immediate visual decoupling from solid continuous traces used for main air feeds above 2 bar. Verify consistency: every control branch must originate from or terminate at a discrete actuator symbol, never intersecting a power channel without an isolation glyph at the junction.

Group insulated segments by function–limit cursory dots (≤0.3 mm) for sensor wires, double dashes with internal arrows (▸ ▸) for remote setpoint signals. ANSI/NFPA 99 restricts mixed patterns: reserve triple-dot chains exclusively for pneumatic logic gates, avoiding confusion with hydraulic circuits where identical symbols denote pressurized return flows. When consolidating legends, assign distinct line weights (0.25 pt for pilots, 0.7 pt for working air) to enforce hierarchy even in monochrome prints.

Encode urgency via pattern density: compact 3:1 dot-dash sequences emphasize shutdown interlocks, while sparse 1:2 ratios indicate advisory alarms. IEC 60617-5 extends this convention, stipulating unbroken short dashes for critical overrides (e.g., emergency stop circuits) intersecting continuous main pathways only via normally closed port symbols. Annotate polarity on split lines (e.g., +/−) to flag 4/20 mA signal pairs versus binary switch toggles–mislabeling risks conflating torque control with cycle enablement.

Field Validation Checklist

Trace every broken path to its origin valve: pilot lines must terminate at a solenoid coil, a pressure switch, or a directional controller’s sensing port–never at a compressor outlet. Cross-check against piping schedules: any dotted segment tracking full-bore tubing indicates incorrect assignment. Implement color layering (red = safety, blue = operational) in CAD templates to prevent misrouting during iterative revisions, adhering to ISO 3511-4 for layer naming conventions.

Practical Examples of Broken Patterns in Industrial Air-Powered Control Layouts

Use intermittent strokes to denote pilot signals in multi-actuator sequencing–this prevents false triggers from supply pressure fluctuations. In a bottling plant, a short-dash pattern connects a master valve to three slave cylinders: one for bottle clamp, one for filler nozzle, and one for cap torque head. The pattern’s segment length encodes activation priority: 3 mm dashes for clamp, 5 mm for filler, and 7 mm for capper. Adjust segment thickness to 0.8 mm (minimum ISO 1219) to ensure visibility after photocopying. Always terminate each pilot path with a quick-exhaust silencer (QE) mounted directly on the slave port; this eliminates signal lag and locks cycle times under 1.2 seconds per station.

Common Broken-Stroke Configurations in High-Cycle Machinery

Machinery Type	Stroke Type	Segment Length (mm)	Material Compatibility	Cycle Stability (±ms)
Automotive Brake Press	Dot-dash	4-6	Nylon 11/PA12	±18
Pharma Blister Packer	Long dash	8-10	Polyurethane/PU	±9
Tire Mold Loader	Short dash	2-3	Stainless steel 316L	±45

Convert broken-lane sequences into real-time diagnostics by adding pressure transducers at each segment junction. Fit a 0-10 bar analog transducer (accuracy ±0.2 % FS) after the first dash grouping; this spot checks pilot pressure before it reaches the slave. Log transducer outputs via a 4-20 mA loop to a PLC; map deviations against the segment length matrix above to locate leaks or partial blockages within 3 hose segments. Replace any hose showing >18 % pressure drop across a dash cluster immediately–this indicates internal delamination and predicts failure within 90 cycles. Use color-coded sleeves over each dash grouping: red for clamp, amber for filler, blue for capper, ensuring maintenance crews isolate faults without referencing drawings.

Troubleshooting Issues with Dotted Signal Paths in Air Pressure Systems

Check for inconsistent pressure drops along segmented control pathways first. Install pressure gauges at critical junctions–especially before and after quick-disconnect couplings–to isolate leaks or blockages. Record readings under both static (no flow) and dynamic (active signal) conditions. A variance exceeding 5% indicates faulty seals, misaligned fittings, or degraded tubing. Replace damaged segments immediately; temporary fixes with tape or sealant will fail within 48 hours under cyclic loads.

• Verify the integrity of dotted pathways connecting sequence valves by introducing a manual pulse signal. If a valve fails to actuate, the issue lies in either the pilot inlet port (clogged with debris) or the dotted channel itself (internal rupture). Disassemble the valve to inspect the internal dotted channel for residue buildup–clean using dry nitrogen or a dedicated solvent, never compressed air, to avoid introducing moisture.
• Compare recorded signal delays between dotted and solid paths in multi-stage circuits. A delay exceeding 0.3 seconds suggests partial obstruction or incorrect tubing diameter (use 6 mm OD for control signals, 4 mm OD only for instrumentation).
• Test dotted connections between actuators and logic elements with a oscilloscope for signal noise. Noise above 30 mV peak-to-peak indicates electromagnetic interference; reroute tubing at least 30 cm away from power cables or shield with grounded metal conduit.

Replace cracked or discolored tubing in dotted pathways–even if it still holds pressure–as thermal cycling causes invisible micro-fractures that lead to sudden failure. Use only polyurethane tubing rated for at least -20°C to +80°C; PVC becomes brittle at low temperatures and softens under heat. Always cut tubing with a precision knife at a 45° angle to prevent sealing surface deformation and ensure tubing extends at least 5 mm past the ferrule to create an airtight seal under pressure.
