Complete ABS Plug Wiring Diagram Guide for Vehicle System Repair

Begin by identifying the primary control module connector pins in your vehicle’s stability system–most manufacturers label these terminals numerically or alphabetically on the harness side. For European models (VW, BMW, Audi), pin assignments typically follow ISO 15622 standards: terminal 17 for ground, terminal 30 for battery-sourced power (always live), and terminal 15 for ignition-controlled supply. Japanese vehicles (Toyota, Honda) often reverse the ignition and battery power pins, placing switched power on terminal 1 and constant power on terminal 2. Validate these positions with a multimeter set to DC voltage (20V scale) before disconnecting any connectors to prevent false voltage readings from parasitic loads.

After confirming pin functions, trace the signal paths between the controller and wheel sensors–these usually employ twisted-pair wiring with a characteristic impedance of 100–120 ohms. Use a continuity tester to verify that resistance values fall within this range; deviations exceeding ±5 ohms indicate partial shorts or corroded contacts. High-impedance failures (above 150 ohms) typically stem from damaged shielding or stretched conductors, especially in areas subjected to vibration (wheel wells, suspension mounts). For repairs, replace damaged sections with 18 AWG shielded cable rated to ISO 6722 Class B specifications–avoid generic wiring that lacks EMI protection.

When integrating aftermarket diagnostic tools, match the protocol of the OEM module: CAN bus (500 kbps) dominates modern platforms, while older vehicles may use PWM (250 Hz) or frequency-modulated signals. Connect diagnostic leads directly to the module’s communication pins (usually CAN-H on terminal 6, CAN-L on terminal 14) without splicing into sensor wires–interference from inductive loads (fuel injectors, ignition coils) can corrupt signals. For vehicles equipped with dual-rate controllers (common in commercial trucks), note that the low-speed circuit (250 kbps) often shares the same controller but diverges at the data link connector, requiring separate calibration procedures.

Grounding remains the most overlooked failure point: attach all sensor and module grounds to a single chassis point with less than 0.5 ohms resistance, preferably near the battery tray or engine block. Avoid sandwiching grounds between painted surfaces–bare metal contact with star washers improves conductivity. For vehicles with aluminum chassis (Land Rover, Jaguar), use stainless steel M6 bolts coated with dielectric grease to prevent galvanic corrosion. If grounding issues persist, measure voltage drop between the battery negative and module ground (should not exceed 0.2V under load)–higher values indicate inadequate cross-sectional area in the ground strap or corrosion at the terminal.

Understanding Anti-Lock Brake System Connector Layouts

Start by identifying the pinout configuration on the vehicle’s control module. Most 4-channel setups use a standardized 6-pin harness, though some European models (e.g., Volkswagen, BMW) may include 8 or 10 pins for expanded sensor feedback. Verify the connector type–oval-shaped Deutsch connectors are common in heavy-duty applications, while smaller rectangular plugs appear in passenger cars. Check the service manual for exact pin assignments; misalignment can trigger false error codes (e.g., C1234 for wheel-speed sensor circuit faults).

Step-by-Step Connection Guide

• Pin 1 (Power): Typically delivers 12V from the battery, fused at 10A. Use a multimeter to confirm voltage before attaching.
• Pin 2 (Ground): Direct chassis ground; ensure corrosion-free contact. A faulty ground causes intermittent sensor readings.
• Pins 3-6 (Sensor Inputs): Each corresponds to a wheel hub’s speed signal. Twisted-pair wiring (standard in OEM designs) reduces electromagnetic interference–never substitute with parallel runs.
• Optional Pins: Some models include CAN bus lines (pins 7+), requiring a scan tool to verify communication protocol (e.g., ISO 15765-4 for GM, KWP2000 for VW).

For aftermarket installations, match the wire gauge to OEM specifications: 0.5 mm² for signal lines, 1.0 mm² for power. Resist the temptation to splice into existing circuits–use soldered connections with heat-shrink tubing to prevent moisture ingress. In vehicles with traction control, the module shares data with the ECU via a dedicated bus (e.g., Bosch 5.7 ABS sends wheel speeds at 500 kbps). Interrupting this link disables stability programs.

Common Failure Points

1. Corroded Terminals: Clean with contact cleaner; avoid abrasives that strip plating. A 0.2V voltage drop across the ground pin indicates poor conductivity.
2. Frayed Cables: Inspect near suspension components where flexing occurs. Replace damaged sections with automotive-grade cross-linked polyethylene (XLPE) wire.
3. Incorrect Polarity: Reversing power and ground fries the control unit (no recovery possible–requires full module replacement).
4. Signal Noise: If the speedometer behaves erratically, check for improperly shielded cables near high-current devices (e.g., alternator, ignition coils).

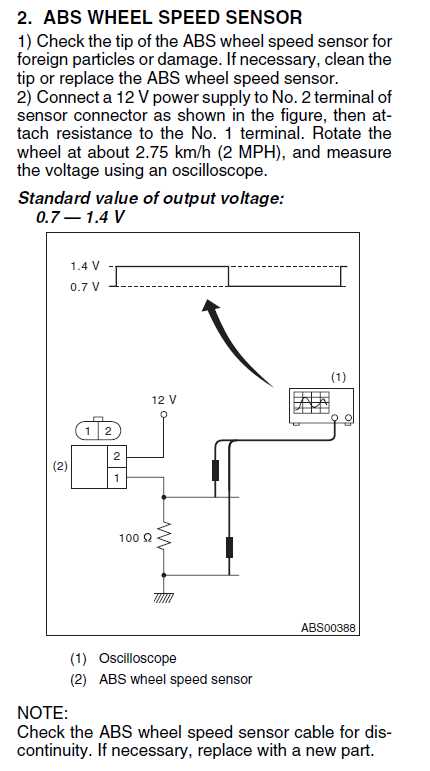

Test each circuit with an oscilloscope before reassembly. Wheel-speed sensors should produce a clean, sinusoidal wave (200-1500 Hz at highway speeds). Flatline readings suggest a dead sensor or open circuit; intermittent signals point to a break in the wiring loom. For pre-2010 models, some sensors use a reluctor ring with 45 teeth–verify tooth count to avoid false trigger thresholds set by the ECU.

Identifying the Correct Brake Control Module Interface Type

Begin by verifying the vehicle’s make, model, and year–manufacturers frequently alter connection standards between production cycles. Locate the primary system connector near the hydraulic unit; its shape and pin arrangement serve as the first diagnostic clue. Oval, rectangular, or trapezoidal housings often indicate distinct series, such as Bosch 5.3 versus Delphi DBC7.

Count the contact points–common variants include 2, 4, 6, 8, or 10 pins–then document their spatial arrangement. A staggered row often signifies a newer generation model, while a symmetrical layout suggests mid-2000s European sedans or light trucks. Use a caliper to measure pitch width: 2.54 mm for older circuits, 1.27 mm for high-density applications, and 2.00 mm for hybrid designs found in Aisin systems.

Inspect the latch mechanism: slide-lock, flip-tab, and push-button designs denote compatibility tiers. Slide-lock connectors resist vibration but require a flat-head tool for disengagement, reflecting heavy-duty applications. Push-button variants, conversely, allow rapid disassembly–common in compact models where space constraints demand quick servicing.

Key Material Differences

Housing Material	Temperature Threshold	Typical Vehicle Segments	Moisture Resistance Rating
Polyamide (PA66)	-40°C to +120°C	Passenger cars, crossovers	IP67
Polybutylene Terephthalate (PBT)	-55°C to +150°C	Commercial trucks, off-road	IP68/IP6K9K
Glass-Filled Nylon	-60°C to +180°C	Performance sedans, motorsport	IP69

Examine terminal plating–gold indicates long-term reliability for low-voltage signals, while tin suits high-current circuits where cost efficiency outweighs durability. Silver-plated contacts appear in specialty modules accommodating transient voltage spikes up to 60V, as found in electric powertrain systems.

Pin Configuration Validation

Cross-reference the terminal layout against proprietary reference cards issued annually by component suppliers–Bosch’s TSB#BR-2023-04 outlines variant E-12’s updated crimp geometry for MY2024 applications. If documentation is unavailable, trace the harness to the control module’s circuit board and verify solder pad markings; silkscreen legends typically include alphanumeric codes directly corresponding to connector specifications.

Apply a multimeter in continuity mode to confirm signal paths match OEM schematics–erratic readings often reveal corrosion or incompatible mating surfaces rather than intrinsic design flaws. For vehicles equipped with dynamic stability control, ensure the high-speed CAN bus pair remains undisturbed; polarity reversal during identification can trigger false DTCs in related systems.

Step-by-Step Brake System Connector Color Code Guide

Locate the vehicle’s central electronic control module near the wheel sensor harnesses. Identify the primary connector–typically a 4- to 6-pin terminal–by matching the cable shroud to the size of the adjacent harness clips. Smaller connectors often serve rear sensors, while larger ones handle front or integrated systems.

Color Sequencing by Pin Position

• Pin 1 (Yellow/Black stripe): Sensor excitation signal input. Verify continuity to the reluctor ring with a multimeter set to 200Ω. Readings above 2.5Ω indicate corrosion or fraying.
• Pin 2 (White/Blue stripe): Ground return. Connect the probe to bare chassis metal–voltage drop should not exceed 0.2V.
• Pin 3 (Brown/Red stripe): Signal output. Rotate the wheel hub by hand; expected AC voltage swing: 120–500mV peak-to-peak.
• Pin 4 (Black/White stripe): Secondary ground for ECU reference. Check for non-linear resistance drops at high RPM.

After verifying pin functions, trim any exposed conductor strands to 1mm length. Crimp new terminals with a ratcheting tool set to 18–20 AWG specifications. Heat-shrink sleeves rated for 125°C must overlap the insulation by at least 3mm to prevent water ingress.

Manufacturer-Specific Variations

1. Ford (Post-2010): Pin 5 may carry a purple/green stripe (CAN H). Probe for 2.5V nominal bus voltage.
2. Toyota (Pre-2015): Replace brown/red stripe with solid orange for ABS/traction dual-purpose signals. Confirm 0.75–1.2V DC offset at rest.
3. VW Group (MQB platform): Grey/violet stripe (Pin 6) carries brake pedal travel sensor input–test for 0–5V linear sweep when depressing pedal 10–100%.

Reassemble the connector housing only after observing a complete ignition cycle on a diagnostic scanner. Watch for trouble codes C0050–C0055 or U3003; these indicate incomplete mating or reversed polarity. Seal the back-shell with dielectric grease to prevent fretting corrosion.

For hybrid vehicles, additional shielding braid must be bonded to the chassis ground bolt within 30cm of the connector. Use a star washer under the M6 screw to ensure less than 0.1Ω resistance–No. 8 AWG copper wire is minimum gauge.
