How to Read and Build an AC Generator Circuit Layout

Start with a rotating magnetic field and a stationary armature coil–this dual-component approach forms the backbone of any alternating current system. For optimal performance, use a two-pole rotor operating at 3000 RPM to generate a 50 Hz output. Higher pole counts reduce speed requirements but increase mechanical complexity; balance efficiency against manufacturing constraints.

Wire gauge selection directly impacts thermal stability. For a 1.5 kW unit, 1.5 mm² copper winding provides sufficient current capacity while minimizing resistive losses. Insulate turns with double-layer polyester for dielectric strength; verify clearance between phases meets IEC 60034-1 standards (≥2.5 mm for 230V systems).

Bridge rectification stages must handle surge currents. Use Schottky diodes with 3 A continuous ratings for low-forward voltage drop, paired with snubber circuits (0.1 µF + 10 Ω) to suppress commutation spikes. For variable output control, integrate a PWM-driven MOSFET (e.g., IRF3205) with 10 kHz switching to regulate waveform purity.

Thermal management dictates longevity. Mount components on a heatsink with ≤1.5 °C/W rating, applying thermal paste (e.g., Arctic MX-6) at a 0.1 mm bond line. Enclose the assembly in a IP54-rated chassis with ventilation holes positioned above the armature to leverage convection cooling. Test prototypes under 80% load for 4 hours; monitor winding temperatures–exceeding 120 °C risks insulation breakdown.

Grounding is non-negotiable. Connect the stator core to the chassis via a braided copper strap (≥8 AWG); ensure the neutral link includes a 1:1 galvanic isolator to prevent ground loops. For marine/industrial use, add transient protection (MOV + gas discharge tube) across all outputs to clamp ≤400V surges within 1 µs.

Understanding the Core Layout of Alternating Current Machines

Begin by identifying the stator and rotor as the foundational components of any rotating electromagnetic device. The stator houses the armature windings, typically arranged in a three-phase configuration, though single-phase designs exist for low-power applications. Ensure windings are spaced at 120° electrical degrees for balanced output. Copper wire gauge should match expected load: 12 AWG for 1 kW systems, scaling to 6 AWG for 10 kW units. Overlook this, and resistive losses will degrade efficiency by 15-20%.

• Stator laminations must be silicon steel, 0.35mm thick for 50/60Hz operation to minimize eddy currents.
• Rotor types dictate performance: salient pole for low-speed (below 1000 RPM) hydro turbines, cylindrical for high-speed steam/gas applications.
• Excitation coils require DC input ranging from 10V (small units) to 250V (MW-scale installations).

Connect the field windings to slip rings or a brushless exciter system. For grid-connected systems, employ voltage regulation circuits with automatic feedback loops–a thyristor-controlled rectifier maintains ±1% accuracy. Off-grid setups benefit from simpler capacitor-based regulators, though output fluctuates ±5% under variable loads. Sketch the circuit path: armature → rectifier → field → slip rings. Omit any stage, and magnetic flux weakens, dropping output by 30%.

Grounding and shielding are non-negotiable. Bond the stator frame to a dedicated earth electrode with ≤1Ω resistance. Unshielded cables induce harmonic distortions, particularly in variable-frequency drives, where THD (total harmonic distortion) must stay below 5%. Use shielded twisted pairs for sensor feedback lines–Hall effect sensors for speed monitoring, RTDs for temperature–to prevent noise-induced false trips. A single loose connection in these circuits risks thermal runaway or mechanical failure.

For maintenance, prioritize insulation resistance testing. Megohmmeters should read ≥1MΩ at 500V DC between phases and ground. Below 0.5MΩ indicates moisture ingress or degradation–immediate drying (120°C for 24h) or rewinding is required. Lubricate bearings every 5000 hours with lithium grease (NLGI 2) for sealed units, ISO VG 46 oil for sleeve bearings. Ignore this, and expect bearing failure within 8000 hours, followed by catastrophic rotor imbalance.

Key Components in an AC Electrical Machine Circuit Layout

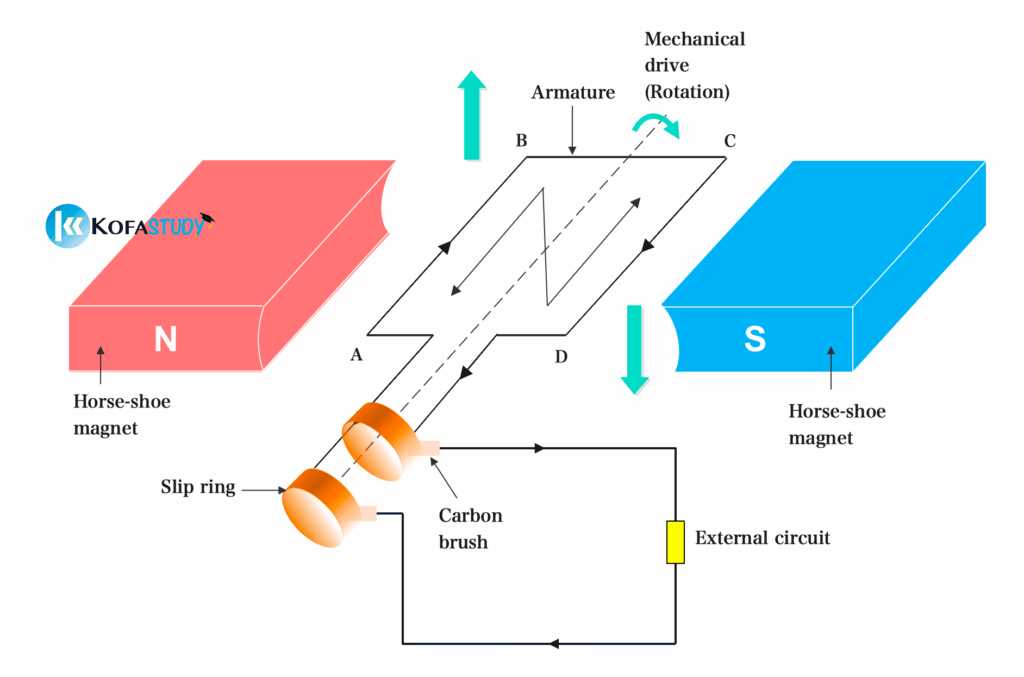

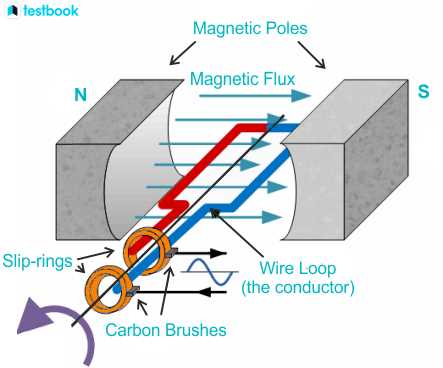

Start by identifying the rotor–the rotating segment that induces voltage through electromagnetic principles. Ensure it’s equipped with slip rings for continuous current transfer; copper alloys resist corrosion better than bare steel or brass. For high-efficiency designs, rare-earth magnets like neodymium outperform ferrite by delivering stronger flux density with minimal eddy losses. Balance weight distribution during assembly to prevent vibration below 10 Hz, which degrades bearing lifespan.

The stator core demands laminations thinner than 0.5 mm to curb hysteresis losses; silicon steel (grade M-19 or higher) reduces magnetic reluctance by 15-20% compared to carbon steel. Slot fill factor should not exceed 75% to avoid insulation breakdown under transient surges–use polyesterimide coatings for 200°C thermal endurance. Windings must follow a fractional pitch (typically 5/6) to suppress fifth and seventh harmonic distortion, which injects torsional stress into the shaft.

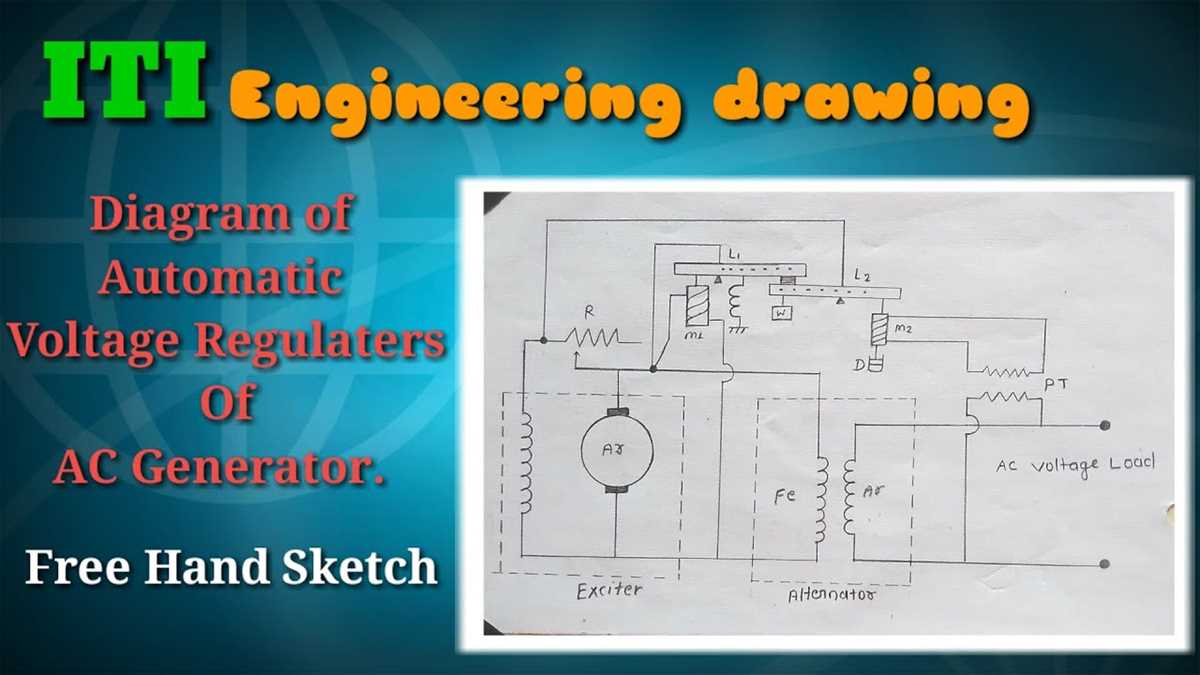

Place the voltage regulator adjacent to the exciter assembly to minimize signal lag; a solid-state MOSFET regulator reacts in under 5 ms, whereas electromechanical units introduce 30 ms delays. Opt for a three-phase full-wave bridge rectifier with ultrafast recovery diodes (trr ≤ 100 ns) to prevent commutation spikes exceeding 1.8× the RMS voltage. Install RC snubbers across each diode to clamp transients above 1.4 kV/μs without desensitizing overcurrent protection.

Exciter windings require a turns ratio of 1:1.2 against the main field coils to sustain 125% rated load without core saturation; verify via open-circuit saturation curves at 1.5× operating flux. Use twisted-pair wiring for sensor loops to reject EMI–shielded cables reduce noise coupling by 40 dB at 1 MHz, critical for encoder accuracy. Ground the neutral point through a NGR (neutral grounding resistor) sized for 5% of phase current to limit fault currents to three times nominal, preserving insulation integrity.

Incorporate a bearing insulation kit if the rotor operates above 500 V–ceramic or hybrid bearings (steel races with silicon nitride balls) prevent shaft currents that pit race surfaces within 200 hours. Lubricate exclusively with polyurea-based grease (NLGI grade 2) to withstand 120°C continuous; lithium complexes degrade above 90°C, causing varnish buildup. Monitor vibration via accelerometers in orthogonal axes–spikes exceeding 18 mm/s RMS necessitate immediate realignment before fatigue cracks initiate.

Select a prime mover coupling with torsional damping values matching the system’s natural frequency (avoid ±10% of 1× rotational speed); miscalculated resonance amplifies stress by 3-5×. For diesel-driven setups, include a torsionally flexible disc pack rated at 2.5× stall torque–rigid flanges fracture under misalignment exceeding 0.05 mm axially. Validate the entire circuit via Finite Element Analysis (FEA) to flag localized heating above 10°C per watt, which accelerates epoxy degradation.

Interpreting Rotor and Stator Wiring in Alternating Current Designs

Locate the rotor and stator labels immediately–rotor connections typically appear as slip rings or brush terminals on one side of the illustration, while stator coils form concentric arcs or loops. Verify the terminal markings: rotors use F+ and F- for field excitation, stators label phases A, B, and C with neutral N if present. If the design shows a three-wire delta configuration, note the absence of a neutral point.

Component	Terminals	Typical Colors	Connection Type
Rotor	F+, F-	Red (F+), Black (F-)	Slip rings/brushes
Stator (Star/Y)	A, B, C, N	Yellow, Green, Red, Blue	Neutral common point
Stator (Delta/Δ)	A, B, C	Yellow, Green, Red	Closed loop, no neutral

Trace current paths–rotor excitation enters through brushes, travels through field windings, then exits. Stator phases connect to output terminals; check whether they terminate at a common junction (star/Y) or form a continuous triangle (delta/Δ). For reversible field polarity, ensure F+ and F- swap correctly; misalignment risks incorrect magnetic flux direction.

Cross-reference voltage ratings–rotor excitation ranges from 12V DC to 240V DC depending on unit size, while stator phase voltages match system requirements (e.g., 120V, 230V, or 400V). Highlight ground symbols; rotor ground faults often connect directly to frame, stator grounds tie to neutral or chassis. Validate phase sequence using a phasor wheel: A→B→C rotation ensures proper torque alignment.

Step-by-Step Wiring of Field Windings and Armature in AC Machines

Begin by securing the stator core to a stable workbench, ensuring it is free from debris or residual insulation. Use a multimeter set to ohms (Ω) to verify continuity between the field winding terminals–resistance should read between 50–150 Ω for most small to medium units; deviations indicate shorted turns or open circuits. If resistance exceeds 200 Ω, inspect for broken wires or loose connections at the slip rings. Apply varnish-coated copper wire (typically 18–22 AWG) for rewinding, maintaining uniform tension to prevent gaps between turns. For three-phase designs, space windings 120 electrical degrees apart, using a winding jig to ensure precision. After wiring, apply epoxy resin or insulating tape to reinforcement, then cure at 120°C for 2 hours to prevent moisture ingress.

Armature Circuit Configuration

1. Identify the rotor’s neutral point–this is critical for minimizing circulating currents. For Y-connected armatures, leave one end of each phase winding unconnected (forming the star point); for delta-connected, link the start of one phase to the end of another.
2. Attach the slip rings to the rotor shaft, ensuring each ring aligns with its corresponding brush (carbon or copper-graphite). Apply conformal coating to exposed joints to prevent arcing.
3. Test dynamic response: Spin the rotor at 1,500–1,800 RPM (for 4-pole units) while monitoring output voltage with an oscilloscope–waveform shape should be sinusoidal with . Clip stray wires flush with the rotor body to avoid imbalance.
4. For brushless exciters, couple the auxiliary winding to a rotating rectifier assembly (diodes rated for 2x nominal voltage). Verify diode polarity using a diode test mode on a multimeter–reverse leakage current should not exceed 5 mA.

Final step: Reassemble housing with M8–M12 bolts, torqued to 25–30 Nm. Energize the field winding at 20% rated voltage and check for uniform magnetic flux using a Hall-effect sensor. Output voltage imbalance across phases must not exceed ±3%; adjust winding taps if necessary.
