Step-by-Step AC to DC Converter Circuit Design and Explanation

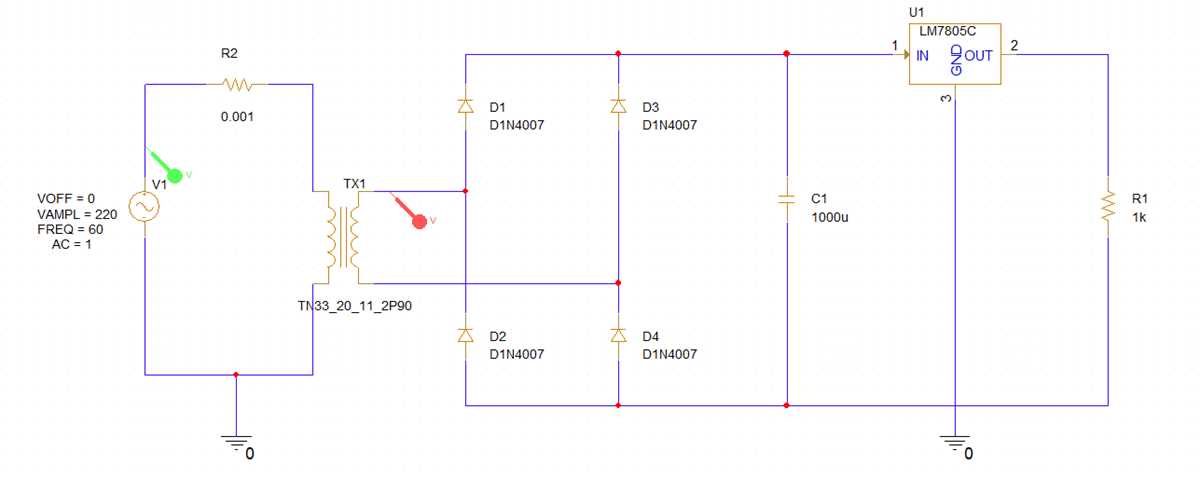

Begin with a bridge rectifier using four 1N4007 diodes for general-purpose applications or Schottky diodes like 1N5822 for low-voltage, high-efficiency setups. The rectifier’s output ripple should not exceed 1.2V peak-to-peak at full load; calibrate the filter capacitor based on the formula C = I_load / (2 × f × V_ripple), where f is the mains frequency (50/60Hz) and I_load is the maximum current draw. For a 1A load, a 2200µF capacitor keeps ripple under 5%.

Avoid linear regulators like the 7805 for loads above 500mA–they dissipate excessive heat, reducing efficiency below 40%. Replace with a switching regulator (e.g., LM2596) operating at 52kHz or higher, paired with an inductor rated for 1.5× the peak current. Add a catch diode (1N5822) to prevent voltage spikes during switch-off cycles. Input capacitance must be ≥47µF to stabilize transient response.

For galvanic isolation, integrate a flyback transformer with a turns ratio calculated as N = V_out / (V_in_min × D), where D is the duty cycle (typically 0.4–0.6). Use an optocoupler (e.g., PC817) to isolate feedback, ensuring compliance with IEC 60950 for safety standards. Test for leakage current–it should not exceed 0.75mA at 230VAC. Mount cooling for the MOSFET (e.g., IRFZ44N) with a thermal resistance ≤1.5°C/W.

Include surge protection: a varistor (14D471K) clamps voltage spikes above 470V, while a thermistor (NTC 5D-11) limits inrush current to 20A max during startup. Place a 100nF polyester capacitor across the output to suppress high-frequency noise, critical for sensitive loads like microcontrollers. Verify load regulation at ±2% and line regulation at ±1%–deviations signal insufficient feedback compensation.

Key Components of an AC-DC Conversion Circuit

Begin with a bridge rectifier (e.g., DB107 or KBPC3510) to convert alternating current to pulsating direct current. Ensure the diodes handle at least 1.5× the expected peak voltage–1N4007 suffices for most 230V applications, while 1N5408 suits higher loads. Add a smoothing capacitor (470µF to 2200µF, 400V) immediately after the rectifier to reduce ripple; larger values improve stability but increase inrush risks. For precision, pair with a bleeder resistor (10kΩ–100kΩ, 1W) to discharge stored energy safely when the device is off.

Integrate a voltage regulator (LM78XX series) for fixed outputs: LM7805 (5V), LM7812 (12V), or LM7824 (24V). Input capacitors (0.33µF) and output capacitors (0.1µF) stabilize the regulator, minimizing noise. For variable outputs, replace with an LM317; adjust via a 240Ω resistor and 5kΩ potentiometer. Calculate heat dissipation: a 12V regulator dropping 10V at 1A requires a heatsink rated below 10°C/W to stay under 125°C (junction temp).

For high-current loads (5A+), substitute linear regulators with a switch-mode module (e.g., LM2596). These achieve 80–90% efficiency vs. 40–60% for linear types, critical for reducing thermal waste. Input EMI filters (e.g., common-mode chokes) prevent interference from coupling back into the AC line, especially in sensitive applications like medical devices. Always fuse the input–fast-blow for semiconductor protection (e.g., 2A for a 15W converter), slow-blow for inductive loads.

Test with an oscilloscope: ripple below 50mVpp at full load confirms proper design. For adjustable circuits, isolate the feedback path from high-voltage sections; use optocouplers (PC817) if galvanic isolation is needed. PCB traces carrying >500mA should be ≥2mm wide; star-grounding prevents ground loops. Document test points for input voltage, output voltage, and current–label them clearly to simplify troubleshooting during prototyping or field repairs.

Key Components of an AC to DC Conversion Circuit

The transformer regulates input voltage to a safe level for rectification. Select a unit with a turns ratio matching your output needs–e.g., 230V AC to 12V AC requires a 19:1 step-down transformer. Core material impacts efficiency: toroidal cores minimize leakage flux better than E-I laminations, reducing noise by up to 30%. Ensure the VA rating exceeds your load by 20% to prevent saturation under transient spikes.

Bridge rectifiers convert AC to pulsating DC more efficiently than half-wave rectifiers, doubling the usable output frequency. Use Schottky diodes for low-voltage applications (below 5V) due to their 0.2V forward drop, saving 0.5W per ampere versus standard silicon diodes. For high-current designs (above 3A), parallel diodes with matched characteristics to distribute heat; derate current capacity by 15% for reliability.

Smoothing capacitors flatten voltage ripples but require precise sizing. Calculate capacitance using C = I_load / (2 × f × V_ripple), where f is the rectified frequency (100Hz for full-wave at 50Hz input). Electrolytic capacitors tolerate high values but degrade under heat; pair with a ceramic 0.1µF bypass capacitor near the load to suppress high-frequency noise. Overvoltage protection (e.g., a varistor rated at 1.5× nominal voltage) prevents catastrophic failure.

Voltage regulators stabilize output, with linear types (e.g., LM7805) excelling in low-noise applications despite lower efficiency. For adjustable outputs, LM317 allows setting voltages via two resistors: V_out = 1.25 × (1 + R2/R1). Switching regulators (e.g., LM2596) achieve 90% efficiency but require careful PCB layout to avoid EMI; keep input/output traces short and wide, with a ground plane beneath the feedback loop.

Fuses and thermal protection safeguard the circuit. Use a slow-blow fuse sized at 1.5× maximum input current to handle inrush surges. Add a PTC resettable fuse for reversible overcurrent protection. For ICs, ensure adequate heatsinking–thermal resistance of TO-220 packages drops from 65°C/W to 5°C/W with a 5g heatsink. Thermal paste enhances conductivity; reapply every 2 years as it dries out.

PCB layout critically affects performance. Separate high-current and sensitive traces to prevent coupling; use star grounding for analog sections. Trace width for 1A current should be at least 25mm (1oz copper) to limit voltage drop. Place decoupling capacitors within 2mm of IC pins to filter noise. For high-frequency switching, minimize loop areas in power paths to reduce radiated emissions.

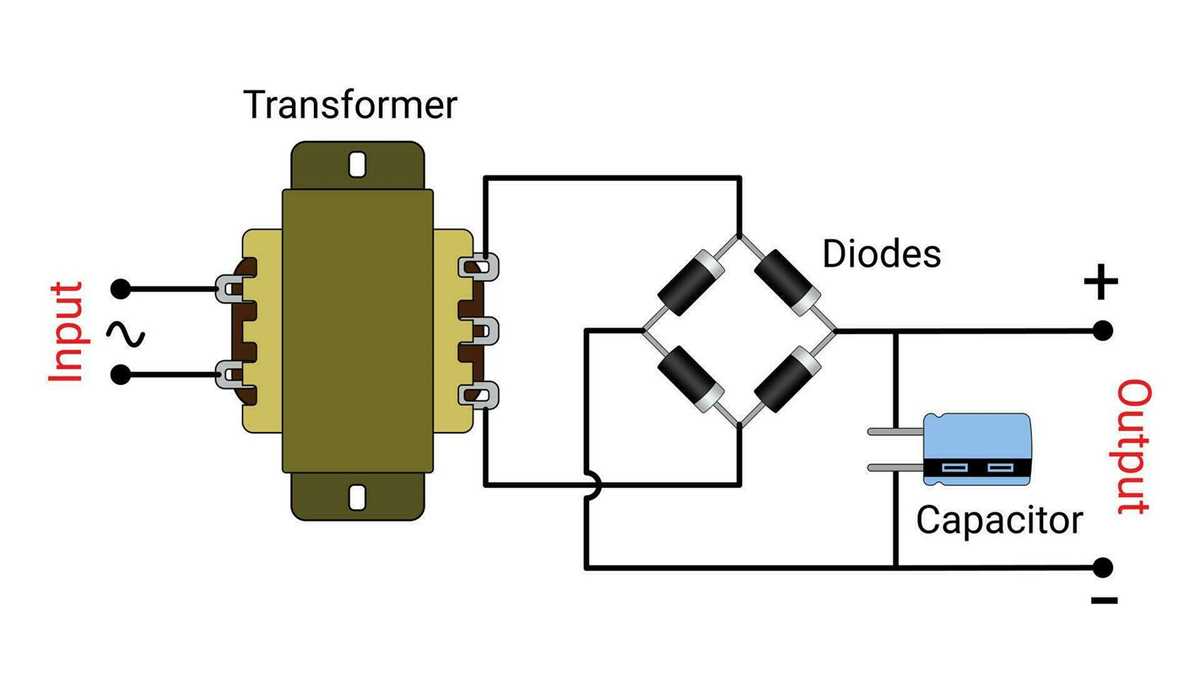

Step-by-Step Wiring of a Transformer-Based Rectifier

Begin by securing a 230V-to-12V step-down magnetic core rated for at least 1.5 times the expected load current. Connect the primary side (high-voltage windings) directly to the mains terminals, ensuring correct phase and neutral alignment–reversing these may damage components. Use stranded copper wire (16-18 AWG) for primary connections to handle thermal expansion; solder joints must be wrapped in heat-shrink tubing or insulating tape rated for 600V. Verify input polarity with a multimeter before energizing, as mistakes here will bypass safety mechanisms.

Bridge Assembly and Smoothing Circuit

Mount a full-wave bridge network (e.g., KBPC3510) on a perforated board or heat sink, spacing diodes at least 5mm apart to prevent thermal coupling. For low-ripple output, pair the bridge with a 2200μF electrolytic capacitor (voltage rating ≥ 25V) wired in parallel; incorrect polarity here causes catastrophic failure within milliseconds. Test impedance across the capacitor’s terminals before attaching the load–ideal readings should mirror the transformer’s secondary voltage (e.g., ~16VAC drops to ~12VDC after rectification). Add a bleeder resistor (1kΩ, 0.5W) across the capacitor to discharge stored energy when idle, reducing shock hazards.

Terminate the output with binding posts or screw terminals rated for 20A; use nickel-plated connectors to minimize corrosion. For adjustable outputs, integrate a linear regulator (LM317) with a 500Ω potentiometer–set the reference voltage manually by measuring between the regulator’s output and adjust pins. Validate the entire assembly under load with an oscilloscope: target

How to Select the Right Diode for Full-Wave Rectification

Pick a diode with a reverse voltage rating at least 1.5 times the peak AC input voltage. For a 230V RMS input (≈325V peak), a 400V or 600V diode like the 1N4007 or 1N5408 ensures reliability under transient spikes. Fast recovery diodes (e.g., UF4007) are unnecessary for 50/60Hz applications but critical for switched-mode converters above 1kHz.

Calculate the average forward current using Iavg = 0.62 × Iload. A 1A load requires a diode handling at least 0.62A, but oversize to 1.5A for headroom. For high-current loads (e.g., 10A), use Schottky diodes (e.g., SB560) for lower forward voltage drop (0.4V vs. 0.7V for silicon), reducing heat dissipation. Consult the diode’s datasheet for derating curves–ambient temperature above 50°C demands larger margins.

Diode Type	Typical VF (V)	Max IF (A)	Reverse Recovery Time	Best For
1N4007	1.1	1.0	30µs	Linear 50/60Hz
UF4007	1.3	1.0	50ns	HF switching
SB560	0.6	5.0	None	Low-voltage, high-current
MUR460	1.2	4.0	35ns	Fast transients

Match the diode’s package to thermal requirements. TO-220 diodes (e.g., BY229) handle 3A continuous but need heatsinks above 1A. Surface-mount SOD-123 diodes (e.g., BAT54) suit low-current circuits but lack thermal mass for >200mA. For compact designs, bridge rectifiers (e.g., KBPC3510) integrate four diodes in one package, simplifying layout but increasing forward drop to 1.8V.

Prioritize reverse leakage current for sensitive applications. Standard silicon diodes leak 5–50µA at rated voltage, while Schottky diodes may leak 1mA, impacting idle current in battery-fed designs. For precision circuits, use ultra-low-leakage diodes like the LL4148 (

Verify surge current ratings. A 1A diode might tolerate 30A for 8.3ms but fail at 40A. For motor-driven circuits, use diodes rated for 10× the steady current or add a transient voltage suppressor (TVS) in parallel. For inductive loads, the diode must clamp voltage spikes within its reverse rating–typically 1.5× the DC link voltage–to prevent avalanche failure.

Test diodes under real-world conditions. A diode rated for 1A may derate to 0.7A at 70°C ambient. Use a thermal camera to confirm junction temperatures stay below 125°C (or 150°C for Schottky). For extreme environments, ceramic-packaged diodes (e.g., C3D02060A) withstand 200°C but cost 10× more than plastic alternatives. Always prototype with the final load to detect overheating or voltage sag.
