Designing an Accelerometer Sensor Circuit Guide with Schematics

Start with a low-noise operational amplifier like the AD8605 or OPA333 for signal conditioning. These components handle micro-gravity shifts with minimal drift–critical for precise tilt or vibration readings. Connect the MEMS output directly to the op-amp’s non-inverting input, ensuring a 10 kΩ feedback resistor and a 100 nF capacitor for stability. Filter cutoff should target 10 Hz to suppress high-frequency noise while retaining dynamic response.

Power the module with a regulated 3.3V supply–avoid unfiltered sources. Decouple the MEMS element and op-amp with 0.1 µF ceramic capacitors placed within 2 mm of each component’s power pins. For differential outputs, use a balanced resistor divider to set the reference voltage at VCC/2. This ensures symmetrical swing and prevents clipping during sudden acceleration spikes.

Route traces on a two-layer PCB with a dedicated ground plane beneath sensitive sections. Keep analog traces short and avoid parallel runs near high-speed signals. For I²C/SPI interfaces, match trace lengths to ±2 mm and terminate with 4.7 kΩ pull-up resistors on SDA/SCL lines. Test continuity with a multimeter before applying power to catch cold solder joints or broken traces.

Calibrate the module by mounting it on a vibration isolation table and logging output at rest (1g). Apply known forces (e.g., 0.5g, 1g) using a centripetal rig or calibrated shake table–expect ±2% deviation for consumer-grade units. Store offset values in EEPROM to correct real-time readings. Avoid placing the module near motors or switching converters; even small stray fields distort measurements.

For battery-operated designs, disable unused op-amp channels and switch the MEMS element to low-power mode (≤100 µA) during idle periods. Wake-on-motion interrupts can be triggered at 30 mg thresholds–tune this via configuration registers. Log raw data to an SD card at 100 Hz for post-processing; sampling rates above 1 kHz introduce aliasing without additional filters.

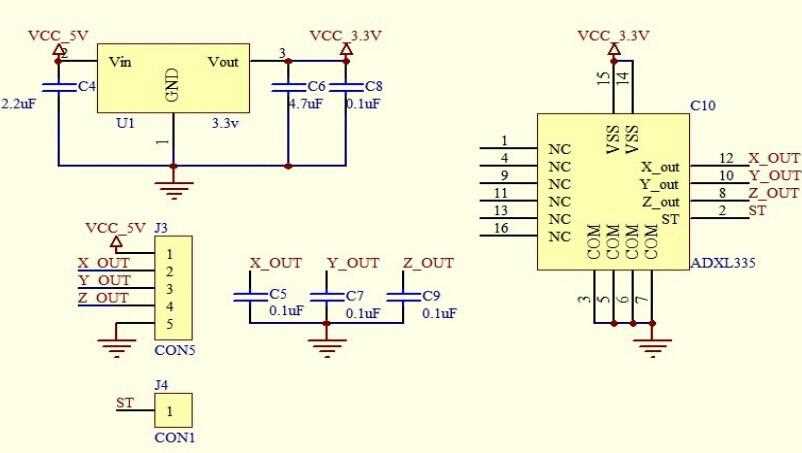

Building a Motion Detection Module: Key Electrical Schematics

Use a MEMS-based inertial measurement unit with a 3-axis configuration like the ADXL345 or MPU6050 for reliable dynamic response. Connect the VCC pin to a stable 3.3V source, ensuring noise filtering via a 0.1µF decoupling capacitor between power and ground, placed within 5mm of the component. The I2C interface requires pull-up resistors (4.7kΩ) on SDA and SCL lines to maintain signal integrity, especially for traces exceeding 10cm. For SPI, omit pull-ups and configure mode 0 or 3, setting the CS pin low before data transmission. Ground the GND pin directly to the main ground plane to prevent voltage offsets due to parasitic inductance–avoid shared return paths for analog and digital signals. Add a 1kΩ series resistor on the interrupt output to limit current during transient events, protecting downstream logic.

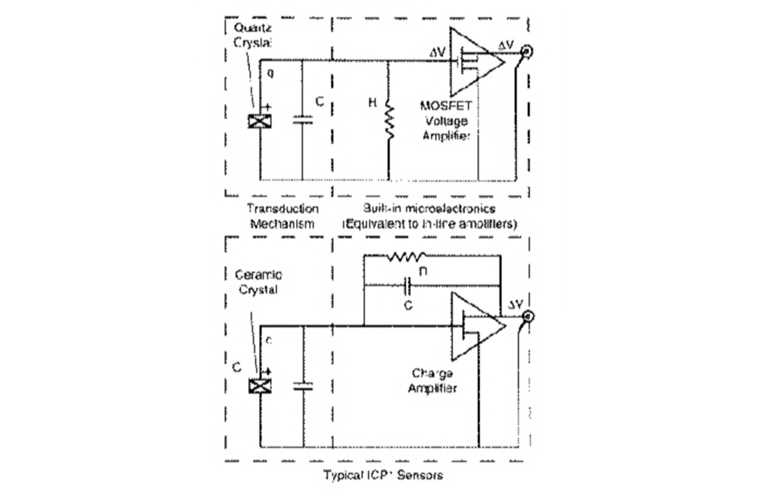

Signal Conditioning and Output Handling

Filter raw analog outputs with a low-pass RC network (10kΩ resistor + 1µF capacitor) to attenuate high-frequency noise above 50Hz, critical for human motion tracking. Scale voltage outputs using a precision op-amp (e.g., MCP6002) with a gain of 2 for 1g full-scale sensitivity, calibrating offset via a 100kΩ trimpot connected to the inverting input. For digital interfaces, configure the FIFO buffer to store 32 samples before triggering an interrupt, reducing processor load. Test cross-axis sensitivity by mounting the module on a controlled vibration table at 50Hz, ensuring readings deviate less than 0.5% between axes. Document trace lengths–keep differential pairs under 15cm for I2C to prevent skew errors.

Key Components for a Motion Measurement Setup

Select a MEMS-based transducer with a three-axis output to capture dynamic forces in millimeters per second squared. Opt for models with a 10-bit or higher ADC resolution to maintain signal fidelity below 300 Hz. Ensure the chosen chip includes embedded temperature compensation to prevent drift beyond ±0.2 m/s² across typical operating ranges (−40 °C to +85 °C). A supply voltage between 1.8 V and 3.6 V reduces power draw while preserving native sampling rates up to 1.6 kHz.

Part Type	Example Model	Critical Spec	Typical Footprint
Data converter	ADXL345	13-bit, ±16 g range	LGA-14, 3 × 5 mm
Low-pass filter	RC pair (R=10 kΩ, C=10 nF)	−3 dB @ 1.6 kHz	0603 discrete
Microcontroller	STM32L433	SPI/I2C slave mode, 80 MHz	UFQFPN-48, 7 × 7 mm
Decoupling capacitor	X7R 0.1 µF	±15 % tolerance	0402

An anti-aliasing filter immediately downstream of each axis output is non-negotiable; configure the corner frequency at least five times above your target bandwidth to meet Nyquist criteria. Route traces wider than 0.2 mm and keep the sensitive lines shorter than 2 cm to minimize parasitic inductance and capacitive coupling. Verify the absence of ground loops by star-connecting the analog reference directly to the transducer’s ground pad rather than sharing return paths with digital logic.

Step-by-Step Wiring Guide for a Basic Motion Detection Module

Begin by powering the module with a stable 3.3V or 5V supply, depending on the component’s specifications–check the datasheet for voltage tolerance. Connect the positive lead to the VCC pin and ground to the GND pin, ensuring no loose connections to prevent signal noise.

Identify the module’s output pins–typically labeled X, Y, and Z for spatial axes. Wire each axis to an analog input on your microcontroller (e.g., Arduino A0, A1, A2). Use shielded cables for longer runs to minimize interference from electromagnetic sources like motors or power lines.

For digital modules, locate the interrupt pins (e.g., INT1, INT2). These provide threshold-based triggers–connect them to digital inputs if your project requires event detection (e.g., free-fall, tap). Configure the module’s registers first to enable the desired functionality before wiring.

Add a 0.1μF decoupling capacitor between VCC and GND, placed as close to the module as possible. This stabilizes voltage fluctuations during rapid movement readings. For high-precision applications, include an additional 10μF bulk capacitor to handle current spikes.

Calibration and Testing

Upload a basic reading sketch to confirm raw data output. If values drift excessively, perform a self-test by placing the module on a flat surface and measuring offsets. Adjust the microcontroller code to subtract these offsets for accurate baseline readings.

For modules with sleep/wake modes (e.g., low-power consumption), connect the CS pin to an output pin on the microcontroller. Toggle it high/low to switch between active and standby states. This extends battery life in portable projects.

If integrating with wireless transmitters (e.g., Bluetooth, LoRa), add a voltage regulator to handle varying load demands. Monitor current draw–peaks above 200mA may require a dedicated power source rather than USB or coin-cell batteries.

Finalize connections by securing wires with heat shrink or hot glue, especially in high-vibration environments. Test the setup across expected operational ranges (e.g., 0–2g for tilt detection, ±8g for impact monitoring) and refine the firmware to filter anomalies like sudden spikes.

Selecting the Right Power Supply for Motion Measurement Components

Choose a low-dropout regulator (LDO) with an output voltage matching the component’s specified range–typically 1.8V to 3.6V–while ensuring ripple does not exceed 10 mV_pp at full load. For battery-powered devices, prioritize LDOs with quiescent current below 5 μA and input voltages compatible with lithium coin cells (e.g., 2.7V–4.2V). If the system draws intermittent pulses (e.g., wake-up events), add a 10–100 μF bypass capacitor close to the load to prevent voltage sag during transient spikes.

• For noise-sensitive applications: Pair the LDO with a π-filter (series 1 Ω resistor + 2 × 22 μF capacitors) to suppress high-frequency interference from switching power stages upstream.
• In high-temperature environments (>85°C): Verify the LDO’s thermal shutdown and adjust PCB copper pours to dissipate ≥0.5 W without derating.
• For precision measurements: Use a dual-rail supply (±2.5V) if the MEMS device requires symmetric excitation, ensuring the negative rail is generated via an inverting charge pump with

Interfacing Motion Detection Modules with Microcontrollers: Practical Examples

Connect an ADXL345 inertial measurement unit to an Arduino Uno via I²C for minimal wiring–use pins A4 (SDA) and A5 (SCL). Power the module with 3.3V to avoid damaging its logic, even though it tolerates 5V for communication. Use the Wire.h library for data transfer and Adafruit_ADXL345.h for pre-configured sampling rates up to 3200 Hz. For reliable readings, add 4.7 kΩ pull-up resistors on both I²C lines if bus capacitance exceeds 200 pF. Example code snippet to extract raw X/Y/Z values:

void setup() Serial.begin(9600); if (!accel.begin()) { Serial.println(“Error: Module not detected”); while(1); } accel.setRange(ADXL345_RANGE_16_G); } void loop() { sensors_event_t event; accel.getEvent(&event); Serial.print(“X: “); Serial.print(event.acceleration.x); Serial.print(” m/s²

Raspberry Pi Integration

For a Raspberry Pi 4, use Python’s smbus2 library to interface with the same ADXL345 over I²C–enable the interface via sudo raspi-config before connecting. The Pi’s 3.3V pin powers the module directly, avoiding logic-level mismatches. Install dependencies first: sudo apt-get install python3-dev python3-smbus i2c-tools. Sample script reads values every 50 ms and converts them to tilt angles using math.atan2():

import smbus2, math, time

bus = smbus2.SMBus(1)

addr = 0x53

bus.write_byte_data(addr, 0x2D, 0x08)

while True:

data = bus.read_i2c_block_data(addr, 0x32, 6)

x = (data[1]

y = (data[3]

z = (data[5]

roll = math.degrees(math.atan2(y, z))

pitch = math.degrees(math.atan2(-x, math.sqrt(y*y + z*z)))

print(f”Roll: roll:.2f}° °”)

time.sleep(0.05)
