Official Acura Parts Diagrams for Repair and Maintenance Guide

Start with the official service manuals from the manufacturer. These documents provide precise wiring layouts, connector pinouts, and assembly breakdowns for every model year. Avoid third-party “universal” diagrams–errors in voltage ratings, sensor placements, or grounding points often lead to misdiagnosed issues or component damage. For 2005–2012 TL models, focus on the PDC (Power Distribution Center) reference located under the driver-side dashboard; later NSX variants relocate this to the rear fuse box.

Use OEM-part numbering to cross-reference schematics. A 3.2L V6 engine harness, for example, may label its main relay as 31510-PWC-A01, but an aftermarket equivalent could mislabel it RLY-5V, causing incorrect power routing. Confirm compatibility by matching not just the part number but also the connector type (e.g., 12-pin female vs. 14-pin male) and wire gauge (18 AWG for signal, 14 AWG for power).

Isolate circuits by color-coding before repairs. Critical paths–like the VSA (Vehicle Stability Assist) module–use a distinct striped yellow/green wire for CAN-H and solid yellow for CAN-L. Miswiring here triggers a C1241 code, disabling traction control. For hybrid RDX systems, note the orange high-voltage cables; bypassing insulation resistance checks risks electrical shock or inverter failure.

Prioritize schematics with annotated voltage drop values. A fuel pump relay circuit, for instance, should show 0.2V maximum loss across the harness. Exceeding this indicates corrosion or undersized wiring, common in aftermarket alarms spliced into the door lock relay. Use a clamp meter to verify current flows match the diagram’s specifications–deviations point to hidden shorts.

Download technical service bulletins (TSBs) alongside schematics. A 2009 MDX, for example, may require a revised ABS sensor wiring diagram due to a known fraying issue near the rear trailing arm. Ignoring these updates can lead to repeated sensor failures, misinterpreted as rotor or hub wear. Always check for superseded diagrams–later revisions often correct labeling errors in earlier versions.

Finding Official Technical Illustrations for Your Vehicle: A Step-by-Step Approach

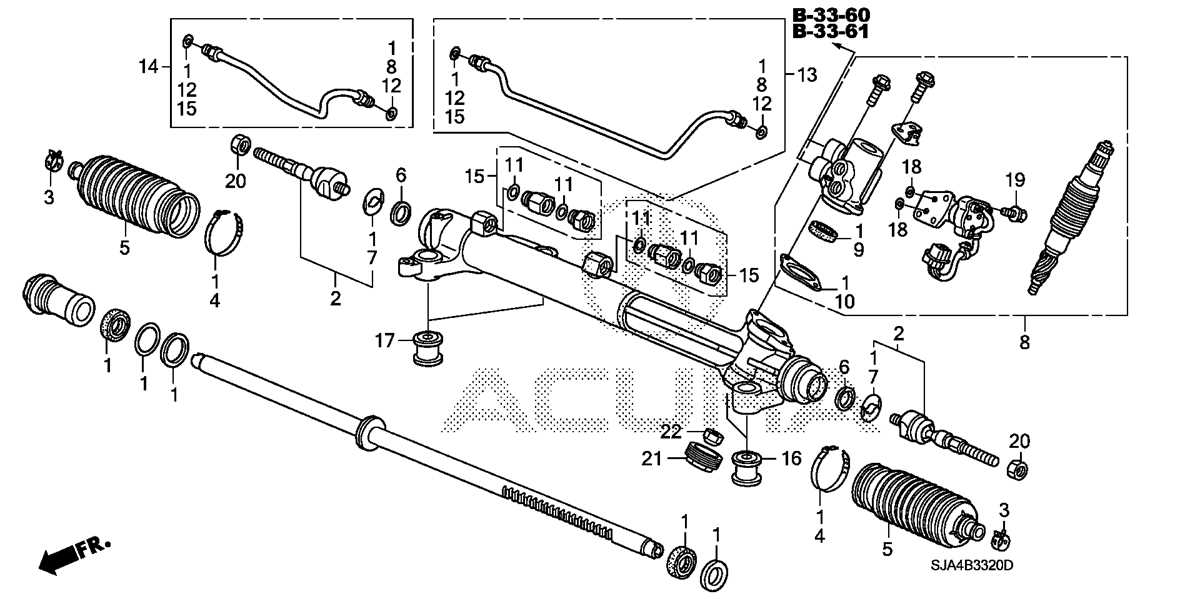

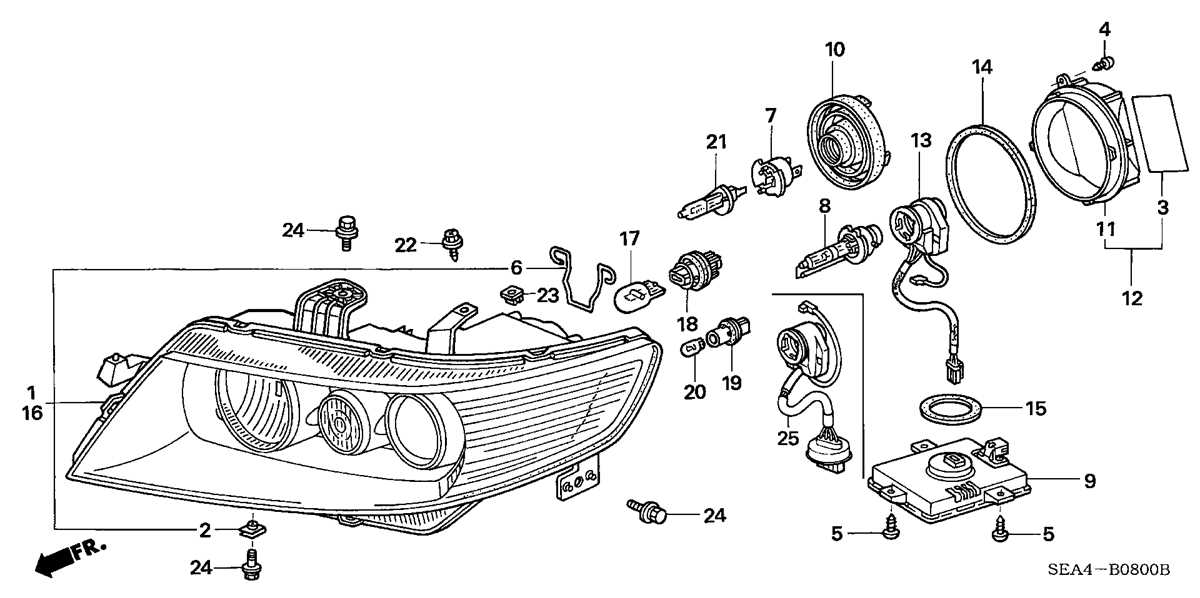

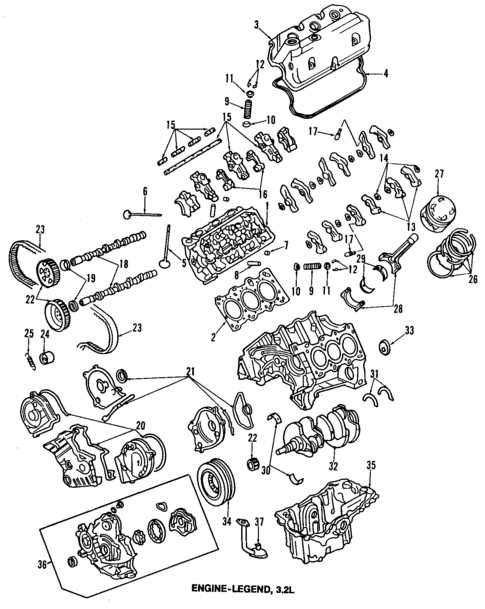

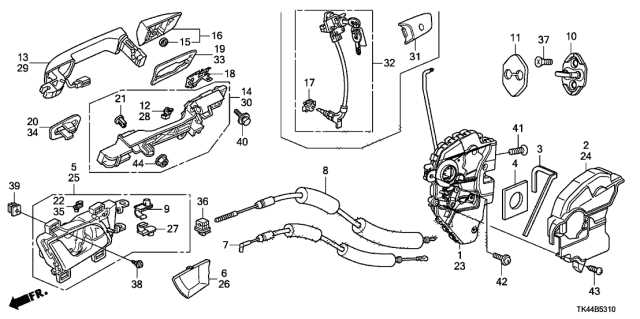

Locate the exact component breakdown by accessing the manufacturer’s authorized service portal. Enter the VIN or model-year trim code to pull up the correct exploded views. These documents often include torque specifications, part numbers, and replacement intervals–details omitted in generic aftermarket manuals.

Print or save the PDF versions in high resolution. Low-quality scans obscure small fasteners or electrical connectors, leading to incorrect reassembly. Rotate zoomed-in sections horizontally if the page layout cuts off edges, as some diagrams are optimized for wide-format printing.

Using OEM Diagrams to Cross-Reference Aftermarket Alternatives

Compare the visual representation from the official source with aftermarket catalogs. Subtle differences–mounting brackets, sensor connectors, or seal grooves–can render third-party substitutes incompatible. Note any deviations in color coding or numbering; some brands reuse part numbers across models, masking critical variations.

Keep a digital folder sorted by system: engine, transmission, HVAC, chassis. Label each file with the component’s functional group (e.g., “fuel-rail-2023.pdf”) to bypass scrolling through hundreds of pages when diagnosing a failure. Bookmark the direct URL to the exact illustration; manufacturer sites frequently reorganize content, breaking old links.

When disassembling, lay components in mirrored order on a clean surface. Photograph each step before removal, especially wiring harnesses. Official diagrams rarely depict wire colors beyond basic legends; your photos become indispensable when real-world colors deviate from printed guides.

Avoiding Common Mistakes with Technical Blueprints

Verify scale before printing. Some illustrations compress large assemblies onto single sheets, making small gaskets or clips nearly invisible. Use a PDF editor to extract only the relevant section; overlapping diagrams in a single file often cause confusion.

Cross-check fasteners against the torque chart. A 10 mm bolt on the valve cover may appear identical to one on the oil pan, yet require different tightening sequences. The official documents list these details in adjacent tables–ignore them, and stripped threads or leaks follow.

Update your reference material annually. Manufacturers issue revised illustrations after mid-cycle refreshes or safety recalls. An outdated diagram may direct you to remove a timing chain tensioner that no longer exists, wasting hours of labor.

Decoding Wiring Blueprints for Powertrain Systems

Locate the power distribution box in the upper-left corner of the electrical layout–this is the hub for fused circuits feeding critical sensors and actuators. Each wire is coded with a three-part identifier: color (e.g., LG/R for light green with red stripe), gauge (e.g., 18 AWG), and terminal type (e.g., “M” for male spade). Trace the path from the fuse (marked with its amperage rating) to the component; deviations between the printed path and physical routing often indicate splice repairs or aftermarket modifications.

Interpret sensor circuits by isolating the signal, power, and ground lines. For instance, a manifold absolute pressure (MAP) sensor typically uses a 5V reference (marked “Vr”), a signal wire returning 0.5–4.5V proportional to pressure, and a shared ground (often black or BK). Verify continuity by back-probing the connector with a multimeter–open circuits on the ground line create false error codes (e.g., P0106 for MAP range issues). Cross-reference pinouts with the legend: “A12” might denote connector “A,” pin 12, where polarity matters for Hall-effect sensors.

Diagnosing Actuator Control Loops

Focus on driver circuits for injectors, ignition coils, and solenoids–these follow a predictable pattern of relay-switched 12V (switched via the ignition), a control wire (often from the PCM), and a permanent ground. The control wire for a fuel injector (e.g., YEL/BLK) should pulse at 3–5 ms during cranking; absence of signal suggests either a faulty PCM driver or a short to ground. Use an oscilloscope to check for inductive feedback spikes on the power line–excessive voltage (above 80V) indicates a failing flyback diode in the control module.

Ground distribution demands close inspection: a single shared ground point (e.g., G401 near the firewall) serves multiple components, and corrosion here manifests as intermittent faults across unrelated systems (e.g., erratic tachometer readings alongside stalling). Compare ground resistance at the battery negative terminal–values above 0.2 ohms between the engine block and chassis require cleaning or replacing the bonding strap. Always validate wire gauge against the service manual: undersized wires (e.g., 20 AWG for a throttle body motor) overheat, mimicking sensor failures.

Where to Locate Official Electrical Wiring Blueprints for Your Vehicle Online

Start with the manufacturer’s service portal at service.honda.com. After entering your VIN, navigate to the “Electrical” section under repair manuals–official wiring layouts for every model year since 1998 are archived here in PDF format, organized by system (engine, ABS, lighting). Subscription costs $109/year, but diagrams include pin-outs, connector views, and color codes matching factory harnesses.

Alternative Sources with Direct Downloads

ALLDATA DIY offers instant access to OEM schematics for $26.95 per vehicle; search by year and trim, then filter for “electrical troubleshooting” to isolate circuit maps. For free, erapidservice hosts a user-uploaded repository–verify file names against your model’s wiring table of contents before downloading to avoid mismatches.

Step-by-Step Guide to Reading Climate Control Wiring Blueprints

Locate the power distribution section first–identified by bold red lines on most HVAC layouts. Trace these lines backward from the fuse box label (typically F2 or F3) to verify correct amperage ratings: 20A for blower motors, 10A for actuators. Cross-reference the fuse position with the vehicle’s electrical manual to confirm compatibility before testing continuity.

• Identify blower motor symbols (a circle with three horizontal lines) near the bottom center of the blueprint.
• Follow the orange wire from the motor to the resistor pack (a rectangular box with zigzag lines inside).
• Check for voltage drops at each resistor stage using a multimeter set to 20VDC; readings should match the speed setting labels (LOW, MED, HI).
• If readings deviate, inspect the wire harness for chafing near the firewall grommet–common failure point.

Actuator calibration requires specific steps after interpreting the diagram. Use the vehicle’s onboard diagnostics mode (press and hold the recirculation and defrost buttons for 10 seconds) to trigger actuator self-check. Listen for a distinct *click* from each door motor while observing real-time door position data on the scan tool–values should fluctuate between 0% (fully closed) and 100% (fully open).

1. Disconnect the negative battery terminal for 30 seconds to reset module memory if doors fail to respond.
2. Reconnect and verify vacuum lines (if applicable) match the colored dots on the diagram: green (fresh air), white (defrost), yellow (floor), red (AC).
3. Test door movement manually by removing the glovebox and accessing the linkage–compare mechanical travel to the blueprint’s door position labels.
4. Recheck resistance across temperature sensors (thermistors) at 20°C–values should read 2.2kΩ to 2.7kΩ; replace if outside tolerance.
