Electrical Wiring Diagram Guide for Allis Chalmers WD 12 Volt System
To modify or repair the 12-volt circuit in your legacy tractor model, begin by securing a verified electrical blueprint specific to serial numbers between WD-12200 and WD-19999. Early units (pre-1955) feature a fused ignition circuit with a 15-amp glass fuse, while later models switch to a thermal breaker. Prioritize tracing the main positive bus bar–mounted behind the dash panel–before addressing secondary branches. Use a multimeter set to 20V DC to confirm voltage drop across connections: readings below 11.8V indicate corrosion at the starter solenoid or ground strap.
Replace the factory 10-gauge copper wiring with tinned marine-grade cable if the tractor operates in damp conditions. Route all cables through rubber grommets at chassis entry points to prevent abrasion–original cloth insulation degrades within 5–7 years. The accessory circuit (lights, horn) shares a single 14-gauge wire from the ammeter; splice repairs with soldered butt connectors, not crimp terminals, to avoid resistance buildup. Label each wire with heat-shrink tubing and match colors to the original coding: red (hot), brown (tail lights), yellow (headlights), black (ground).
For the ignition system, replace the points and condenser if spark is inconsistent at idle–a dwell angle of 28–32 degrees is optimal. Verify the voltage regulator output: with the engine at 1,200 RPM, battery voltage should stabilize at 13.8–14.4V. If readings fluctuate, adjust the regulator’s third brush position clockwise in 1/8-inch increments. Ground the distributor baseplate directly to the engine block with an 8-gauge braided strap–factory paint at the mounting surface prevents proper grounding. Test the starter motor draw: healthy units pull 120–150 amps under load; readings above 200 amps suggest worn bushings or shorted windings.
Install a modern 30-amp alternator only after confirming the tractor’s ammeter can handle the increased load. Bypass the original voltage regulator with a solid-state unit if voltage spikes occur during deceleration. Store the master wiring map in a waterproof document sleeve taped to the underside of the seat–include notes on modifications, as future owners may not recognize non-factory components.

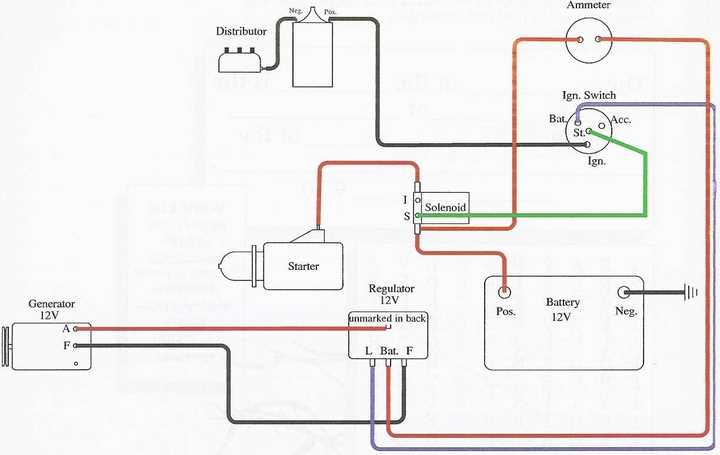

12-Volt Electrical Layout for WD Tractor: Key Connections
Begin by locating the battery’s positive terminal–marked with a red wire–and trace it to the starter solenoid. The solenoid’s primary terminals should show continuity between the brass lugs when engaged. If resistance exceeds 0.2 ohms, clean corrosion from the stud threads or replace the solenoid. The field coil connections (thick black wires) must terminate at the voltage regulator’s “F” post; any deviation causes erratic charging. Verify the ammeter’s polarity before installation: the “+” side faces the generator output.
Ground paths demand equal attention. The engine block serves as the primary return path; ensure the starter’s case clamp contacts bare metal, free of paint or rust. Check the instrument cluster’s common ground–often a single 10-gauge wire bolted near the dash support. Loose grounds mimic starter failure: diagnose by attaching a jumper cable from the battery negative to the starter frame; if cranking improves, re-secure all ground points. Replace any frayed or brittle wires with 12-gauge copper-stranded cable, crimping terminals with a proper die.
Troubleshooting the Ignition Circuit
Resistance checks isolate intermittent faults. Disconnect the coil’s primary lead (green/white stripe) and measure between the distributor’s “+” terminal and ground–readings above 4 ohms indicate a worn breaker point set or fouled condenser. Swap the condenser before adjusting gaps; new points should align at 0.020″. The ballast resistor (ceramic block) must maintain 1.5 ohms; bypass temporarily while cranking to confirm it’s not limiting voltage. Replace any cracked ignition wires with 7mm silicone-jacketed leads, routing them away from exhaust manifolds.
How to Find the Factory Electrical Blueprint for WD 12V Models
Begin with the manufacturer’s official archives. Tractor clubs maintain digitized repositories of vintage service manuals–search for “WD 12-volt electrical layout PDF” in forums like Yesterday’s Tractors or Antique Tractor Internet Services. Original printed manuals from the 1950s often include fold-out charts; check auction sites for part numbers FM-AC-55 or IH-1207, which correspond to early WD documentation. If the manual is missing, contact the Wisconsin Historical Society–some dealers deposited factory blueprints there under agricultural equipment collections.
Trace wiring paths using a multimeter before relying solely on reproductions. Disconnect the battery and probe terminals against the chassis: starter solenoid (yellow/red stripe), ignition switch (solid yellow), and voltage regulator (green). Cross-reference readings with this reference table for original color-coded circuits:
| Circuit Function | Factory Wire Color | Terminal Gauge (AWG) | Expected Voltage (Key On) |
|---|---|---|---|
| Battery to Starter | Red | 6 | 12.6 |
| Ignition Feed | Yellow | 10 | 12.2 |
| Generator Output | Green | 12 | 13.8–14.4 |
| Lighting Circuit | White | 14 | 12.0 |
Replace guesswork with precise tracing. Locate the harness grommet beneath the dash–split loom may hide brittle paper labels. If labels are illegible, use heat-shrink tubing to sleeve splices, marking each connection with a permanent marker based on voltage drops. Avoid third-party “universal” diagrams; WD-specific schematics distinguish between early 1948 models (separate generator/regulator) and post-1950 revisions (integrated Delco-Remy unit). For confirmed accuracy, mail a stamped envelope to the Two-Cylinder Club in Grundy Center, Iowa–they archive original drafts scanned directly from factory drafting tables.
Step-by-Step Guide to Tracing the Ignition Circuit on the WD 12V Electrical Blueprint
Locate the battery positive terminal on the wiring illustration–marked B+ or 30–and follow the thick red wire to the starter solenoid’s main contact. Use a multimeter set to continuity mode to verify this path before proceeding. From the solenoid, trace the thinner IGN or 15 wire (typically red with a thin stripe) leading to the ignition switch. Confirm the switch terminals:
- Battery (B): Always hot, connects directly to B+.
- Ignition (IGN): Energizes only when the key is turned to “Start” or “Run.”
- Accessory (ACC): Optional, often unused in this model.
If resistance exceeds 0.5 ohms between any of these points and ground, inspect terminals for corrosion or loose crimps.
Continuing Through Key Components
From the ignition switch’s IGN terminal, follow the wire to the coil’s positive (+) post–check for a 1.5-2.0 ohm resistance across the coil’s primary winding. Next, trace the coil’s negative (-) post to the distributor’s points or electronic module (depending on model year). For points-type systems:
- Disconnect the condenser lead; measure points gap (0.020″).
- With ignition on, probe the coil’s (-) terminal: voltage should drop from ~12V to ~0V when points close.
- If voltage remains high, points are pitted or misaligned–replace or adjust.
For electronic ignition, bypass the module by jumping the coil’s (-) post to a known good ground momentarily; if the engine fires, the module is faulty. Always confirm sprocket timing marks align at TDC before finalizing diagnostics–misalignment by a single tooth causes hard starts.
Identifying and Labeling Critical Parts in the Electrical Blueprint
Trace the main power feed from the battery terminal–marked by a thick red line–to the ignition switch. Use a multimeter to verify continuity at 12 VDC; deviations below 11.8 V indicate corroded connections or degraded wire insulation. Label each junction with heat-shrink tubing printed with circuit function: “Ignition Input,” “Starter Solenoid Trigger,” “Fuel Pump Relay Coil.” Color code anomalies: orange striped wires denote high-resistance faults; replace segments exceeding 0.5 ohms per foot.
Locate the voltage regulator–typically a rectangular aluminum-can device mounted near the generator. Identify three posts: BAT, FLD, and ARM. Test FLD-to-ARM resistance; readings above 5 ohms require regulator replacement. Adjacent terminals often confuse polarity–label every post with etched metal tags: BAT (+), FLD (field), ARM (armature). Confirm ground integrity by probing ARM to engine block; expect less than 0.1 ohms.
Distinguish solenoid terminals by gauge: thick cables (6 AWG) for starter motor leads, thin wires (18 AWG) for control circuits. Test solenoid pull-in voltage–minimum 8.5 VDC at terminal 50–while monitoring current draw; spikes beyond 15 A suggest faulty coil windings. Mark every fuse holder with circuit amperage and device: “5 A – Instrument Panel,” “20 A – Headlights,” “8 A – Generator Exciter.” Use adhesive vinyl labels placed flush beneath fuse clips for instant visual reference during troubleshooting.
Diagnosing 12V Electrical Problems with the WD Wiring Guide
Start by verifying voltage at the battery terminals. Use a multimeter set to DC 20V; readings below 11.8V indicate a weak or discharged battery. Check the ground strap connecting the engine block to the frame–corrosion here mimics starter failure. Clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.
If the engine cranks but won’t start, inspect the solenoid relay connections. Locate the relay labeled “S” on the firewall wiring harness; tap it gently while engaging the starter–clicking confirms a faulty relay. Replace it if taps produce no response. Examine the ignition switch wiring for melted insulation or loose spade connectors, especially near the dash cluster.
- Starter draws excessive current: Test for 10-12V at the “B” terminal while cranking. Voltage
- Lights dim but no crank: Check the neutral safety switch continuity with an ohmmeter (must read
- Intermittent failures: Flex the main harness near the steering column–cracked wires often cause sporatic issues.
For accessory circuits not functioning (e.g., headlights, gauges), trace power from the fuse block. Pull each fuse and test for continuity; a blown fuse often points to a short downstream. The wiring diagram’s color codes (e.g., YL/R for yellow-red stripes) help isolate faults quickly. Probe the backside of connectors while wiggling wires–intermittent breaks reveal themselves under tension.
Use the guide’s layout to cross-reference wire paths. For example, if the ammeter fluctuates erratically, follow the brown wire from the voltage regulator to the generator. Disconnect the field terminal (F) and observe voltage–steady readings confirm a defective regulator. Always compare measured resistances to the diagram’s specified values (e.g., 4.5-5.5Ω across field windings).
