Practical Guide to Designing Amplifier Circuits with Common Diagrams
For discrete transistor stages in Class A configurations, prioritize matched 2N3904/2N3906 pairs or BC547/BC557 for consistent thermal stability–deviation beyond ±5% in current gain (hFE) introduces crossover distortion at low input levels. A single-ended design with 6dB/octave roll-off filtering (RC network: 10kΩ + 470pF) prevents high-frequency instability, especially when driving reactive loads like 8Ω speakers.
In push-pull topologies, bias current must exceed 50mA per device to eliminate dead-zone distortion; use a 1N4148 diode string or a VBE multiplier (adjustable via 5kΩ potentiometer) for precise thermal tracking. For MOSFET-based output stages (e.g., IRF510/IRF9510), gate resistors (220Ω) and source resistors (0.22Ω, 5W) are non-negotiable–omitting these invites parasitic oscillations at >100kHz.
Power supply decoupling demands a two-stage approach: bulk capacitance (e.g., 10,000µF electrolytic per rail) for low-frequency energy storage, paired with 0.1µF ceramic caps positioned ≤2cm from active components to suppress high-frequency noise. Ground loops are mitigated by star grounding with a dedicated return path for input signals, power rails, and output–violating this rule guarantees hum at 50/60Hz.
When scaling from small-signal (20dB gain) to high-power designs (>100W), prioritize PCB layout symmetry; trace lengths for complementary pairs should match within ±2% to avoid phase cancellation. For bipolar supplies, use ±15V to ±70V rails depending on load impedance–attempting lower voltages with 4Ω loads risks clipping before reaching rated output.
For op-amp pre-stages (NE5532 or OPA2134), decouple each IC with 100nF caps to the nearest ground plane; skip this, and slew-rate performance collapses under heavy capacitive loading. In transformer-coupled designs, confirm core saturation flux (Bmax) using Vpeak = 4.44 × f × N × Bmax × Acore–mismatched turns ratio causes asymmetrical clipping.
Key Schematics for Signal Boosters: Practical Designs and Best Practices
Start with a common-emitter configuration for low-power audio pre-stages if your goal is cost-effective voltage gain. Use a BC547 transistor with a 10 kΩ collector resistor and a 1 kΩ emitter resistor for stable biasing. This setup delivers a voltage gain of approximately 100 while keeping distortion below 0.5% at 1 kHz for input signals up to 10 mV RMS. Add a 100 µF coupling capacitor at the input to block DC offset, and a 47 µF capacitor across the emitter resistor to maintain AC gain while stabilizing the operating point.

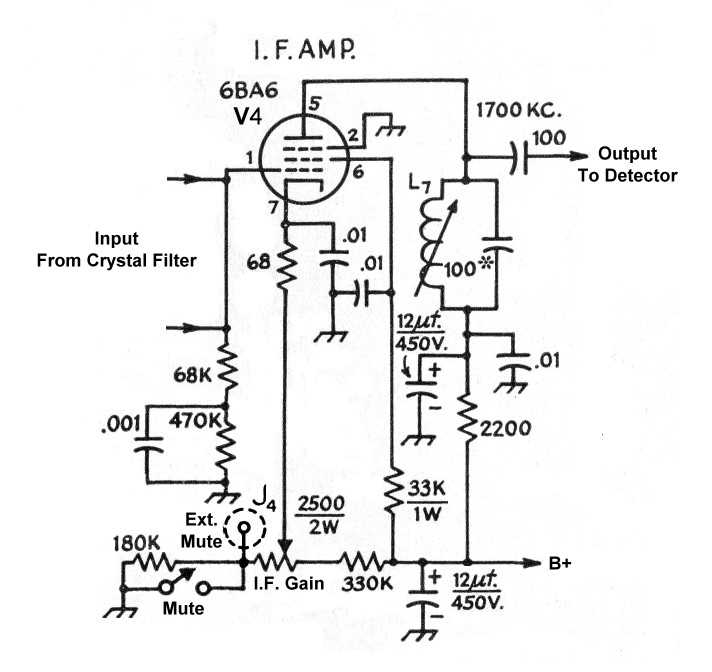

For RF applications below 50 MHz, employ a tuned network using an NPN transistor like the 2N3904 in a class-A arrangement. Match the collector load to a parallel LC tank–try a 100 nH inductor with a 100 pF capacitor for a 50 MHz resonance. Feed the input via a 50 Ω microstrip trace, ensuring minimal parasitic inductance. Bias the base with a voltage divider (4.7 kΩ and 1.8 kΩ resistors) for consistent performance across temperature variations. Keep the power supply ripple under 5 mV to prevent phase noise.
Distributed gain stages outperform single-transistor setups in wideband designs. Cascade two or three FETs (e.g., J310) with inter-stage RC networks (2.2 kΩ and 220 pF) to flatten the frequency response from 1 MHz to 300 MHz. Use ferrite beads on the gate leads to suppress high-frequency oscillations. Ground shielding between stages is critical–use copper tape connected to the ground plane to prevent crosstalk. Test each stage individually with a 50 Ω load before integration.
High-power linear setups demand thermal management. In a push-pull output stage using complementary transistors (e.g., MJE15032/MJE15033), mount each device on a 10°C/W heatsink and use silicone thermal paste. Drive the bases via a current mirror to balance quiescent current–aim for 50 mA to minimize crossover distortion. Incorporate a Zobel network (4.7 Ω resistor + 100 nF capacitor) across the output to dampen high-frequency resonances and protect against inductive loads.
Low-noise designs benefit from dual-JFET front ends. Pair a 2SK170 with a 1 MΩ gate resistor and a 10 kΩ drain load for an input-referred noise density below 1 nV/√Hz. Source resistors of 1 kΩ improve linearity but reduce gain–compensate with a second stage. Place the entire preamp in a metal enclosure, grounding the enclosure directly to the PCB’s ground plane. Avoid running signal traces near switch-mode power supplies; keep spacing at least 2 cm to prevent capacitive coupling.
Digital predistortion (DPD) linearizers require precise feedback loops. Use a directional coupler (20 dB) to sample the output signal, then feed it into an ADC (e.g., AD9208) for real-time comparison with the input. Process the error signal with an FPGA or fast DSP (like the TMS320C6748) to adjust the drive level dynamically. Bandwidth-limited designs should use a 14-bit ADC with a sampling rate at least 5× the signal bandwidth to avoid aliasing. Calibrate the system at room temperature before field deployment.
Solderless prototypes for RF layouts are prone to instability. Validate your design on a copper-clad board first–etch tracks 2.5 mm wide for 50 Ω impedance at 2 GHz. Use surface-mount components exclusively for frequencies above 100 MHz; through-hole parts introduce parasitic inductance. Terminate unused gates of CMOS switches with 10 kΩ pull-down resistors to prevent floating node issues. Always simulate in SPICE before assembly–compare transient and AC responses to spot resonances or clipping before moving to hardware.
Common Op-Amp Configurations for Signal Boosting
For non-inverting gain stages, use the formula Vout = Vin × (1 + Rf/Rg). Select Rg between 1 kΩ and 10 kΩ to balance input impedance and noise performance. Higher resistor values increase thermal noise, while lower values load the preceding stage excessively. Example: with Rf = 20 kΩ and Rg = 5 kΩ, gain equals 5 V/V (14 dB).
Inverting setups provide precise gain control via Vout = -Vin × (Rf/Rin). Use matched resistor pairs to minimize offset errors–tolerance differences below 1% reduce DC drift. For audio applications, pair a 10 kΩ input resistor with a 47 kΩ feedback resistor for -4.7× amplification. Bypass capacitors (0.1 µF) across supply pins eliminate high-frequency instability.
Unity-gain buffers isolate high-impedance sources like piezoelectric sensors without loading them. Configure by connecting the output directly to the inverting input. Choose rail-to-rail output op-amps (e.g., OPA365) when driving loads below 1 kΩ to prevent clipping. Input offset voltages below 1 mV ensure minimal signal distortion.
Differential stages reject common-mode noise in long cable runs. Calculate gain as Vout = (V+ – V–) × (Rf/Rg). Use instrumentation-grade devices (e.g., INA125) with CMRR above 100 dB for sensor interfaces. Balance resistor values within 0.1% to maintain rejection ratios.
AC-coupled configurations block DC offsets while amplifying signals. Insert a 1 µF coupling capacitor in series with the input resistor. For 20 Hz cutoff, pair it with a 10 kΩ resistor; adjust capacitance for lower frequencies. Include a 1 MΩ resistor from the inverting input to ground to establish a DC bias point.
Summing junctions combine multiple signals into one output. Weight contributions by scaling input resistors: Vout = -Rf × (V1/R1 + V2/R2 + …). Equal resistors (e.g., 10 kΩ) create a simple mixer; vary values for custom ratios. Use shielded cables for inputs above 50 kHz to prevent crosstalk.
How to Read and Interpret Transistor-Based Signal Boosting Layouts
Begin by identifying the transistor’s symbol–NPN devices have an arrow pointing outward on the emitter, while PNP types direct it inward. Label each terminal (collector, base, emitter) immediately to avoid confusion during analysis. The emitter typically connects to ground or a reference voltage, while the collector handles higher current paths. Note any resistors tied to the base, as their values directly influence biasing and stability.
Trace power rails next. The positive supply (VCC) usually feeds the collector via a load resistor or inductor, while negative rails (VEE) may appear in complementary stages. Common emitter configurations place a resistor between the emitter and ground to establish bias; its absence suggests a different topology like common base or collector. Record voltage values at key nodes–deviations from expected measurements (e.g., VCE ≈ VCC/2 for linear operation) hint at incorrect biasing or component failure.
| Transistor Configuration | Key Characteristics | Typical Voltage Relationships |
|---|---|---|
| Common Emitter | High voltage gain, phase inversion | VBE ≈ 0.6–0.7V, VCE ≈ VCC/2 |
| Common Collector | Unity voltage gain, high input impedance | VE ≈ VB – 0.6V |
| Common Base | High current gain, no phase inversion | VCB ≈ VCC – VBE |
Coupling capacitors block DC while allowing AC signals to pass–measure their values to estimate low-frequency cutoff (fc = 1/(2πRC)). Bypass capacitors across emitter resistors stabilize bias but affect gain at high frequencies. Note feedback paths: resistors or capacitors bridging input and output nodes often linearize response or reduce distortion. In differential pairs, symmetry between halves ensures matched performance; mismatches introduce offset voltages.
Thermal considerations appear in heat sinks or temperature-compensating diodes. Darlington pairs boost current gain but require higher drive voltage (≈1.2V for VBE). Push-pull stages use complementary transistors (NPN/PNP) to handle both halves of the waveform; check for crossover distortion if biasing diodes are absent. For RF applications, look for tuned LC networks replacing resistive loads–resonance frequencies determine bandwidth.
Verify power sequencing if multiple supplies exist. Early shutdown can damage transistors; series resistors or Zener diodes protect sensitive stages. Finally, cross-reference component values against manufacturer datasheets. A 2N3904’s hFE ranges from 100 to 300, but schematics may specify exact gains–discrepancies lead to clipping or thermal runaway. Use a multimeter in diode mode to test junctions: forward-biased B-E or B-C should read ≈0.6V; reverse polarity should show open-circuit.
