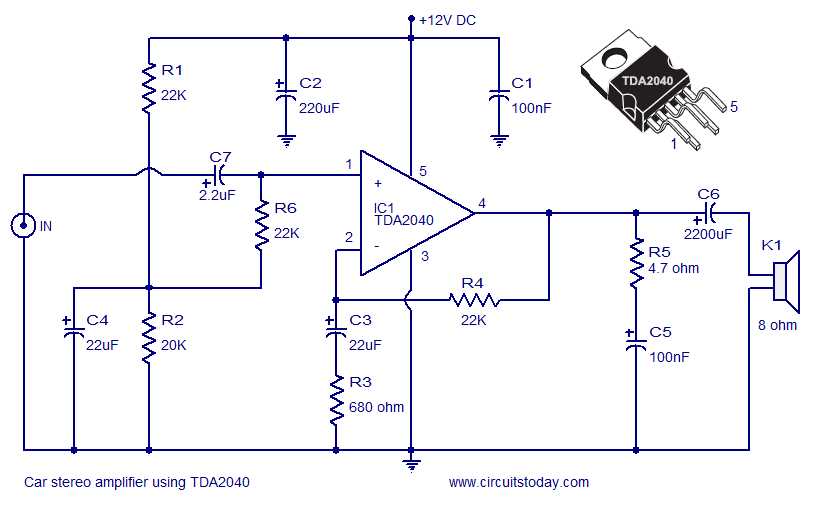

Complete Car Amplifier Wiring Guide with Connection Schematics

Begin by identifying the power source–most modern setups rely on a 12V battery connection with a fuse rated at least 20A. Locate the fuse box or a direct cable to the battery, ensuring a secure ground point (bare metal chassis, not painted surfaces) to prevent signal interference. Pre-made harnesses simplify the process, but custom cables should use 4-gauge wire for high-powered units to handle current draw without voltage drops.

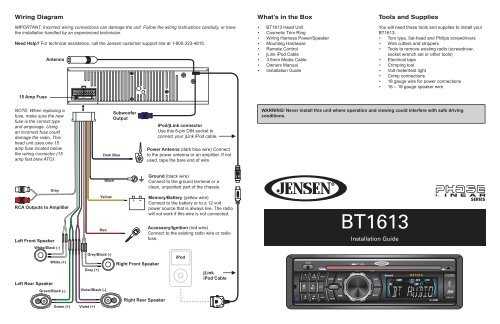

Signal inputs require RCA cables or speaker-level adapters, depending on the head unit’s output. For aftermarket stereos, use RCA connections; for factory systems, splice into speaker wires with line-output converters to avoid distortion. Match impedance (2-4 ohms) between the booster and speakers–mismatches cause overheating or underperformance. Install a capacitor (0.5-1 farad) for systems exceeding 500W RMS to stabilize voltage during bass peaks.

Route cables away from engine heat and moving parts (steering columns, pedals). Secure them with zip ties every 8-12 inches to prevent rattling or short circuits. Test connections with a multimeter–12-14V DC at the booster’s power terminal confirms proper wiring before finalizing installation. Double-check ground integrity; a weak ground introduces engine noise into audio playback.

For multi-channel systems, label each wire during disassembly to avoid confusion. Use heat-shrink tubing or electrical tape on exposed splices to protect against corrosion. If the booster lacks built-in crossovers, add in-line filters to direct appropriate frequencies (e.g., low-pass for subwoofers, high-pass for tweeters). Calibrate gain settings to 75% of maximum initially, adjusting incrementally to avoid clipping.

Electronic Sound Booster Connection Guide for Vehicles

Begin by positioning the power enhancer near the vehicle’s battery to minimize voltage drops–ideally within 18 inches of the positive terminal. Use 4 AWG copper cables for systems drawing over 100 watts RMS to prevent overheating and signal loss. Secure connections with tinned marine-grade lugs; avoid twist-on connectors as they corrode under vibration and moisture.

Grounding demands equal attention: attach the negative cable to a bare metal chassis point within 12 inches of the booster’s location. Scrape paint or rust from the grounding spot using a wire brush to ensure solid conductivity. Factory grounding bolts are often inadequate–drill a dedicated hole and use a star washer to create a reliable bond.

Signal paths require shielded RCA interconnects to isolate noise from the vehicle’s electrical system. Route cables away from power lines, alternators, and spark plug wires to prevent interference. For multi-channel setups, use twisted-pair wiring for balanced signal transmission, reducing cross-talk between channels.

Fuse protection is non-negotiable: install an ANL fuse within 7 inches of the battery’s positive terminal, matching its rating to the booster’s maximum current draw. For example, a 1,200-watt system at 13.8 volts requires a 100-amp fuse. Use a fuse holder with an insulating cover to prevent accidental shorts.

Component Compatibility Chart

Booster Power (RMS)	Recommended Cable Gauge	Fuse Rating (Amps)	Grounding Wire Length Limit
200W	8 AWG	30	18 in
500W	4 AWG	50	12 in
1000W	2 AWG	80	8 in

Remote turn-on leads should connect to the head unit’s dedicated output, not accessory circuits, to avoid voltage sag during startup. Use a 16 AWG wire with a 1-amp inline fuse to protect the circuit. For vehicles with aftermarket stereos lacking a remote output, wire a relay triggered by the ignition switch to ensure the booster powers on simultaneously with the vehicle.

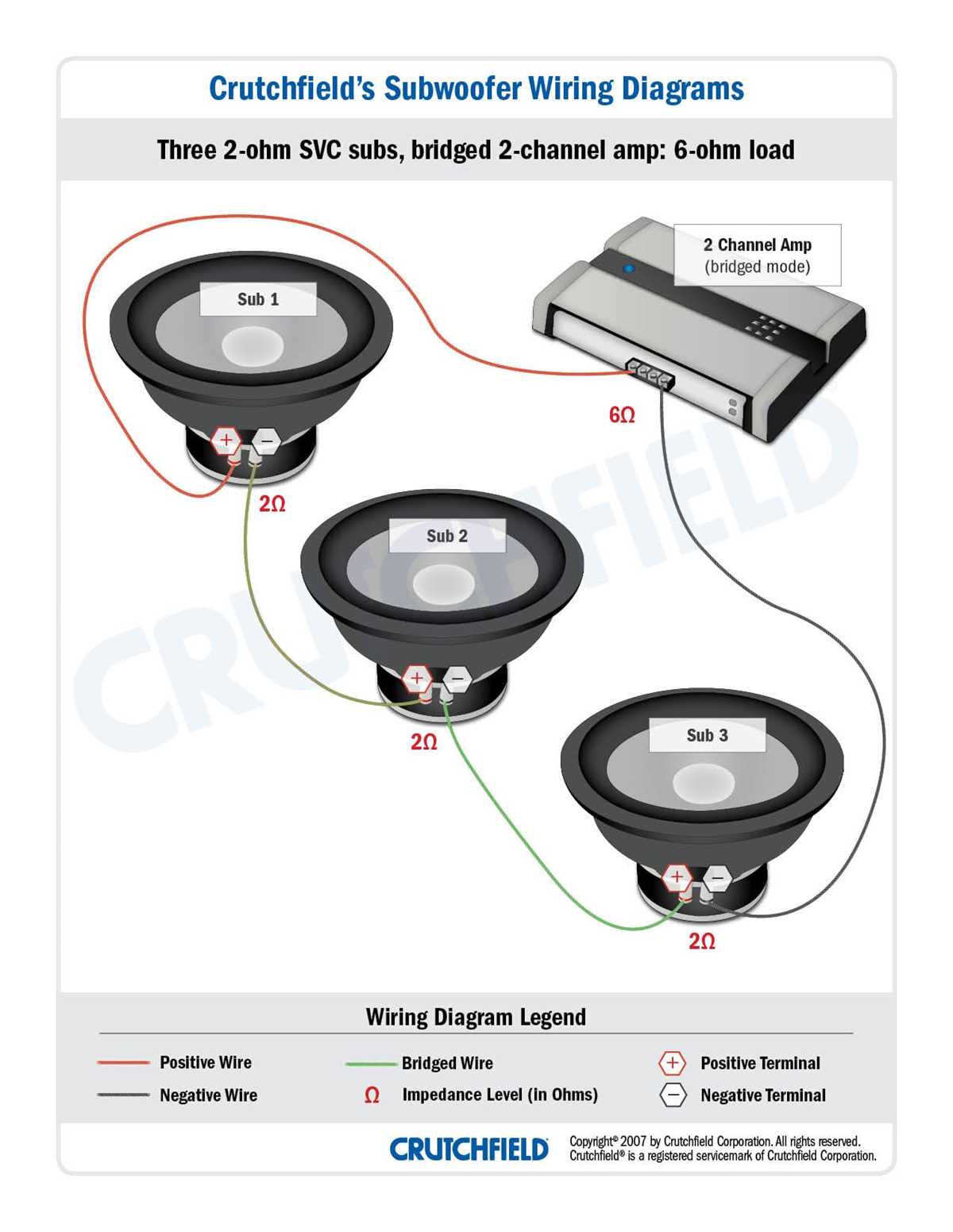

Subwoofer setups benefit from dual voice coil speakers wired in parallel for maximum current handling. Connect each coil’s positive terminal to the booster’s output and join both negatives at a single grounding point. Keep speaker wires at least 6 inches apart from power cables to prevent induced noise.

Final testing involves verifying all connections with a multimeter: measure DC voltage at the booster’s terminals (should match battery voltage within 0.5V). Check for AC noise by playing a silent track and monitoring the RCA cables–acceptable levels are below 200mV. Adjust cable routes or add ferrite chokes if interference persists.

Selecting Optimal Power Cable Thickness for Your Vehicle Audio System

Begin with 4-gauge copper cables for aftermarket audio setups drawing 50–80 watts RMS per channel. Upgrade to 2-gauge if total system output exceeds 200W RMS or runs longer than 12 feet from battery to power source. Pure oxygen-free copper (OFC) reduces voltage drop by 30% compared to CCA (Copper-Clad Aluminum) at equivalent thicknesses, critical for maintaining clean signal transfer in high-current applications.

Refer to the following current draw thresholds for precise cable selection: 1/0-gauge handles 200–350A (ideal for subwoofer enclosures above 400W RMS), while 4-gauge safely supports 50–100A. Exceeding these ratings risks wire overheating at 60°C ambient temperature–install a 60A fuse within 18 inches of the battery terminal to prevent fire hazards. Avoid oversizing beyond 1/0-gauge unless integrating a 1000W+ RMS setup; excess diameter increases stiffness, complicating routing in tight engine bays.

Measuring Distance and Voltage Drop

Calculate voltage drop using the formula: Vdrop = (I × L × R) ÷ 1000, where I = current in amps, L = one-way cable length in feet, and R = resistance per 1000 feet (from AWG tables). For a 15-foot 4-gauge run at 80A, expect ~0.45V drop (3.7% of 12V)–acceptable for most bass-heavy systems. Double the gauge size for runs exceeding 20 feet to stay below a 0.2V threshold, ensuring consistent power delivery to high-impedance components like tweeters.

Use a multimeter to verify actual voltage at the power source’s input terminal under load. A reading below 11.5V indicates excessive resistance–reevaluate connections, splice integrity, or upgrade to thicker cables. Tinned copper strands resist corrosion better than bare copper in humid environments, extending lifespan by 40% in coastal regions.

Balancing Cost and Performance

OFC cables cost 2–3x more than CCA but deliver 20% higher conductivity; prioritize OFC for low-impedance loads (under 2Ω) or high-temperature installations (above 50°C). For budget builds under 200W RMS, CCA suffices if fused correctly. Avoid pre-terminated cables with proprietary connectors–they often use undersized strands to cut costs, leading to premature failure.

Insulation type impacts durability: polyethylene (PE) withstands engine heat up to 105°C but cracks under UV exposure, while cross-linked polyethylene (XLPE) handles both heat and sunlight, lasting 5–7 years in under-dash applications. Route cables away from moving parts and sharp edges, securing every 18 inches with zip ties–loose wiring causes intermittent shorts in vibrating environments like off-road vehicles.

Test cable integrity with a megohm meter before final installation. A reading below 100MΩ between the conductor and insulation signals degraded material–replace immediately. For dual-battery systems, use a battery isolator with matching gauge cables to prevent uneven charging; mismatched sizes cause voltage sag during peak loads, distorting high-frequency response in midrange drivers.

Step-by-Step Guide to Connecting Power and Ground Cables

Use a 4-gauge or thicker copper cable for the main power feed from the battery to avoid voltage drop. Runs exceeding 16 feet require upgrading to 2-gauge wire. Strip 1/2 inch of insulation from the end of the cable and crimp a closed-barrel lug rated for at least 150A. Secure the lug to the battery terminal with a stainless steel bolt and nut, ensuring no exposed copper touches the vehicle frame.

Selecting the Proper Ground Point

• Choose a bare metal surface within 18 inches of the device chassis.
• Avoid painted or powder-coated areas; sand down to bare steel if necessary.
• Clean the spot with a wire brush and apply dielectric grease after attaching.
• Bolts of 10mm diameter or larger are ideal for ground connections.

Route the power cable away from moving parts, steering columns, and hot engine components. Use split loom tubing where the cable passes through firewall grommets. Secure the cable every 12 inches with nylon zip ties or Adel clamps to prevent sagging. If routing near the fuel lines, maintain a minimum 6-inch clearance to reduce interference risk.

Install an in-line fuse holder no more than 18 inches from the battery. Select a fuse value 125% of the device’s continuous current draw–for example, use a 100A fuse for an 80A draw. Trim, strip, and crimp the fuse holder leads with the same gauge cable as the main feed. Verify the fuse rating matches the cable’s ampacity to prevent overheating.

Final Safety Checks

1. Set a multimeter to DC voltage, probe the battery terminals–readings below 12.4V indicate a weak charge.
2. Check continuity between the ground lug and the battery negative post; resistance should measure 0.2 ohms or less.
3. Inspect all crimp connections with a pull test–apply firm pressure; a weak crimp will fail.
4. Power up the system, monitoring for dimming lights or pops–signs of a poor ground or undersized cable.

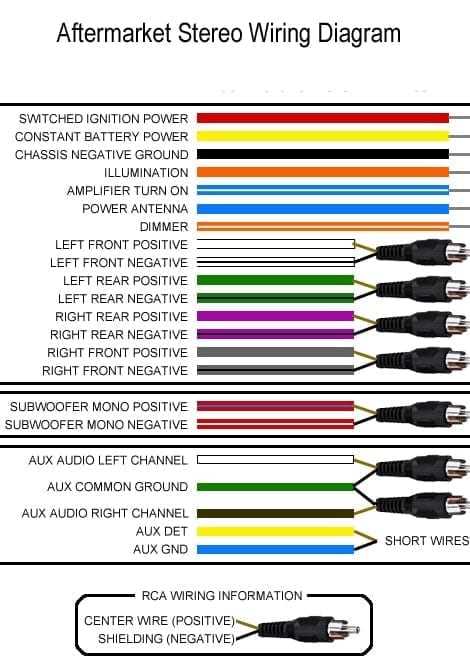

Proper RCA Cable and Remote Signal Connection Techniques

Route shielded interconnects away from power lines, spark plug wires, and ignition systems by at least 18 inches. Cross unavoidable interference sources at 90-degree angles to minimize electromagnetic coupling. Strip only ¼ inch of outer insulation from each cable end, twist exposed braided shield strands into a single conductor, and solder to the corresponding chassis ground point–never rely on crimp connectors for grounding.

For the trigger activation line:

• Use a dedicated 18-gauge lead with blue stripe (ISO standard) pulled directly from the head unit’s remote output terminal.
• Fuse this line within 18 inches of the battery with a 1-amp ATO fuse to prevent damage from short circuits.
• Terminate at the signal processor’s remote input with a gold-plated spade connector, avoiding daisy-chaining to other accessories to prevent voltage drops.
• Verify the head unit’s remote output voltage (typically 12V DC) with a multimeter before connection–some OE interfaces provide only 5V, requiring a relay for proper operation.

Interference Suppression Checklist

1. Install ferrite choke clamps on both RCA cables 3–4 inches from each end.
2. Apply dielectric grease to all RCA connectors before mating to prevent oxidation.
3. Test signal quality by playing a 1kHz sine wave test tone at -10dB while probing the interconnects with an oscilloscope–acceptable noise floor should remain below -80dBV.
4. Secure cables every 12 inches with zip ties to prevent vibration-induced microphonics.
