Complete Guide to Building an ADC Circuit Schematic from Scratch
Start with a successive approximation register (SAR) layout if low latency and moderate resolution (8–16 bits) are required. Select a sampling rate at least 2× the highest input frequency–Nyquist’s rule–to prevent aliasing. Use a track-and-hold amplifier with a ±0.1% accuracy and ; a precision bandgap regulator is ideal.
For noise-critical applications, employ a fully differential input stage with decoupling capacitors–ceramic 0.1 µF and 10 µF in parallel–directly at the supply pins of the core IC to suppress transients. When dealing with high-impedance sources (>10 kΩ), include a buffered input using an operational amplifier with 100 MHz GBW.
Choose an encoding format that matches the downstream logic: offset binary for bipolar signals, two’s complement for signed arithmetic, or Gray code to minimize bit errors during transitions. For multi-channel designs, integrate a sequential multiplexer with 30 dB crosstalk.
Ground plane separation is non-negotiable: split analog and digital grounds at the converter module, then combine them only at a single star point beneath the IC. Use vias stitching every 5 mm along the boundary to suppress return currents. Route clock traces as differential pairs with 100 Ω characteristic impedance; maintain
Key Circuit Layouts for Signal Digitization
Begin with a successive-approximation register (SAR) configuration for low-power applications requiring sampling rates up to 5 MSPS. Use a multiplexed front-end with sample-and-hold capacitors sized at 10–50 pF to balance noise immunity and settling time. Place the comparator’s input pair as close as possible to the sampling network to minimize parasitic capacitance–keep trace lengths under 2 mm for signals above 1 MHz. Route reference voltage lines on a separate layer with a solid ground plane beneath to reduce coupling; decouple each reference pin with 1 μF and 100 nF capacitors directly at the pin.
Component Placement Guidelines
| Function | Part Value | Placement Rule |
|---|---|---|
| Sampling capacitor | 22 pF | Within 1 cm of ADC input, shielded trace |
| Reference decoupling (bulk) | 1 μF | ≤ 2 mm from reference pin, vias ≤ 0.5 mm |
| Reference decoupling (high-frequency) | 100 nF | Mounted on the same pad as the pin |
| Clock termination | 33 Ω series resistor | Immediately before clock input, ≤ 3 mm trace |
For delta-sigma topologies, allocate a 10 kHz to 1 MHz oversampling clock and position the modulator decoupling cap (typically 1 nF) within 5 mm of the modulator supply pin. Isolate the analog ground from the digital ground at a single star-point located directly beneath the device’s ground pad–connect the two grounds via a 0 Ω resistor rated for at least 2 A surge current. Shield sensitive signal paths with grounded guard traces; keep guard-to-signal spacing at twice the trace width to maintain >40 dB crosstalk rejection.
Avoid vias in the signal path whenever sampling frequencies exceed 10 MHz; if vias are unavoidable, use back-drilled microvias with ≤ 0.5 mm diameter. Route data lines in impedance-controlled pairs: 50 Ω for single-ended or 100 Ω differential–match length within ±2.5 mm across all lanes. Stagger data-line transitions by at least one clock cycle to prevent simultaneous switching noise; insert 1.5 mm serpentine delays on the shortest lane if needed.
Verify layout with a four-layer stack-up: layer 1 signal, layer 2 solid ground plane, layer 3 power plane, layer 4 signal. Keep return currents on the ground plane directly beneath the signal traces; use stitching vias every 5 mm along the guard traces to maintain less than 5 mΩ DC resistance between any two points on the ground plane.

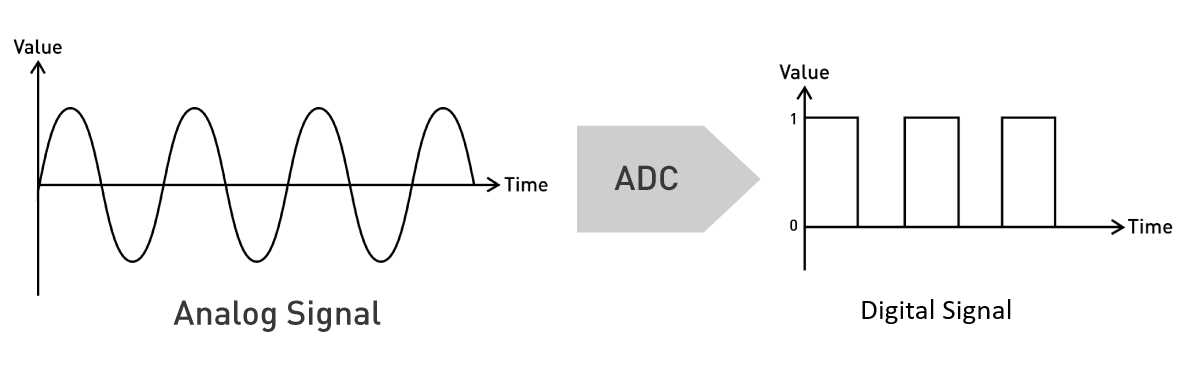

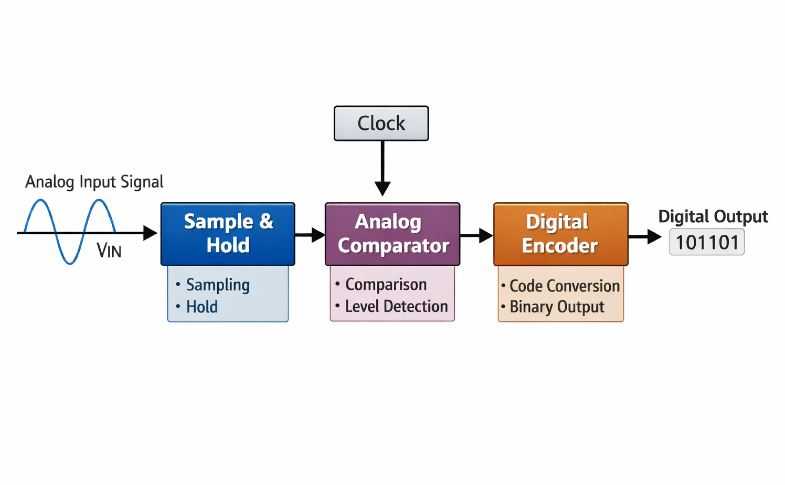

Key Components of a Signal Translator Circuit and Their Roles
Begin by selecting a precision sampling stage tailored to your signal bandwidth. A typical track-and-hold network employs a high-speed switch (e.g., MOSFET or JFET) paired with a low-leakage storage capacitor. Capacitor values range from 10 pF for high-frequency designs to 100 nF for slow, high-resolution tasks. Ensure the switch’s on-resistance stays below 100 Ω to minimize settling errors, especially at sampling rates exceeding 1 MS/s.
Next, integrate a quantizer core matching your resolution requirements. Flash-based architectures demand 2n−1 comparators–an 8-bit system needs 255 units–making them impractical beyond 6 bits due to power and area constraints. For resolutions above 10 bits, successive approximation (SAR) or pipeline topologies are preferred, reducing component count while maintaining accuracy. Choose comparator input offset voltages under 0.5 mV to prevent DNL errors in mid-scale codes.
For reference stability, implement a bandgap voltage source with temperature coefficients below 10 ppm/°C. Pair it with a low-dropout regulator (LDO) outputting 1.25 V or 2.5 V to supply the quantizer and bias networks. Avoid resistor ladders for references above 12 bits–their power dissipation and layout parasitics degrade linearity. Instead, use a capacitive redistribution DAC in SAR designs to halve reference current demands.
Clock jitter distorts sampled signals proportionally to frequency; a 10 fs RMS jitter corrupts a 1 MHz sine wave by −100 dB but degrades a 100 MHz signal to −60 dB. Use a low-phase-noise oscillator (e.g., MEMS or TCXO) with sub-ps jitter specs, and isolate it with a dedicated ground plane to prevent coupling from digital switching noise. For sampling rates above 10 MS/s, distribute the clock via differential LVDS drivers to reject common-mode noise.
Bias networks must deliver stable currents with current mirrors using bipolar transistors or MOSFETs in subthreshold region for microampere-level currents. Ensure output impedance exceeds 1 MΩ to avoid loading the quantizer inputs. In pipeline designs, inter-stage amplifiers require closed-loop gains of 2× or 4×–use op-amps with >80 dB open-loop gain and
Input buffering demands an op-amp with rail-to-rail input/output and unity-gain stable amplifier like the OPA320 (Texas Instruments) fits 16-bit precision at bandwidths under 1 MHz. Differential inputs necessitate a fully differential amplifier (e.g., THS4551) with CMRR >90 dB to reject ground noise. Capacitively couple the input if DC offsets exceed the quantizer’s full-scale range.
Decoupling capacitors mitigate power supply noise and high-frequency transients. Place ceramic 0.1 µF caps within 1 mm of every IC power pin, supplemented by tantalum 10 µF caps at board edges for mid-frequency stability. For SAR designs, route the sample capacitor ground separately from digital grounds to prevent coupling through shared return paths–violate this, and INL/DNL errors spike due to ground bounce.
Output encoding often uses binary, two’s complement, or Gray code; Gray code minimizes bit errors during transitions. Implement a data latch triggered on the falling edge of the conversion clock to synchronize outputs. For serial interfaces (SPI/I2C), include shift registers with setup/hold times under 10 ns to accommodate microcontroller timings. Verify output drivers can sink/source >2 mA to ensure compatibility with 3.3 V logic inputs.
Step-by-Step Assembly of a Successive Approximation Signal Processor
Begin by soldering the voltage comparator IC (e.g., LM311) onto a perfboard, ensuring pin alignment matches the datasheet. Connect its inverting input to the reference ladder network–a series of precision resistors (e.g., 1% tolerance, 10kΩ each)–while tying the non-inverting input to the input signal via a 0.1µF decoupling capacitor. Power the comparator with ±5V rails, adding 10µF electrolytic capacitors between each rail and ground to suppress noise. Verify functionality by feeding a 0–5V test signal and checking for toggling output at the comparator’s pin.
Attach the SAR logic chip (e.g., CD4047 or microcontroller like STM32F103) next, wiring its clock input to a 1MHz crystal oscillator. Route the comparator output to the SAR’s data input and link its serial output to an 8-bit shift register (e.g., 74HC595), which will drive the resistor ladder via MOSFET switches (e.g., IRLML6401 for low-leakage). Calibrate the ladder’s mid-scale voltage by adjusting the top resistor (DAC MSB) until the comparator output flips at exactly 2.5V. Use a 12-bit configuration for sub-millivolt resolution, pairing each bit with a 2^n ratio resistor (e.g., 1kΩ for LSB, 2kΩ for next bit, etc.).
Final steps: Connect the shift register’s parallel outputs to an SPI/I2C interface (e.g., MCP23017) for data retrieval, adding pull-up resistors (4.7kΩ) on SDA/SCL lines. House the circuit in a grounded aluminum enclosure, leaving cutouts for BNC input/output connectors. Test with a ramp signal (0–5V, 1kHz) and validate linearity using a 4-digit multimeter; expect ±0.2% error across the full range. For higher speeds, replace the comparator with a faster variant (e.g., MAX961) and reduce ladder resistor values to 1kΩ.
Common Voltage Reference Circuits for Precision Signal Conversion
For precision applications, the LT1021 or LT1029 series from Linear Technology provides 0.05% initial accuracy and 5 ppm/°C temperature drift–ideal for 16-bit systems where stability outweighs cost. Configure the output with a 10 μF tantalum capacitor at the reference pin to suppress noise below 100 Hz, critical for slow-moving sensors. Avoid ceramic capacitors under 25°C due to microphonic effects that degrade dynamic performance in vibration-prone environments.
In space-constrained designs, shunt references like the LM4040 (2.5V or 4.096V variants) eliminate the need for load regulation but demand precise current sourcing. Calculate the series resistor RS using RS = (VIN − VREF) / IREF(min), where IREF(min) must exceed the reference’s minimum operating current (typically 50 μA) plus load draw. For high-temperature applications (e.g., automotive), select the LM4041 with a 0.1% tolerance and 20 ppm/°C drift, but derate output current above 85°C to prevent thermal runaway.
- Bandgap references (e.g., MAX6070) suit cost-sensitive designs needing ±0.2% accuracy. Their key limitation–output noise up to 50 μVRMS–requires post-filtering with a 10 Hz cutoff low-pass stage (e.g., 10 kΩ + 1.5 μF) to protect resolution below 14 bits. For 18-bit+ systems, pair with a post-regulator like the ADR4520, which adds 0.02% accuracy and 3 ppm/°C drift.
- Buried Zener references (e.g., ADR441) deliver 3 ppm/°C drift but need >15V input and consume 1.5 mA–impractical for battery-powered devices. Their advantage lies in long-term stability (
- For isolated systems, use an optically coupled reference (e.g., ISO124 + local reference) to eliminate ground loops, but account for ±1% gain error introduced by the isolator’s transfer function.
Layout rules for reference circuits mirror high-speed signal rules: route traces as short as possible, use a solid ground plane beneath the reference IC to minimize thermal gradients, and isolate the reference pin from switching regulators with a guard ring. For multi-channel systems, dedicate a reference per critical channel (e.g., AD7768’s integrated reference buffer) to avoid crosstalk exceeding 1 LSB. Failing to decouple the reference pin with a 100 nF X7R ceramic within 2 mm of the IC will inject switching noise from nearby DC-DC converters, visible as non-linearity in FFT plots.
