Building a Transistor-Based AND Gate Circuit with Step-by-Step Schematic

Construct this binary operation configuration with two NPN bipolar junction switches, such as the 2N3904, and a 1kΩ resistor for each input pathway. Connect the emitter of both components to a common ground reference. Apply a 5V potential to the collector through a 4.7kΩ pull-up resistor–this node serves as the aggregation point for the output signal.

Signal propagation requires a minimum input voltage of 0.7V at each base terminal to forward-bias the junctions. If either input lacks sufficient potential, the corresponding component remains non-conductive, isolating the output node and maintaining its high state. Only simultaneous high inputs (>2V) at both bases will saturate both junctions, pulling the output to a low state ().

Validate function with a 1Hz square wave generator at each input. Observe output transitions on an oscilloscope: rising edges should demonstrate propagation delay , confirming proper junction switching kinetics. Adjust resistor values if slew rates fall outside expected parameters–0.5kΩ to 2kΩ ranges accommodate most discrete small-signal devices without thermal runaway risks.

For nodal voltage stabilization, incorporate 0.1μF decoupling capacitors between power rails and ground near the component assembly. This suppresses transient spikes during switching events, particularly critical when interfacing with microcontroller units sensitive to ±0.3V noise margins.

Building a Dual-Input Logic Switch with Bipolar Junction Components

Select two NPN bipolar junction units (e.g., 2N3904) for each input line to ensure reliable signal propagation. Connect their collectors to a shared 5V supply through a 10kΩ pull-up resistor, while grounding emitters directly. Apply input signals to the bases via 1kΩ resistors–this configuration guarantees proper saturation when both inputs are high, outputting a near-supply voltage at the junction point.

Verify voltage thresholds: base-emitter forward drop (~0.7V) must be exceeded by both input lines to fully conduct. The pull-up resistor value dictates rise time; reduce it to 4.7kΩ for faster switching at the cost of higher current draw. Avoid exceeding the transistor’s maximum collector current (200mA for 2N3904) by calculating worst-case scenarios with both inputs active simultaneously.

Test behavior with a multimeter: measure the output node when inputs toggle between 0V and 5V. Expect

Optimize layout: keep trace lengths from the resistor-transistor junctions under 5cm to minimize parasitic inductance. For extended temperature operation, substitute 2N3904 with BC547 (higher gain at low currents) or use Schottky diodes across collector-base to clamp voltage spikes. This setup achieves

Essential Parts for Constructing a Logic Conjunction with Bipolar Junction Devices

Select NPN bipolar junction devices with a current gain (h_FE) between 100 and 300 for optimal performance. Models like the 2N3904 or BC547 strike a balance between efficiency and cost, ensuring reliable switching even under minimal base current. Avoid ultra-high-gain variants (e.g., >500) as they introduce instability in cascaded configurations.

Resistors must match the supply voltage and desired logic levels precisely. For a 5V input, use 10kΩ base-limiting resistors to prevent excessive current draw while maintaining fast response times. Output pull-up resistors should be 1–4.7kΩ–lower values improve noise immunity but increase power consumption. Carbon film types with 5% tolerance are sufficient for most applications.

Power rails require decoupling capacitors to suppress transient spikes. Place a 0.1µF ceramic capacitor as close as possible to the positive terminal and ground pin of each active component. For higher-frequency operation (MHz range), add a 10µF electrolytic capacitor in parallel to handle bulk charge storage. Ensure the ground plane is continuous to minimize parasitic inductance.

Input sources should deliver clean TTL-compatible signals. If interfacing with mechanical switches, incorporate 1kΩ pull-down resistors to prevent floating inputs. For precision work, use debounce circuits with Schmidt triggers or RC networks (R = 1kΩ, C = 100nF) to eliminate contact bounce effects. Avoid exceeding the maximum collector-emitter voltage rating of the switching elements.

Prototyping demands accurate placement of components to reduce signal crosstalk. Maintain at least 2mm clearance between adjacent traces, especially near high-impedance nodes. For through-hole construction, pre-tin all leads and solder at 350°C to prevent cold joints. Verify connections with a multimeter in continuity mode before applying power. Always test each stage individually under full load conditions.

Backup components include spare resistors (1kΩ–10kΩ), capacitors (10nF–100µF), and replacement switching devices. Keep a logic probe or oscilloscope ready to diagnose signal integrity issues. For extended reliability, consider solder mask application on PCBs to prevent oxidation. Store unused parts in anti-static bags at

Constructing a Two-Input Logic Connector with Bipolar Components

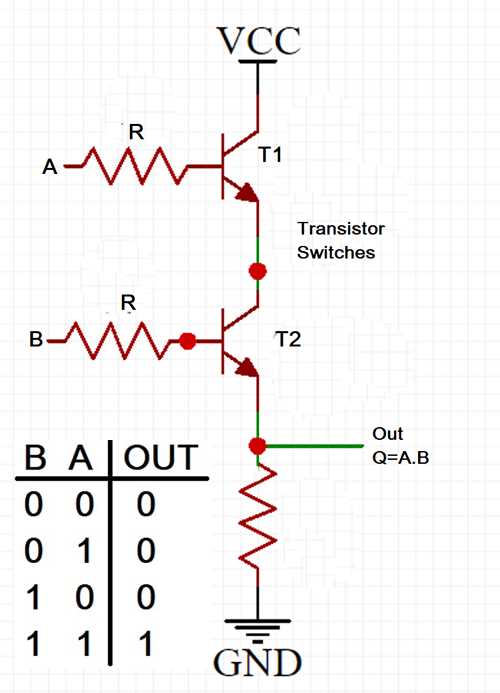

Begin by selecting NPN bipolar junction units rated for identical collector-emitter saturation voltages–typically 0.2V–to maintain uniform signal thresholds. Identify the base resistances for each unit; standard values range between 10kΩ and 47kΩ, balancing switching speed against power dissipation. Place the first component so its collector connects directly to the supply line–commonly 5V–while its emitter ties to the second unit’s collector. This cascading arrangement ensures output drops low only when both inputs receive high signals.

Wire input signals through current-limiting resistors to each base terminal. For 5V logic, 1kΩ resistors prevent excessive base current, prolonging component lifespan while allowing rapid transitions. Ground the emitter of the final unit through a pull-down resistor–220Ω to 1kΩ–establishing a defined output state when neither input activates. Test each stage incrementally: apply voltage to one input at a time, verifying the output remains low until both signals exceed the base-emitter forward drop of ~0.65V.

Optimize switching performance by minimizing stray capacitance–keep leads under 10mm and avoid breadboards for high-frequency applications. Use the table below to select resistor values based on desired input and output impedance:

Supply Voltage (V)	Base Resistor (kΩ)	Pull-Down Resistor (Ω)	Output Rise Time (ns)
3.3	15	330	18
5.0	22	470	12
12.0	47	1000	8

Finalize the build by decoupling the supply with a 0.1µF ceramic capacitor–positioned within 5mm of the collector leads–to suppress voltage spikes. Confirm functionality with a logic probe: both inputs must register high for the output to transition to the supply rail, replicating the behavior of a dual-input coincidence detector.

Selecting Precise Resistor Values for BJT Switching Efficiency

Begin by determining the base resistor (R_B) using the formula: R_B = (V_CC – V_BE) / I_B. For a typical silicon BJT, assume V_BE = 0.7V at saturation. If the supply voltage (V_CC) is 5V and the required base current (I_B) is 0.5mA, the calculation yields R_B = (5V – 0.7V) / 0.0005A ≈ 8.6kΩ. Round to the nearest standard value, 8.2kΩ or 10kΩ, ensuring reliable saturation without excessive current. Avoid exceeding the transistor’s maximum base current (I_B(max)), typically 5-10mA for small-signal devices, to prevent damage.

• For collector resistor (R_C), use R_C = V_CC / I_C(sat) where I_C(sat) is the desired saturation current. If V_CC = 5V and I_C(sat) = 1mA, R_C = 5V / 0.001A = 5kΩ. Select 4.7kΩ or 5.1kΩ for standard tolerance.
• Verify the saturation condition: I_B ≥ I_C(sat) / h_FE. For a BJT with h_FE = 100, I_B ≥ 1mA / 100 = 10µA. The earlier 0.5mA base current exceeds this, ensuring hard saturation.
• Temperature effects: Increase R_B by 20-30% if operating above 50°C to account for reduced V_BE (~2mV/°C).
• Noise immunity: Keep R_B below 100kΩ to minimize susceptibility to EMI in switching applications.
• Power dissipation: Ensure resistors handle P = I²R. For R_C = 4.7kΩ and I_C = 1mA, P = (0.001)² × 4700 ≈ 4.7mW, well within 1/4W resistor limits.

Verifying Signal Levels at Critical Junctions in a Logic Configuration

Attach a multimeter set to DC voltage mode across the collector-emitter path of the semiconductor switch responsible for output. Expect 0.2V or lower when both inputs register high (typically above 3.5V for 5V systems)–this confirms saturation. If readings exceed 0.7V, inspect base resistor values (4.7kΩ–10kΩ standard) and ensure input voltages meet minimum thresholds (V_IL=0.8V, V_IH=2.0V for TTL compatibility). For CMOS alternatives, verify input high at >70% of supply voltage (3.5V+ for 5V logic) to prevent undefined states.

Oscilloscope Validation for Dynamic Behavior

• Probe the output node while toggling inputs with 1kHz square wave–risetime should be ≤100ns for clean transitions.
• Measure propagation delay (t_PLH, t_PHL): 15–25ns typical for silicon semiconductors at 5V.
• Check for overshoot (>10% of supply)–add a 100pF–1nF decoupling capacitor near the power rail if present.
• Confirm input-to-output voltage swing matches supply range (≥4.5V for 5V rail) to avoid partial conduction.

1. Test V_CE(sat) at output: Desolder the load resistor if readings exceed 0.4V–this indicates insufficient base drive.
2. For open-collector outputs, verify pull-up resistor (1kΩ–4.7kΩ) pulls output to ≥4.8V when inactive.
3. Log transient response with a 10× probe to detect ringing; reduce input rise time () if edges appear degraded.
