Anatomical Schematics of Canine Body Views Front and Back

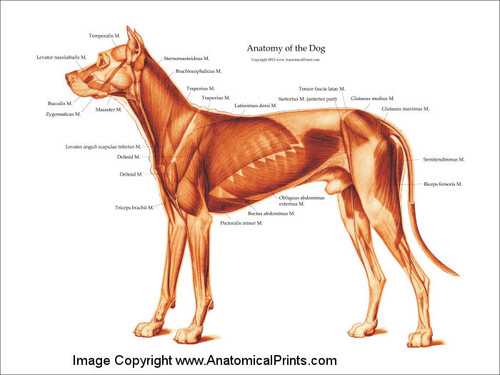

Begin by locating primary muscle groups for accurate depiction: the trapezius spans the upper back, while latissimus dorsi fans across the midsection. Chest musculature–pectoralis major and minor–anchors at the sternum, forming a distinct V-shape when viewed from the front. Hindquarters require precise articulation of gluteal and hamstring clusters, ensuring correct attachment at the pelvis and femur.
Skeletal landmarks establish proportion: the scapula tilts at a 30–45° angle from the spine, while the humerus connects via a shallow ball-and-socket joint. Pelvic orientation–ilium, ischium, and pubis–must align with the sacrum to prevent distortion. Ribcage curvature follows a conical structure, narrowing toward the xiphoid process.

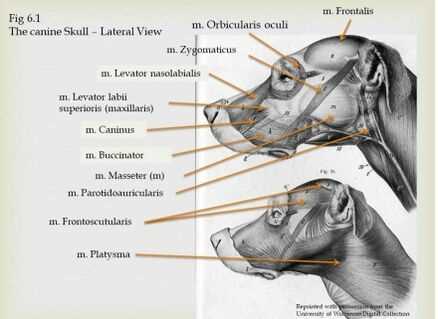

Surface anatomy dictates visual depth: temporalis muscle defines the skull’s contour along the sagittal crest, while masseter thickens at the jawline. Limb proportions differ between breeds–Greyhounds exhibit elongated metacarpals, whereas Bulldogs show shortened, robust bones. Fur direction cues enhance realism: dorsal guard hairs angle caudally, while ventral fur lies flatter.
Vascular patterns simplify with key reference points: the jugular vein traces along the neck’s midline, bifurcating near the clavicle. In the hindquarters, the femoral artery runs parallel to the femur, visible as a slight depression beneath the skin. Use a 4H pencil for initial skeletal outlines, switching to 2B for muscle definition.
Visual Representation of Canine Anatomy: Front and Back Views
Begin by outlining key anatomical landmarks on both the cranial and caudal perspectives of a canine model. Prioritize structures critical for veterinary diagnostics:
- Cranial view: Jaw alignment, orbital cavities, nasal septum, zygomatic arches, and mandibular lymph nodes. Include measurements (e.g., interorbital width: ~3–5 cm in medium breeds).
- Caudal view: Thoracic vertebrae (T1–T13), scapular spine, costal margins, and iliac crests. Note palpable landmarks like the 13th rib (~2 cm cranial to L1).
Use distinct colors for muscle groups (e.g., red for superficial pectorals, blue for latissimus dorsi) and bony prominences (black for spine, gray for ribs). Label every element with abbreviations (e.g., “PM” for pectoralis major) to avoid clutter.
Critical Proportions for Clinical Reference
Standardize scale based on breed categories:
- Toy breeds (e.g., Chihuahua): 1:1.5 ratio for skull length to body length.
- Working breeds (e.g., German Shepherd): Equal head/body proportions; sternum-to-pelvis axis ~70% of total length.
- Giant breeds (e.g., Great Dane): Elongated torso; scapula-to-tailbase span ~2× cranial height.
For surgical planning, mark incision zones (e.g., linea alba on the ventral midline at 2/3 distance from xiphoid to pubis) with dashed lines. Add depth markers (e.g., “~4 cm” for abdominal wall thickness in Labradors).
Separate vascular/nervous pathways from skeletal/muscular systems in layered overlays. For the cranial perspective, highlight:
- Carotid artery (medial to jugular vein; palpable pulse ~1 cm caudal to mandibular angle).
- Facial nerve branches (mandibular, buccal; avoid during mass removal near zygomatic arch).
Caudal views require emphasis on lumbar plexus (L4–L6 roots; landmarks for epidural anesthesia) and caudal vena cava (runs parallel to aorta, ~1 cm left of midline).
Error Prevention in Anatomical Depiction
Validate placements using breed-specific atlases. Common pitfalls:
- Misaligning the patella (should sit ~1 cm proximal to tibial crest; 15° flexion angle).
- Overlapping scapular spine with T3–T5 vertebrae (space ~0.5 cm in adults).
- Incorrect sternal angle (manubrium-to-xiphoid axis should incline 20–30° cranially).
For digital tools, cross-reference with 3D scans (e.g., Vet-Anatomy app). Use grid lines for symmetry checks–skull width at zygomatic arches should equal pelvic inlet width (±10%).
Critical Reference Points on the Frontal Canine Silhouette
Inspect the thoracic inlet first–this triangular depression at the base of the neck marks the transition between neck musculature and the ribcage. Palpate the manubrium, a firm ridge beneath the skin, to confirm sternocephalicus muscle insertion points before examining adjacent lymph nodes. Avoid mistaking superficial veins here for deeper structures; apply gentle pressure to distinguish pulsation from distension.
Locate the point of the shoulder along the cranial edge of the scapula’s spine. This landmark serves as the origin for the brachiocephalicus muscle, which bifurcates into distinct cleidobrachialis and cleidocephalicus components. Misidentification risks confusing it with the deltoid tuberosity further distally; trace the humerus caudally to verify.
Follow the humeral shaft to its distal third where the medial epicondyle protrudes sharply–critical for flexor tendon attachment. Use this prominence to orient incisions in laceration repairs; adjacent neurovascular bundles demand careful dissection. The lateral epicondyle, though less pronounced, anchors the extensor carpi radialis; confirm its position relative to the olecranon process.
Carpal and Metacarpal Orientations
Assess the accessory carpal bone as a pivot for wrist extension. Its palpable hook guides identification of the ulnar nerve’s dorsal branch; entrapment here manifests as subtle forelimb weakness. Distal to this, the metacarpal pad’s central groove often conceals foreign bodies–inspect with a probe rather than forceps to avoid tissue trauma.
The cephalic vein’s path from the dorsum of the paw to the thoracic inlet requires memorization for venipuncture. Trace it between the extensor carpi radialis and common digital extensor tendons, noting its vulnerability near the distal radius–tourniquets applied here must avoid compression exceeding 90 seconds to prevent endothelial damage. Map adjacent structures: the radial nerve lies deep to the vein, while the median nerve stays medial.
Examine the costal arch by counting ribs cranially from the thirteenth–the last floating rib often terminates subcutaneously, useful for intercostal block placement. Misinterpretation here risks pleural penetration; use a 25-gauge needle angled perpendicular to the rib’s caudal border. The xiphoid process, though cartilaginous, anchors linea alba sutures, but its variability demands mid-abdominal confirmation via tension tests.
Musculocutaneous Junctions and Vascular Access
Identify the omobrachial vein coursing obliquely across the shoulder’s lateral face–target this for indwelling catheters in small breeds. Its trajectory mirrors the cephalic’s but lacks valves, simplifying flushing. For arterial sampling, the superficial brachial artery branches near the elbow; occlude with fingertip pressure rather than occlusive bands to prevent hematoma formation. Always verify pulsatility before needle insertion.
Step-by-Step Guide to Sketching the Rear Canine Skeleton
Begin with the pelvic girdle: draw two symmetrical, slightly curved iliac blades angled toward the midline. Mark the acetabulum as a shallow cup where the femur articulates–position it one-third below the iliac crest. The ischium extends downward in a hook-like shape, while the pubis forms a thinner bridge connecting the two halves. Use light strokes to define the obturator foramen as an oval gap between the ischium and pubis.
Proportions and Landmarks
| Bone | Key Landmark | Measurement Ratio (relative to spine length) |
|---|---|---|
| Femur | Greater trochanter (lateral protrusion) | 30% |
| Tibia | Medial malleolus (inner ankle) | 25% |
| Calcaneus | Tuber calcanei (heel bulge) | 8% |

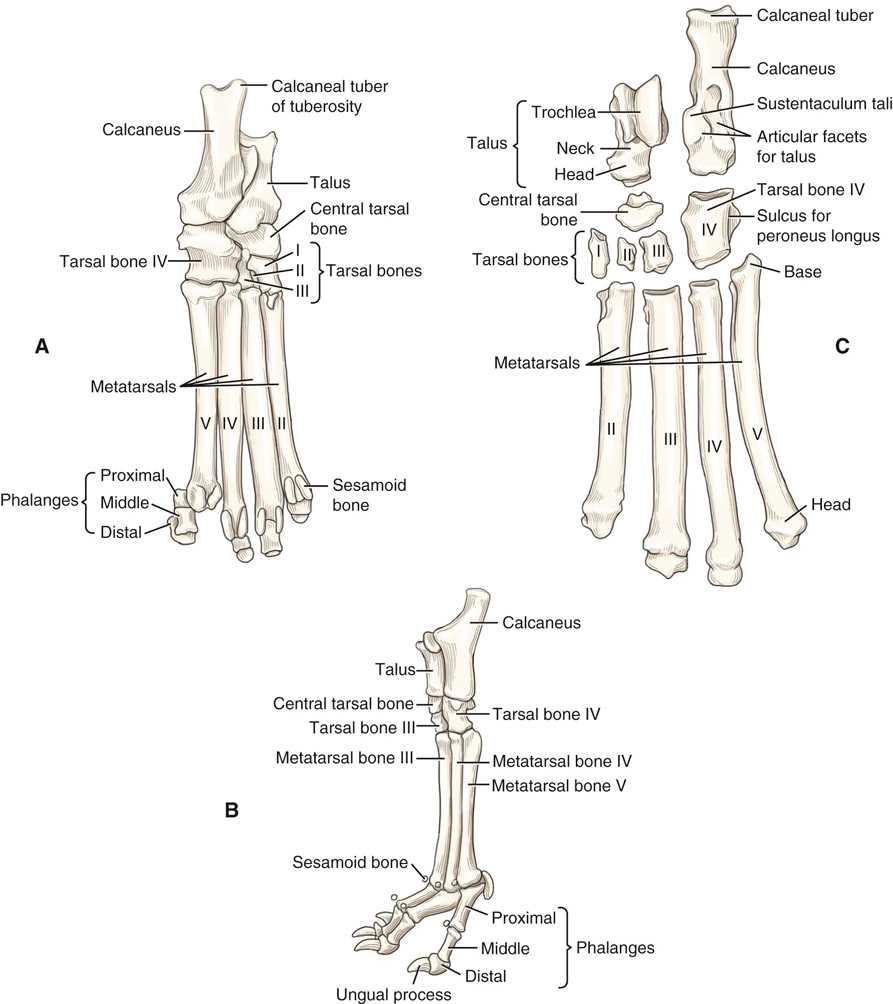

Locate the femur’s head within the acetabulum; draw its neck at a 30-degree angle from the shaft. The shaft should narrow slightly before flaring into the medial and lateral condyles at the knee. For the tibia, position the tibial tuberosity prominently below the patella–this anchors the quadriceps. Extend the fibula as a thin, parallel rod half the tibia’s width. The tarsus consists of seven bones: stack three (talus, calcaneus, central tarsal) with the calcaneus jutting backward as the base for the Achilles tendon. Metatarsals II–V diverge from the central tarsal; digit I, if present, attaches higher on the metatarsal pad.
Refinement and Anatomical Accuracy
Define joints with precise gaps: 1–2mm between femoral condyles and tibial plateau, 0.5mm at tarsal articulations. Shade the popliteal notch as a concave curve beneath the knee. Highlight the sustentaculum tali–a medial shelf on the calcaneus supporting the talus. Cross-reference skeletal photos at each stage; discrepancies often appear in rotational misalignments of the femur or uneven metatarsal spacing. Erase construction lines after verifying proportions, leaving only structural outlines and key features.
Locating Key Muscle Clusters in Canine Front Body Illustrations
Begin by isolating the brachial muscles–the biceps brachii and triceps–visible near the humerus. These groups dictate limb flexion and extension, forming a V-shape from the shoulder joint to the elbow. Measure their width relative to the ribcage; a ratio exceeding 40% signals well-developed thoracic support. Trace the pectoral superficialis along the sternum, noting its attachment points on ribs 1–6 for proper tension mapping.
Deep Muscle Differentiation
Focus on the serratus ventralis beneath the scapula, distinguishing its fan-like fibers from the latissimus dorsi’s broader insertion. Palpate the cervical portion where it merges with the rhomboid for stability assessment. Use color-coded overlays to separate flexors (orange) from extensors (blue) in diagrams–this distinguishes functional zones critical for gait analysis. Verify sternomastoid visibility; absent delineation may indicate poor conditioning or anatomical variation.
