Best Arduino Circuit Design Tools and Schematic Software Options

For rapid development of embedded system layouts, Fritzing remains the most intuitive choice, offering drag-and-drop components that mirror physical breadboard setups. Its open-source nature removes licensing barriers, while the built-in PCB design module accelerates transition from prototype to final board. Preloaded libraries cover 90% of common sensors and modules, eliminating external searches. Export options include PDF, SVG, and gerber files–critical for direct fabrication.

KiCad outperforms alternatives in professional environments where signal integrity and multi-layer boards are required. The integrated schematic editor, SPICE simulator, and 3D viewer provide real-time validation of electrical and mechanical constraints. Unlike competitors, KiCad enforces strict design rule checks, reducing post-production errors by up to 40%. Its scripting capabilities allow automated adjustments across hundreds of nets, a feature absent in simplified tools.

Proteus VSM delivers hardware-in-loop simulation, executing firmware directly on virtual prototypes before physical assembly. This cuts debugging time by simulating timing-critical scenarios like interrupt latency or ADC noise. Paired with its AVR/ARM models, developers test code efficiency alongside layout decisions–a workflow lacking in static diagram tools. Note that industrial-grade simulation demands significant CPU resources for complex designs.

For minimalists prioritizing speed over detail, Tinkercad Circuits runs in-browser without installations, offering instant virtual testing of code against a simplified model. While lacking SPICE analysis, its integration with Arduino IDE lets users flash firmware to the simulated MCU, validating logic within minutes. Teams working on educational or low-density projects benefit from zero setup overhead.

Select based on project phase: Fritzing for conceptual layouts, KiCad for production-grade designs, and Proteus when firmware and hardware interdependencies must be rigorously tested. Avoid tools limiting export formats or requiring proprietary plugins–compatibility issues cascade during handoffs to fabrication partners.

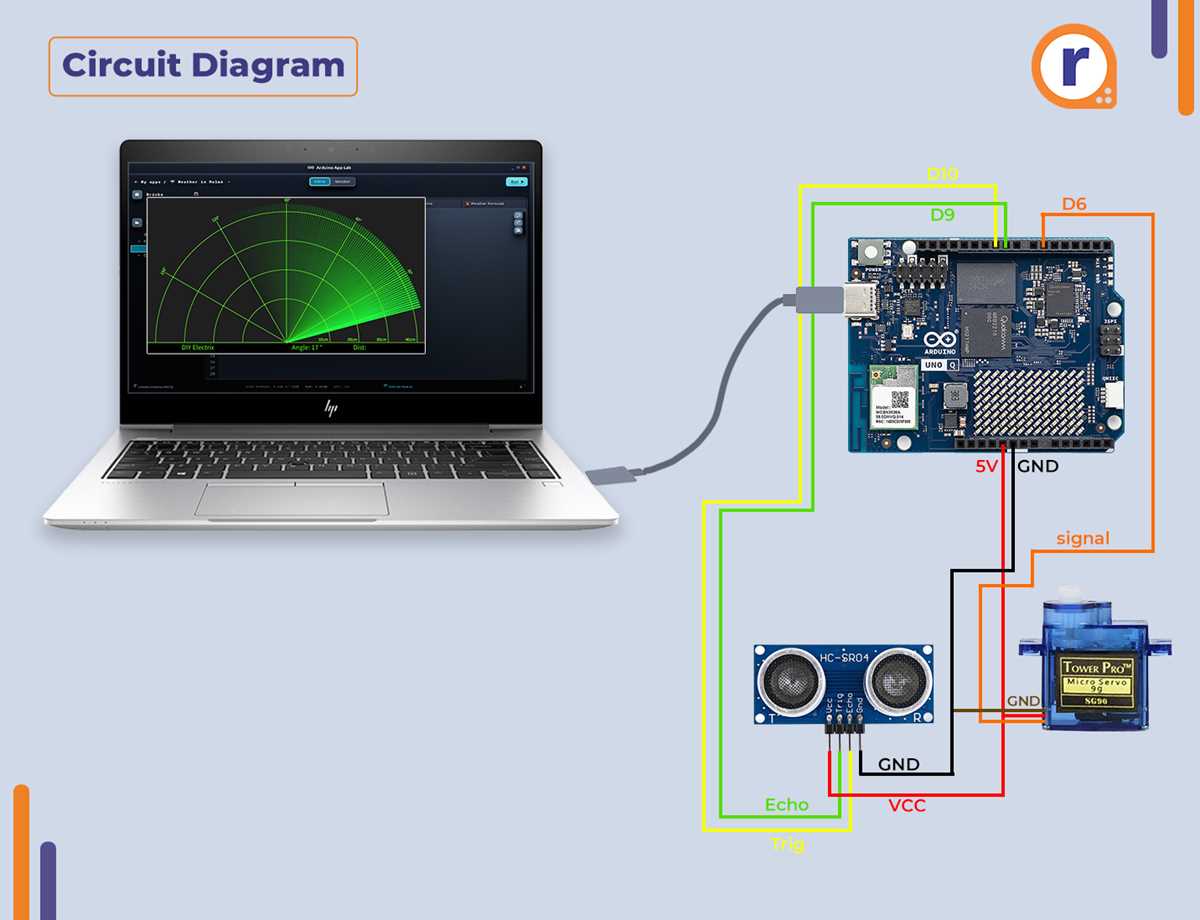

Tools for Sketching Microcontroller Pinouts and Schematics

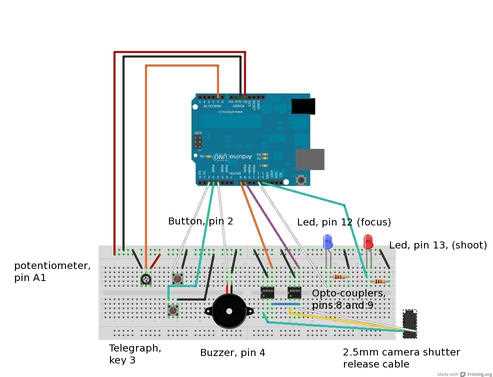

Fritzing remains the go-to choice for builders needing to document breadboard prototypes alongside PCB layouts and wiring plans in a single project file. Its drag-and-drop interface imports a vast library of pre-drawn components–over 1,200 modules–including AVR-based boards, sensors, and actuators, all scaled to exact manufacturer specifications. Export options support SVG, PDF, and Gerber formats, ensuring seamless handoff to fabrication services. Note that the latest stable release (0.9.10) requires manual library updates; newer parts can be downloaded separately from community repositories.

For precision-focused engineers, KiCad delivers schematic capture tightly integrated with PCB design tools, eliminating translation errors between stages. The Eeschema editor natively handles hierarchical sheets, bus connections, and electrical rule checks, flagging unconnected nets or conflicting power domains before layout begins. Version 8.0 introduced real-time netlist preview, dramatically reducing debugging time. Libraries ship with verified symbols and footprints for popular microcontroller development kits, though custom parts demand strict adherence to the KiCad library format.

Autodesk Eagle excels in environments where schematic clarity and manufacturing readiness are paramount. The schematic editor enforces grid snap and alignment features, producing clean, publication-ready diagrams. Scripting support via ULPs automates repetitive tasks, such as generating BOMs or renumbering components. Paid tiers include access to Autodesk’s Fusion 360 ecosystem, enabling mechanical integration; however, the free version restricts board size to 80 cm², sufficient for most development kit derivatives.

Diagrams.net (formerly draw.io) offers a browser-based solution ideal for collaborative teams needing rapid schematic sketches without installation overhead. XML-based files store directly in cloud services–Google Drive, OneDrive, or Dropbox–enabling version control via Git. While lacking native microcontroller-specific parts, its extensive shape library accepts SVG imports, allowing builders to create custom stencils for recurring symbols. Integrations with VS Code and Confluence streamline documentation workflows, particularly in open-source projects.

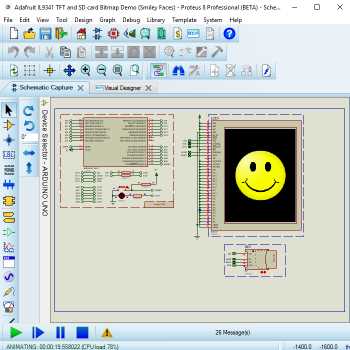

For advanced users requiring simulation alongside schematic entry, Proteus VSM provides SPICE-based modeling of actuators, displays, and communication buses. The ISIS design environment validates firmware behavior by linking code execution (via built-in compiler toolchains) to virtual hardware, identifying race conditions or timing issues before physical prototyping. Note that Proteus does not support all microcontroller variants; compatibility lists must be consulted prior to purchasing licenses, which scale with feature complexity.

Tinkercad targets educators and hobbyists with a simplified 3D breadboard editor that generates rudimentary schematics from virtual prototypes. Though limited to passive components and basic ICs, its sandbox mode allows students to visualize circuit behavior through real-time voltage and current measurements. Projects export to Fritzing-compatible formats, bridging the gap between conceptualization and detailed documentation. The lack of advanced annotation tools, however, requires manual adjustments for professional deliverables.

EasyEDA merges schematic capture, PCB layout, and fabrication ordering into a single web application. Cloud-based libraries synchronize across devices, and team members can co-edit projects in real time. The platform’s simulation engine relies on ngspice, offering transient analysis and frequency plots. While the free tier imposes minor restrictions on layer counts, export options include Altium Designer-compatible files, easing transitions for contractors working across tools.

QElectroTech stands out for its open-source commitment and focus on industrial automation diagrams beyond microcontroller circuits. The schematic editor includes connector macros and PLC symbols, suiting projects with programmable relays or industrial sensors. Project files save in QET format, which can be converted to PDF or DXF for cross-team collaboration. Linux users benefit from native builds, though macOS and Windows versions occasionally lag in feature parity.

Best Free and Premium Tools for Electronics Blueprint Creation

KiCad stands out as the leading open-source solution for designing electronic layouts, offering a full suite of utilities without hidden costs. Its schematic capture module supports hierarchical designs, SPICE simulations, and seamless PCB transition, making it ideal for both prototypes and complex projects. The built-in symbol and footprint libraries accelerate workflows, while active community contributions ensure frequent updates with modern components. For advanced users, the 3D viewer and interactive router enhance precision, though the learning curve may require initial dedication.

Paid alternatives deliver specialized features for professionals needing refined control:

• Altium Designer – Dominates professional-grade projects with cloud collaboration, real-time error checking, and a unified design environment. Automated documentation and supply chain integration reduce development cycles for commercial products.
• DipTrace – Balances affordability with intuitive tools, including auto-routing, multi-sheet schemes, and a native 3D preview. Its component editor simplifies custom part creation, appealing to educators and small teams.
• EasyEDA – Browser-based editor with cloud storage and teamwork features. Direct ordering from built-in suppliers streamlines turnkey fabrication, while the free tier serves hobbyists without feature limitations.
• Proteus – Unique for its hardware-in-loop simulation, allowing virtual testing of microcontroller code against schematic models. The premium version includes co-simulation with firmware debugging.
• OrCAD – Preferred in aerospace and medical device development for its rigorous analysis tools (thermal, signal integrity) and enterprise-level data management.

Each tool’s pricing scales with functionality, from DipTrace’s $95 entry license to Altium’s $3,500 annual subscription, catering to distinct budget and project demands.

How to Select the Right Tool for Your Electronic Design Needs

Pick Tinkercad if your focus is rapid prototyping or educational exploration. Its web-based interface eliminates installation hassles, and the drag-and-drop system lets you assemble layouts in under 10 minutes. The built-in simulator runs basic code tests instantly, making it ideal for beginners or quick concept validation. However, note its limited component library and lack of export options for professional fabrication.

Opt for Fritzing when documentation or quick schematics are your priority. It bridges hobbyist-friendly visualization with basic PCB layout capabilities. The breadboard view mimics real-world wiring, reducing errors during physical assembly. While its schematic editor is simpler than KiCad’s, it generates clean visuals for project documentation or tutorials. Be aware that Fritzing’s development has slowed, and advanced users may hit limitations with complex multi-layer designs.

Choose KiCad for full-scale PCB development. It handles high-pin-count components like FPGAs or microcontrollers with BGA packages without stability issues. The toolchain includes a powerful schematic editor, footprint editor, and Gerber file generation–all essential for professional manufacturing. The learning curve steepens for newcomers, but extensive community resources (including libraries with over 20,000 pre-made footprints) accelerate mastery.

For long-term projects requiring version control, KiCad’s integration with Git outperforms both alternatives. Fritzing’s binary file format complicates collaborative edits, while Tinkercad’s cloud dependency risks data loss if the service changes. KiCad’s text-based file formats enable granular change tracking, which is critical for teams or iterative development.

Evaluate your project’s output needs against these constraints:

Feature	Tinkercad	Fritzing	KiCad
Simulation	✔ (Basic)	✖	✔ (External tools only)
PCB Export	✖	✔ (Limited)	✔ (Full Gerber support)
3D Visualization	✔	✔ (Basic)	✔ (Advanced)
Multi-Layer Boards	✖	✖	✔ (Up to 32 layers)
Library Scope	~500 items	~800 items	20,000+ items

Critical projects with tight deadlines benefit from Fritzing’s simplicity, but KiCad’s thorough DFM (Design for Manufacturability) checks prevent costly revisions. For example, KiCad’s DRC (Design Rule Check) identifies clearance violations down to 0.1mm, while Fritzing’s checks are minimal. Tinkercad’s absence of these checks makes it unsuitable for production work.

Budget constraints may influence your choice. Tinkercad is free and cloud-based, requiring no local resources. Fritzing’s one-time purchase (~€8) offers offline use, but lacks premium support. KiCad is open-source, but advanced workflows may need paid plugins like SnapEDA for expanded libraries. Consider these trade-offs based on your project’s scale and tolerance for manual adjustments.
