Arduino Uno Circuit Layout Full Schematic and Wiring Guide Explained

Start with the ATmega328P as the core component–its 28-pin PDIP package simplifies hand-soldering. Connect pins 7 (VCC) and 20 (AVCC) to a 5V regulated supply, adding a 0.1µF decoupling capacitor close to each pin. Ground pins 8 (GND) and 22 (AGND) directly to the power rail, ensuring no shared traces with high-current paths.

For the 16 MHz crystal oscillator, use a parallel circuit with two 22pF load capacitors tied to ground. Place the crystal and caps within 5mm of pins 9 (XTAL1) and 10 (XTAL2) to minimize noise. Avoid long traces–this directly impacts clock stability and startup reliability.

Implement power regulation with an AMS1117-5.0 or equivalent LDO. Input voltage should be 7–12V, filtered with a 47µF electrolytic capacitor at the input and a 10µF tantalum at the output. Add reverse-polarity protection using a P-channel MOSFET (e.g., AO3401A) immediately after the DC jack to prevent backflow damage.

The USB-to-serial converter (use an CH340G or FT232RL) requires careful grounding. Isolate digital and analog grounds via a single-point star connection near the microcontroller. Route USB D+ and D- traces with controlled impedance (90Ω differential pairs) and keep them shorter than 5cm to avoid signal integrity issues.

For bootloader compatibility, link pin 1 (PC6/RESET) to a 10kΩ pull-up resistor and a momentary switch to ground. Include a 0.1µF capacitor across the switch to debounce signals. If using ICSP, route MISO, MOSI, SCK, and RESET to a 6-pin header with 10kΩ pull-ups on MISO and SCK.

Label all components with clear silkscreen markings–include polarity indicators for diodes, capacitors, and LEDs. Test continuity before powering on, and verify no short circuits exist between adjacent pins (common failure point). Use a thermal camera or voltage drop check to confirm solder joints are reliable under load.

Understanding the Reference Design of the Genuino Development Board

Download the official reference files directly from the manufacturer’s repository. The PDF labeled “R3” includes pin assignments, power domains, and component values–critical for reverse-engineering or modifying the circuit. Verify the revision number: newer prints may adjust decoupling capacitors or reset circuitry.

Examine the microcontroller footprint first. The TQFP-44 package mappings reveal ATMEGA328P pins for analog inputs (A0–A5), PWM outputs (D3, D5, D6, D9–D11), and serial interfaces (D0/D1 as UART). Trace these to the corresponding headers; discrepancies here often cause silent failures in custom shields.

Critical Power Distribution Paths

Locate the 5V and 3.3V regulators. The NCP1117DT33T (3.3V) and AP2112K-5.0 (5V) handle input voltages between 7–12V via the barrel jack. Observe the placement of 0.1μF decoupling capacitors near each VCC pin–omitting these risks erratic ADC readings or brownouts under load.

Follow the USB-to-serial converter. The CH340G or equivalent interfaces with the MCU via D0/D1. Ensure TX/RX lines include 27Ω series resistors; removing them accelerates signal reflections, corrupting firmware uploads. The auto-reset circuit (10μF capacitor plus 10kΩ pull-up) triggers the bootloader–modifying these values can prevent timely entry into programming mode.

Identify exposed test points. The reference layout marks TP1–TP4 for ICSP, VBAT, and AREF–useful for debugging without header access. Probe VBAT directly to monitor sleep current; stray leakage here drains coin cell backups in battery-powered projects.

Component Substitution Pitfalls

Replace the onboard LED resistors (220Ω nominal) with 470Ω variants to reduce current below 5mA–extended illumination shortens LED lifespan. Swapping the ceramic resonator (16MHz) for a crystal requires adding 22pF load capacitors; mismatched values introduce clock skew, causing serial communication dropouts. Always cross-reference datasheets for alternate ICs (e.g., ATMEGA168/328PB): pin 22 (PD7) on the 328PB lacks ADC functionality present in the 328P.

Finding and Obtaining the Authentic Reference Blueprint for Your Development Board

Visit the manufacturer’s primary product documentation repository at https://store.arduino.cc/pages/guide. Select the hardware variant matching the ATmega328P-based module you own from the left navigation panel. The reference files are organized under “Technical Documentation” sub-section.

Direct downloads are hosted on GitHub under the ArduinoCore-avr repository. Navigate to the “/hardware/avr/boards” folder where the electrical layout files reside in EAGLE format. Filenames follow the pattern board-name-reference.brd and board-name-reference.sch.

Using the Official IDE File Browser

Launch the integrated development environment. Open “File” → “Examples” → “01.Basics” → “BareMinimum”. Click “Tools” → “Board” → select the appropriate entry from the list, then “Tools” → “Get Board Info”. The popup displays a hyperlink labeled “More Info” directing to a webpage containing all engineering documents.

Search the printed circuit board itself for a QR code near the USB connector. Scan it with any standard reader to load an official page listing manufacturing data, including high-resolution layout scans. These images show actual copper traces, enabling component placement verification.

Alternative Source Verification Methods

• Check the packaging box’s rear for a tiny URL starting with docs.*.com/board-xxx
• Inspect the receipt email for attachments labeled design-files.zip
• Visit distributor websites (Digi-Key, Mouser) and filter product listings by “schematics available”

Ensure downloaded files have correct checksums published on the manufacturer’s firmware repository commit logs. Valid SHA-256 hashes for recent revisions are listed in each release notes file named RELEASENOTES.md. Compare against local copies using terminal commands sha256sum filename.brd.

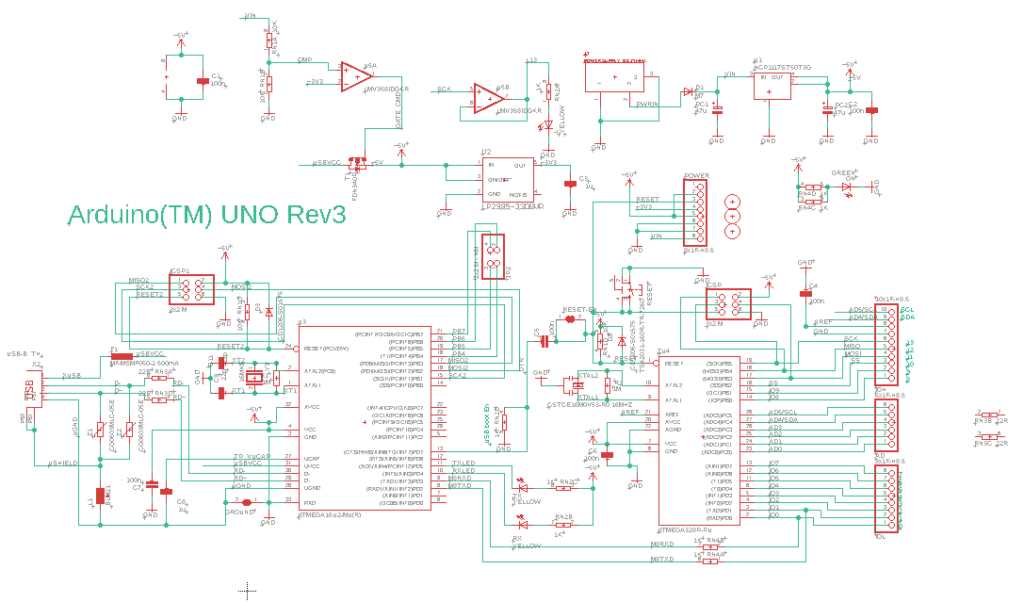

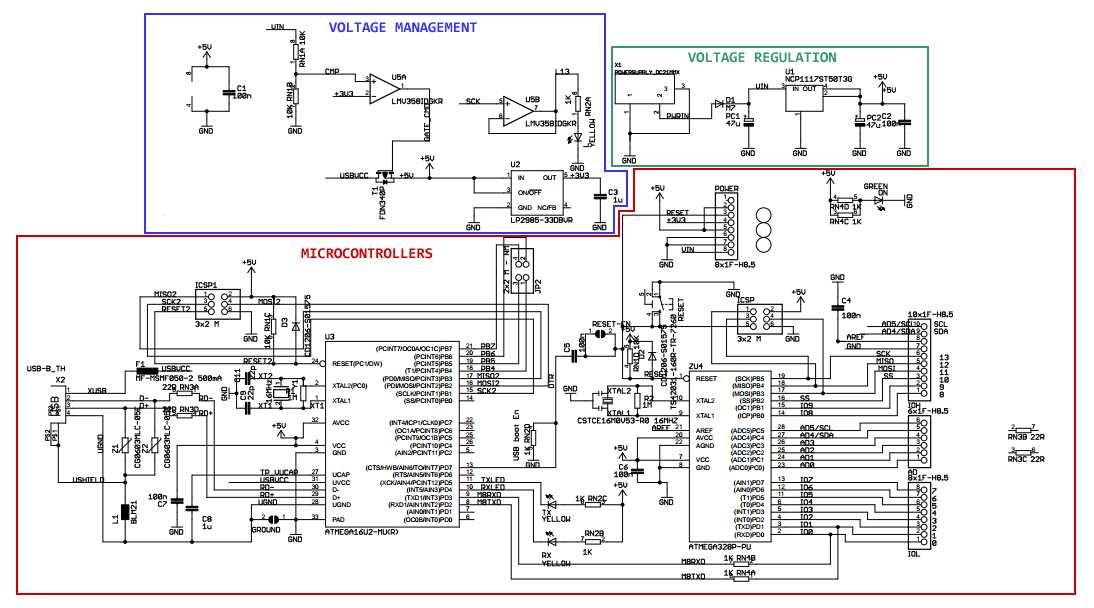

Key Components Identified in the Reference Board Circuit Layout

Begin by verifying the microcontroller unit (MCU) – an ATmega328P in TQFP-32 or PDIP-28 package – as it dictates power requirements, clock signals, and I/O mapping. Check the crystal oscillator circuit (16 MHz) with paired 22 pF load capacitors, ensuring stable clock synchronization for serial communication and PWM generation. Power regulation stages must include an NCP1117 (5V) or MIC5205 (3.3V) LDO, with input capacitors (10 µF) and output capacitors (1 µF) placed within 1 cm of the regulator pins to prevent voltage spikes.

Component	Critical Parameters	Recommended Values/Configuration
Reset Circuit	Debounce timing, pull-up resistance	10 kΩ pull-up resistor, 0.1 µF decoupling capacitor
USB-to-Serial Converter (ATmega16U2)	Firmware version, DFU mode stability	Pre-flashed firmware v1.0.6+, 22 Ω series resistors on D+/D- lines
Digital I/O Protection	Clamping diodes, current limiting	1N4148 diodes, 220 Ω series resistors for high-current loads

Always isolate analog reference (AREF) and power rails (VCC/AVCC) with 10 µF tantalum capacitors to minimize noise. Test the bootloader jumper pads (ICSP header) for proper fuse settings (EXTENDED: 0xFD, HIGH: 0xDA, LOW: 0xFF) to avoid UART communication failures.

Step-by-Step Guide to Reading an Open-Source Microcontroller Board Circuit Layout

Locate the power input section immediately–this is typically marked by a barrel jack connector and labeled VIN or DC IN. Confirm voltage ratings (7–12V) and trace the path to the onboard regulator, usually an NCP1117 or similar linear stabilizer. Note capacitor placements (C1: 47µF, C2: 10µF) for filtering; mismatched values here can cause instability. Verify ground connections merge into a single plane to minimize noise.

Examine the microcontroller unit (MCU) footprint–ATmega328P in most revisions. Pin numbering follows TQFP-32 standard: odd pins on the left/top, evens on the right/bottom. Key pins to identify:

• PC6 (RESET) – tied to a pull-up resistor (R1: 10kΩ) and a reset button.
• PB5 (SCK), PB4 (MISO), PB3 (MOSI) – SPI interface, often paired with a 6-pin header.
• PD0, PD1 – hardware UART; check for series resistors (R2: 1kΩ) if USB-to-serial converter is onboard.

Cross-reference datasheet timing diagrams for clock network components (X1: 16MHz crystal with C3, C4: 22pF loading capacitors).

Decoding Peripheral Connections

Trace LED indicators first–they simplify debugging. A user-programmable LED typically connects to PB5 (D13) via a current-limiting resistor (220Ω). Power-on LED (D1) is usually tied to 5V rail through 470Ω resistor. USB interface IC (ATmega16U2 or CH340) handles serial conversion; note the 1kΩ series resistors on data lines (D+/D–) to prevent contention.

Check voltage dividers for analog reference:

1. AREF accepts external reference (0–5V); verify no accidental shorts to adjacent headers.
2. IOREF duplicates logic level (default 5V) for shield compatibility.
3. 3.3V regulator (AMS1117 or equivalent) powers low-voltage peripherals–confirm 200mA max current rating.

Review ESD protection diodes (D2, D3) on I/O pins; they must clamp to VCC/GND without forward biasing under normal operation. Validate footprints of passives–resistors are typically 0402/0603 SMD, while capacitors use 0805 or larger for bulk storage.

Common Modifications Based on the ATmega328P Development Board Reference Design

Replace the linear regulator with an efficient switching buck converter like the MP2307DN to reduce thermal dissipation in battery-powered projects. The default 5V LDO wastes ~40% of input energy when powered from a 9V source, while the MP2307DN achieves >90% efficiency with minimal external components–just a 4.7µH inductor, 10µF input/output capacitors, and two resistors for voltage adjustment.

Swap the standard 16MHz crystal for a temperature-compensated oscillator module (TCXO) if timing stability below ±1ppm is required. The Abracon ASTX-H12 series, measuring 5×3.2mm, integrates compensation circuitry and eliminates the need for load capacitors, reducing PCB footprint while improving clock accuracy in environments with ±30°C temperature swings.

Add a dedicated I²C voltage level translator on SDA/SCL lines when interfacing with 3.3V peripherals. The TXS0104E from Texas Instruments handles bidirectional logic shifting without direction-control pins, supporting up to 40MHz bus speeds. Place 10kΩ pull-up resistors on both sides–2.2kΩ on the 3.3V side and 4.7kΩ on the 5V side–to balance rise times and sink current.

Power Distribution Optimization

Isolate analog and digital power rails by placing a ferrite bead (e.g., Murata BLM18PG121SN1L) between VCC and AVCC. Follow this with a separate 10µF tantalum capacitor on AVCC to suppress high-frequency noise from digital switching, improving ADC resolution from 10-bit to 11-bit in noisy environments when sampling signals below 10kHz.

Increase the bulk capacitance on the 5V rail to 470µF if driving motors or relays through the board. For transient response, add a 0.1µF ceramic capacitor in parallel with a 10µF tantalum capacitor at each load–this prevents voltage sag below 4.7V during 500mA current spikes, which otherwise trigger brownout resets.

Integrate a supercapacitor backup circuit using the LTC4040 charger IC to maintain RTC functionality during power loss. The device supports 1F supercapacitors charging at 85mA while providing a regulated 3.3V output during discharge, extending runtime for SRAM data retention to 48 hours with a 1F capacitor at 25°C.

Remove the USB-to-serial converter (e.g., ATmega16U2) and replace it with a CH340G module for cost-sensitive designs. The CH340G requires a 12MHz crystal, 22pF load capacitors, and a single 100nF decoupling capacitor–reducing BOM cost by 60% while maintaining compatibility with standard serial bootloaders and software tools.
