Complete Guide to Auto Air Conditioner Electrical Circuit Connections

Start by identifying the climate control module’s power source–typically a 12V feed from the vehicle’s fuse box, fused at 10-20A depending on model. Trace the red or yellow primary wire (usually 4-6 AWG) to its connection point on the module’s rear terminal block. If voltage drops below 11V under load, inspect the alternator output and battery health before proceeding. Most systems use a three-relay configuration: one for compressor clutch engagement, a second for condenser fan activation, and a third for cabin blower speed control.

Locate the evaporator temperature sensor–it’s a negative temperature coefficient (NTC) thermistor with a resistance range of 2.5kΩ at 0°C to 300Ω at 80°C. Validate sensor readings with a multimeter before suspecting the climate control ECU. A faulty sensor will trigger default “open circuit” errors, often logged as code B1421 or P0532 in OBD-II systems. For vehicles with dual-zone controls, expect two identical sensor circuits diverging at the dashboard harness connector (pin 7 and pin 12 on most Toyota/Lexus models).

High-pressure cut-off switches (normally closed) interrupt compressor operation at 320-350 psi. Test continuity at rest and under system pressure; a failed switch may weld shut, causing continuous clutch engagement or total shutdown. On vehicles with variable-displacement compressors (e.g., Honda’s VCM or GM’s V5), the control solenoid draws 0.7-1.2A at full duty cycle–verify PWM signal integrity with an oscilloscope rather than a standard voltmeter.

For rear auxiliary systems (common in SUVs), dedicating a separate 20A fuse and 16 AWG wire run is necessary. Mercedes-Benz models often integrate a SAM module (Signal Acquisition and Actuation Module) that handles both power distribution and CAN bus communication–replace it only after confirming no upstream wire chafing (common near the firewall grommet). Always disconnect the battery ground terminal for 10+ minutes after fuse removal to reset adaptive ECU parameters before retesting.

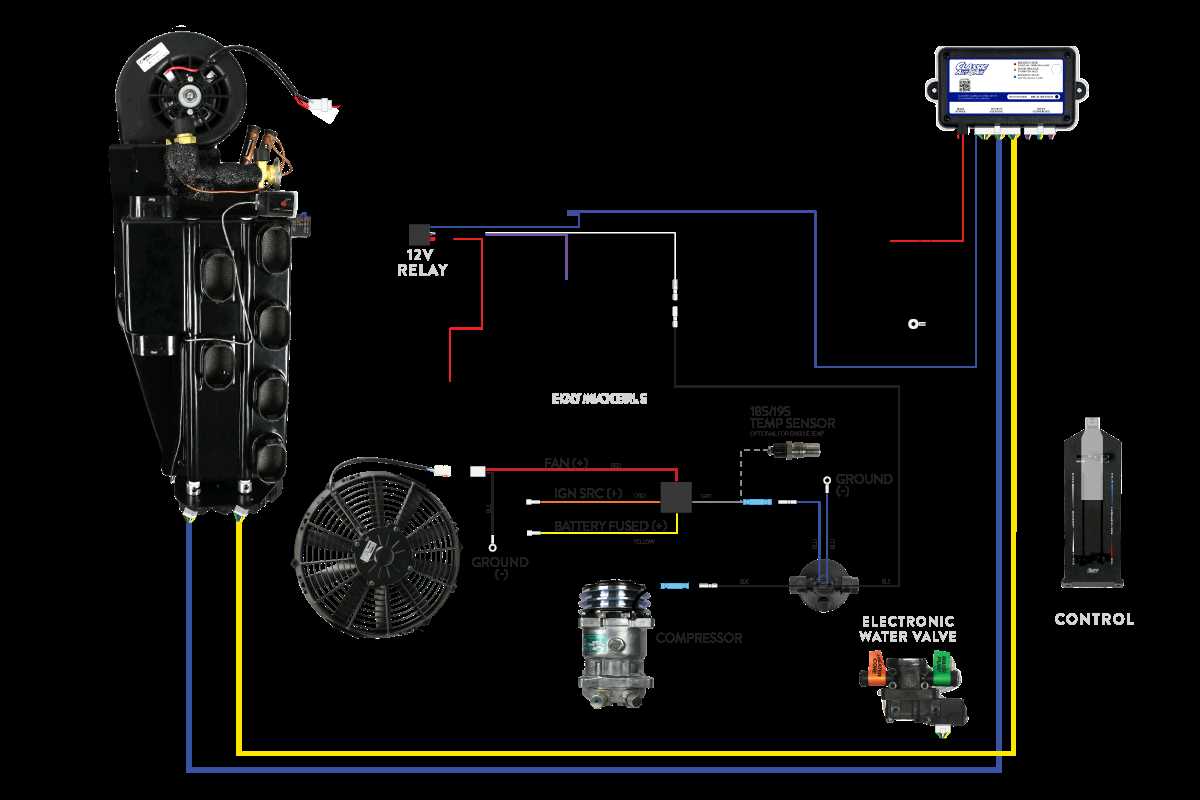

Vehicle Climate Control Electrical Layout Guide

Start by locating the compressor clutch relay in the fuse box–usually marked as “A/C Relay” or “Climate Relay.” Use a multimeter set to continuity mode to verify the relay’s coil and switch terminals. The standard pin layout for a 4-pin automotive relay is:

• Pin 85: Coil ground
• Pin 86: Coil power (switched 12V)
• Pin 30: Common input (battery voltage)
• Pin 87: Output to clutch

If the relay fails this test, replace it before proceeding–ignoring this will prevent engagement of the magnetic coil in the compressor pulley.

Trace the wiring from the relay’s Pin 87 to the pressure switch. This two-wire sensor (typically 2-3 ohms at room temperature) must register between 5-100 psi on both low and high sides before allowing current to flow. Bypass the switch temporarily with a jumper wire only for testing–never drive with it bypassed, as this risks catastrophic compressor damage from no lubricant circulation.

High-Voltage Circuit Protection

The thermal limiter (often a bimetallic strip or PTC resistor) sits inline between the relay and compressor clutch, usually near the accumulator or condenser. Measure resistance across its terminals: values above 0.5 ohms indicate failure. Replace the limiter if resistance is inconsistent–this component prevents clutch burnout during prolonged engagement.

Check the alternator’s output at the battery terminals while the system runs–voltage should hold steady between 13.8-14.4V. Drops below 13V during clutch engagement signal either a weak alternator or corroded grounds. Clean ground connections at the engine block and firewall with a wire brush, then apply dielectric grease to prevent oxidation.

Inspect the blower motor resistor block, typically mounted near the evaporator core. Use an ohmmeter across each resistor terminal and the common ground–readings should match the manufacturer’s spec (e.g., 1.2Ω, 2.0Ω, 3.5Ω for a 3-speed system). Deviations exceeding 10% mean the resistor is failing; overheating here often causes intermittent fan operation at higher speeds.

1. Disconnect the battery before servicing any high-current components.
2. Label all connectors during disassembly–reversing wires to the dual-pressure switch (low/high side) can trigger false cutouts.
3. Use heat-shrink tubing over splices instead of electrical tape to protect against moisture ingress.
4. Verify torque specs for compressor clutch bolts (typically 18-22 Nm) to prevent pulley wobble.

Key Elements of Vehicle Climate Control Electrical Infrastructure

Focus on the compressor clutch relay first–replace it immediately if voltage drops below 11.5V at the coil during activation. This component often fails silently, causing intermittent cooling loss without triggering dashboard warnings. Check the relay socket for corrosion; even minor oxidation can create 0.3-0.5V resistance, enough to prevent proper engagement.

The pressure cycle switch demands precise installation: orient it vertically (within 15° of vertical) on the high-side line to avoid false readings. Most OEMs specify 30-40 psi differential between cut-in (280-310 psi) and cut-out (170-210 psi) points. Exceeding this range by ±10% risks premature compressor wear. Use dielectric grease on connectors; silicone-based compounds degrade from refrigerant exposure.

Thermistors in the evaporator core require calibration against a known-good meter–expect resistance values between 2.2kΩ (0°C) and 500Ω (30°C). Drift beyond ±5% indicates replacement necessity. Temperature fluctuation speeds also matter: normal operation cycles 4-8 times per hour; faster cycling suggests low refrigerant charge or faulty expansion valve. Measure superheat (5-8°C) and subcooling (3-6°C) before condemning any component.

Critical Circuits and Fault Isolation

• Blower motor resistor packs fail in predictable patterns: high-speed mode operates normally while lower speeds drop out sequentially. Test for voltage drop across individual resistors–values should match manufacturer specs (typically 0.2-0.5Ω).
• Ambient temperature sensors affect system startup: below 4°C (39°F), most ECUs disable compressor operation to prevent evaporator icing. Verify sensor accuracy with an external thermometer; replace if readings differ by >1.5°C.
• Dual-zone climate systems add a blend door actuator circuit–each motor draws 0.5-0.8A during movement and

Fuses protecting the climate control circuit typically range from 20-30A (fast-blow type), but some hybrid vehicles use 15A slow-blow variants. Always check fuse resistance before replacement–less than 0.1Ω is acceptable; higher values indicate internal corrosion. The common “compressor clutch fuse” often shares power with the cooling fan, meaning a blown fuse can kill both systems simultaneously.

Grounding and Signal Integrity

Secure grounding is non-negotiable: resistance between climate control module ground and battery negative should never exceed 0.05Ω. Corroded chassis grounds (visible as white/green powder) introduce voltage drop, falsely triggering low-pressure shutoff. Clean all grounding points to bare metal and apply zinc-rich primer before reassembly.

1. Use a dedicated power distribution module for climate circuits–aftermarket relays often mount directly to battery terminals, bypassing factory protection circuits.
2. CAN bus signals between climate control module and ECU operate at 2.5V differential; interference patterns resemble PWM signals but occur in predictable 50Hz bursts. Shield twisted-wire pairs if retrofitting LED lighting, as harmonics >1.2MHz disrupt communication.
3. Diagnose actuator feedback circuits by monitoring PWM duty cycle during door movement–normal range is 10-90%. Values stuck at 0% or 100% indicate failed potentiometer or shorted wiring.

Refrigerant pressure transducers output 0.5V-4.5V analog signals; verify linearity across the pressure range (0-350 psi). Non-linear output often coincides with irregular cooling performance despite normal gauge pressures. Replace the transducer if voltage readings deviate >0.15V from the expected curve at any point.

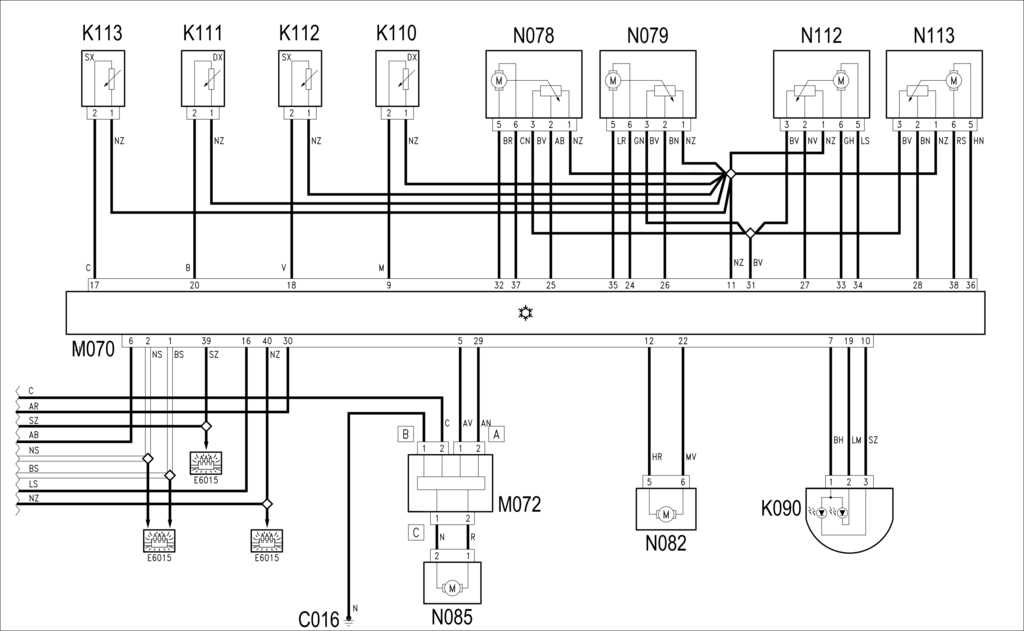

How to Decipher Climate Control Electrical Blueprints

Locate the power source first–typically a battery symbol or fuse indicator–marked with “+12V” or a similar notation. Trace the thickest lines from this point, as they represent primary circuits carrying current to relays, compressors, and blowers. Thin lines usually denote signal or ground paths.

Identify relays by their standardized symbol: a coil paired with normally open/normally closed contacts. Note the pin numbers (e.g., 85, 86 for coil; 30, 87 for outputs) and cross-reference them with the legend. Relays control high-current devices like condensers, so mismatched pins will prevent operation.

Follow the color-coding strictly. Green wires often serve as grounds, red or yellow handle positive feeds, and blue or black may indicate sensors or switches. If schematics lack colors, use a multimeter to verify continuity between components before assuming connections.

Check for inline resistors (zigzag symbols) in blower motor circuits. These reduce voltage for speed settings. A burnt resistor disrupts airflow levels, causing erratic fan behavior. Test resistance values against service manual specs–typically 0.5–5 ohms for intact units.

Isolate pressure switches next. These safety features (normally closed) break the circuit if refrigerant levels drop too low. On schematics, they appear as contacts in series with the compressor clutch. A faulty switch leaves the clutch disengaged despite proper coolant levels.

Examine the thermostat’s placement, usually wired between the evaporator and control module. Its resistance changes with temperature (e.g., 10 kΩ at 25°C). Compare readings using an ohmmeter–abrupt deviations signal a faulty sensor requiring replacement.

Verify connectors with pinout diagrams. Corrosion on terminals causes intermittent failures. Clean contacts with electrical cleaner or replace connectors if insulation melts–visible discoloration confirms overheating issues.

Test diagnostic ports if available. OBD-II or manufacturer-specific ports simplify troubleshooting by displaying fault codes. Connect a scanner, trigger the AC system, and check for DTCs like “P0530” (refrigerant pressure sensor) or “B1234” (blower motor circuit). Address codes in order of priority–primary controls first.
