Complete Guide to Installing Car Stereo Systems with Wiring Schematics

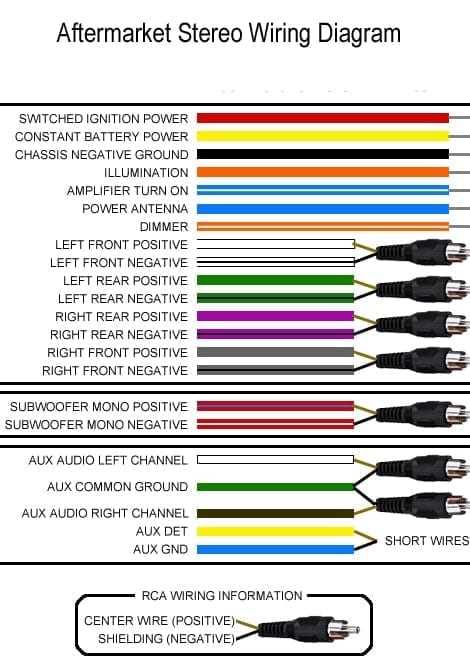

Start by identifying the color-coded cables in your vehicle’s harness. Most manufacturers follow a standard: yellow (constant 12V+), red (switched 12V+), black (ground), blue/white (amplifier remote turn-on), and orange (illumination/dimmer). Deviations exist–Nissan, for example, often uses light blue for speaker positives instead of white or gray. Verify with a multimeter if colors don’t match common schematics.

For aftermarket installations, resistance checks prevent damage. Measure speaker wires–4-8 ohms indicates a standard setup, while below 2 ohms suggests a bridged or faulty circuit. Avoid pairing low-impedance outputs with high-power amplifiers, as this risks overheating. Use 16-gauge wire for short runs (12-14 gauge for longer connections or subwoofers.

Grounding is non-negotiable. Secure the negative lead to bare metal–scrape paint/undercoating for a clean contact. Poor grounding causes engine noise, weak output, or system failure. For vehicles with factory amplified systems, locate and disconnect the OEM amplifier relay before tapping into speaker-level inputs, or risk overloading the new unit.

Pre-made harness adapters (e.g., Metra, Scosche) simplify connections but may lack data bus wires for steering wheel controls or parking sensors. In such cases, splice the factory plug directly–isolate the wires using heat-shrink tubing to prevent shorts. ForEuropean models, check for CAN bus signals; some require a fuse bypass to maintain power after ignition-off.

How to Read Vehicle Sound System Connection Schematics

Identify the head unit’s color-coded harness first–most manufacturers use standard color schemes, but verify against your specific model’s manual. The *constant 12V* (usually yellow) must connect directly to the battery with an inline fuse no farther than 18 inches from the terminal to prevent voltage drop. Avoid splicing this wire; instead, use a dedicated crimp connector rated for at least 20 amperes. If the *switched 12V* (often red) draws power from the ignition circuit, ensure it activates only when the key is in the “ACC” or “ON” position to prevent parasitic drain.

Ground connections demand meticulous attention: strip insulation from a bare metal chassis point, sand away paint or corrosion, and secure the ring terminal with a stainless-steel screw. A poor ground will cause alternator whine, signal interference, or intermittent system failures. For speaker outputs, match polarity precisely–reversed connections will cancel bass frequencies and degrade sound staging. Use a multimeter to confirm continuity between the head unit’s speaker wires and the factory harness or aftermarket adapters; resistances above 4 ohms per channel indicate faulty connections or damaged wire.

Adapting Non-Standard Vehicle Configurations

Luxury vehicles and European models often include fiber-optic (MOST) or CAN bus interfaces; circumventing these requires specialized harnesses like the Metra AX-TOY21 for Toyota/Lexus or the Scosche GMOS-04 for GM vehicles. These adapters maintain steering wheel control functionality, amplifier triggers, and vehicle security features. For older models lacking a factory harness, use a backstrap kit to access the head unit’s plug directly–avoid probing wires with live power, as short circuits can damage the vehicle’s computer module. Always disconnect the negative battery terminal before initiating any electrical work to prevent accidental shorts.

When integrating an amplifier, route power cables away from RCA signal wires and vehicle wiring looms to minimize interference. Use split loom tubing to protect wires crossing sharp edges or moving parts, and secure cables every 12 inches with zip ties. For subwoofer installations, match the amplifier’s impedance to the subwoofer’s rating–mismatches cause overheating or thermal shutdown. If splicing into factory speaker wires, employ solder and heat-shrink tubing for durable connections; electrical tape degrades over time and invites moisture intrusion.

Verify all connections with a test light or multimeter before reassembling trim panels. A dim or flickering display indicates insufficient power; recheck the constant 12V and ground connections. For vehicles with factory amplifiers, locate the remote turn-on lead (typically blue/white) and connect it to the aftermarket head unit’s corresponding output. Failure to do so will result in silent speakers, regardless of correct power delivery. Keep wire runs as short as possible to preserve signal integrity, especially for high-frequency tweeters where resistance losses are most noticeable.

Decoding Car Audio System Cable Colors and Purposes

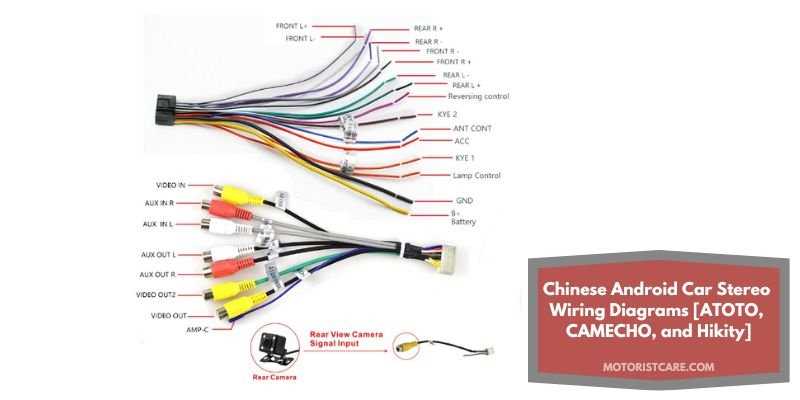

Begin by locating the main harness behind the factory-installed entertainment unit. Standard color-coding follows ISO norms: solid yellow denotes constant 12V power, typically fused at 10-20A; red supplies switched ignition power. Ground connections use black or brown, often labeled “GND” or “-12V”. Speaker outputs alternate between solid and striped pairs–for instance, white and white/black for front left positive/negative, gray and gray/black for front right. Verify with a multimeter: positive leads should show ~4-8 ohms resistance to ground.

Factory harnesses in Asian models (Toyota, Honda, Nissan) frequently add unique markings. Blue/white striped wires carry amplified turn-on signals for aftermarket amplifiers–measure 12V only when the unit activates. Subaru uses purple for rear speaker positives, while European brands (Volkswagen, BMW) often replace gray with violet for right-side audio feeds. Check accessory manuals for OEM deviations; Mitsubishi may swap orange (illumination) for pink. Avoid splicing into these without confirmation–phantom loads on wrong circuits can drain batteries overnight.

Aftermarket adapters follow different conventions. Metra and Scosche harnesses use yellow/blue for reverse gear detection, while red/white may control dimming. Pioneer’s “memory” wire (violet) requires direct battery connection for clock retention–never fuse this above 1A. For vehicles with CAN bus systems, locate the data wires (typically orange or green) but never interfere; these handle critical ECU communications. If colors clash with factory standards, trace to the fuse box–constant power wires always back to the battery via a fusible link.

Use labeled connectors for testing. For uncertain connections, strip 5mm of insulation and probe with a continuity tester. Front speaker wires always share resistance patterns–if a “positive” wire shows continuity to ground, it’s likely mislabeled or shorted. For Bose systems, expect low-impedance wires (2 ohms) due to active crossovers. Disable airbags before accessing dash harnesses in vehicles with embedded safety systems; accidental triggers can deploy bags during installation.

Step-by-Step Guide to Installing a Premium Sound System Connector

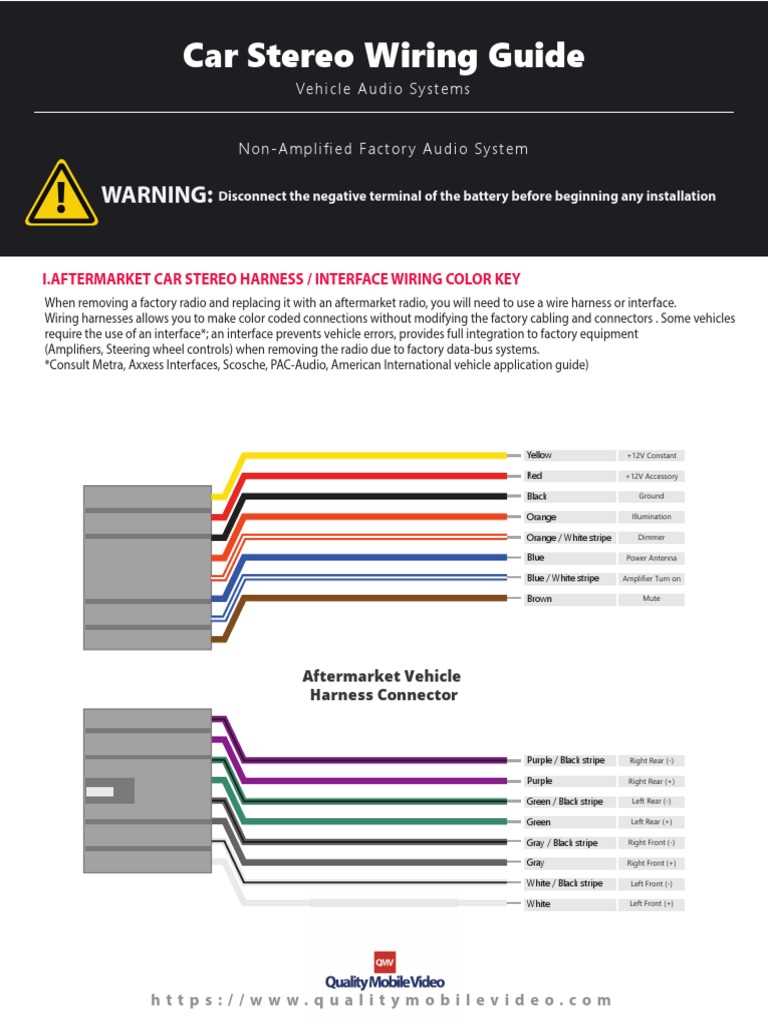

Begin by matching each colored cable on the vehicle’s factory plug to the aftermarket adapter. Use a multimeter set to continuity mode to verify connections if the color codes differ. Most standard harnesses follow this configuration:

• Yellow: 12V constant power (battery)
• Red: Switched power (ignition)
• Black: Ground (chassis)
• Blue/White: Amplifier turn-on lead
• Orange/White: Illumination dimmer
• Green, Purple, Gray, White: Speaker outputs (rear right, rear left, front right, front left)

Trim excess wire from the adapter to prevent shorts, leaving 3–5mm of bare copper exposed. Crimp each connection with insulated butt connectors or solder for long-term reliability. Avoid twisting wires together–even temporary splices can corrode over time. If the head unit includes a security feature, locate the yellow and red wires on the same 12V line to prevent reset errors.

Grounding and Final Checks

Attach the ground cable (black) to a bare metal point on the vehicle’s chassis, scraping away paint or rust for direct contact. Bolt it down tightly–a loose ground causes static, pops, or complete system failure. Test the setup before securing panels by turning the key to accessory mode and verifying:

1. Radio powers on without delay
2. All speakers produce clear audio at moderate volume
3. No dimming occurs when bass hits (indicating insufficient power)
4. Steering wheel controls, if applicable, function as expected

Reconnect the negative battery terminal, then tuck the harness behind dash panels, avoiding sharp edges or heat sources. Use zip ties to bundle loose wires every 8–10cm. If static persists, reroute power cables away from the vehicle’s ECU or interference-generating components like alternator wiring.

Critical Errors in Vehicle Sound System Installation and Prevention

Connecting the ground cable to a painted surface rather than bare metal creates intermittent failures. Factory grounding points–often near the fuse box or chassis bolts–provide the only reliable connection. Scrape off paint or corrosion until shiny metal appears, then secure the terminal tightly. Loose grounding ranks as the primary cause of static, popping noises, and random shutdowns during operation.

Reversing speaker polarity during hookup cancels audio output between left and right channels, producing weak or muffled sound. Confirm wire colors match the manufacturer’s documentation before securing terminals–positive leads typically use white, gray, purple, or green insulation, while negatives are striped or black. Test with a 9V battery: if the cone moves outward, polarity is correct.

Wire Color	Standard Function	Incorrect Connection Effect
Yellow (thick)	Constant 12V power	Head unit drains battery overnight
Red	Switched ignition power	System fails to turn on with key
Blue/White	Amplifier remote turn-on	Amplifier remains off during playback

Inserting aftermarket fuse adapters without verifying amperage ratings leads to meltdowns. Factory harnesses usually use 10A or 15A fuses–match this precisely. Installers often overlook the yellow constant power cable’s 20A requirement, risking overheated connections even when the vehicle is off. Use a multimeter to confirm 12V-14.4V across all power cables before finalizing crimp connections.

Skipping the integration of steering wheel control adapters forces reliance on the dashboard interface only. Locate the serial data wire behind the original head unit–typically violet or orange with a small gauge. Connect this to a compatible adapter (ASWC-1, iDatalink Maestro) before splicing into the new harness. Failure to do so leaves volume, track skip, and phone functions inoperable, requiring dashboard button reprogramming via OEM diagnostics tools.
