Complete AVH X2700BS Wiring Diagram Guide for Safe Installation
To ensure seamless integration, begin by identifying the permanent 12V line–attach it to the yellow wire from the harness. This maintains memory settings even when the ignition is off. Avoid splicing directly to the battery unless a dedicated 15A fuse is installed within 18 inches of the power source. Ground the black wire to a clean, bare metal point on the chassis, sanding away paint or corrosion for a solid connection.

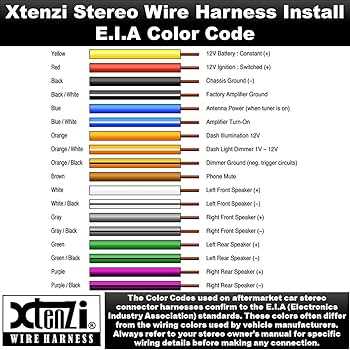

For the speaker outputs, match the aftermarket harness colors (typically white, gray, green, and purple) to the vehicle’s original wiring. Polarity matters: the striped wires (e.g., white with black stripe) are negative, while solid colors are positive. Cross-check these against a multimeter reading to prevent phase cancellation, which dulls audio quality. If the factory harness lacks color-coding, probe with a 9V battery to identify front/rear channels.
The steering wheel control interface requires an adapter specific to the vehicle’s make and model year. Locate the data bus or resistive wire in the factory harness–often a single wire changing resistance with button presses. Verify compatibility with the unit’s SWI port before crimping connectors; improper wiring can trigger error codes in the vehicle’s CAN system.
Illumination and dimming functions rely on the orange wire (or orange with white stripe) connected to the dash lights circuit. Test by turning the headlight switch on and off–brightness should adjust automatically. If dimming fails, check for a missing or misaligned dash rheostat signal, common in vehicles built before 2015.
Data connections for USB, Bluetooth, and navigation demand shielded cables to prevent interference. Route the blue/white antenna trigger wire to the power amplifier or factory amplifier turn-on lead, ensuring it receives a 12V signal when the unit powers up. For rear-view camera input, the pink wire must carry composite video; use RCA connectors with shielding to avoid signal degradation.
Full Connection Schematic for Pioneer Multimedia Interface

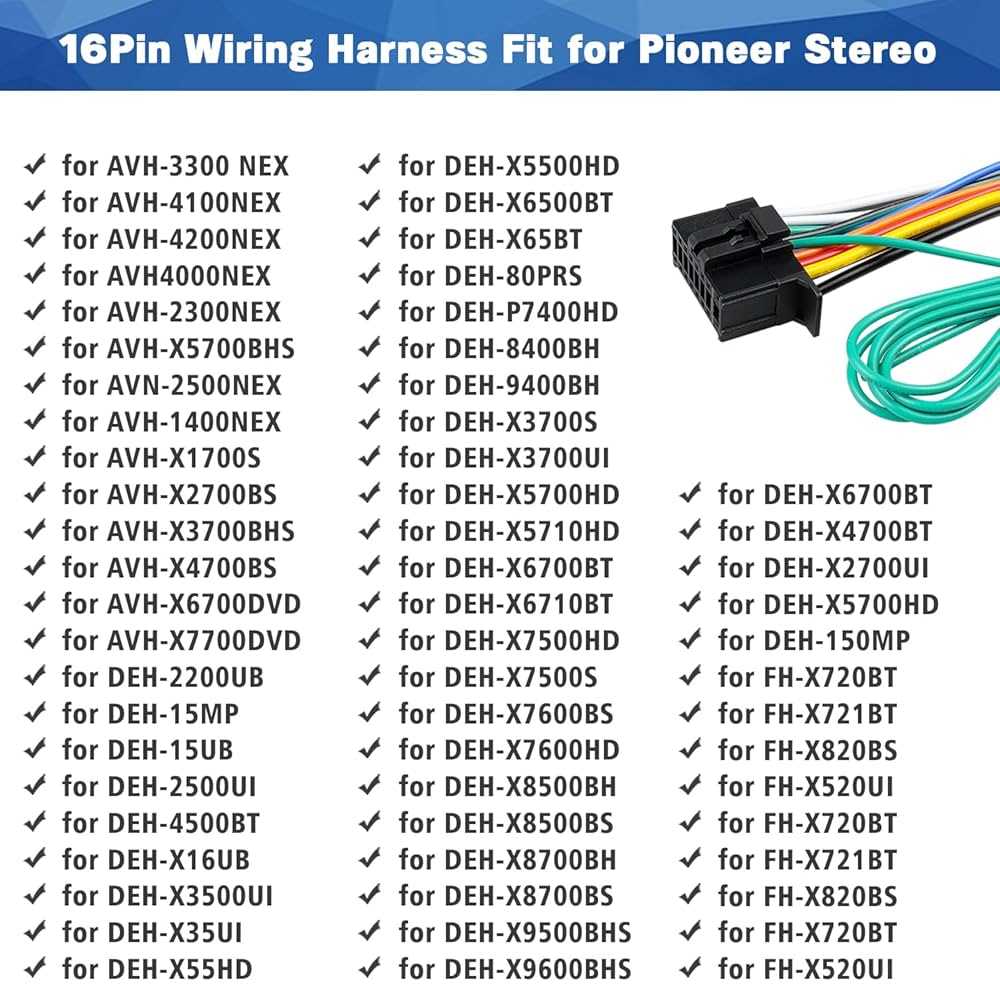

Connect the 16-pin harness from the head unit’s rear panel to the vehicle’s power adapter using matching color codes–yellow to constant 12V, red to switched ignition, and black to ground. Verify each joint with a multimeter set to 20V DC range before securing connections; improper voltage can damage the amplifier circuit or trigger fuse failure. For vehicles with a factory amplifier, integrate the blue/white remote wire (typically 1A output) into the aftermarket harness to prevent parasitic drain.
Common Mistakes in Circuit Integration
Skipping the ground starter check often leads to audio interference; use a dedicated O-ring terminal fastened to unpainted chassis metal, not bolts holding plastic trim. If the display flickers during engine crank, add a 15A relay between the ignition wire and battery to isolate voltage drops below 9V–critical for firmware stability. Misrouted signal leads (pink, purple, light green) introduce crosstalk; twist each pair tightly over the first 12 inches from the device to minimize RF noise.
Rear camera input requires precise resistance matching: 75Ω coaxial cable terminates directly into the composite video jack, avoiding adapters that degrade 480p resolution. Disable parking guidelines if the vehicle lacks reverse lamp feedback; otherwise, wire green/white to the reverse light harness and set the menu to “Camera Priority” to override software delays. For subwoofer outputs, bridge the preamp channels through RCA splitters only if impedance stays above 4Ω–dual 2Ω loads risk overheating the internal DAC.
Test brightness levels during daylight cycles; if the touchscreen dims unpredictably, splice the orange dimmer wire into the vehicle’s dashboard illumination circuit–factory settings often default to 0% when disconnected. Retain original firmware for USB updates by avoiding third-party firmware flashes; corrupted EEPROM data voids the noise cancellation algorithm, causing persistent hum on the passenger-side tweeter.
Critical Connections in the AVH-X2700BS Installation Interface

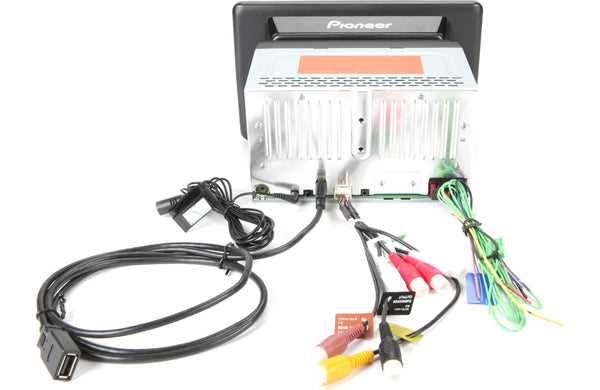

Begin by identifying the 12-pin main input connector, labeled C on the rear panel. This cluster handles the unit’s primary power feed, ground reference, and ignition trigger–wires colored solid yellow (constant 12V), black (ground), and red (accessory). Secure each crimp terminal with a 10–12 Nm torque, ensuring no stray strands remain. A loose yellow lead can sag to 11.8V during idle, causing intermittent video drops.
Attach the B harness block, an 8-pin plug housing the rear RCA outputs (left/right rear preamp signals) alongside park brake detection wire (pink with black tracer) and reverse light trigger (purple). Route the RCA cables away from the vehicle’s CAN bus loom; a 15 cm separation prevents 200 mV AC hum audible through factory tweeters. The purple lead must interface directly with the backup lamp circuit–bypassing relays risks false A/V muting.
The compact E harness delivers microphone input (green), aux video in (white coax), and illumination dimming control (orange with white stripe). Verify the orange wire’s compatibility with the vehicle’s dimmer rheostat; resistor-equipped harnesses (common on Lexus/Toyota) require a 470 Ω series load, while GM platforms demand direct splicing. Ground the microphone shield at the chassis point closest to the headrest for sub-50 Ω loop impedance.
Confirm the antenna power feed (blue, 300 mA max) links to the factory antenna motor if opting for a non-amplified setup. Mismatched current draw burns the internal LNA within 72 hours; OEM amplifiers necessitate a relay module or aftermarket antenna booster isolating the blue lead. Double-check all splices with a thermal imaging scanner–hot spots above 85°C indicate improper crimps needing replacement with gold-plated terminals.
Step-by-Step Connection Guide for Power and Ground Cables
Locate the yellow battery feed cable (minimum 8-gauge) and strip 10 mm of insulation from its end. Crimp a ring terminal (M6 size) to the exposed copper, ensuring no strands fray outside the crimp barrel. Tighten the terminal to the main fuse block (typically mounted within 20 cm of the battery’s positive post) using an M6 stainless steel bolt and lock washer–torque to 4 Nm to prevent vibration loosening. Route the cable through a plastic grommet where it passes through metal firewall or chassis openings, securing every 20 cm with adhesive cable clamps; avoid sharp edges and moving components like steering columns or pedals.
Identify a clean, unpainted chassis ground point–look beneath dashboard rails, near seat mounts, or directly on the vehicle’s frame, ensuring the surface is free of rust, grease, or undercoating. Sand the area to bare metal with 80-grit sandpaper, wipe clean with isopropyl alcohol, and apply a thin layer of dielectric grease to inhibit oxidation. Attach the black ground cable (minimum 8-gauge, matching power cable length) using an M6 ring terminal secured with an identical bolt, washer, and torque spec as the positive connection. Test continuity between the ground terminal and battery negative post with a multimeter (≤ 1 Ω) before proceeding; readings above 0.2 Ω indicate a poor ground needing rework.
Safety Verification Before Final Connection
- Voltage Drop Test: Connect a multimeter in DC voltage mode between the positive fuse block terminal and battery positive post while an assistant turns the ignition to ACC. Acceptable drop:
- Reverse Polarity Check: Install a 40A ANL fuse in the main fuse block before attaching the battery–this prevents catastrophic short circuits if cables are reversed.
- Insulation Integrity: Wrap all exposed copper with adhesive-lined heat shrink tubing (minimum 2:1 shrink ratio), avoiding standard electrical tape which degrades under engine bay temperatures.
Route both power and ground cables together in a loom (split corrugated tubing, 12 mm diameter) to reduce electromagnetic interference and protect against abrasion. Secure the loom to existing vehicle harnesses using zip ties spaced every 15 cm; avoid coiling excess cable, which creates inductance and voltage spikes. Connect the red accessory cable (minimum 16-gauge) to an ignition-switched fuse tap (typically 10A) in the fusebox–use a blade fuse adapter to maintain OEM circuit protection. Verify switched 12 V presence at the connection point with a test light before attaching the head unit’s harness.
Finalize by disconnecting the vehicle’s negative battery terminal, then reconnect the main fuse block. Wait 30 seconds before reattaching the battery to allow onboard computers to reset. Power on the system and confirm:
- No audible pops or smoke from head unit or speakers.
- Multimeter shows 12.5–14.4 V at the device’s power input pins.
- Illumination and features operate without flickering or resets during engine cranking (tests for voltage sag).
Retorque all connections after 100 km of driving, as thermal cycling loosens fasteners.
How to Properly Connect Speaker Outputs for Front and Rear Channels

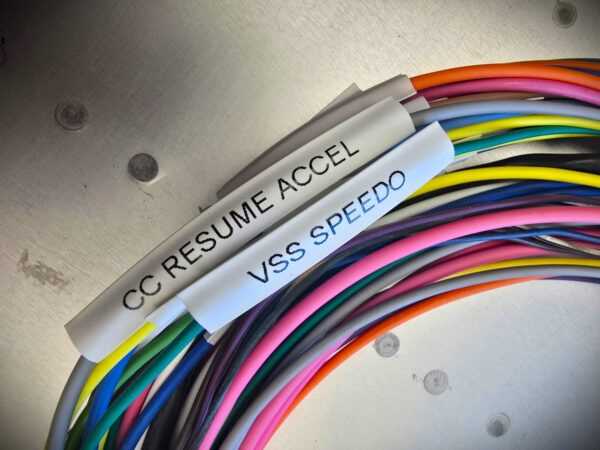

Begin by matching the amplifier’s output impedance to the speaker’s nominal impedance–typically 4 ohms for most car audio systems–to prevent overheating or distortion. Use 16-gauge oxygen-free copper cables for runs under 15 feet and 14-gauge for longer distances to minimize signal loss. Strip 3/8 inch of insulation from each wire end, twist the strands tightly, and secure them with gold-plated banana plugs or crimp connectors to ensure a corrosion-resistant, high-conductivity connection. Label each wire at both ends (e.g., “FL+”, “FL-“, “RR+”, “RR-“) with heat-shrink tubing or color-coded tape to eliminate miswiring risks during installation or troubleshooting.
| Channel | Polarity | Connection Point | Troubleshooting Check |
|---|---|---|---|
| Front Left (FL) | Positive (+) | Amplifier’s “Front Left +” terminal → Speaker’s “+” terminal | Verify continuity with a multimeter (0.1–0.5 ohms); if reading exceeds 1 ohm, re-crimp or replace the connector. |
| Front Left (FL) | Negative (-) | Amplifier’s “Front Left -” terminal → Speaker’s “-” terminal | Ensure no contact with chassis ground; even a minor short will cause a channel imbalance. |
| Rear Right (RR) | Positive (+) | Amplifier’s “Rear Right +” terminal → Speaker’s “+” terminal | Test polarity with a 9V battery: reverse connection flips the soundstage, making vocals sound distant. |
| Rear Right (RR) | Negative (-) | Amplifier’s “Rear Right -” terminal → Speaker’s “-” terminal | Inspect for frayed strands near the terminal; stray copper can bridge channels and create distortion. |
Route cables away from power wires (minimum 12-inch separation) and avoid sharp edges to prevent EMI interference or insulation damage. After securing all connections, power up the system and test each channel individually with a -3dB pink noise signal at 50% volume; all speakers should produce equal output without buzzing or rattling. If phase issues persist (e.g., weak bass), swap the positive and negative leads on one speaker to correct polarity mismatches.
