Understanding Car Electrical Systems A Step-by-Step Wiring Guide

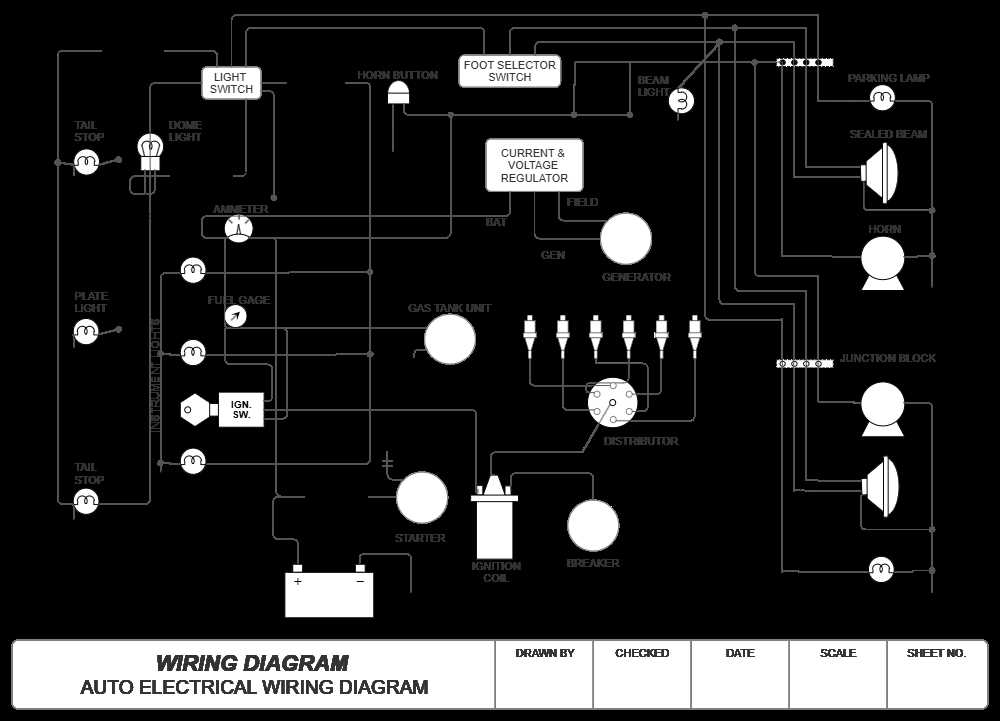

Start by identifying the power source–usually the battery terminal–marked with a thick line at the top of the layout. Trace the primary feed line downward, noting fusible links or relays that interrupt direct current flow to protect downstream circuits. Each branch splits off into thinner conductors, labeled with colors and gauge numbers (e.g., “RD 14 AWG” for red wire with 14-gauge thickness). Look for diodes embedded near alternator outputs; these prevent reverse current from damaging voltage regulators.

Ground connections cluster at discrete points, often near the chassis. Verify every ground strap terminates with a ring lug secured by a bolt–corrosion here disrupts multiple systems simultaneously. Components like fuel pumps, ignition coils, and injectors receive pulsed signals; expect dashed lines indicating intermittent voltage rather than continuous supply. Locate thermal switches or pressure sensors; these operate in closed-loop logic dependent on environmental readings.

Label each pinout on control modules–ECUs and BCMs demand exact pin assignments for configuration. Test leads using a multimeter set to 20V DC scale; probe across harness connectors while the key is in the “ON” position. Voltage drop exceeding 0.2V between fuse block and load indicates excessive resistance, warranting harness inspection. Isolate shorts by disconnecting power, then measuring resistance through suspect wires–values below 1 ohm suggest unwanted continuity.

Map circuits before modification. Aftermarket additions must follow original design voltages–avoid tapping high-amp circuits for low-power gadgets. Route new wires away from heat sources and moving parts, securing them with nylon loom and Adel clamps spaced every 12 inches. Crimp terminals using proper die sets matching wire gauge; solder joints risk brittle failure under vibration. Document changes with updated schematics to prevent confusion during future troubleshooting.

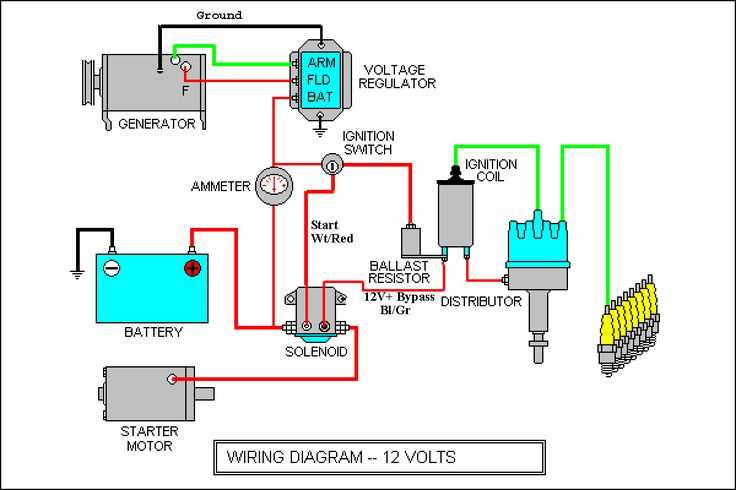

Understanding Vehicle Electrical Schematics

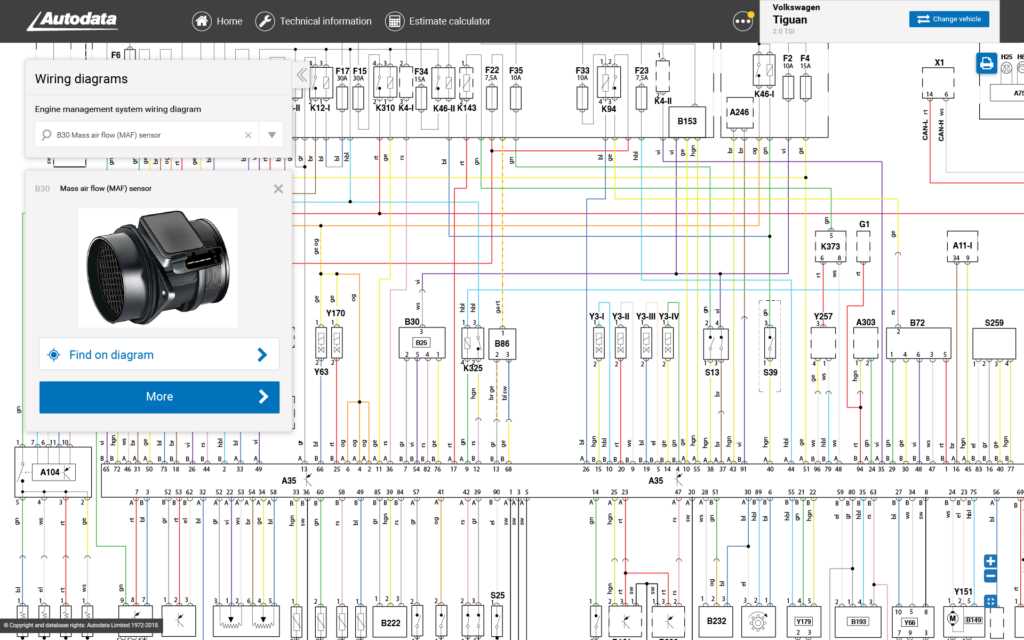

Start by identifying power sources in the circuit layout–batteries, alternators, and fuses–and trace their connections to components like relays, sensors, or actuators. Each wire color and gauge (e.g., 18-gauge for signal wires, 12-gauge for high-current circuits) serves a distinct purpose; mismatches risk overheating or voltage drops. Use a multimeter set to continuity mode to verify paths, ensuring crimps or soldered joints have zero resistance.

Relays act as remote switches for high-amperage devices (e.g., fuel pumps, cooling fans). Test them by applying 12V to the 85 and 86 terminals; a functional relay should click, and the 30-to-87 circuit should close. If it fails, check the coil resistance (typically 50–120 ohms) and replace if out of spec. Ground points must be corrosion-free–sand paint or rust from mounting surfaces to prevent intermittent failures.

Label every connector pinout using industry standards (e.g., SAE J1930 for OEM systems). For aftermarket devices, follow the manufacturer’s schematic but cross-reference with factory wiring to avoid conflicts. For example, a 3-wire oxygen sensor requires 12V (heated element), ground, and signal return–misrouting the signal wire to the ECU’s 5V reference can damage the controller. Always disconnect the battery negative terminal before probing live circuits.

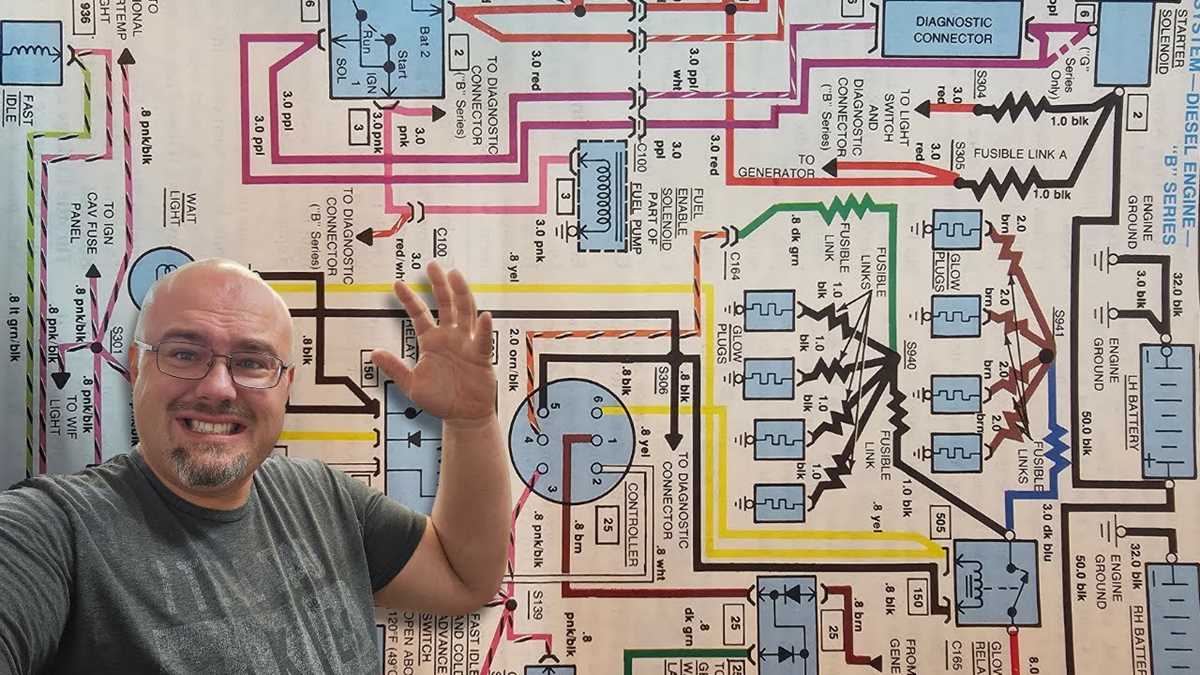

Decoding Vehicle Circuit Colors for Troubleshooting

Start by consulting the manufacturer’s service manual–most brands follow standardized color schemes with consistent abbreviations: black (BLK) for ground, red (RED) for fused power, and yellow (YEL) for switched ignition. Exceptions exist: Toyota often uses white with a red stripe (W-R) for main 12V supply, while Ford favors orange (ORN) for battery-positive circuits. Mark these wires with tape labels immediately to avoid misconnections during repairs.

Trace each conductor from component to fuse box or relay; solid colors indicate primary function, while stripes or dots denote secondary roles. A brown wire (BRN) typically carries lighting current, but a brown wire with a white stripe (BRN-WHT) may signal a parking light return path. Cross-reference with a multimeter–activate the circuit and verify expected voltage (12V for power, 0V for ground) at both ends of the cable.

Record anomalies like faded hues or non-standard pairings (e.g., green replaced with blue in aftermarket systems) in a notebook. Use heat-shrink tubing matching the original color coding when splicing; avoid electrical tape alone for permanent fixes. For hybrid or electric models, note high-voltage cables (usually orange insulation with thick gauge) and never bypass safety interlocks.

How to Create a Clear Electrical Fuse Block Schematic

Gather all necessary tools before starting: a ruler, fine-tip pens (black, red, and blue), graph paper with 5mm grid lines, and a reference sheet listing fuse ratings for your vehicle’s electrical system. Avoid digital tools at this stage–they introduce unnecessary complexity for initial planning.

Sketch a rectangular outline to represent the fuse block’s dimensions, leaving 2cm margins on all sides for annotation. Divide the rectangle into equal sections vertically, with one column per fuse slot–use actual fuse positions from your vehicle’s manual to determine spacing. Label each column with fuse numbers at the top (e.g., F1, F2) in bold 10pt text.

Draw parallel horizontal lines 1cm apart across the entire block, creating three tiers: power input at the top, fuse symbols in the middle, and load outputs at the bottom. Use red ink for all power-carrying lines and blue for grounds–consistency prevents errors during later tracing.

Place a small rectangular box in each column’s middle tier to represent the fuse. Inside each box, write its rating (e.g., “15A”) in 8pt text. Ensure boxes align perfectly–misalignment during installation leads to incorrect connections. For blade-type fuses, a standard 5mm x 10mm box works; mini fuses require 3mm x 7mm dimensions.

Connect the top tier’s horizontal line to each fuse’s input side using a vertical line. Branch off from the fuse’s output side to the correlating load via another vertical line–attach an arrowhead at the bottom to indicate direction. Keep lines straight; curves complicate tracing during physical installation.

For grounds, extend a blue line from each load’s lower terminal horizontally to the right edge of the schematic. Merge all grounds into a single thick blue line ending at a common ground point, typically a bolt or chassis location–note its physical address (e.g., “Left firewall stud”) in 7pt text below.

Add a legend at the bottom right corner. List wire gauge (e.g., “18 AWG for 10A circuits”), color codes (matching vehicle standards), and any non-standard components (relays, diodes). Include a scale note if the drawing isn’t 1:1–most fusebox layouts use a 1cm:2cm ratio for clarity without oversized paper.

Verify each path with a multimeter set to continuity mode. Probe from power source to load output for every circuit–missing connections during this step eliminate debugging later. File the final schematic in both physical and digital formats; laminate the paper version for workshop use.

Essential Instruments for Diagnosing Vehicle Circuit Integrity

Start with a multimeter capable of measuring at least 20A DC–cheaper models often fail under transient loads common in ignition systems. Fluke 17B or Amprobe AM-510 cover 90% of field tasks without unnecessary resolution. Set it to 200mV DC for voltage drop tests: anything above 0.3V across a single connector signals corrosion or undersized conductors. Avoid auto-ranging units when tracing intermittent shorts; manual 20V DC scale gives faster response during wiggle tests.

For quick continuity checks, a dedicated tone generator with adjustable sensitivity outperforms multimeters. The Sperry ST-500 emits a 1 kHz square wave detectable through 3 mm of insulation on 10-gauge cables. Pair it with insulated alligator probes (minimum 600V rating) to prevent false positives from adjacent circuits. Skip “smart” probes with LED indicators–they miss high-impedance faults when battery voltage drops below 9.6V.

Thermal imaging cameras reveal hotspots invisible to multimeters. FLIR E4 or Seek Thermal CompactPro detect temperature differences as small as 0.07°C, identifying overheated terminals or partially shorted coils before failure. Scan connectors within 30 seconds of key-on to catch inrush currents. For budget constraints, an infrared thermometer with K-type probe inserted into the circuit momentarily achieves 70% of the diagnostic accuracy.

Use a 10 kΩ resistor in series with test lamps to prevent ECU damage during power-side checks. A 12V/10W halogen bulb draws just enough current to confirm fused circuit integrity without tripping delicate modules. For ground-side validation, an LED test light with a 1 kΩ current-limiting resistor safely illuminates when connected between chassis and signal wire, revealing open grounds or high-resistance joints with sub-10 mA draw.

When dissecting connectors, employ a precision pin extractor set that matches terminal series–TE Connectivity 1-88990-0 for Metri-Pack, APTIV 1365994-1 for Weather-Pack. Incorrect tools spread contact tangs, creating intermittent connections that defeat diagnosis. Lubricate extracted pins with silicone dielectric grease rated for -55°C to +200°C to prevent fretting corrosion; petroleum-based compounds migrate and dry out within 18 months.

• DeoxIT D5 for oxidized copper terminals–apply 0.2 mL per contact, wait 60 seconds, then wipe clean. Avoid sprays near oxygen sensors.
• Starrett dial calipers (1 µm resolution) measure terminal crimp depth; reject crimps under 0.12 mm on 0.8 mm² wires.
• 3M Scotchcast 2130 for inline splice repairs–heat shrink with adhesive liner prevents wicking moisture in high-vibration zones.
• Keysight U1451A clamp meter captures inrush currents up to 1000A for starter motor diagnostics without opening circuits.

For CAN bus signal validation, an oscilloscope with >25 MHz bandwidth isolates bitrate mismatches and electrical noise. Rigol DS1054Z captures differential signals on CH1-CH2 with 10:1 probes; set trigger to rising edge on recessive-to-dominant transitions. Log 5-second captures during cranking–missing arbitration IDs confirm faulty terminating resistors, typically 120 Ω±2% measured between CAN_H and CAN_L at the DLC.
