Understanding Simple Electrical Circuit Components and Connections

Begin by mapping power sources as the foundational element–batteries or voltage supplies dictate current pathways. Use standardized symbols: a straight line for conductors, a circle for power feeds, and parallel lines for resistors. Keep traces uncluttered; crossovers obscure readability. Label each component immediately upon placement; notation clarity prevents errors during assembly.

Prioritize loop continuity in series arrangements. A single break disrupts flow, halting operation. For parallel branches, ensure junctions split cleanly–angled connections reduce confusion. Ground symbols should anchor the layout; misplaced grounds introduce unpredictable behavior. Test continuity digitally before physical builds; simulation validates before soldering.

Apply Kirchoff’s Laws early–sum currents at nodes, verify voltage drops across elements. Standard resistors obey Ohm’s Law (V=IR); verify calculations against actual measurements. Non-linear components (diodes, transistors) require datasheet parameters; approximate models fail under real-world loads. Use spice models for transient analysis when implementing timing-critical setups.

Color-code traces for clarity: red for positive rails, black for common returns. Avoid overloading single paths–distribute power lines across multiple layers if space permits. Shield sensitive analog sections with guard traces; digital noise interferes with precision. Finalize with a BOM; part reuse accelerates prototyping but risks bottlenecks in shared designs.

Key Components of a Simple Schematic

Always begin by identifying the power source–batteries or generators must match the voltage requirements of your components. Use a 9V battery for low-power setups like LED assemblies, but switch to a 12V or 24V supply for motors or relays to avoid overheating. Draw connections in straight lines, avoiding diagonal crossings, and label each wire with its purpose (e.g., “V+” for positive, “GND” for ground). For switches, distinguish between SPST (single-pole, single-throw) and DPDT (double-pole, double-throw) early–mixing them up leads to incorrect power routing in multi-load systems.

• Place resistors before LEDs to limit current; a 220Ω resistor protects a standard 5mm LED from burning out at 5V.
• For capacitors, mark polarity in electrolytic types–reversing them causes failures or explosions.
• Fuses should sit near the power source; calculate the rating as 1.5× the maximum expected amperage.
• Use thicker lines for high-current paths (e.g., motor connections) and thinner lines for signals.
• Ground symbols must point downward; avoid ambiguity by connecting all grounds to a single node.
• Test continuity with a multimeter before powering on–open paths waste hours of troubleshooting.

Core Elements of a Fundamental Schematic

Begin by labeling each component with precise identifiers–resistors as *R₁*, *R₂*, capacitors as *C₁*, and power sources as *Vₛ*–to eliminate ambiguity in troubleshooting or replication. For power supplies, specify voltage limits (e.g., *Vₛ = 5V DC*) and polarity; reverse connections in low-tolerance setups (like transistors or ICs) risk immediate failure. Use standardized symbols: a zigzag line for resistive loads, parallel lines for capacitors (with one curved line for electrolytic types), and a straight line intersecting a shorter perpendicular one for switches. Ground symbols should consistently point downward–avoid mixing chassis ground (*⏚*) with signal ground (*⏛*) unless explicitly isolated by a design requirement.

Connect paths with orthogonal lines (horizontal/vertical) to clarify flow; diagonal traces obscure signal direction and complicate debugging. For multi-branch designs, place the highest-current path nearest the power source to minimize voltage drop–copper traces or jumper wires must handle at least 1.5× the expected amperage. Include test points (*TP₁*, *TP₂*) at critical nodes (e.g., before/after loads, at microcontroller pins) for oscilloscope or multimeter verification. If integrating semiconductors, annotate pinouts directly on the schematic–misaligned pins (e.g., *MOSFET gate* vs. *drain*) can destroy components in microseconds.

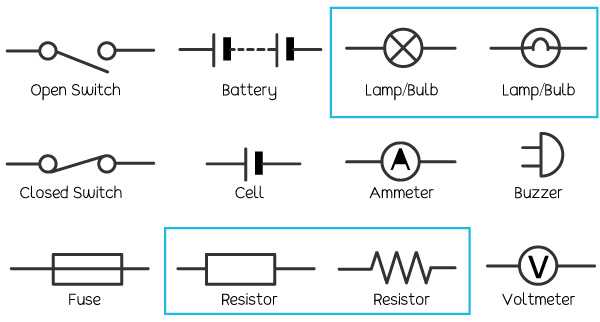

Creating Schematic Representations with Standardized Glyphs

Begin by selecting a consistent layout direction–left-to-right for signal flow or top-to-bottom for power distribution. Place the power source at the origin: a cell or battery symbol oriented with the longer line as the positive terminal. Immediate downstream components should align without crossing connectors unless junctions are marked with filled dots, which denote intentional merges. Keep spacing uniform to avoid ambiguity; a 2:1 ratio of vertical to horizontal clearance between symbols ensures clarity without wasted space.

Refer to the following core glyphs and their mandatory spacing rules when assembling:

Component	Glyph	Minimum Spacing (mm)	Variant Notes
Resistor	━┯━	5	Label with Ω value above
Capacitor polarised	━⏚│	7	Positive leg to + marker
Switch momentary	━⎺━	4	Arrow shows actuation direction
Diode	━▷│	6	Cathode bar faces arrow tail
LED	━▷│◎	8	Same cathode rule
Transistor NPN	━⊢┬┐	10	Emitter arrow points away from base

Audit every junction once glyphs are placed: ensure no unmarked crossings, every loop traces back to the power source, and ground symbols share a common reference node. Export at 300 dpi with line weights ≥ 0.4 mm to preserve visibility after scaling.

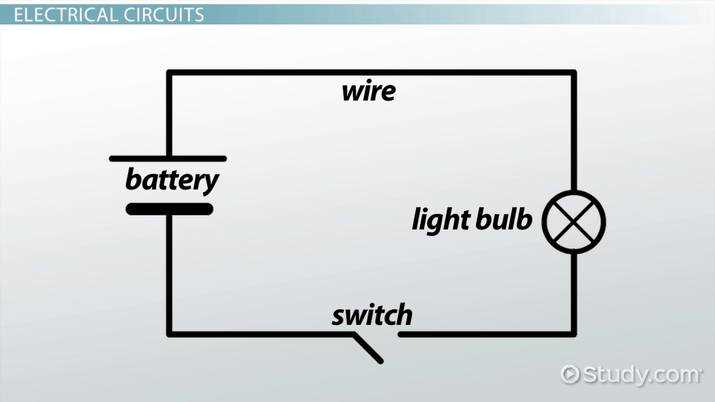

Assembling a Series Connection: Practical Guide

Select a 9V battery as the power source for consistent voltage. Ensure the battery terminals are clean–corrosion increases resistance, reducing current flow. Use a multimeter to verify output before proceeding.

Connect the first component directly to the positive terminal. For resistors under 100Ω, clip leads minimize contact resistance. If using bulbs, a 12V LED with built-in resistance works without additional parts. Avoid loose connections; they introduce intermittent failures.

Attach subsequent elements in a single unbroken path. Each addition must touch only the previous and next part–no branching. Measure voltage drop across each segment with the multimeter: total voltage divides evenly if components are identical. Uneven drops indicate mismatched resistance or faulty parts.

Ground the final link to the negative terminal. Use a screw terminal or solder if vibration is expected; alligator clips suit temporary setups. Test continuity with the multimeter’s resistance setting–zero ohms confirms an intact loop. Open paths read infinite resistance.

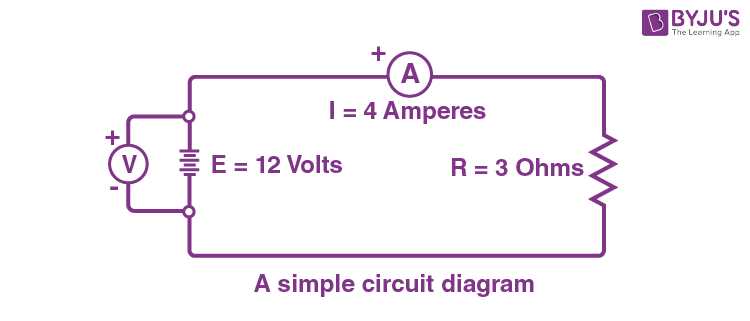

Calculate expected current with Ohm’s Law: I = V/R(total). For three 220Ω resistors and 9V, current equals 13.6mA. Lower readings reveal hidden resistance; higher suggest shorted components.

Power the setup only after verifying each joint. Monitor heat–excessive warmth signals incorrect resistance values. If LEDs dim unexpectedly, revisit connections; series chains amplify weak links.

Key Errors in Parallel Pathway Layouts

Avoid assuming identical branch resistance values unless verified. Even minor manufacturing variances in components can shift current distribution by 5–15%, leading to unexpected overheating in lower-resistance legs. Measure each resistor or load with a precision multimeter before finalizing the setup.

Calculating total impedance without accounting for reactive elements (inductors, capacitors) introduces phase errors. For AC parallel networks, use the complex admittance method–summing reciprocals of individual impedances–rather than assuming simple DC resistance rules apply. Failure to do this skews power factor by 20–40%, risking equipment damage.

Skipping current-sharing checks in high-power applications invites thermal runaway. A 10% imbalance across branches doubles heat dissipation in the weakest link. Implement matched components or active balancing (e.g., current-sharing ICs) for loads exceeding 5A. Passive balancing works only for tolerances under ±2%.

Ground Loop Pitfalls

Connecting return paths at multiple points creates ground loops, inducing 50–60Hz hum or high-frequency noise. Route all ground returns to a single star point near the power source, using dedicated traces ≥1mm wide for copper weights under 2 oz/ft².

Using series-parallel hybrids without redundancy checks risks cascading failures. If one branch opens, the remaining paths see a 30–50% current surge, often exceeding their rated specifications. Model worst-case scenarios with SPICE tools before prototyping; verify derating curves for transient overcurrent events.

Thermal Oversights

Overlooking thermal gradients between branches causes premature aging. A 10°C difference accelerates degradation by 2x (Arrhenius equation). Place thermal sensors near the hottest expected node and implement dynamic load shedding if temperatures exceed 70% of the component’s absolute maximum rating.

Neglecting stray inductance in wiring adds 0.1–0.5µH per 10cm of length, creating voltage spikes during switching. Keep parallel conductors under 5cm apart, use twisted pairs for high-frequency applications, and add snubber circuits (e.g., RC networks) across semiconductor switches.
