How to Wire a Bilge Pump Step-by-Step Electrical Guide
Start with a 12-gauge marine-grade cable–tinned copper–to withstand corrosion in humid environments. Avoid solid-core wire; stranded variants (minimum 19 strands) prevent fatigue at connection points. Route cables above potential water accumulation zones, maintaining a 150mm separation from fuel lines. Use adhesive-lined heat-shrink tubing at all termination points to seal out moisture; liquid electrical tape does not provide equivalent protection.
Install a manual override switch adjacent to the helm, but prioritize automatic operation with a float-based activation mechanism. The sensor must be positioned to engage at 25mm of water accumulation–delays risk hull integrity. For redundancy, incorporate a high-water alarm with an audible signal (minimum 90dB) and a visible LED indicator. Opt for a sealed relay (IP67 rating) to prevent saltwater ingress, which causes erratic cycling.
Limit current draw to 5A (continuous) for 12V setups. Exceeding this threshold accelerates brush wear in brushed motor variants. Fuse the circuit at 125% of the rated load–use a slow-blow type to accommodate startup surges. Ground the system to the engine block or a dedicated grounding plate, never to the hull alone. Verify connections with a multimeter: resistance should not exceed 1Ω between the device and power source.
For vessels exceeding 8m in length, consider dual units–position them fore and aft to address uneven trim. In saltwater applications, flush the system with freshwater after every 72 hours of operation to prevent mineral buildup. Replace brushes preemptively at 500 hours of runtime, even if no degradation is visible. Ignoring this leads to voltage drop and premature failure.
Encapsulate all exposed conductors in nylon braided loom tubing–polyethylene variants degrade under UV exposure. Secure cables every 300mm with nylon zip ties, double-clamping at bends. Label both ends of each wire with heat-shrink markers (e.g., “PWR,” “GND,” “SENSOR”) to simplify diagnostics. Avoid sharp edges near cable runs; chafe can compromise insulation within 6–8 months under dynamic loads.
Electrical Layout for Automatic Drainage Systems
Install a mercury or float switch above the motor’s intake strainer to prevent dry-running damage. Use marine-grade tinned copper wire–14 AWG for currents under 10A, 12 AWG for 10-20A–to handle onboard moisture and salt. Connect the positive lead directly to a 15A fused circuit; the negative lead must terminate at a common bus bar to avoid corrosion-induced voltage drops. Position the switch wire at least 2 inches higher than the motor’s housing to ensure reliable activation before water reaches hazardous levels.
Recommended Circuit Components
| Component | Specification | Purpose |
|---|---|---|
| Fuse | 15A blade type | Overcurrent protection |
| Cable | Stranded tinned copper 12 AWG | Corrosion resistance |
| Switch | Normally-open float | On-demand activation |
| Terminal | Ring crimp 1/4″ | Secure connection |
Secure all joints with heat-shrink tubing filled with dielectric grease. Test the circuit by raising the switch manually; if the motor fails to engage, check for continuity across the switch contacts and verify fuse integrity with a multimeter. Label each wire at both ends with tagged sleeves for future troubleshooting.
Core Elements for Your Marine Drainage System Electrical Configuration
Select a float-controlled discharge unit rated for at least 1500 GPH (gallons per hour) for vessels under 30 feet; 3700 GPH for hulls between 30-40 feet. Verify the device’s nominal voltage matches your onboard power supply–typically 12V DC for most pleasure craft, though commercial applications may require 24V. Avoid models with plastic impellers if operating in debris-laden water; opt for bronze or composite blades to prevent premature failure.
Install a dedicated circuit breaker sized 125% of the maximum current draw–check the manufacturer’s specs for precise amperage. For a 10A unit, use a 15A breaker to account for startup surges. Locate the breaker within 7 inches of the power source to comply with ABYC E-11 standards, preventing voltage drop and ensuring rapid disconnection during faults. Avoid combining this circuit with lighting or sensitive electronics to eliminate interference.
Run marine-grade tinned copper cable, sized to minimize voltage drop (maximum 3% over the circuit’s length). For a 12V, 10A setup, use 12 AWG for runs under 20 feet; 10 AWG for longer distances. Route cables above the waterline in a conduit or loomed sleeve, secured with non-metallic straps every 18 inches to prevent chafing. Keep wiring at least 2 inches from fuel lines and exhaust manifolds to reduce fire risk.
Key components include:
- Float switch: Choose a Normally Open (NO) type to prevent accidental activation; mercury-free models meet environmental regulations.
- Check valve: Install a one-way valve within 12 inches of the outlet to prevent backflow, especially in low-mounted outlets.
- Manual override: Add a momentary switch near the helm to test operation or for emergencies.
- Fuse: Place an inline fuse (AGC type) within 7 inches of the battery, sized to match the breaker’s rating.
Power Source Considerations
Connect directly to a deep-cycle battery, not the starter battery, to avoid drainage. For dual-battery systems, use an automatic charging relay (ACR) to maintain separation while allowing cross-charging. Ensure the battery’s reserve capacity exceeds the drainage device’s daily runtime–calculate using: (daily runtime in hours) × (current draw in amps) = minimum amp-hour requirement. Add 20% buffer for temperature variations and aging.
Test the entire assembly before finalizing installation. Submerge the float switch in a bucket of water to verify activation; measure voltage at the device’s terminals with a multimeter (should read ±0.5V of battery voltage). Check continuity across the circuit with an ohmmeter–zero resistance indicates proper connection. If voltage drops below 11.5V at the terminals, increase cable gauge or shorten the run. Document the layout with labels at both ends of each cable for future troubleshooting.
Installing a 12V Marine Drainage Unit: Precise Connection Steps
Begin by positioning the 12V elimination device near the vessel’s lowest point, ensuring the intake sits at least 2.5 cm above any potential sediment buildup. Secure it with corrosion-resistant SS316 fasteners, applying thread locker to prevent loosening under vibration. Pair the device with marine-grade tinned copper conductors–minimum 16 AWG for runs under 3 m, upsizing to 14 AWG for distances up to 6 m–to minimize voltage drop, which should not exceed 3% under full load.
- Trim insulation precisely–expose 8 mm of conductor at each terminal, avoiding excess bare wire that risks short circuits.
- Crimp terminals using a ratcheting tool rated for 20-24 AWG, then solder for reinforcement before heat-shrinking with adhesive-lined tubing (minimum 2:1 shrink ratio).
- Route conductors away from sharp edges and moving parts, clipping every 30 cm with UV-resistant nylon ties to prevent chafing.
Connect the positive lead directly to a dedicated 30A fuse or breaker within 18 cm of the power source, followed by a 2-position marine rocker switch with integrated LED indicator. Avoid sharing circuits with inductive loads (e.g., winches, refrigeration) to prevent interference–isolate using a Class T fuse block if necessary. For the negative return, bond to the vessel’s grounding busbar; never attach directly to an engine block unless verified by a qualified marine electrician.
Verify installation with a multimeter set to DC voltage: confirm 12.6V at the switch input, no more than 0.4V drop at the device under load, and proper fuse continuity. Test the float mechanism by manually lifting it–listen for immediate activation, then simulate water ingress to ensure the unit cycles off within 5 seconds of deactivation. Document the circuit’s amperage draw, typically 3-5A for 500-750 GPH units, to establish baseline performance for future diagnostics.
How to Connect an Automatic Float Safety Device for Dual Control
Begin by mounting the float-activated switch in a dry, accessible location above the sump’s highest expected waterline. Position it perpendicular to the hull’s sidewalls to prevent false triggers from vessel movement. Use a 3/8-inch stainless steel bracket secured with marine-grade silicone to dampen vibrations that could cause wear on the contact points over time.

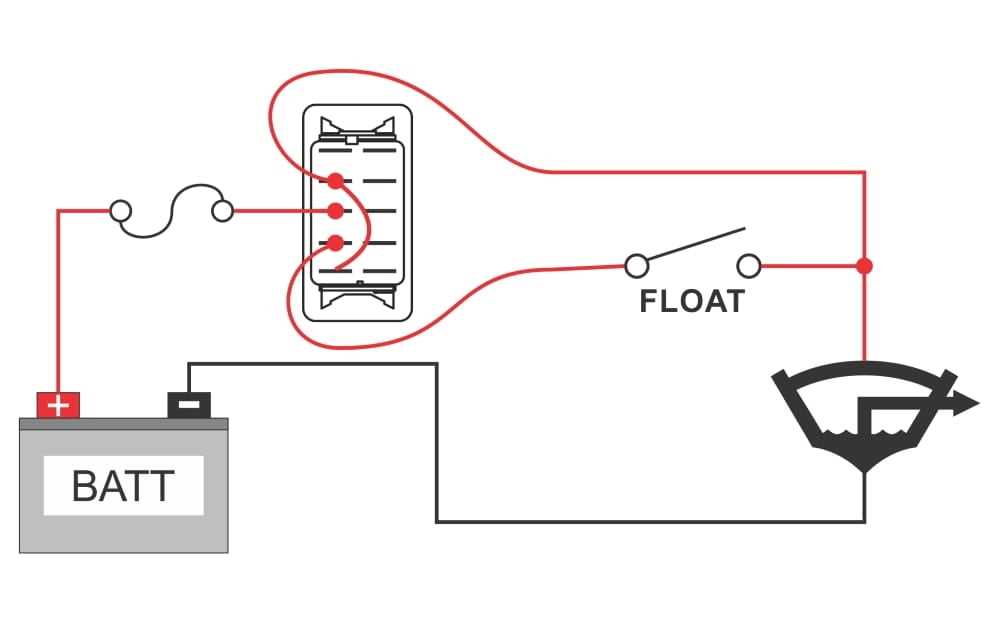

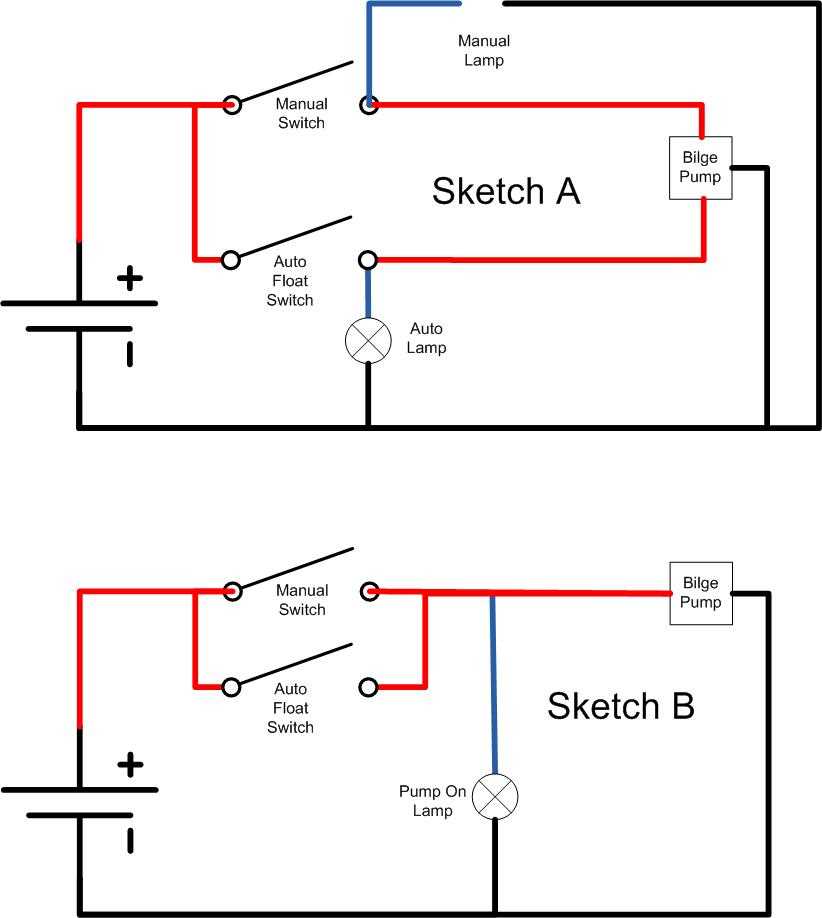

Run a 12-gauge tinned copper cable from the battery’s positive terminal through a 10-amp fuse holder to the switch’s common terminal. For manual override, wire a single-pole double-throw toggle adjacent to the helm, connecting the normally open contact of the switch directly to the motor’s feed wire. This setup ensures the system remains inactive unless the manual lever is engaged or water rises past the preset level.
Install a diode on the float switch’s output to block reverse current that could damage the circuit when multiple safety mechanisms share a power source. Select a 1N4007 diode–its 1-amp rating exceeds maritime demands while preventing voltage spikes during shut-off cycles. Crimp the diode’s leads with heat-shrink tubing to resist corrosion from saltwater exposure.
Ground both the switch and manual control to the vessel’s negative bus bar, avoiding the engine block to reduce interference from alternator noise. Use yellow-jacketed wire for all negative connections to distinguish them from live feeds during troubleshooting. Secure each connection with solderless terminals and apply dielectric grease to inhibit oxidation.
Test the setup in a controlled environment by submerging the float switch in a bucket of seawater. Observe the motor’s activation delay–it should not exceed 1.5 seconds. If response lags, replace the switch; prolonged hesitation risks water accumulation exceeding the sump’s capacity.
Label all terminals with waterproof polyester tags, indicating “Auto Start,” “Manual Bypass,” and “Power In.” Store extra cable in a spiral wrap near the control panel to allow adjustments without splicing during future modifications. Verify voltage at each connection point with a multimeter after final assembly to confirm no resistances exceed 0.2 ohms.
For vessels operating in freezing conditions, route cables away from thru-hull fittings where ice formation could impede float movement. In hot climates, ensure the switch’s housing remains below 60°C to prevent premature failure of its internal epoxy seal. Recheck alignment monthly–misalignment by more than 15 degrees can render the automatic function unreliable.
