Understanding Battery Management System Circuit Schematics Key Components
Start with a precise voltage monitoring network–divide the battery pack into segments, each paired with a high-precision shunt resistor and a differential amplifier. Use the TI INA226 or Analog Devices AD8418 for current sensing; their common-mode rejection ratios exceed 120 dB, eliminating ground noise in systems up to 80V. Route Kelvin connections directly to the resistor pads to minimize parasitic resistance–every milliohm saved translates to a 0.5% improvement in efficiency at 10A loads.
Integrate cell balancing with active rather than passive circuits for packs above 10S. Linear Technology’s LTC3300-1 delivers 10A balancing currents with 97% efficiency, cutting balancing time by 70% compared to resistive bleed methods. Place the balancing MOSFETs as close as possible to the cell terminals–trace lengths over 20mm introduce inductance that degrades transient response. For under 5S configurations, opt for the BQ76920’s built-in passive balancing, limiting external components to decoupling capacitors (10µF X7R, 16V).
Power distribution demands a layered approach: primary regulation via a buck converter (e.g., Texas Instruments LM5140-Q1) for the main MCU rail (3.3V), followed by an LDO (Maxim MAX8881) for noise-sensitive analog circuits like ADCs. Isolate the gate driver power (15V) with a separate flyback converter (Power Integrations LinkSwitch-TN2) to prevent ground loops. Use a single-point star grounding topology: connect all ground returns to a single copper pour near the current shunt–violating this rule introduces ±30mV errors in SOC calculations.
Fault protection relies on redundant sensing: overvoltage thresholds set at 4.25V (typical for Li-ion) with the primary comparator (LM393) backed by a hardware fuse (Microchip MIC2779L) for catastrophic failures. Short-circuit detection must trigger within 5µs–use the Allegro ACS71240 for galvanically isolated sensing, placing it upstream of the main FET to avoid false trips. Ensure thermal safeguards include a PTC (Murata PRF18BB) near the hottest cell, sized to trip at 60°C, and a secondary NTC (10kΩ @ 25°C) near the balancing MOSFETs.
Trace layout determines reliability: separate analog and digital planes, with analog traces wider than 1mm/amp to avoid voltage drops. Keep high-current paths (balancing, charging) away from sensitive ADC lines–crossing introduces crosstalk up to 50mV. Use stitching vias around critical nets (gate drive, current sense) to minimize loop area and EMI; a via every 10mm reduces radiated emissions by 12dB. Terminate all nets per IPC-2221: 0.15mm clearance for 30V, 0.5mm for 60V.

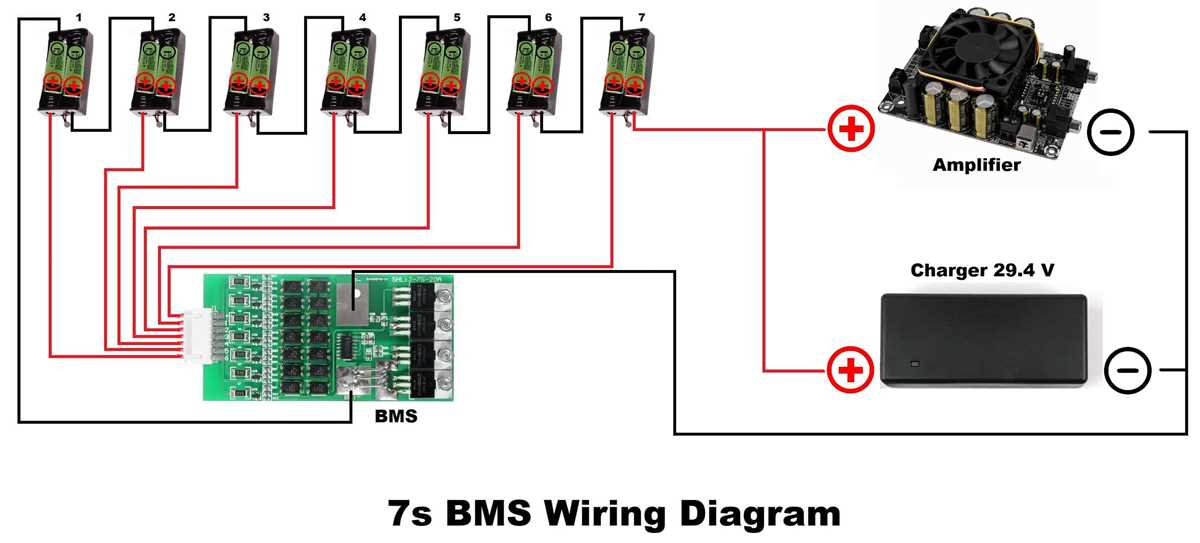

Building a Reliable Battery Protection Circuit: Step-by-Step Wiring
Begin by isolating the primary components: a microcontroller (MCU), balancing resistors, MOSFET switches, and current/voltage sensors. Connect the cell monitoring inputs directly to the MCU’s ADC pins with precision resistors–use 10kΩ 0.1% tolerance for 3.3V systems or 20kΩ 0.1% for 5V setups to minimize measurement errors. Avoid daisy-chaining ground returns; instead, route each sensor’s ground separately to the MCU’s analog ground plane to prevent noise coupling. For lithium-ion packs, place a 100nF ceramic capacitor between each cell’s positive terminal and its respective sensing line to filter high-frequency transients.
Implement MOSFET gate drivers with a dedicated charge pump if driving high-side switches, as this ensures full enhancement at low cell voltages. For an 8-cell stack, use IRF4905 (P-channel) for discharging and IRFB3077 (N-channel) for charging control, both rated for >100V VDS. Gate resistors should be 10Ω–22Ω to balance turn-on speed and ringing suppression. Add 1kΩ pull-down resistors on all gate lines to prevent floating voltages during MCU reset. Critical protection thresholds:
| Parameter | Threshold (LiFePO₄) | Hysteresis | Debounce Time |
|---|---|---|---|
| Overvoltage | 3.65V ±5mV | 100mV | 10ms |
| Undervoltage | 2.5V ±5mV | 150mV | 50ms |
| Overcurrent | 30A (10ms), 20A (continuous) | N/A | 5ms |
| Short Circuit | 80A (100µs trip) | N/A | 50µs |
Route high-current traces (≥20A) with 2oz copper and widen them to ≥8mm per 10A of continuous load; use stitching vias every 5mm to lower impedance. For balancing circuits, select resistors based on cell capacity–0.5W 10Ω for 2Ah packs, 1W 3.3Ω for 10Ah packs–and connect them via small-signal MOSFETs (e.g., 2N7000) to avoid thermal runaway. Place temperature sensors (NTC 10kΩ) near each cell’s positive terminal and average readings in firmware to trigger thermal shutdown at 60°C (with 5°C hysteresis). Isolate communication lines (CAN/I2C) using digital isolators (e.g., ISO7740) with 1kV DC isolation to prevent ground loops in noisy environments.

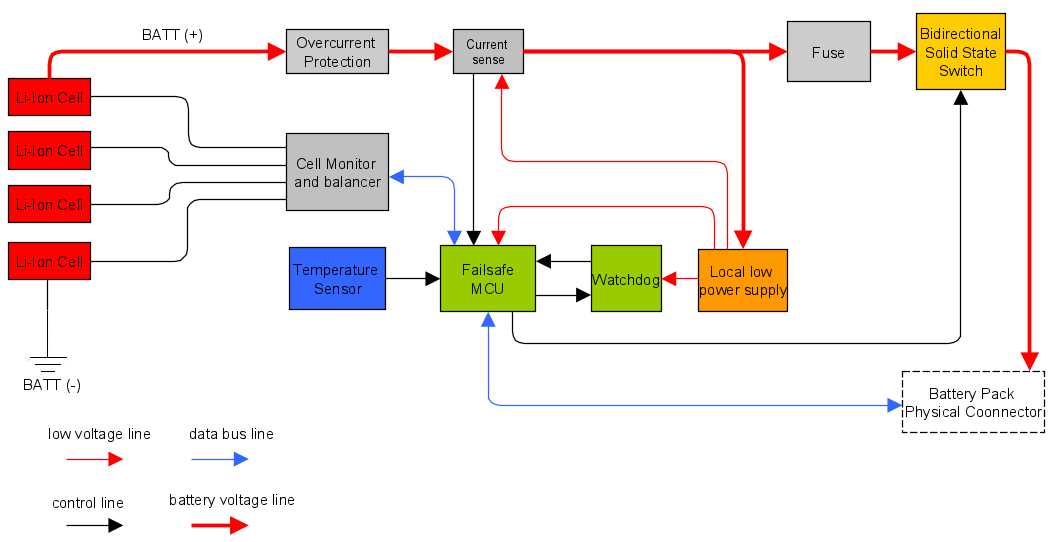

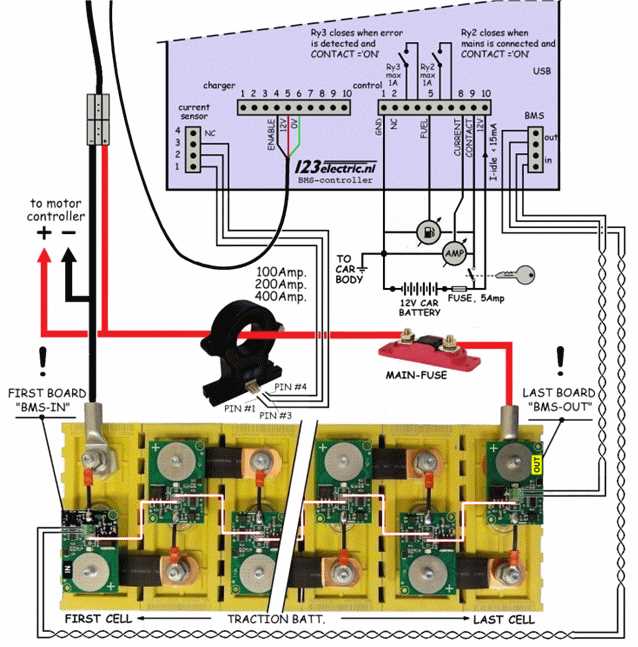

Core Elements to Define in Your Battery Management Layout
Start with a microcontroller unit (MCU) at the center–opt for ARM Cortex-M or STM32 variants with CAN bus and ADC support. Include built-in hardware watchdogs and brown-out detection to prevent firmware hangs. Dedicate at least 12-bit resolution for voltage sensing to resolve millivolt-level deviations across cells.
Voltage Sensing Network
- Implement Kelvin connections on each cell tap to eliminate lead resistance errors.
- Use isolation amplifiers or optocouplers for high-voltage stacks (>48V) to prevent ground loops.
- Add RC filters (10kΩ + 100nF) on sensing lines to reject switching noise from balancing circuits.
- Specify a multiplexing scheme for systems with >16 cells–avoid mechanical relays due to contact bounce; prefer solid-state switches.
Integrate current shunt monitors with 4 chemistries, ensure the shunt can handle 10x nominal current for fault detection. Place the shunt on the low side for simpler PCB routing but account for ground shift errors in high-power systems.
Balancing circuits require bidirectional MOSFETs or passive resistors–avoid single-N-channel designs that risk backflow during faults. For active balancing, include a flyback transformer or switched-capacitor network rated for 2A per cell. Add current-limiting resistors (10Ω) in series with each MOSFET gate to prevent latch-up during transients.
Protection and Communication
- Deploy double-layer redundancy for critical paths–use both MCU interrupts and hardware comparators (e.g., TLV3012) for overvoltage/undervoltage detection.
- Include pre-charge FETs (sized for 300ms inrush) with separate control lines to avoid arcing on load connection.
- Specify galvanically isolated UART/CAN transceivers (ISO1050) with 5kV isolation for external communication.
- Add a temperature sensing network–NTC thermistors (beta=3435) on every 5th cell, wired in a voltage divider to the MCU’s ADC, with 1°C resolution.
Thermal management dictates PCB pad size–allocate 1mm2 per amp for copper traces carrying balancing currents. Use thermally conductive vias (10x Ø0.3mm) under MOSFETs to spread heat to inner layers. For systems exceeding 100W, add a polyswitch (PPTC) in series with the main battery path as a tertiary overcurrent safeguard.
Firmware safeguards must include coulomb counting with a backup crystal oscillator (32.768kHz) for state-of-charge tracking during MCU sleep. Log fault events (e.g., overvoltage trip, balancing timeout) to an external EEPROM (25LC256) via SPI, ensuring data persistence across power cycles. Limit write cycles to 10k/year to extend flash lifespan.
EMI mitigation requires star grounding for analog and digital returns, with a dedicated GND plane under the MCU. Route high-speed traces (CAN/UART) with controlled impedance (100Ω ±10%) and avoid stubs longer than 1cm. For DC/DC converters, include common-mode chokes (3.3mH) on input/output lines to suppress conducted emissions per CISPR 25 Class 5.

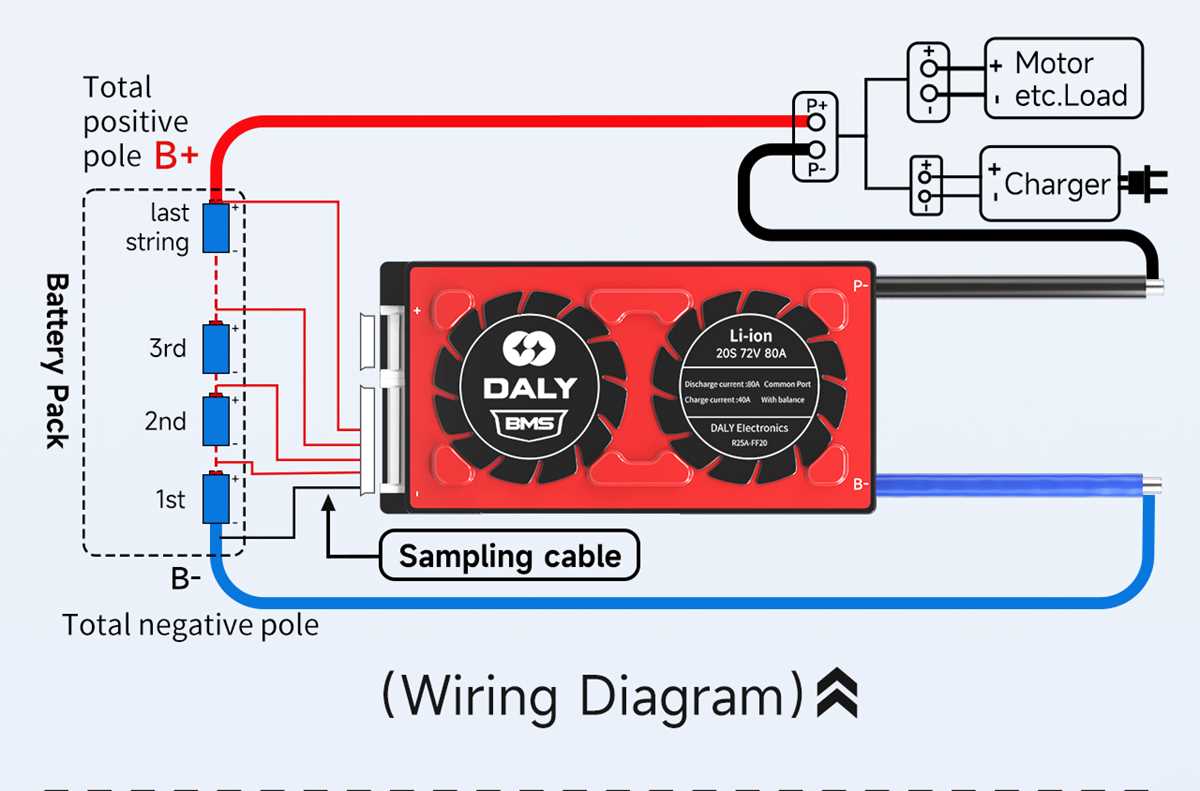

How to Wire Cell Balancing Circuits in Your Design
Connect passive balancing resistors directly across each cell with a dedicated transistor switch (MOSFET) per resistor. Use 1kΩ–10kΩ resistors for currents between 5mA and 50mA, ensuring power dissipation stays below 250mW per resistor to prevent overheating. Route traces from the controller to each MOSFET gate with separate, isolated paths – avoid shared ground loops that can introduce voltage offsets. Gate drive signals should trigger at 5V–12V with active-low configuration for fail-safe operation; include a 10kΩ pull-down resistor on each gate to prevent floating states.
Active Balancing Implementation
For bidirectional flyback converters, place a coupled inductor between adjacent cells with 1:1 turns ratio and 0.9). Drive the primary side with a 50kHz–200kHz PWM signal (30%–70% duty cycle) to transfer energy; use Schottky diodes on the secondary to block reverse current. Integrate a 1μF snubber capacitor across each inductor to suppress voltage spikes exceeding 1.5× the cell voltage during switching transitions.
Position temperature sensors (NTC 10kΩ) within 5mm of each balancing resistor or inductor, connecting them to a dedicated ADC input with 0.1μF decoupling capacitors. Limit balancing operation to cell temperatures below 60°C; disable individual channels if the sensor reads >65°C. Label every trace with net names matching your layout software’s ratsnest (e.g., “BAL1_CTRL,” “BAL1_RTN”) to simplify debugging–verify continuity with a multimeter before powering the circuit.
Step-by-Step Voltage Sensing Circuit Design
Select a precision resistor divider with a tolerance below 1% and power rating at least 2x the expected dissipation. For a 48V stack, use 47kΩ and 10kΩ resistors to scale the voltage to a 0-5V range, ensuring the op-amp’s input common-mode voltage stays within 0.3V of its rails. Place a 100nF ceramic capacitor directly at the divider’s midpoint to ground to filter high-frequency noise; route traces as a differential pair with ≤1mm spacing to minimize EMI coupling.
Choose an op-amp with ≤10µV/°C offset drift (e.g., TI’s OPA333) and configure it as a unity-gain buffer to avoid loading the divider. Add a series 1kΩ resistor at the op-amp’s output to limit fault currents, followed by a Schottky diode (BAT54) to clamp transients at the ADC reference +0.3V. Use a dedicated 2.5V voltage reference (LT1790) for the ADC, bypass it with a 1µF tantalum capacitor at the input pin, and ensure the ground return for the entire sensing path connects to the ADC’s analog ground plane via a single-star point to prevent ground loops.
