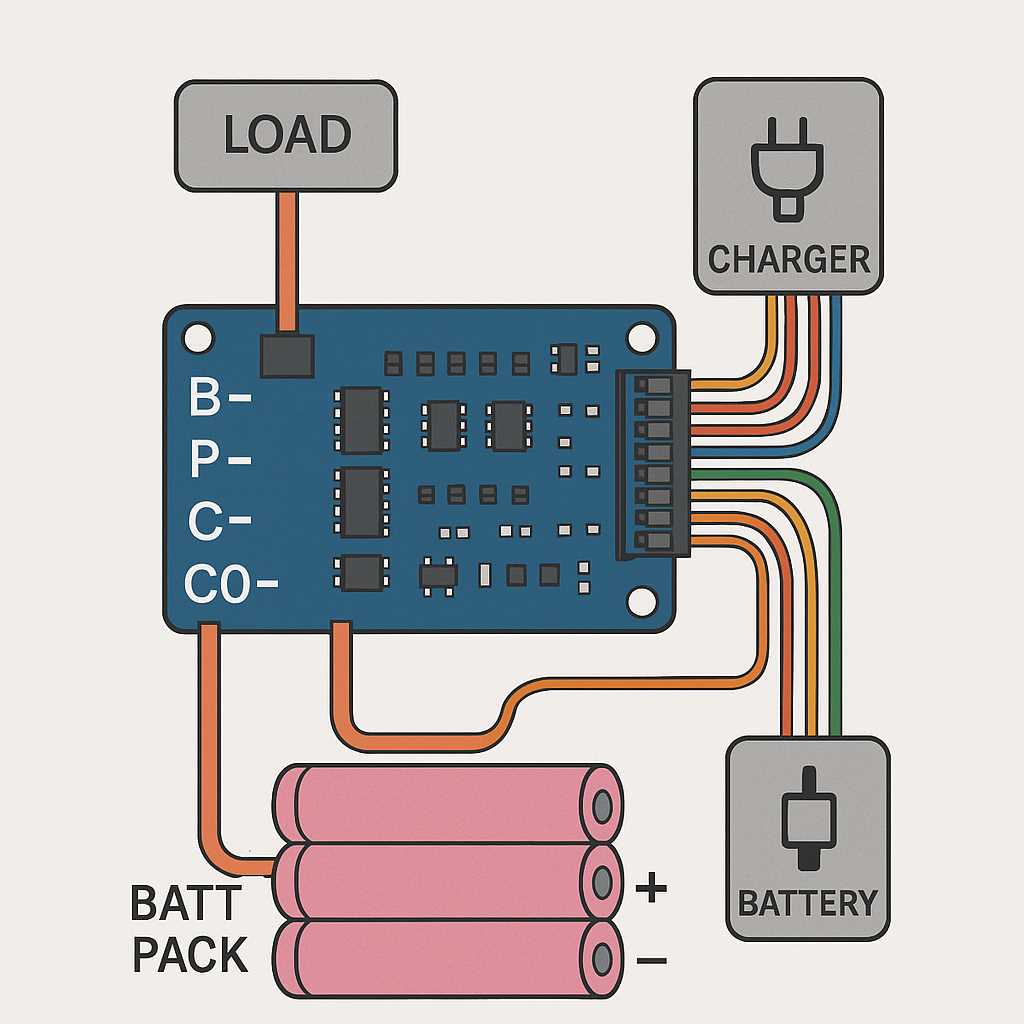

Step-by-Step Guide to BMS Circuit Connection Schematics

For lithium-ion or LiFePO4 battery packs, the connectivity architecture dictates performance, safety, and longevity. Start by selecting the correct gauge for balancing leads–typically 22-24 AWG for cells under 5Ah, or 18-20 AWG for higher-capacity configurations. Ensure every connection terminates at the protection board with soldered joints or high-quality crimp connectors, avoiding even micro-ohm resistance that degrades efficiency.

Isolate the charge and discharge circuits early: route the positive main line through a 100A fuse directly to the pack’s busbar, then split to the protection module’s corresponding input. Ground paths must converge at a single star point near the battery’s negative terminal to eliminate voltage disparities. For multi-module setups, cascade the cell voltage taps in ascending order, labeling each trace to prevent cross-wiring during diagnostics.

Include thermistors adjacent to the hottest cells–mount them with thermal adhesive rather than tape for consistent readings. Wire these sensors in parallel if using a controller that aggregates temperature data. Test continuity with a milliohm meter post-assembly; a deviation above 0.5Ω indicates a weak joint. Document every node with color-coded labels that match the final illustration for maintenance or troubleshooting.

For 48V or higher systems, incorporate a precharge resistor network–typically 100Ω at 5W–to limit inrush current when bridging the main contactor. Position this circuit before the fuse to prevent nuisance trips during soft-start sequences. Verify isolation voltage between high-voltage segments and low-side sensing traces; a 500V megohmmeter reading below 1MΩ signals compromised insulation.

Use shielded twisted pairs for communication lines like UART or I2C to minimize electromagnetic interference, grounding the foil at one end only to prevent ground loops. When routing traces near power conductors, maintain a 1cm clearance for every 5A of current capacity. Double-check every binding post screw torque–1 inch-pound for small terminals, 5 inch-pounds for busbars–to ensure mechanical stability under vibration.

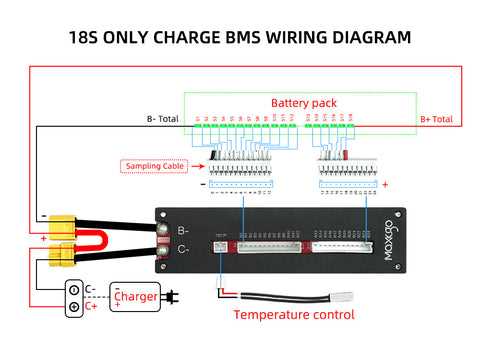

Practical Steps for Connecting Your Battery Control System

Begin with the main power lines: connect the positive and negative terminals from the battery pack directly to the corresponding inputs on the management board. Use cables with a cross-section at least 20% larger than the maximum current rating of your setup to prevent voltage drops under load. For a 100A system, 12 AWG (3.3 mm²) is the minimum, but 8 AWG (8.4 mm²) improves safety.

Label each balance lead before attaching them. Even in small packs, confusion between cell 1 and cell 8 can cause permanent damage. Use colored sleeving–red for the highest voltage tap, black for ground, and distinct colors (yellow, blue, green) for intermediate cells. Secure connections with solder or high-quality crimp terminals, then insulate with heat-shrink tubing rated for 150°C.

Route the temperature sensor wires away from high-current paths. Thermistors should be placed near the center of the pack, not edges, to detect actual cell temperature rather than ambient heat. Avoid twisting sensor cables with balance leads, as inductive coupling can introduce false readings. Use shielded twisted pairs if the distance exceeds 50 cm.

Test each connection with a multimeter before final assembly. Measure voltages at balance ports–each should match the expected cell voltage within 0.05V. Verify continuity between the ground terminal and each negative tap; a broken link here can disable balancing. For packs above 13S, check insulation resistance between cells and the enclosure (target >10 MΩ).

Use a fuse on the main positive line sized 150% of the continuous current rating. For a 30A system, a 45A fuse provides margin without nuisance trips. Place the fuse within 10 cm of the battery terminal to protect the wire in case of a short. Marine-grade ANL fuses last longer than blade types in high-vibration environments.

Ground the management board to the enclosure using a dedicated 12 AWG wire. Avoid relying on mounting screws alone–vibration can loosen connections. If the system includes a charger, isolate its ground from the battery negative to prevent ground loops. Use a star topology for all grounds to minimize noise in communication lines like CAN bus or UART.

After final checks, power up the system in stages. Start with a single cell connected, then incrementally add others while monitoring for abnormal heating. Log voltage, current, and temperature for the first 30 minutes; deviations >0.2V or rises >5°C indicate configuration errors. Document the baseline readings–this simplifies future troubleshooting.

Critical Elements for an Energy Management Circuit Configuration

Select a controller board with at least 12 gate driver outputs for medium-sized power storage arrays. Boards handling currents above 100A need reinforced copper traces–opt for 2oz copper thickness to prevent overheating during peak discharge cycles. Verify the controller supports both I²C and CAN communication protocols, as this ensures compatibility with most monitoring interfaces and legacy systems.

For accurate voltage measurement across individual cells, procure high-precision balancing resistors rated at 0.1% tolerance. These resistors must handle at least 1W of power dissipation when actively balancing cells during charge cycles. Avoid generic 1% tolerance components, as cumulative errors across a 16-cell stack can exceed 50mV, leading to premature charge termination or overvoltage risks.

Integrate current sensing solutions using either shunt resistors or Hall-effect sensors. Shunt resistors (typically 100μΩ) demand precise placement near the negative terminal of the power stack to minimize noise interference. Hall-effect sensors, while more expensive, eliminate resistive losses and simplify layout for high-current applications above 200A. Ensure the chosen sensor’s output matches the controller’s analog input range–commonly 0–3.3V for most boards.

Thermal protection requires NTC thermistors (negative temperature coefficient) with a resistance range of 10kΩ at 25°C. Position them directly on cell surfaces for fastest response–adhesive pads or threaded mounts work for cylindrical and prismatic cells, respectively. Configure the controller’s temperature thresholds to trigger derating at 45°C and complete cutoff at 60°C, balancing performance with safety margins.

Power delivery stability depends on appropriately sized connectors and cables. For 50A continuous loads, use 10AWG copper wires with silicone insulation to withstand 120°C environments. Battery terminals demand crimped lugs coated with tin or silver to prevent oxidation–avoid solder-only connections, as thermal cycling causes joint failure over time. Distribute current evenly across parallel paths to minimize resistive losses.

Fuse selection determines system protection: install fast-acting fuses rated 1.3× the maximum expected current. For 100A circuits, a 130A fuse protects against short circuits without nuisance trips during acceleration events. Position fuses at both the main busbar and branch circuits to isolate faults without compromising the entire stack. Consider resettable PTC fuses for remote or unattended installations to reduce maintenance overhead.

Grounding architecture plays a pivotal role in noise reduction and safety. Establish a dedicated star ground point for all low-voltage signals, separating it from high-current paths to prevent voltage drops affecting precision measurements. Use twisted-pair wiring for signal lines between the controller and balancing resistors to reject EMI from nearby switching converters. Isolate analog and digital grounds with a single-point connection at the battery’s negative terminal.

Firmware configuration adjusts system behavior beyond hardware specifications. Configure undervoltage lockout at 2.5V per cell to prevent deep discharge damage. Set balancing thresholds to activate when adjacent cells differ by more than 10mV–this preserves efficiency without excessive heat generation. Log historical data via the controller’s non-volatile memory to diagnose long-term drift in cell performance or detect intermittent faults early.

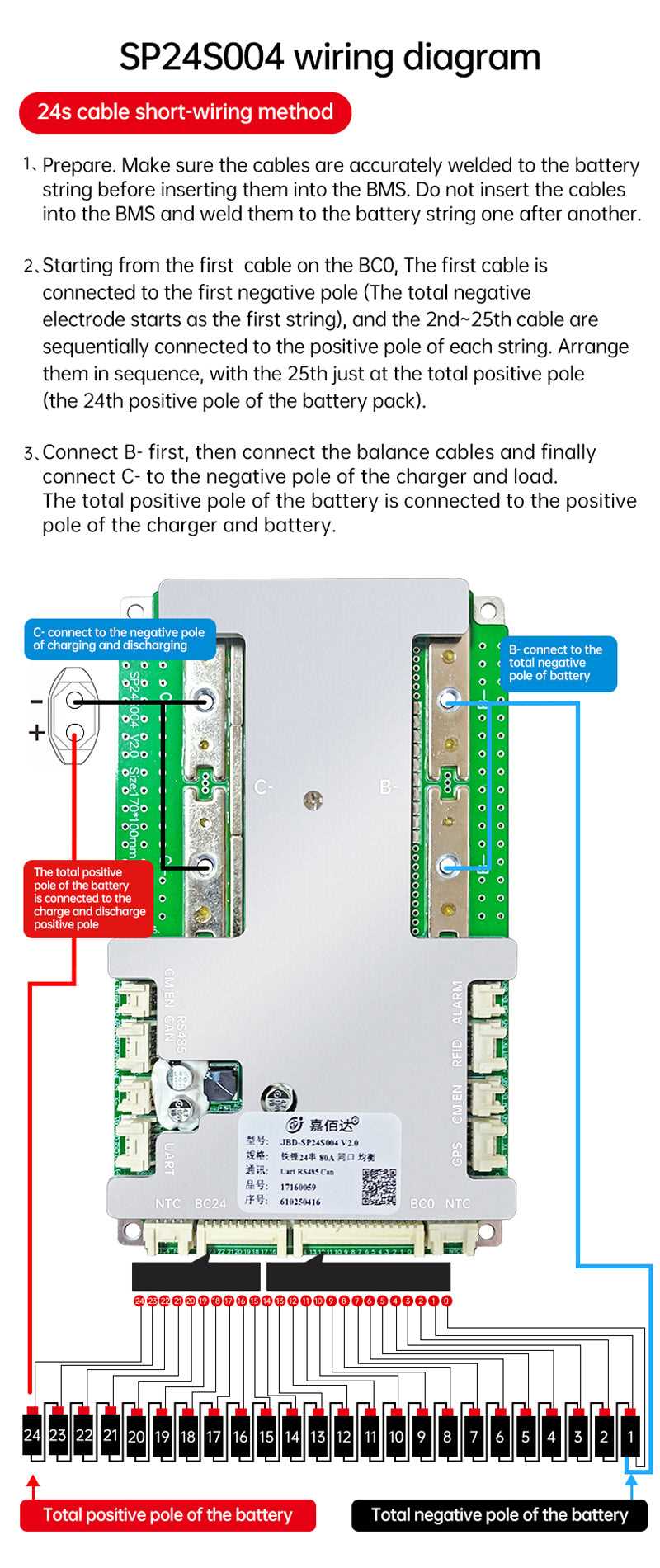

Step-by-Step Connection of Battery Cells to a Protection Module

Measure the voltage of each cell with a multimeter before handling. Cells must not differ by more than 0.02V–balance them using a dedicated charger if necessary. Label each cell with masking tape indicating its position (e.g., C1, C2) to match the module’s port sequence.

Prepare 16 AWG silicone-insulated wires, stripped 5 mm at both ends. Tin each exposed strand with solder to prevent fraying. For 18650 cells, use nickel strips 0.15 mm thick; for prismatic, 0.3 mm. Cut strips 10 mm longer than the cell terminals to ensure full contact when spot-welded.

1. Attach the negative terminal of the first cell to the module’s B- pad using the prepped wire. Secure with a single M3 screw, torque 0.8 Nm.
2. Connect adjacent cell positive terminals to corresponding C pads starting from C-. Skip 2 mm between each pad to avoid short circuits.
3. Link the final cell’s positive terminal to P+. Double-check polarity–reverse connection risks permanent module damage within 3 seconds.

Insulate all connections with heat-shrink tubing or Kapton tape. Apply polyimide tape across cell tops first to prevent accidental contact during assembly. Test continuity with a multimeter–ohmmeter should read <1 Ω between any cell and its adjacent module pad.

Activate the module by momentarily connecting a balance lead to the C- pad. LED indicators should illuminate sequentially; absence of illumination signals miswiring. If errors persist, discharge all cells to 3.0V and recheck connections within 15 minutes to avoid false triggers in the protection circuitry.
