Complete Guide to BNC Connector Wiring Diagrams for Secure Connections

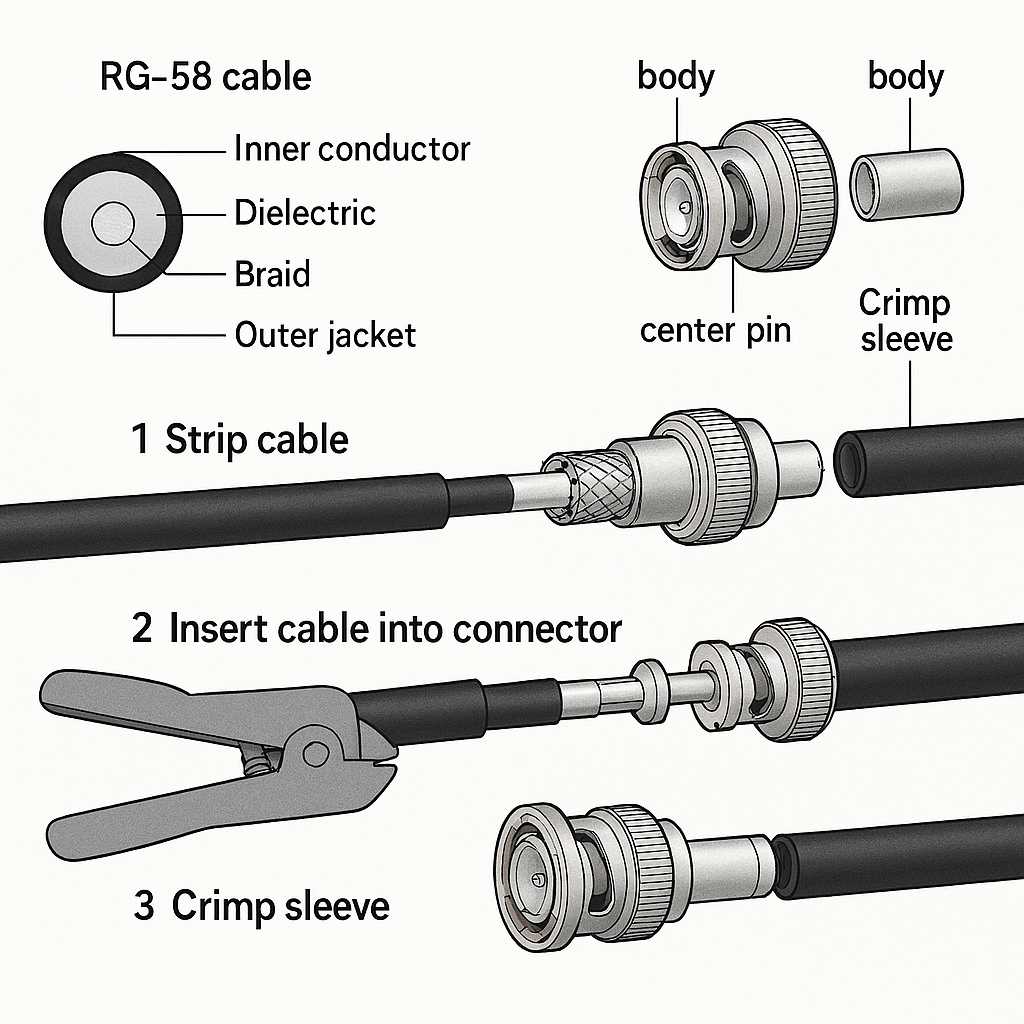

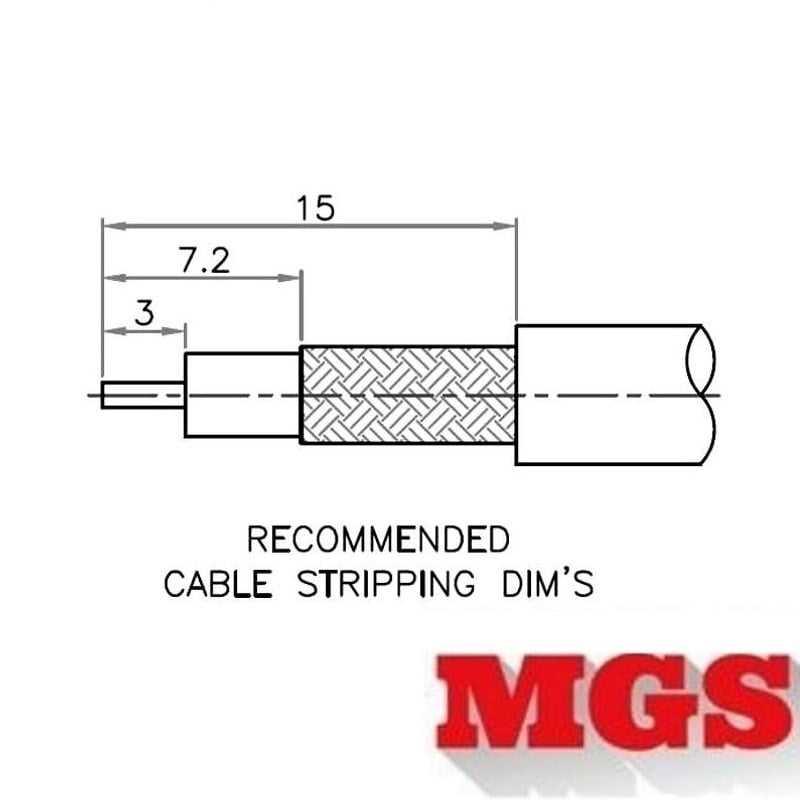

Begin by verifying the cable impedance–50Ω for RF signals or 75Ω for video applications. Incorrect matching introduces signal degradation, especially at frequencies above 10 MHz. Strip the outer jacket 12–15 mm from the end, exposing the braided shield without nicking the dielectric. Unravel the shield strands and twist them into a single conductor, then fold it back over the jacket to prevent fraying.
For the center conductor, trim the dielectric to leave 5–7 mm of exposed wire. Tin this end with solder no thicker than 0.5 mm to avoid shorting against the shield. When attaching to a crimp or solder connector, ensure the pin or socket grips the center wire firmly–no wobble–and that the shield strands make full circumferential contact with the connector body. Use a crimp tool rated for the connector size; manual pressure risks inconsistent compression.
Test continuity with a multimeter before final assembly. Measure resistance between the center pin and shield–0Ω indicates proper contact. For high-frequency use, verify with a TDR or VNA; impedance spikes at 25Ω–100Ω point to poor crimping or shield gaps. Seal the joint with heat-shrink tubing if the connection will endure moisture or vibration; polyolefin tubing with adhesive lining prevents corrosion over time.
Common pitfalls include reversed polarity (center conductor to shield) and excessive solder flux residue. Flux left inside the connector acts as an insulator at RF; clean with isopropyl alcohol (99% concentration) and a lint-free swab. For temporary setups, consider screw-on or twist-lock connectors–no crimping needed–but expect 1–3 dB signal loss compared to soldered joints.
Coaxial Connector Assembly Guide for Signal Transmission
Begin by stripping the outer jacket of RG-59 cable precisely 12mm, exposing the braided shielding. Trim the braid to 8mm, then carefully fold it back over the jacket to prevent stray strands from contacting the core. The center conductor must extend exactly 3mm beyond the insulation–excess length risks signal reflections, while insufficient exposure causes poor contact. Use a dedicated crimp tool for the connector’s ferrule, applying 12-15 inch-pounds of torque to avoid crushing the dielectric or loosening the ground path.
Critical Cable Preparation Steps
Verify the cable’s impedance before termination–RG-59 (75Ω) and RG-6 (50Ω) require distinct connectors; mismatches degrade bandwidth by up to 40% at 1GHz. For plenum-rated installations, ensure the jacket material (e.g., FEP or PTFE) complies with NFPA 262 to avoid toxic fume hazards. When soldering the core to the pin, maintain a 350°C iron tip for under 3 seconds; prolonged heat damages the dielectric and introduces phase noise. For screw-on types, avoid cross-threading–torque must not exceed 4Nm to prevent stripping the connector’s ridge.
Test completed assemblies with a TDR (Time Domain Reflectometer) or vector network analyzer. Look for impedance discontinuities at the termination point–ideal readings should show a flat line at 75Ω ±2Ω for video applications. For PoC (Power over Coax) systems, confirm DC resistance between center pin and ground stays below 0.5Ω; higher values indicate poor grounding or corroded contacts, which amplify interference in high-frequency transmissions like HD-SDI.
Step-by-Step Guide to Installing Coaxial Connections for CCTV Setups
Ensure the power to all devices is switched off before handling connectors to prevent short circuits or damage. Verify voltage compatibility between cameras, recorders, and power supplies–typically 12V DC or 24V AC–to avoid equipment failure. Label each cable at both ends with the corresponding camera number or location for easier troubleshooting later.
Use a coaxial cable stripper to remove the outer jacket, exposing approximately 15mm of the braided shield. Twist the shield strands into a single wire and fold them back over the jacket. Peel back the inner dielectric to reveal the copper core, leaving about 5mm exposed. Avoid nicking the core, as this weakens signal transmission.
Attach the crimp-style connector by sliding it over the prepared cable. Use a coaxial crimping tool to secure the connector, ensuring the shield and core make firm contact with the connector’s terminals. For screw-on connectors, thread the cable clockwise until the shield and core align with the inner pins–over-tightening can damage threads or distort signals.
Connect the male end of the cable to the camera’s video output and the female end to the DVR or monitor input. Match the polarity if using power-over-coax (PoC) by aligning the red-positive and black-negative wires correctly. PoC eliminates separate power cables but requires a splitter if power and video share the same line.
Test each connection by powering the system and checking the monitor for a clear image. Fuzzy video or static indicates poor termination–recheck crimps, screws, or cable alignment. Use a multimeter to verify continuity between the shield and core if issues persist; resistance should read below 2 ohms for proper transmission.
Route cables through conduit or cable trays to protect against physical damage, moisture, or interference from electrical lines. Keep runs under 300 meters to maintain signal integrity–longer distances may require repeaters or fiber optic conversion. Avoid sharp bends, which can degrade performance; maintain a minimum bend radius of 10 times the cable diameter.
Secure connections with weatherproof boots if installed outdoors to prevent corrosion. For multi-camera setups, use a distribution amplifier to split signals without loss. Document each run’s length and termination points for future reference, including deviations like PoC usage or splices.
Essential Gear for Coaxial Connector Assembly at Home
Start with a high-quality RG-59 or RG-6 cable–avoid generic brands prone to signal loss. A 100-foot spool of Belden 9248 (RG-6) costs around $50 and ensures consistent impedance of 75 ohms, critical for video and RF applications. Pair this with gold-plated connectors rated for the cable gauge; nickel-plated options corrode faster.
Use a precision coax stripper with adjustable depth settings. The Paladin Tools 11061 cuts through the outer jacket, braided shield, and dielectric in one pass without damaging the inner conductor. Incorrect stripping leaves exposed copper or cuts the core–both degrade performance. For RG-6, set the blade to 0.43 inches for the jacket and 0.18 inches for the dielectric.
An analog crimping tool with interchangeable dies is mandatory. The Klein Tools VDV226-022 handles most connector sizes but verify die compatibility with your chosen termination ends. Crimp pressures matter: too loose risks loose connections, too tight damages the cable jacket. Apply 25-30 ft-lbs of force to compress the connector ferrule uniformly.
| Tool | Purpose | Recommended Model | Price (USD) |
|---|---|---|---|
| Coax stripper | Expose layers precisely | Paladin 11061 | $35 |
| Crimping tool | Secure connector to cable | Klein VDV226-022 | $42 |
| Soldering iron (optional) | Bond center pin to conductor | Weller WLC100 | $50 |
| Multimeter | Verify continuity/signal | Fluke 115 | $120 |
Inspect the cable after stripping. The braided shield should fan out evenly–clump it into a single bundle when inserting into the connector body. Twist excess strands tightly; loose strands cause short circuits. For soldered connections, tin the center pin with 60/40 rosin-core solder at 600°F. Avoid acid-core solder–it corrodes copper over time.
Safety and Testing Protocols
Never test continuity with the cable connected to live equipment. A 3V coin cell battery and LED bulb suffice for basic checks. For professional validation, use a Fluke DSX-8000 CableAnalyzer to measure insertion loss and return loss across 1-1000 MHz. Expect -20 dB return loss at 50 MHz for a properly terminated RG-6 cable.
Heat-shrink tubing adds strain relief. Slide 1-inch of 3:1 polyolefin tubing (0.125″ diameter) over the connector before crimping, then heat with a heat gun at 250°F. Avoid electrical tape–it degrades and leaves residue. For outdoor installations, use UV-resistant tubing to prevent cracking.
Store tools in a dry environment. Moisture corrodes cutting edges and crimp dies. Replace strippers when blades dull–typically after 200 cuts on RG-6. Crimping tools lose calibration with heavy use; recalibrate annually if terminating >50 cables monthly.
RG59 vs. RG6 Coaxial Cables: Key Differences and Practical Applications
Start by checking the cable’s impedance–RG59 has 75 ohms, while RG6 maintains the same impedance but with thicker insulation and a larger conductor (18 AWG vs. 20–22 AWG in RG59). Use RG59 for short-distance analog signals under 500 MHz, such as CCTV or older composite video setups, where attenuation isn’t critical. RG6, with its lower signal loss (typically 5.6 dB/100 ft at 1 GHz vs. 8.5 dB/100 ft for RG59), excels in high-frequency transmissions like satellite TV, DOCSIS modems, or HD-SDI up to 1000 feet. Measure the jacket thickness: RG59 usually has a 6–7 mm diameter, whereas RG6 ranges from 6.8–8 mm due to its double shielding (foil + braid).
Field Testing and Installation Tips
For quick identification, strip the jacket–RG6’s solid copper or copper-clad steel center conductor is visibly thicker; RG59’s is often stranded copper. Terminate RG6 with compression connectors rated for its larger size to avoid impedance mismatches. In outdoor installations, prioritize RG6 for its superior moisture resistance and ability to handle power surges (up to 30V vs. RG59’s 20V). Avoid RG59 for runs exceeding 150 feet in 1080p or higher video applications, as pixelation or signal dropout may occur. Test with a TDR (Time-Domain Reflectometer) if available: RG6’s reflection coefficient remains stable under 3 GHz, while RG59’s degrades sharply above 900 MHz.
