Complete Boss Stereo Wiring Harness Connection Guide for Car Audio Systems

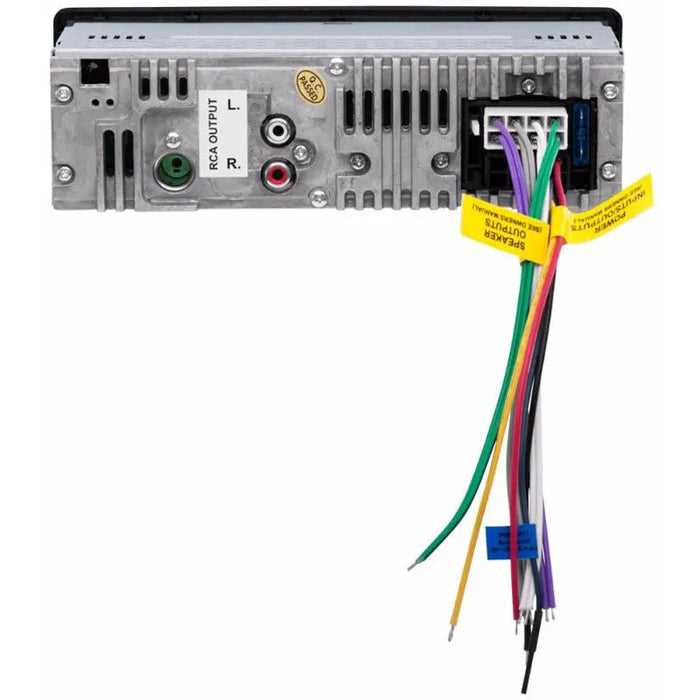

Begin by identifying the power wire (typically yellow or red, 12V+) on your vehicle’s factory radio connector. This line must feed directly from the battery through an inline fuse (15–20A recommended) to prevent voltage drop. Match the ground (black) to a solid chassis point within 18 inches of the amplifier location–scrub paint or corrosion first to ensure a clean connection. Speaker outputs follow a universal color code: front-left (+) white, front-right (+) gray, rear-left (+) green, rear-right (+) purple; negative leads are striped.

For two-channel setups, bridge the rear channels using a Y-adapter if the amplifier supports it–check RMS rating to avoid clipping. Uneven impedance (below 2 ohms) will trigger thermal shutdown; verify compatibility before connecting. Retain memory functions by tapping the accessory wire (often brown or pink) to a switched 12V source that activates with ignition. If dimming features are needed, splice the illumination wire (usually orange) into the vehicle’s dash lighting circuit.

Use crimp connectors or solder for permanent joins–twist-and-tape methods corrode over time. Label each connection with heat-shrink tubing or numbered tags to simplify troubleshooting. Test continuity with a multimeter before powering up; shorts can fry amplification circuitry. If static persists, route signal cables away from power wires and engine control modules, using ferrite beads if necessary. Factory steering wheel controls may require an adapter module–match the protocol (CAN bus, resistor-based) to the vehicle’s year and model.

Speaker polarity reversal (swapping positive and negative) cancels out low frequencies; verify phase alignment by testing with a tone at multiple volumes. High-pass filters on midrange drivers (set at 80–120Hz) protect from distortion, while subwoofers benefit from a low-pass (50–100Hz) to prevent muddy response. Use twisted pair wiring for RCA cables to reject noise; gold-plated connectors resist oxidation better than nickel.

Understanding Your Vehicle Audio Connector Layout

Begin by locating the factory audio interface in your vehicle–typically found behind the dashboard or radio slot. Most modern vehicles use a standardized 10-to-16 pin plug, though some luxury or European models may deviate with proprietary configurations. Verify the pinout using the original manufacturer’s service manual, as aftermarket adapters often rely on these specifications for seamless integration.

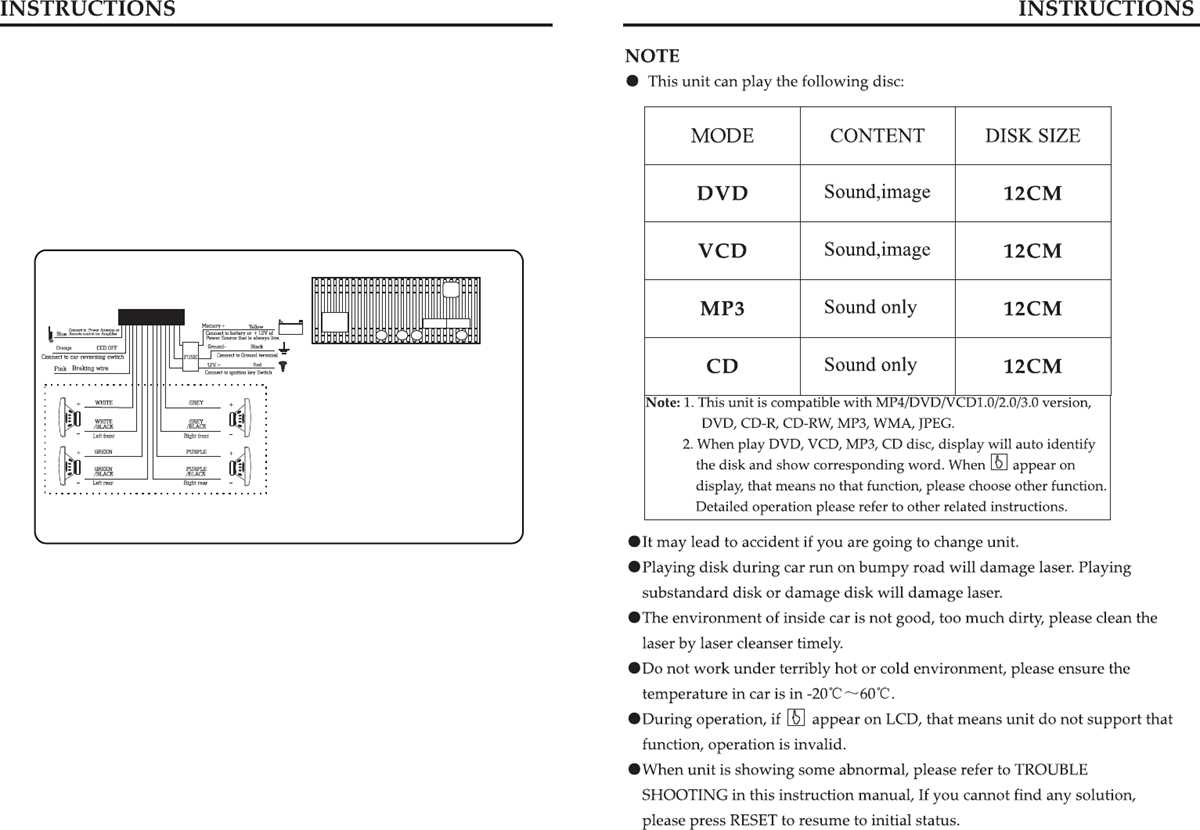

If working with a generic adapter, identify the power, ground, speaker, and accessory lines by color-coding. Below is a reference table for common wire functions found in universal connectors:

Wire Color	Function	Voltage/Current (Typical)
Yellow	Constant 12V (Battery)	12V DC, 10A+
Red	Switched 12V (Ignition)	12V DC, 5A
Black	Ground	0V, chassis connection
White (+ stripe)	Front Left Speaker (+)	4-8Ω, 20W RMS
White	Front Left Speaker (-)	4-8Ω, 20W RMS
Gray (+ stripe)	Front Right Speaker (+)	4-8Ω, 20W RMS
Gray	Front Right Speaker (-)	4-8Ω, 20W RMS
Green (+ stripe)	Rear Left Speaker (+)	4-8Ω, 25W RMS
Green	Rear Left Speaker (-)	4-8Ω, 25W RMS
Purple (+ stripe)	Rear Right Speaker (+)	4-8Ω, 25W RMS
Purple	Rear Right Speaker (-)	4-8Ω, 25W RMS
Blue (+ stripe)	Power Antenna/Amplifier	12V, 200mA (trigger)
Orange (+ stripe)	Illumination/Dimmer	12V, variable (0-12V)

For vehicles equipped with amplified systems, note the presence of a dedicated power control line (often blue) and verify if a relay or fuse is required. Some OEM setups include a separate data bus or CANbus line (frequently brown or pink)–tapping these incorrectly can trigger error codes or disable features like steering wheel controls.

Troubleshooting Mismatched Connectors

If the pin assignments differ, use a multimeter to test each line before connecting. Set the meter to DC voltage mode (20V range) and probe the pins with the ignition on. A constant 12V source should read near battery voltage, while speaker wires will show fluctuating AC signals when audio plays–typically 1-8V peak-to-peak.

When splicing into existing leads, avoid solderless connectors; they introduce resistance and corrosion risks over time. Instead, use heat-shrink butt connectors or solder joints sealed with adhesive-lined shrink tubing. For high-current lines (yellow, red), add an inline fuse matching the original system’s rating–usually 10-20A–to prevent fire hazards.

Japanese and Korean vehicles often follow ISO 10487 standards, but Ford, GM, and Chrysler frequently use unique layouts. Cross-reference with a vehicle-specific guide if the adapter’s documentation lacks clarity. For systems with built-in equalizers or subwoofer outputs, check if the replacement unit supports preamp outputs (RCAs)–if not, a LOC (line output converter) may be necessary to preserve low-level signals.

Matching Vehicle-Specific Audio Integration Kits

Begin by locating your car’s manufacturer and model year in Metra or Scosche compatibility charts–these databases group aftermarket interface solutions by trim levels, factory audio systems, and connector types. For Ford F-150 (2015–2020), kit 70-5601 covers base models with single-DIN slots; if your truck has the SYNC 3 touchscreen, opt for 70-5602, which includes the amplified signal relay and USB pass-through. Toyota Camry LE (2018–2022) pairs with 70-1761, while hybrid trims require 70-1763 to bypass the JBL amp without triggering factory error codes.

Verify pinouts using a multimeter before installation–Metra’s 70-5600 series adapters for GM vehicles (2007–2013) omit the OnStar wiring tap but include the RAP retention relay for door chimes. For Honda Civic EX (2006–2011), 70-1721 supports the factory USB port, while 70-1720 strips antenna triggers to prevent memory drain. Cross-reference harness color codes: orange/white (accessory), yellow/black (constant 12V), brown (fader) to avoid shorting dimmer circuits in European-spec imports.

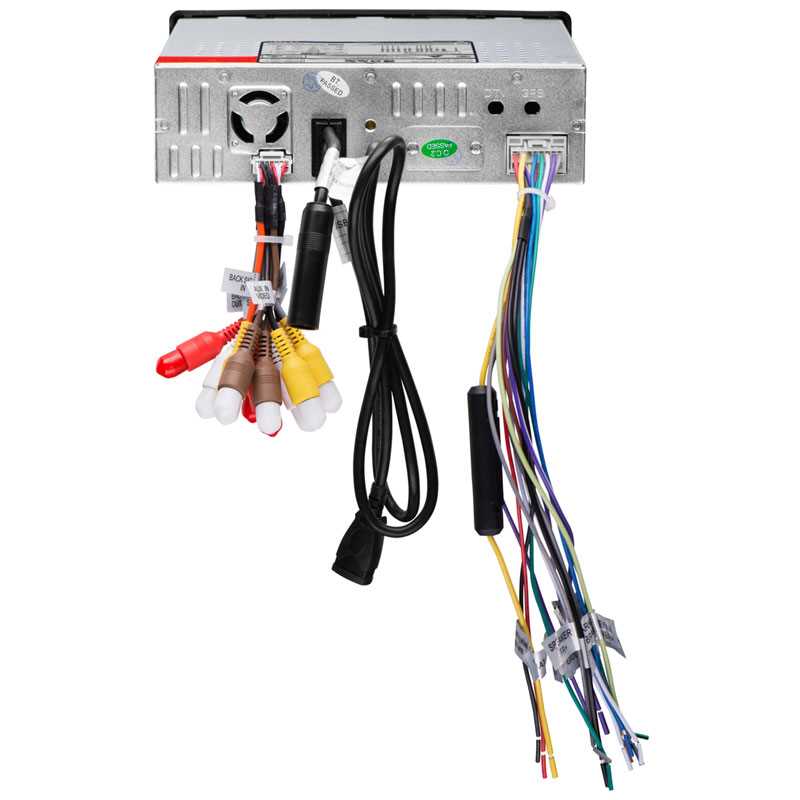

How to Integrate an Aftermarket Audio Processor with Pre-Existing Vehicle Connections

Disconnect the negative battery terminal before handling any electrical components to prevent short circuits or damage. Identify the color-coded leads on the factory adapter and match them precisely to the corresponding wires on your new head unit using a multimeter for verification–never rely solely on visual inspection. Secure connections with solder and heat-shrink tubing, or use crimp connectors if soldering isn’t an option, ensuring no exposed copper is left to corrode.

• Yellow (12V constant): Connects to the battery’s positive terminal via a dedicated fuse (15-20A) to maintain memory settings.
• Red (accessory/switched 12V): Links to the ignition circuit to power the unit only when the vehicle is on.
• Black (ground): Must be attached to a bare metal chassis point with no paint or rust; use a star washer for better conductivity.
• Blue/white (remote turn-on): Triggers amplifiers or powered subwoofers when the head unit is active.
• Speaker wires: Pair front/rear channels by impedance (typically 4-8Ω) to avoid phase cancellation–polarity matters.

Avoid twisting mismatched wires together, as this can cause signal interference or overheating. Test each connection with the multimeter in continuity mode before reassembling the dash. If static or distorted audio occurs, recheck ground integrity and resistor loads on the factory speaker leads. For vehicles with active noise cancellation or fiber-optic systems, use a dedicated interface module to preserve functionality.

Diagnosing Faults in Car Audio Connector Installations

First, verify the ground connection by testing continuity between the negative lead and the vehicle’s chassis using a multimeter. Resistance readings above 0.5 ohms indicate corrosion or insufficient contact–clean surfaces with a wire brush and re-secure the terminal with a star washer to prevent loosening over time.

If the receiver powers on but produces distorted sound, inspect the RCA cables for shielding damage or proximity to power wires. Separate signal cables from high-current lines by at least 20 cm, rerouting or using shielded twisted-pair cables if interference persists. Check for damaged insulation exposing bare wire, which can create parasitic capacitance.

Intermittent audio dropouts often stem from loose terminal crimps. Use ratcheting crimpers with appropriately sized dies for the wire gauge (typically 18-22 AWG for aftermarket systems) and apply heat-shrink tubing to seal connections. Verify each joint by gently tugging–proper crimps withstand 5-7 kg of force without slipping.

For systems that fail to detect connected amplifiers, trace the remote turn-on lead. A 12V signal should appear at the amp’s remote terminal when the ignition is in accessory or on position. If absent, check the fuse in the trigger circuit and test for voltage at the source connector pin–dealer-installed factory units often repurpose this circuit for other functions.

Dim displays or fading headlights during audio peaks suggest insufficient power delivery. Upgrade the main power feed to 4 AWG for systems drawing over 80W RMS, ensuring the fuse sits within 45 cm of the battery. For high-current setups, replace the factory alternator with a 150-200A unit to maintain stable voltage under load.

Unbalanced channel output typically points to reversed speaker polarity. Confirm phase alignment by playing a mono test tone–both drivers should move outward simultaneously. Use a phase meter or invert one channel’s polarity while monitoring bass response; correct polarity yields noticeably deeper bass.

When retrofitting older vehicles, confirm the factory sound processor doesn’t interfere with aftermarket signals. Some models inject noise suppression signals that clash with new amplifiers–bypass the factory module if waveforms show high-frequency anomalies during signal analysis.
