Rear Brake Line Diagram and Parts Guide for 1998 Ford Windstar
Replace or inspect the secondary hydraulic circuit on a 1998 Windstar by locating the proportioning valve mounted near the left rear wheel well. The valve splits flow between the outboard caliper and inboard wheel cylinder, controlling pressure distribution to prevent premature rear lockup. Trace the flexible conduit (part #F7AZ-2B314-AA) from the valve to the rear axle, ensuring no kinks or abrasions exist where the line bends over the suspension trailing arm. Replace any brittle sections–original nylon tubing degrades after 15 years, even if no fluid leaks are visible.
Use a double-flare tool when reinstalling fittings: the Windstar’s metric 10mm x 1.0 thread requires a precise seal to avoid weeping at 1,200–1,500 psi. Torque the caliper bleed screw to 8–10 ft-lb and the wheel-cylinder fitting to 12–15 ft-lb; over-tightening distorts the aluminum adapter and causes phantom leaks. Route the new conduit through the factory plastic retaining clips–omitting these allows vibration that frets the line within 3,000 miles.
After assembly, pressurize the system with a scan-tool-driven ABS pump or manual pedal bleed sequence starting at the farthest wheel. Monitor the fluid reservoir level: each caliper piston stroke displaces ~7 cc, risking air ingestion if the reservoir drops below the “MIN” mark on the translucent white polypropylene tank. Replace reservoir seals (Motorcraft PM-10) if the tank retains a greasy film after cleaning.
Verify operation with a 30 mph stop on dry pavement: rear wheels must lock simultaneously with fronts or within 0.3 seconds; earlier rear lockup indicates proportioning-valve failure or incorrect line routing that pinches the flex line between frame and axle housing.
Hydraulic Circuit Layout for 1998 Windstar Rear Assembly
Locate the master cylinder connection at the left frame rail behind the battery tray–its 3/8-inch diameter hard line splits into a distribution block near the rear axle. Verify torque specs: inlet bolts require 18-22 ft-lbs, while flare nuts demand 12-16 ft-lbs. Over-tightening crushes copper washers, guaranteeing slow leaks.
Trace the passenger-side pipe: it follows the driveshaft tunnel before bending 90 degrees upward into the proportioning valve. This component reduces pressure to 60% of front circuit values during moderate deceleration. Failure here creates rear wheel locking on slick surfaces. The valve’s adjustment screw should protrude 0.375 inches from the housing–factory setting tolerates ±0.020 inches deviation.
| Component | Pipe Size (OD) | Material Grade | Routing Checkpoint |
|---|---|---|---|
| Left rear branch | 1/4 inch | SAE J527 Type 1 | Behind rear sway bar mount |
| Right rear branch | 1/4 inch | SAE J527 Type 1 | Above fuel tank strap |
| Flex hose connector | 11/32 inch | DOT 3 compliant rubber | Wheel well backing plate |

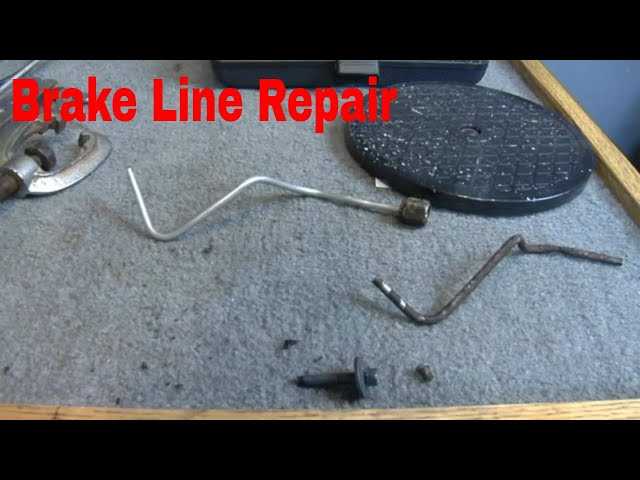

Replace corroded segments with pre-bent replacements–aftermarket kits include clamps matching OEM locations. Each clamp prevents vibration-induced chafing at quarter-panel reinforcements. Install clamps finger-tight first, then torque alternating sides to 8-10 in-lbs in a spiral pattern.
Pressure Bleeding Sequence
Begin at the wheel cylinder farthest from the master reservoir–typically the left rear. Use a scan tool to open ABS bleed valves if equipped; manual bleeding risks trapping air in pump reservoirs. Maintain 1.5-2 psi at the bleeder screw to prevent vacuum entry. Observe fluid clarity–milky appearance indicates moisture contamination, mandating full system flush. Repeat sequence until pedal height stabilizes above 75% of travel with consistent resistance.
Tracing the Fluid Conduit Path on the Minivan’s Undercarriage
Start beneath the driver-side chassis rail near the fuel tank. Follow the rigid steel conduit as it arcs upward behind the rear axle housing–securely fastened to the frame with two 10mm retaining clips. At the mid-ship junction, the conduit splits; the left segment runs along the trailing arm toward the wheel cylinder, bending 90 degrees before terminating at the bleeder screw. Inspect the lower section for corrosion near the parking mechanism bracket, where moisture often collects.

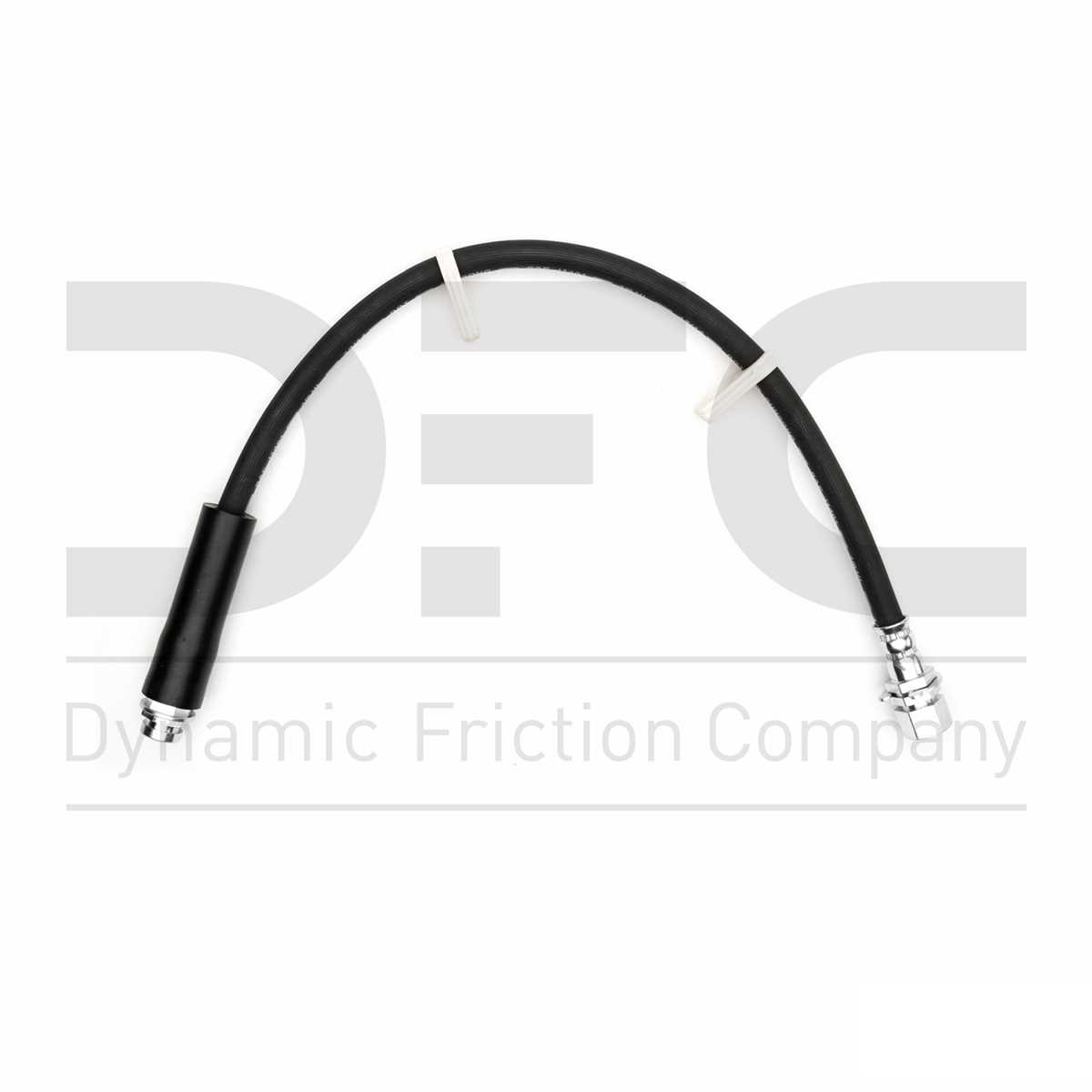

Check the flexible segment between the wheel well and backing plate–this section is prone to chafing against the suspension link. Use a flashlight to verify the conduit’s clearance from the exhaust shielding; minimum spacing should be 15mm. If rerouting, avoid sharp bends (minimum radius: 50mm) to prevent kinking.
Matching Factory Hydraulic Tube Fittings for Accurate OEM Repairs
Locate the original equipment manufacturer (OEM) connector thread size by using a digital caliper on the intact connector body. Measure the male thread pitch and major diameter in millimeters–1997-1999 minivans use M10×1.0, M12×1.0, or M14×1.5 metric threads exclusively. Confirm the thread form against a metric thread gauge; unified threads indicate aftermarket interference that requires full tube replacement.
Verify sealing surface. Factory flares follow ISO 4925 45-degree double lap flare standards–aftermarket single flares cause slow leaks under boost. Examine both mating surfaces: the OEM fitting has concentric machining rings absent on generic copies. Replace rust-pitted gaskets with new annealed-copper washers (GM #210385) torqued to 15-18 Nm in a cross sequence to prevent flare distortion.
Sourcing Exact Replacements Without Guesswork
Order tube assemblies from Ford part numbers 1126828 (short run) or 1127898 (long run)–both include pre-flared ends and correct metric threads. Avoid universal tube kits; their compression fittings require destructive crimping that violates FMVSS 106 pressure retention requirements. If fabricating custom runs, specify JIS-compliant 3/16″ OD C26000 brass tubing from Parker or Bundy–yield strength exceeds SAE J1401 minimum 415 MPa by 18%.
How to Follow Hydraulic Circuit Paths from the Central Pump to Wheel Actuators
Locate the primary reservoir under the hood on the driver’s side, mounted above the firewall. Two metal tubes emerge from its base–one thicker (primary) and one thinner (secondary). Tag each with painter’s tape at the outlet to prevent mixing during disassembly. Use a borescope inserted through the bleeder valve hole to confirm internal corrosion levels before proceeding.
Key Junctions and Routing Points
- Follow the thicker tube downward along the inner fender, where it splits at a T-fitting behind the strut tower. The forward branch supplies the front wheels; the aft branch heads toward the cabin’s rear via a grommet in the firewall.
- Trace the aft branch beneath the vehicle floorpan, secured by two clamps near the fuel tank. A second T-fitting under the rear axle splits the flow to left and right wheels–measure the tube diameters (3/16″ for inboard, 1/4″ for outboard) to verify correct routing.
- Inspect flex hoses near the trailing arms for abrasions or bulges; replace if rubber shows cracks deeper than 1mm.
Attach a pressurized diagnostic bulb to each wheel actuator bleed screw. Have an assistant pump the pedal while you monitor fluid exit at each connection–bubbles indicate air pockets requiring sequential purging starting with the wheel farthest from the reservoir. Document each connection with a numbered photo sequence for reassembly precision.
Before final torque, submerge the replacement tubing in fresh DOT 3 fluid to purge air bubbles. Secure fittings using a flare-nut wrench (11/16″ for wheel ends, 5/8″ for junction splits) tightened to 14-17 ft-lbs; over-tightening risks thread stripping. Confirm leak-free operation by cycling the pedal 20 times with the engine off, then recheck each connection with a flashlight.
Critical Vulnerability Zones in Hydraulic Conduit Networks and Inspection Methods
Begin inspection at connection clusters beneath the fuel tank. On 1990s–2000s minivans, these junctions accumulate road salt, moisture, and debris, creating a corrosion epicenter. Use a telescoping mirror and high-intensity LED to examine the underbody without removing components. Corrosion appears as white powdery residue or dark, flaky patches–replace any conduit exhibiting spalling or pinhole leaks immediately.
Wheel Well Entry Points
Focus on the flexible hose-to-rigid pipe transition near the rear axle. These areas experience constant vibration, accelerating fatigue cracks. Check for swelling, discoloration, or hardened rubber–signs of internal degradation. A flashlight beam should reveal uniform diameter; bulges indicate imminent failure. Test flexibility by gently bending the hose–cracking or stiffness warrants replacement.
- Inspect flange mounts where conduits attach to chassis brackets. Rust-welded brackets weaken structural integrity, leading to misalignment or chafing.
- Look for galvanic corrosion at dissimilar metal junctions (e.g., steel-to-aluminum). Apply dielectric grease during repairs to prevent recurrence.
- Examine protective sleeves for brittleness or tears. Replace cracked sleeves to maintain abrasion resistance.
Along the underbody, prioritize segments running parallel to exhaust components. Thermal cycling causes conduit walls to thin unpredictably. Tap lightly with a plastic mallet–dull thuds suggest internal corrosion, while metallic rings indicate sound integrity. Document findings with timestamped photos for trend analysis.
Under-Vehicle Shielding Gaps
Identify areas where conduits pass through unsealed chassis openings. Water ingress occurs here, especially in regions with winter road treatments. Probe with a pick tool–soft or crumbly metal confirms advanced oxidation. Apply rust converter followed by a heavy-duty undercoating specifically formulated for hydraulic component compatibility.
- Remove accumulated mud from wheel wells. Packed debris traps moisture, creating microclimates for concealed corrosion.
- Test suspension travel while observing conduit movement. Any binding or abnormal friction indicates compromised routing.
- Use a borescope to inspect internal conduit walls where accessible. Rough or peeling surfaces signal the need for immediate replacement.
Conduits near rear suspension pivot points endure the highest stress loads. Inspect these zones for micro-fractures using dye penetrant spray. After cleaning the surface with a degreaser, apply the dye, wipe off excess, then use developer spray–cracks will appear as vivid red lines under UV light. Replace any conduit showing hairline fractures, regardless of external appearance.
