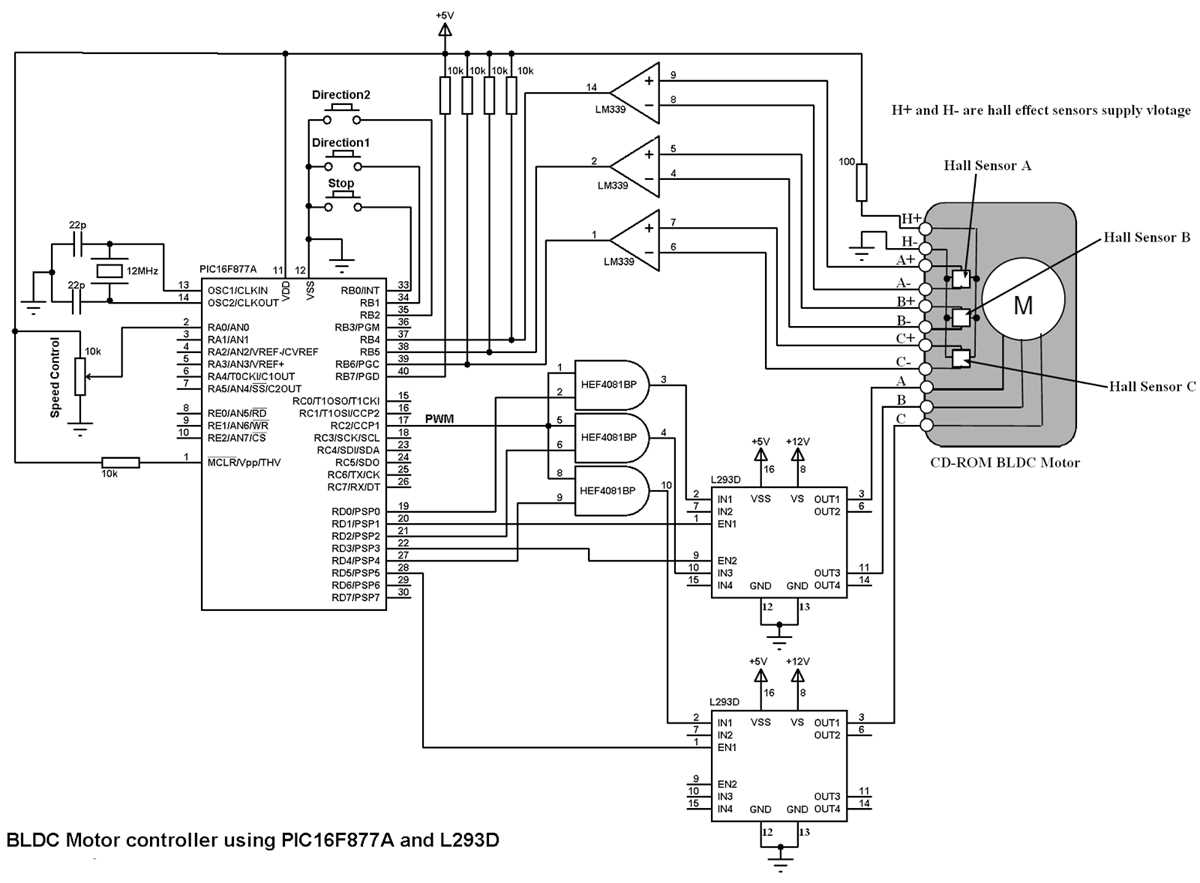

Complete BLDC Motor Driver Circuit Schematic and Design Guide
Use a three-half-bridge configuration with N-channel MOSFETs (IRFZ44N or similar) for switching phases. Place a current-limiting resistor (0.1–0.5Ω) in series with each gate to prevent voltage spikes. A gate driver IC like the DRV8301 or TC4427 isolates control signals and amplifies them to 10–15V for reliable MOSFET activation. Avoid optocouplers for high-speed operation–opt for dedicated drivers with built-in dead-time control (50–200ns) to prevent shoot-through.
For back-EMF sensing, connect phase voltage dividers (10kΩ/2kΩ) to a comparison network (LM339 or internal MCU comparators). This eliminates Hall-effect sensors, reducing cost and complexity. Ensure the commutation logic syncs with rotor position by sampling phase voltages at 20–50kHz. Use a low-pass RC filter (1kΩ/10nF) on each phase to reduce noise before ADC sampling.
Regulate power with a buck converter (LM2596) to supply 5V/3.3V for logic. Add a flyback diode (UF4007) across the input to handle reverse voltage spikes. For thermal protection, place a 10kΩ NTC thermistor near MOSFETs, interfaced to a microcontroller’s ADC. Program fault shutdown at 100°C with hysteresis (5–10°C) to prevent oscillation.
Grounding requires star topology–separate high-current paths from signal returns to avoid voltage offsets. Use 100nF ceramic capacitors across each MOSFET’s drain-source and the power input to suppress switching noise. For high-power applications (>5A), parallel MOSFETs and add 10µF electrolytic capacitors on the main bus to stabilize voltage.
Key Schematics for Precision Actuator Control
Select a three-phase inverter configuration with totem-pole MOSFETs (e.g., IRFB3077) or IGBTs (e.g., IRG4PH50K) rated for 1.5x the peak load current. Pair each high-side switch with a low-side counterpart, ensuring dead-time generation of 1–2 µs to prevent shoot-through. Use a gate driver IC like DRV8301 or IR2130 to isolate control signals from power rails, with bootstrap capacitors (0.1–1 µF) for floating supplies. For sensorless applications, integrate back-EMF zero-crossing detection via comparators (LM339) connected to phase terminals through 100 kΩ resistors; filter noise with 1 nF capacitors to ground.
Implement current sensing using shunt resistors (0.01–0.05 Ω) on the low-side of each phase leg, amplified by an op-amp (e.g., INA240) with a gain of 20–50. Route the output to an ADC (12-bit minimum) for closed-loop torque control. For commutation logic, use a microcontroller (STM32F303, dsPIC33) with dedicated PWM peripherals (6-channel complementary output, 20–100 kHz frequency). Ensure PCB traces for power paths exceed 2 oz copper thickness, with star grounding between digital and analog sections to minimize interference.
Component Selection Checklist
- Power stage: MOSFETs/IGBTs with Rdson < 5 mΩ (or Vce(sat) < 1.5 V for IGBTs)
- Gate drivers: 9–15 V supply, 1 A sink/source capability
- Current shunt: Kelvin-connected, temperature coefficient < 100 ppm/°C
- Bootstrap diodes: Schottky, 1 A, 50 V (e.g., 1N5819)
- EMC filtering: LC filters (10 µH + 100 µF) on inputs; ferrite beads on signal lines
- Protection: TVS diodes (500 W) across DC bus; overcurrent threshold set to 120% of nominal
- Calculate maximum phase current via:
I_peak = (2 * P_out) / (√3 * V_DC * η), where P_out = mechanical power, η = efficiency (0.85–0.95). - Verify PWM resolution ensures commutation steps < 1° electrical at max RPM (e.g., 10-bit PWM for 10,000 RPM actuator).
- Test closed-loop response with a step load change (0% to 100%); settle time should be < 20 ms.
Key Components for a Three-Phase Electronic Commutation System
Start with a microcontroller or DSP that delivers precise PWM signals–STM32F4, TI C2000, or Microchip dsPIC33 are optimal for real-time control at 10–50 kHz switching frequencies. Ensure the chosen unit has dedicated capture-compare modules, dead-time insertion, and at least 12-bit resolution for current sensing to avoid torque ripple. For sensorless designs, integrate back-EMF filtering using an op-amp network (e.g., MCP6002) with
| Component | Recommended Part | Critical Specifications |
|---|---|---|
| Gate Drivers | DRV8323 (TI), A4919 (Allegro) | ±6 A source/sink, >20 kV/µs CMTI, internal charge pump, 6–60 V input |
| Power Stage | STSPIN32F0 (ST), DRV8353RS (TI) | Integrated GaN or MOSFET bridges (RDS(on) |
| Current Sensing | INA240 (TI), AD8418 (ADI) | Bidirectional, 1% gain error, >500 kHz bandwidth, differential inputs |
Select gate drivers with >20 kV/µs common-mode transient immunity (CMTI) and current ratings exceeding your peak phase current by 2×–DRV8323 or A4919 handle 6 A continuous with built-in 12 V LDO regulators. For power switches, prioritize low RDS(on) MOSFETs or GaN transistors: EPC23102 (GaN) offers 5 mΩ at 100 V, reducing conduction losses by 40% versus silicon. Include bootstrap diodes (e.g., BAS40) with
Implement overcurrent protection via fast comparators (TLV3501) with 1.5× nominal–connect directly to gate driver enable pins. For thermal management, mount NTC thermistors (Murata NCU18WF104J60) near windings and switches, interfaced to MCU via SPI/I²C. Decouple all power rails with ceramic capacitors: bulk electrolytic (470 µF/50 V) for low-frequency stability, plus 0.1–1 µF ceramics (X5R/X7R) at each MOSFET driver pair. Use shielded twisted-pair cables for resolver/SIN-COS signals to reject EMI >50 kHz.
Step-by-Step Assembly of a 3-Phase Electronic Speed Controller Board
Begin by arranging all components on a perforated prototype board sized at least 70x50mm. Verify the following parts against the schematic: MOSFETs (IRF540N x6), gate resistors (47Ω x6), bootstrap capacitors (0.1μF x3), freewheeling diodes (1N4007 x6), current-sense resistor (0.01Ω, 5W), and a microcontroller (STM32F103C8T6). Place the MOSFETs first, ensuring their metal tabs face the board’s edge for heatsink attachment later.
Solder the gate resistors directly between each MOSFET gate and the microcontroller output pins, avoiding long traces to prevent signal degradation. The bootstrap capacitors connect from the MOSFET source (low-side) to the gate driver supply voltage; position them no farther than 10mm from the FETs. Route the freewheeling diodes in antiparallel with each FET, cathode toward the supply rail, to clamp inductive spikes.
Assemble the current-sense network next. Mount the 0.01Ω resistor on the low-side return path, using thick traces or jumper wires to handle the 5A+ load without excessive voltage drop. Connect its terminals to an operational amplifier (LM358) configured as a differential amplifier with a gain of 50, scaling the 0-50mV input to 0-2.5V for the microcontroller ADC.
- Check for shorts between power rails after soldering each stage.
- Use a 1kΩ pull-down resistor on each gate to prevent floating inputs.
- Place decoupling capacitors (0.1μF ceramic) near the microcontroller VDD pins.
Wire the microcontroller to the gate resistors following this pin assignment: PA0–PA2 for phase A/B/C high-side, PA3–PA5 for phase A/B/C low-side. Configure the STM32 timers in PWM mode with center-aligned outputs, dead-time set to 1μs, and switching frequency at 16kHz. Upload a pre-tested commutation sequence that cycles through the six-step pattern, ensuring no two high-side or low-side FETs conduct simultaneously.
Attach the board to a DC supply (12–24V) through a fuse (10A) and a 100μF bulk capacitor. Before powering on, probe each FET gate with a multimeter to confirm no unintended bias exists. Monitor the current-sense output with an oscilloscope–spikes exceeding 3V indicate incorrect diode placement or inadequate decoupling.
- Spin the rotor by hand to verify free movement; resistance suggests incorrect commutation timing.
- Calibrate the hall sensors if used, adjusting their placement until the microcontroller detects transitions at 60° intervals.
- Secure the assembly in a grounded aluminum enclosure, thermally bonding the MOSFETs to the chassis with thermal adhesive.

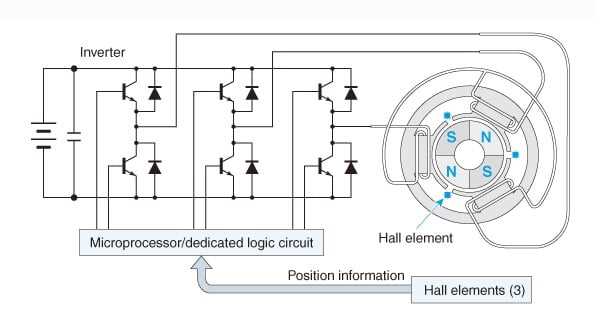

Hall Sensor Integration for Rotor Position Detection
Position three Hall elements at 120° intervals around the stator to achieve optimal phase alignment with the permanent magnet poles. Ensure each sensor’s active face points directly toward the rotor’s magnetic field lines–misalignment exceeding 5° introduces phase lag, degrading commutation accuracy. For NEMA 17-sized assemblies, space sensors 3.5 mm from the rotor surface; closer proximity increases noise susceptibility, while greater distance weakens signal strength.
Pair sensors with low-offset comparators (CC and ground to suppress high-frequency noise generated during switching transitions.
Wiring and Signal Conditioning
Connect Hall outputs to a low-pass RC network with a 1 kΩ resistor and 100 nF capacitor to smooth PWM-induced ripple before feeding signals into the MCU. Avoid routing sensor traces parallel to power lines carrying currents above 2 A–cross-talk can corrupt readings by up to 30%. Use twisted pairs with grounded shielding for wiring longer than 15 cm; test continuity and insulation resistance (>10 MΩ) after assembly to prevent signal degradation.
Calibrate sensor thresholds at room temperature (25°C), then validate across operating extremes–Hall voltage outputs drift ~0.2%/°C. For a 5 V supply, set comparator thresholds at 2.3 V and 2.7 V (typical for unipolar sensing). Implement a 2 μs blanking period in firmware to discard transients during pole transitions, reducing erroneous commutation by 40%. Store calibration offsets in EEPROM if positional accuracy below ±1° is required.
Failure Modes and Mitigation
Monitor sensor supply current–abnormal drops (15 mA) suggest shorted outputs. Replace sensors if output swings deviate >15% from nominal values after magnetic field exposure. For high-speed applications (>10,000 RPM), add a 100 Ω series resistor to each output to dampen inductive kickback from switching MOSFETs. Test sensor hysteresis curves post-assembly by sweeping a magnet across the rotor face–any asymmetry >0.3 V warrants sensor replacement.
