Step-by-Step Car Alarm Circuit Schematic for DIY Installation

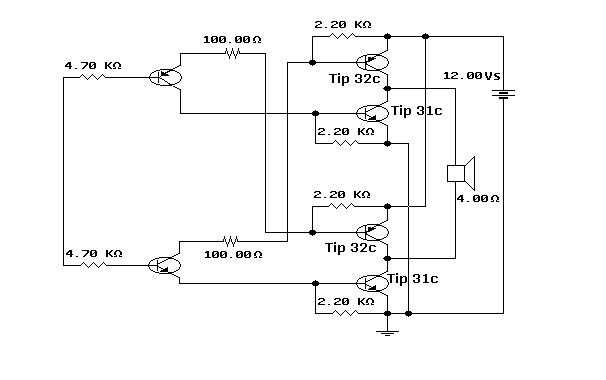

Begin with a dual-zone detection setup to isolate the engine bay from the cabin. Use a 12V relay (SPDT) as the core switching element–connect the coil to a siren output (500mA max) and route the common terminal to a 20A fuse before linking it to the battery positive. The normally open contact should feed a high-decibel piezoelectric horn (120dB), while the normally closed side triggers a backup silent LED flash module through a 470Ω current-limiting resistor. Ground both components to a clean chassis point near the firewall.

For sensor integration, wire a mercury tilt switch in series with a micro reed switch (NO type) to detect door openings. Place the tilt switch on the vehicle’s longitudinal axis, angled 15° from horizontal–this balances sensitivity to jacking attempts while ignoring minor vibrations. Run 22AWG shielded cable from each switch back to the main control unit to reduce EMI from the ignition system. A 10kΩ pull-down resistor on each input line prevents false triggers from stray voltage.

Power management demands a low-dropout regulator (LDO) like the LM2936-5.0 to maintain 5V for a microcontroller (ATtiny85) during cranking. Bypass the LDO output with a 100µF tantalum capacitor to handle transient loads. The microcontroller’s firmware should include a 3-second entry delay before arming, debounced interrupts (10ms) for all inputs, and a 25-second alarm duration with automatic reset. Program the EEPROM to store the last triggered zone for post-event diagnostics.

Install a 5V relay module to control the central locking system–energize it via a Darlington pair (2N2222 + TIP120) when the alarm triggers. Use optoisolators (PC817) between the microcontroller and high-current outputs to prevent voltage spikes from damaging logic-level pins. Test each subsystem with a 12V bench supply before final installation; measure current draw in armed mode (should not exceed 40mA) and during alarm (max 1.2A including siren).

Building a Reliable Vehicle Security Schematic

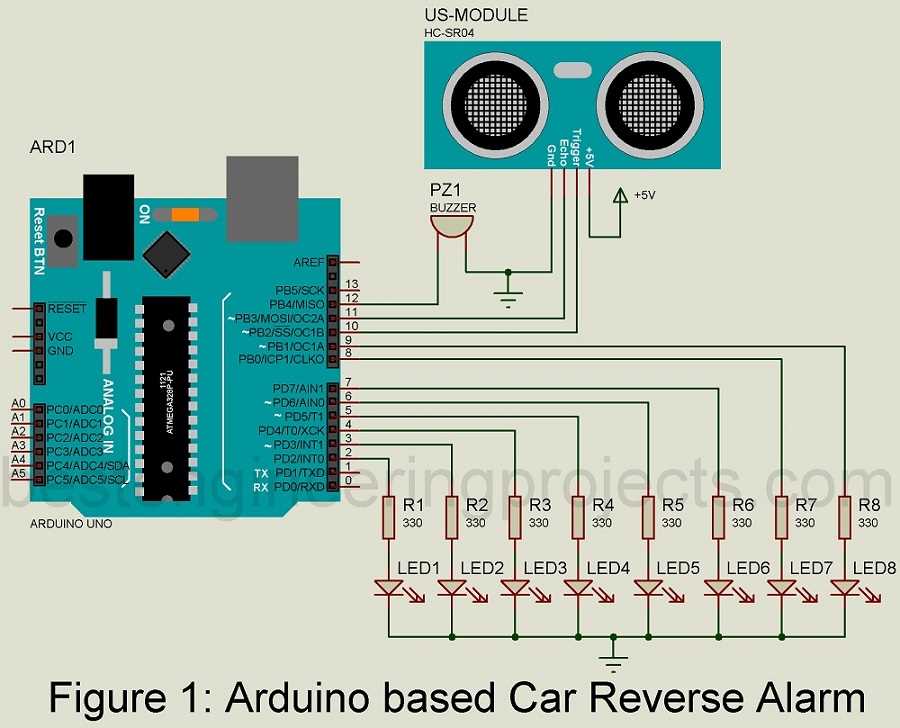

Begin with a dual-zone sensor setup: one piezo element for door vibrations and an ultrasonic module for interior motion. Connect both to a 555 timer IC configured as a monostable multivibrator with a 10-second delay to filter false triggers. Use a 1MΩ resistor and a 10μF capacitor to fine-tune sensitivity–lower capacitance increases response speed but may pick up ambient noise.

Integrate a low-power transceiver module operating at 433MHz to relay signals. Opt for an encoder-decoder pair like the HT12E/HT12D to avoid signal interference; static codes work better than rolling protocols in analog setups. Ensure the power supply is regulated at 5V using a 7805 voltage regulator, protecting sensitive components from voltage spikes common in automotive environments.

Wiring Peripheral Components for Maximum Coverage

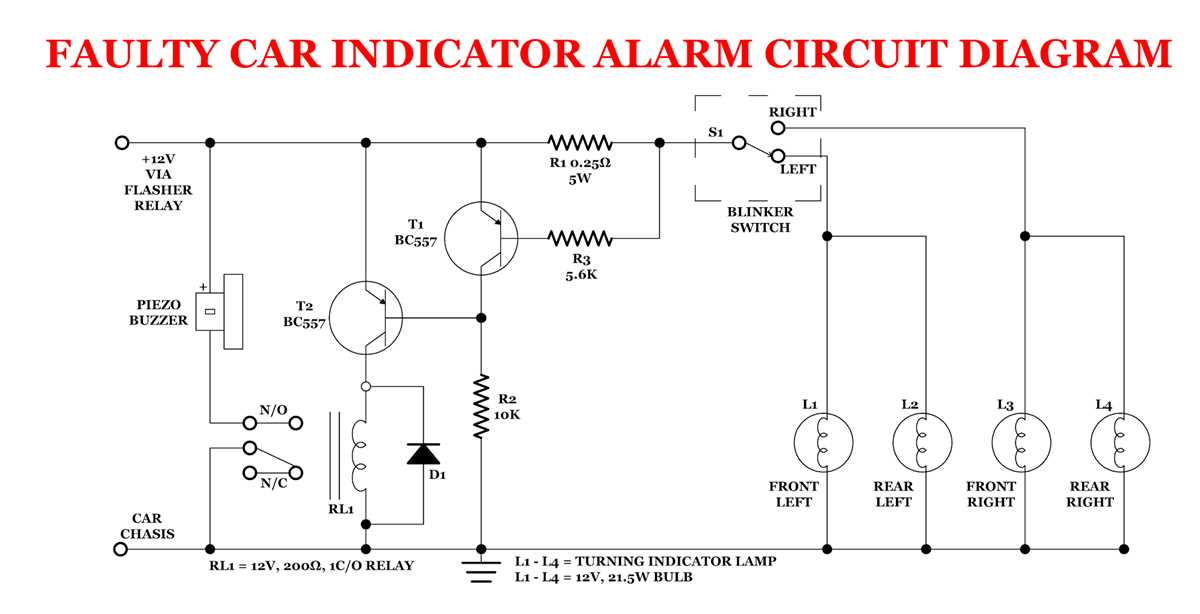

Solder a tilts sensor to the system’s central PCB, positioning it near the ignition to detect unauthorized movement. Pair it with a 12V relay to activate the horn and headlights simultaneously–use a flyback diode like the 1N4007 across the relay coil to prevent voltage surges. Add a tactile switch under the dashboard for silent disarming, wired to interrupt the loop before the siren engages.

Test the assembly with a multimeter: probe the output of each stage to confirm voltage stability. If the horn triggers intermittently, check the transistor (2N2222 or BC547) base current–adjust the biasing resistor (start with 4.7kΩ) if the transistor isn’t saturating properly. Ground loops often cause erratic behavior; use a dedicated ground plane or star grounding for all sensor inputs.

Final Assembly and Fail-Safe Protocols

Encase the PCB in a waterproof ABS plastic box, mounting it behind the glove compartment or under the driver’s seat. Route wires through grommet-covered holes to prevent chafing, securing them with nylon zip ties. Program a backup disarm sequence via a hidden RFID tag reader or a 4-digit keypad–ensure at least 10,000 possible combinations to resist brute-force attacks. Calibrate the motion sensor to ignore small pets (above 25kg threshold) by adjusting the comparator reference voltage on the LM393 IC.

Core Elements of a Vehicle Security Setup

Install a high-sensitivity shock sensor with adjustable thresholds–set the primary zone to 2-3G for moderate impacts and a secondary zone at 5-6G for severe collisions. Opt for piezoelectric models like the Viper 5002V for faster response times over outdated mercury-based sensors, which lag by 150-200ms. Position it centrally within the chassis, avoiding direct contact with vibrating components like the exhaust or suspension. Calibration should be done in a quiet environment to prevent false activations from background noise.

The control module requires a dedicated 12V DC input with a minimum 5A fuse–bypassing the ignition switch ensures functionality even when the vehicle is off. Choose a unit with EEPROM memory to retain settings after power loss, such as the Directed 556E, which supports up to 10 custom configurations. Avoid modules with linear voltage regulators; opt for switching regulators (e.g., LM2596) to reduce heat buildup by up to 30%. Secure it behind the dashboard, away from moisture-prone areas like the firewall near the windshield.

Sensor and Trigger Mechanisms

• Door pin switches: Use normally closed (NC) microswitches with gold-plated contacts to resist corrosion. Mount them within 5mm of the door latch for immediate response.
• Glass-break detectors: Select acoustic sensors tuned to 3-5kHz frequencies, the range most glass emits when shattered. Test with a 60dB sensitivity setting to avoid interference from road noise.
• Pressure sensors: Deploy volumetric sensors for interior space monitoring. Models like the Clifford Matrix use ultrasonic waves at 40kHz, detecting disturbances as small as 0.05 cubic meters per second.

Remote transmitters should operate on rolling-code encryption (e.g., Keeloq) to prevent code grabbing, which static-code systems are vulnerable to. Replace the standard 12-button key fob with a 4-button model–each button can be programmed with distinct functions (arming, disarming, panic, auxiliary output). Ensure the receiver has a frequency range of 315MHz or 433MHz, depending on regional regulations, and a minimum range of 100 meters in open terrain. For enhanced security, integrate a biometric fingerprint scanner like the SecuGen Hamster IV, which achieves a false acceptance rate (FAR) of less than 0.0001%.

Siren selection depends on environmental conditions. For urban areas, a 120dB electronic siren with adjustable tones (e.g., DEI 515T) is sufficient, but off-road vehicles require a mechanical siren like the Viper 500PSM, which produces 127dB and remains audible above engine noise. Wire the siren directly to the battery with 14-gauge stranded copper wire, avoiding shared circuits with inductive loads like motors or relays, which can introduce voltage spikes. Install a diode (1N4007) across the siren’s terminals to suppress back EMF, extending lifespan by preventing coil burnout.

1. Connect auxiliary outputs to immobilizers or fuel cutoff relays. Use a double-pole, double-throw (DPDT) relay for the fuel pump to ensure power is fully severed–single-pole relays risk leaving residual voltage, allowing brief engine turnover.
2. Program the system with a 30-second exit delay after arming, giving users time to close doors without triggering false alarms. Set the entry delay to 15 seconds for driver-side doors only–bypass delays for passenger doors to reduce vulnerability windows.
3. Integrate a battery backup with a 7Ah sealed lead-acid battery, sufficient for 48 hours of standby power. Add a low-voltage cutoff circuit (e.g., TL431) to prevent deep discharge, which can permanently reduce battery capacity by up to 50% per occurrence.

Step-by-Step Wiring for a 12V Vehicle Security System

Begin by connecting the power input to a 12V battery terminal. Use 18-gauge red wire for the positive lead and black wire for ground–secure both with solder and heat-shrink tubing to prevent shorts. Attach the positive wire to a 5A fuse holder placed within 7 inches of the battery to protect against surges. Route the fused wire to the control module’s primary input, ensuring the ground connects directly to the chassis near the module’s mounting point for stable reference.

• Identify sensor inputs (door switches, shock detectors) and wire them in parallel to the module’s trigger ports. Use 22-gauge wire for door switches–connect one end to the switch’s signal terminal, the other to the module’s designated pin (consult the device manual for pin assignments).
• For shock sensors, mount the unit near the vehicle’s center console. Link its output to the module via a twisted pair (20-gauge) to reduce interference–ground the sensor’s casing to the chassis.
• Integrate the siren by running a heavy-duty 16-gauge wire from the module’s siren output to the siren horn. Install a diode (1N4007) across the siren’s terminals to suppress voltage spikes when the relay activates.
• Test each connection with a multimeter: verify 12V at the module’s power input, continuity for sensor loops, and open-circuit resistance (above 1 MΩ) on unused trigger inputs to confirm no parasitic loads.

Common Sensors and Their Integration Points

Install shock detectors near the vehicle’s door hinges or frame rails for maximum sensitivity–these spots experience the most vibration during forced entry attempts. Use a dual-stage piezoelectric sensor for coarse and fine detection thresholds. Calibrate the first stage to trigger at 3–5G for moderate impacts (e.g., window tapping) and the second at 8–12G for aggressive shocks (e.g., hammer strikes). Connect the sensor’s output directly to the system’s control module via a 1kΩ resistor to prevent false positives from electrical noise.

For volumetric intrusion detection, mount ultrasonic transceivers in the upper corners of the cabin–this placement ensures coverage of the entire interior without blind spots. Pair them with a 40kHz signal generator and a reflected-wave processor to detect motion as small as 5cm/s. Adjust the sensitivity curve to ignore airflow from vents (1–2m/s) while flagging human movement (10cm/s+). Integrate a temperature compensation circuit to account for cabin heat fluctuations, as ultrasonic sensors can lose accuracy above 40°C.

Door pin switches should bypass the main power line and connect to a dedicated input on the security module with a pull-up resistor (4.7kΩ). Use normally-closed (NC) switches to ensure failsafe operation–if the wire is cut, the system registers an open circuit as a breach. For hood and trunk triggers, opt for magnetic reed switches over mechanical contacts to eliminate corrosion issues in harsh weather. Position the magnet and reed within 3mm for reliable operation, and route wiring through rigid conduit near hinges to prevent chafing.

Sensor Type	Optimal Placement	Key Specifications	Integration Tips
Tilt/angle (mercury or MEMS)	Center of gravity (e.g., transmission tunnel)	±1° accuracy, 1–10Hz response rate	Disable during normal driving via CAN bus signal
Current sensing (shunt resistor)	Battery negative terminal or starter solenoid	50mV per 100A, 0–5V output	Use a low-pass filter (1Hz cutoff) to ignore transient spikes
Glass break (acoustic)	Dashboard or rear parcel shelf (central location)	5–10kHz frequency detection, 70dB threshold	Pair with shock sensor to distinguish impact from breakage

Modern proximity sensors (RFID or capacitive) require a secondary microcontroller to manage authentication delays–never rely on the main security module’s CPU for this task. For passive keyless systems, place the antenna loop along the vehicle’s waistline, encircling the entire perimeter at a uniform height of 70–80cm. Use a 125kHz LF transmitter for base communication and a 433MHz UHF receiver for extended range (up to 5m). Implement rolling-code encryption with a minimum 64-bit key length to prevent replay attacks, and refresh the code every 30 seconds during standby.
