How to Read and Understand Automotive Electrical Wiring Schematics

Begin by identifying the central power distribution point in the vehicle’s wiring layout–typically the fuse box. Trace each fuse to its corresponding load module (e.g., headlights, fuel pump) using color-coded wires. Standard ISO/DIN conventions mark ground wires black, power supply red, and signal lines blue/yellow. Verify connections with a multimeter set to continuity mode; measurements should show near-zero resistance for intact paths.

Segregate the schematic into three key sections: primary ignition, engine control, and auxiliary systems. Prioritize the ignition section first, as it governs the relay network and starter solenoid. In modern vehicles, CAN bus lines (often orange/purple) intertwine with traditional wires–use a scan tool to confirm data flow integrity before physical checks.

For troubleshooting, isolate problematic branches by disconnecting terminal blocks methodically. A non-responsive fuel injector, for instance, may stem from a faulty ECU pin (check for 12V pulses) or corroded connectors (clean with contact spray). Always cross-reference wire gauges–16 AWG handles up to 10A, while 10 AWG supports 30A+ loads. Label split harnesses with heat-shrink tubing to prevent misrouting.

Update documentation by annotating the schematic with real-world modifications, such as aftermarket LED upgrades (note added resistors for load balancing). Store digital copies in SVG vector format for scalable edits, ensuring future repairs align with OEM tolerances (±5% for voltage drops).

Automotive Wiring Schematics: Hands-On Walkthrough

Start by locating the fuse box under the dashboard or hood–most manufacturers label it with a cover map showing relay slots and amp ratings. Verify each fuse’s condition using a multimeter set to continuity mode; a blown fuse reads infinite resistance. Replace only with the identical amperage rating printed on the casing; swapping a 10A for a 30A risks overheating wires.

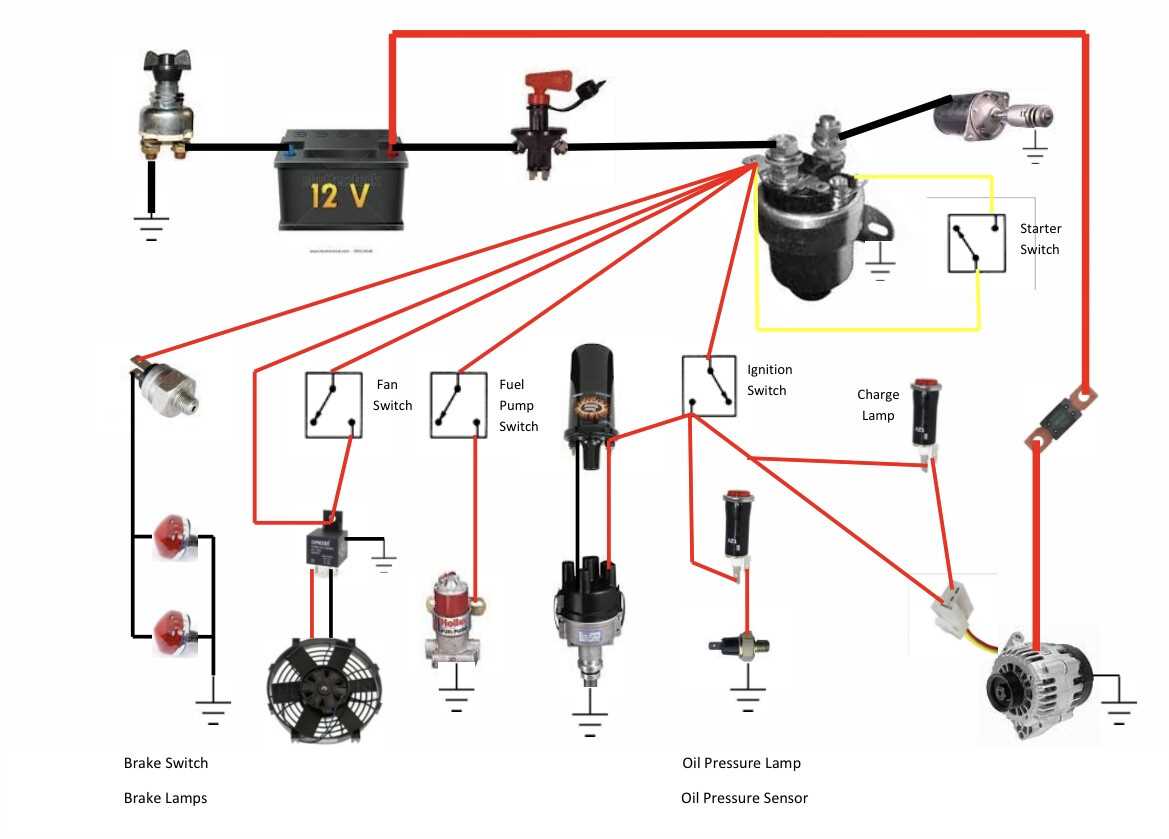

Trace the primary power feed from the battery’s positive terminal through the main cable harness. Use a wiring color code chart specific to your vehicle’s make–Toyota’s IG1 (black/red) differs from Ford’s KAPWR (pink/black). Mark each wire with masking tape noting its origin point before disconnecting connectors to prevent miswiring during reassembly.

Inspect ground connections: sand the chassis points where wires attach, removing rust or paint to ensure conductivity. A weak ground causes intermittent electrical faults. Measure voltage drop across grounds with the engine running–anything above 0.2V signals corrosion or loose connections requiring immediate cleaning or reattachment.

Advanced Troubleshooting Tactics

For relays, bypass suspected faulty units by jumpering terminals 30 and 87 with a fused wire–listen for the click to confirm coil operation. If the component (e.g., fuel pump) activates, replace the relay; silence means probe the control signal at terminal 85 using a test light, which should illuminate when ignition is on.

Deal with short circuits systematically: disconnect the battery’s negative terminal first, then isolate affected modules by unplugging connectors one by one until the short-clearing “click” of a multimeter’s fuse verifies the culprit. Use heat-shrink tubing, not electrical tape, to patch damaged wire insulation–tape traps moisture and degrades over time.

Generate your own schematic if factory documentation is unavailable: sketch components (alternator, ECU, sensors) and note wire gauge–18AWG handles 10A, while 12AWG supports up to 20A. Label each sketch with connector pin numbers from the vehicle’s service manual; cross-reference against part numbers printed on module casings for accuracy.

Calibrate a scanned copy of your diagram against live measurements–adjust voltage readings at critical nodes (e.g., 13.8V-14.4V at alternator output) and note deviations. Store annotated diagrams in a waterproof folder inside the glovebox for quick reference during roadside diagnostics or future modifications.

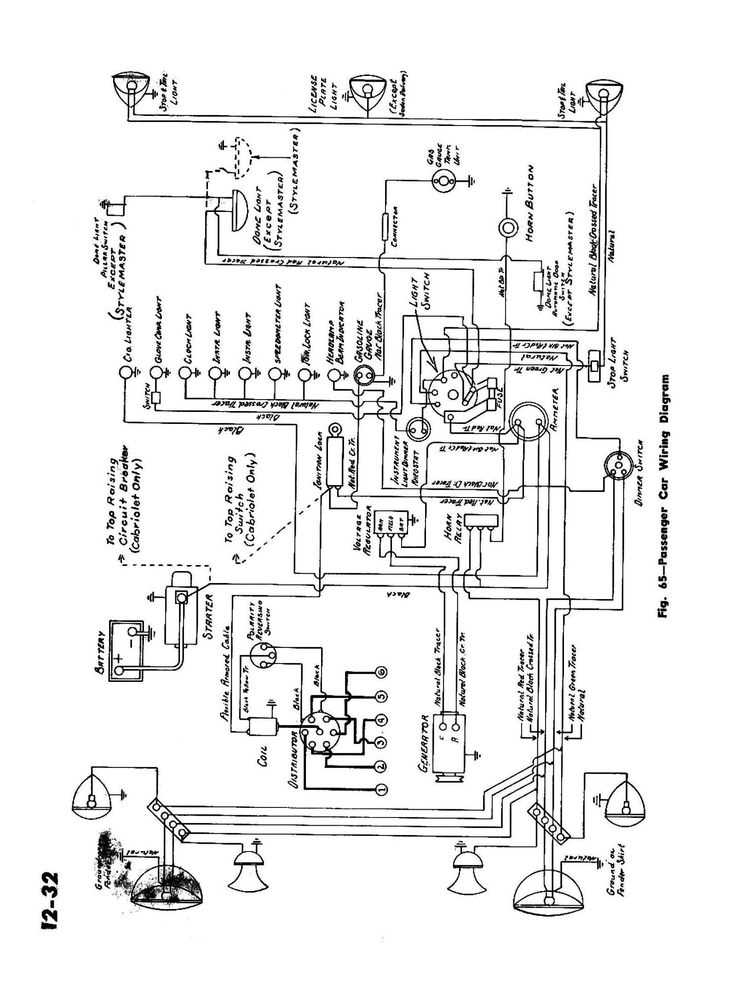

Understanding Automotive Electrical Schematics: A Practical Guide

Locate the power source first–usually a battery symbol at the top of the schematic. Trace the thickest line outward; this represents the main feed supplying current to all systems. Any junction where this line splits indicates a fuse or relay, marked with standardized symbols (e.g., a rectangle with a diagonal line for fuses, a square with a switch inside for relays).

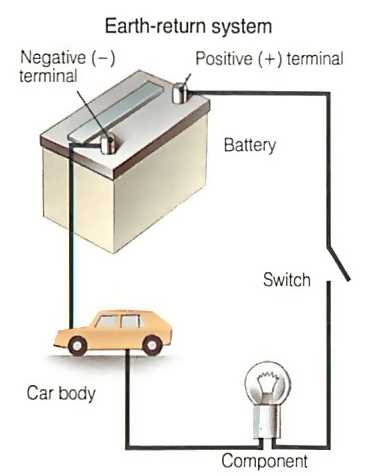

Identify ground points early; these appear as downward-pointing triangles or clusters of horizontal lines. All components must connect to ground to complete the path–verify each one directly or through a shared chassis link. Missing or broken connections here cause intermittent failures difficult to diagnose.

Recognize component symbols quickly: coils appear as loops, lamps as circles with an “X,” motors as circles with an “M” inside. Switches vary–momentary pushbuttons show a single contact line, while multi-position switches add parallel lines. Compare unfamiliar symbols against a reference chart to avoid misreading.

Follow color codes strictly; wires are labeled with alphanumeric combinations (e.g., “BRN/ORG” for brown with an orange stripe). Cross-reference these codes with the legend, usually placed along the edges of the schematic. Any inconsistency between colors and labels suggests a factory update–consult service bulletins if available.

Note wire gauges next to lines; thicker lines (lower AWG numbers) carry heavier loads. Overloaded circuits often fail here–check connectors and splices where gauge changes occur. Corrosion at these junctions manifests as voltage drops.

Trace signal flow methodically: start from the power source, move through switches, then loads, ending at ground. Sensors like temperature or speed modules introduce resistance or voltage changes–expect diamond-shaped symbols with input/output labels. Test these with a multimeter set to the appropriate range.

Isolate sub-systems by covering unrelated sections with paper or masking tape. Complex schematics often group lighting, ignition, and accessory circuits together; separating them reduces visual clutter. Highlight each path with a dry-erase marker to track progress without damaging the document.

Verify all splices and connectors–these appear as dots where lines intersect. Factory splices use crimp connections; aftermarket additions may show solder joints. Loose connections generate heat and resistance–probing with a non-contact voltage tester reveals active but failing links.

Essential Glyphs and Markings in Automotive Electrical Schematics

Begin by identifying the battery symbol–a pair of parallel lines, one longer than the other. The extended line represents the positive terminal; the shorter, the negative. This distinction is non-negotiable–misreading polarity risks frying sensitive modules like ECUs or alternators.

Recognize relays through their standardized outline: a rectangular box with three to five numbered pins. Pin 85 and 86 control the coil; 30, 87, and 87a handle switching. Ground pin 85 directly to chassis only if the fuse rating matches the load–otherwise, link it to a shared ground bus to prevent voltage spikes.

Switches appear as two connected points with a break or arc indicating open/closed states. Momentary pushbuttons use a diagonal line through the arc; rotary selectors include radial segments correlating to positions. Label each segment with voltage readings from a multimeter–deviations above ±0.2V suggest worn contacts or corrosion.

Fuses are rectangles with diagonal lines, always paired with amp ratings. Replace blown fuses only after verifying the circuit with a test light–probing both sides confirms whether the fault lies upstream or downstream. Always keep spare fuses sized 5A, 10A, 15A, and 20A in the glovebox.

Ground points are solid triangles with a line extending downward. Differentiate chassis grounds (triangle pointing left) from signal grounds (triangle pointing right). Poor grounding causes erratic sensor readings; clean mating surfaces with a wire brush and apply dielectric grease before securing bolts to 12-15 Nm torque.

Sensors feature varied shapes: thermistors resemble resistors with a temperature curve; Hall-effect devices show a magnet and target wheel; oxygen probes use zigzag lines within a cylindrical outline. Cross-reference sensor pinouts with manufacturer documentation–pin 1 typically carries reference voltage (5V), pin 2 signal output, and pin 3 ground.

Lighting elements–bulbs, LEDs–are circles with two lines for filaments or a single arrow for diodes. LEDs require series resistors; calculate resistance using R = (Vsource – Vforward) / Iforward, rounding up to the nearest standard value (e.g., 270Ω for 12V systems with 3V forward voltage). Install reverse polarity protection diodes to prevent LED burnout.

Wires are straight or curved lines, color-coded: red (power), black (ground), yellow (signal), blue (illumination), green (low current), white (high current). Joints are dots; splices show intersecting lines. Use a wiring harness diagram to trace circuits–beware of hidden splices behind dash panels or under carpeting, often corrosion hotspots.

Tracing Power and Ground Paths in Automotive Electrical Systems

Begin by isolating the fuse box or relay panel relevant to the malfunctioning component. Use a multimeter in continuity mode to verify power delivery from the battery-positive connection through the fuse or relay to the component’s feed wire. Measure voltage drop across connections–any reading above 0.2V indicates resistance, requiring cleaning or replacement of terminals.

Critical Ground Points and Common Failures

Ground paths often fail at chassis attachment points. Locate primary ground straps connecting the battery-negative post to the vehicle’s frame or engine block. Inspect for corrosion, loose bolts, or paint interference–these increase resistance. For motor-negative grounds (e.g., starter, alternator), trace directly to the battery; shared grounds can cause unpredictable voltage fluctuations.

Ground Location	Typical Resistance (Ohms)	Voltage Drop Threshold (Volts)
Battery-negative to frame		0.1
Engine block to frame		0.2
Component chassis ground		0.3

For components like ECUs or sensitive electronics, follow the wiring harness to dedicated ground points–often labeled in service manuals. Use a load test: connect a 10A draw (e.g., headlight bulb) at the component while monitoring voltage. If voltage sags beyond specs, the ground or power feed is compromised.

When tracing parasitic draws, disconnect the battery-negative cable and place an ammeter in series. Expect under 50mA for modern vehicles; readings above 100mA indicate a short. Probe each fuse by pulling one at a time–when the draw drops, the fault lies in that circuit. Check behind switches, relays, or modules for water intrusion or chafed wires.
